Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 9 images and 28 PNC and OE references.

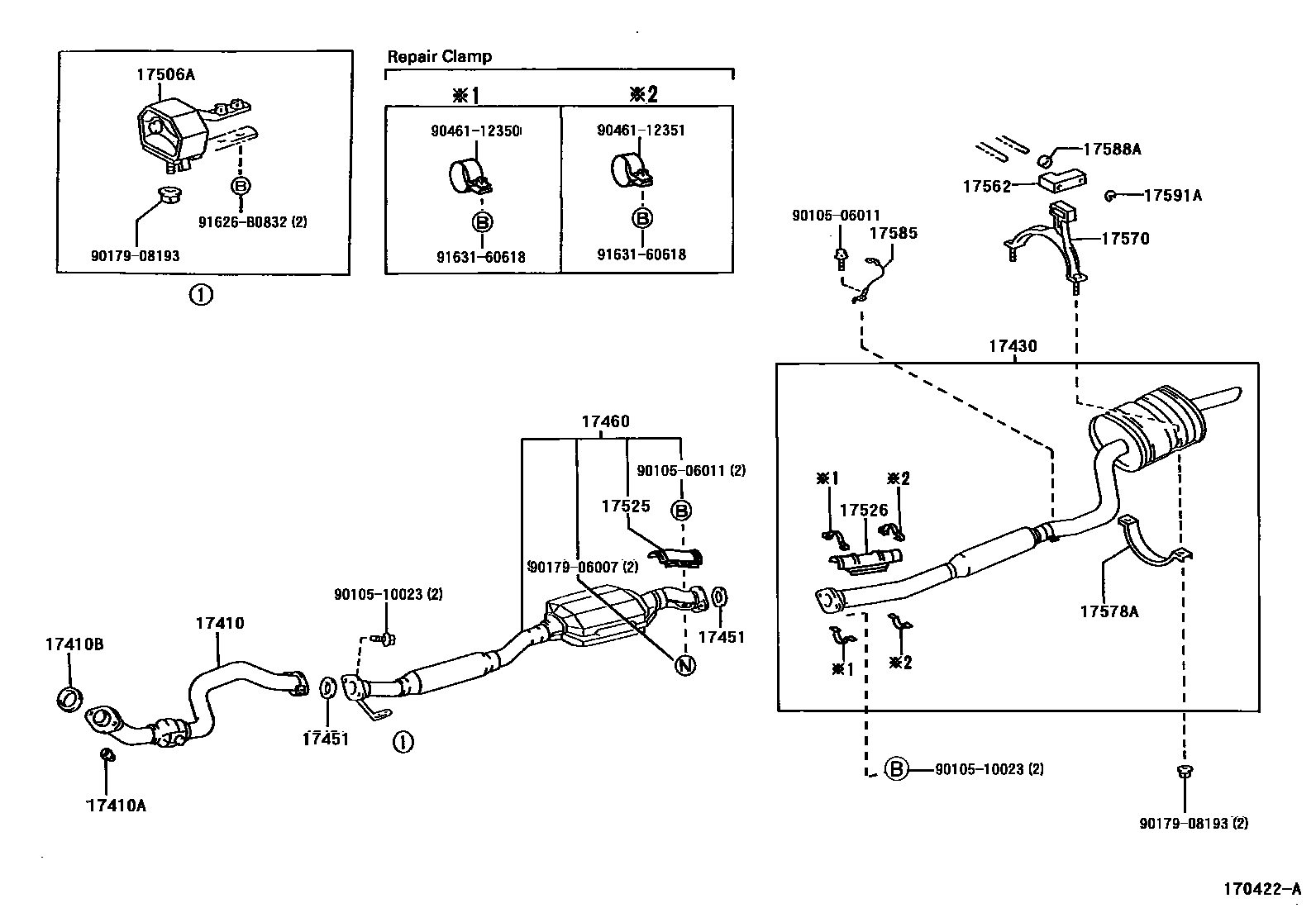

Toyota COROLLA Exhaust Pipe EPC diagram — 170422A
Exhaust Pipe — 170422A (199704 – 999999)

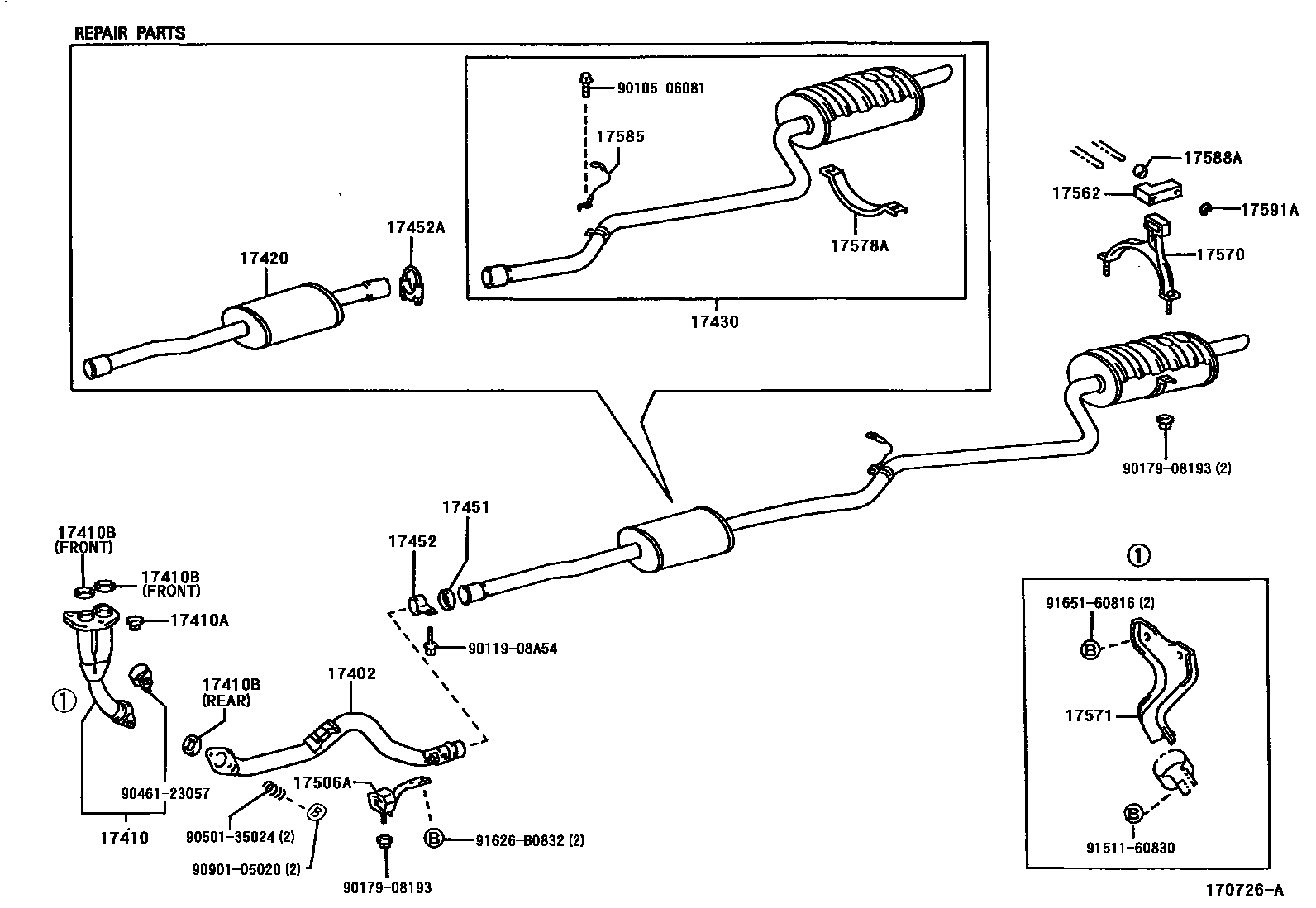

Toyota COROLLA Exhaust Pipe EPC diagram — 170726A
Exhaust Pipe — 170726A (199704 – 999999)

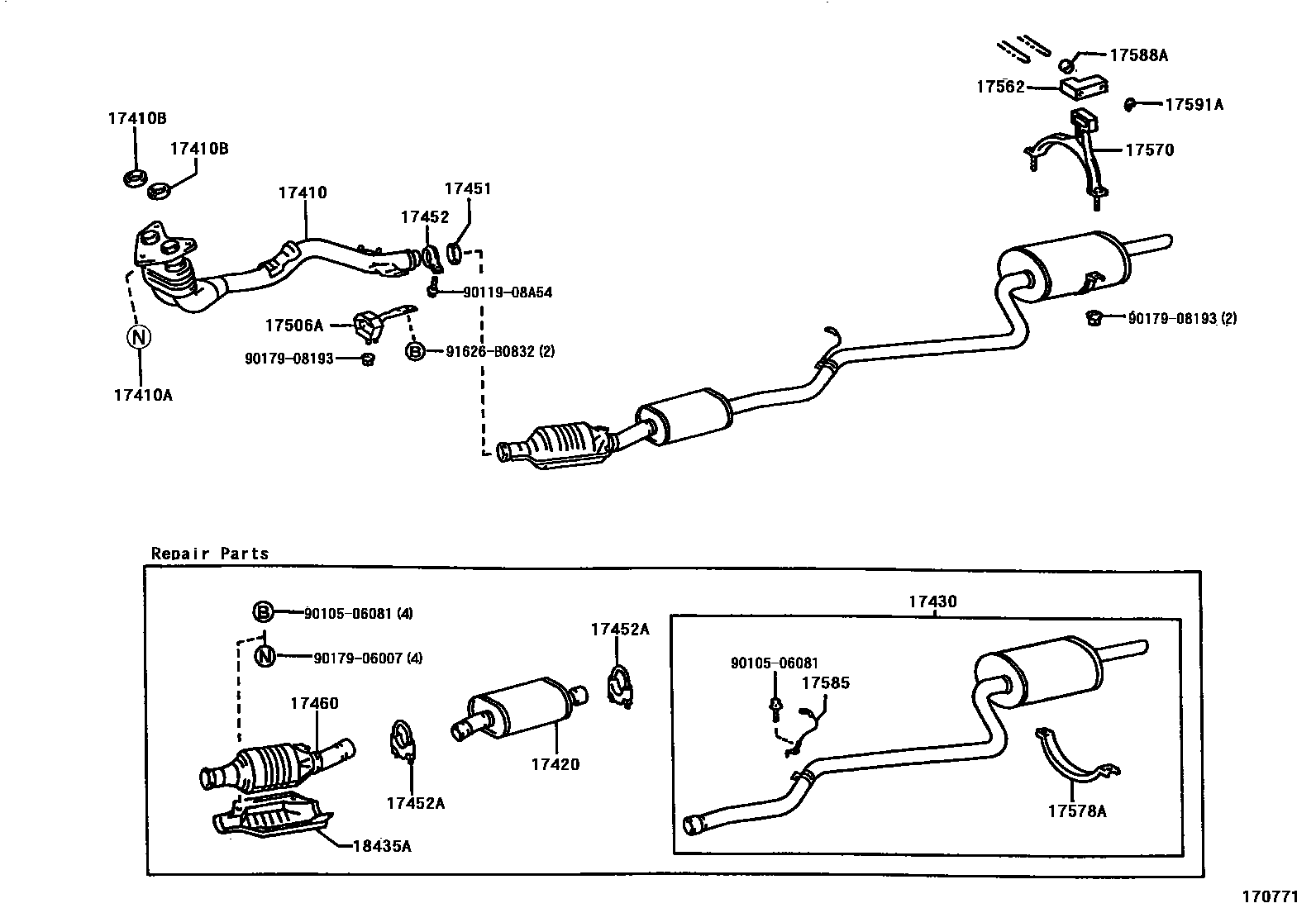

Toyota COROLLA Exhaust Pipe EPC diagram — 170771
Exhaust Pipe — 170771 (199704 – 199910)

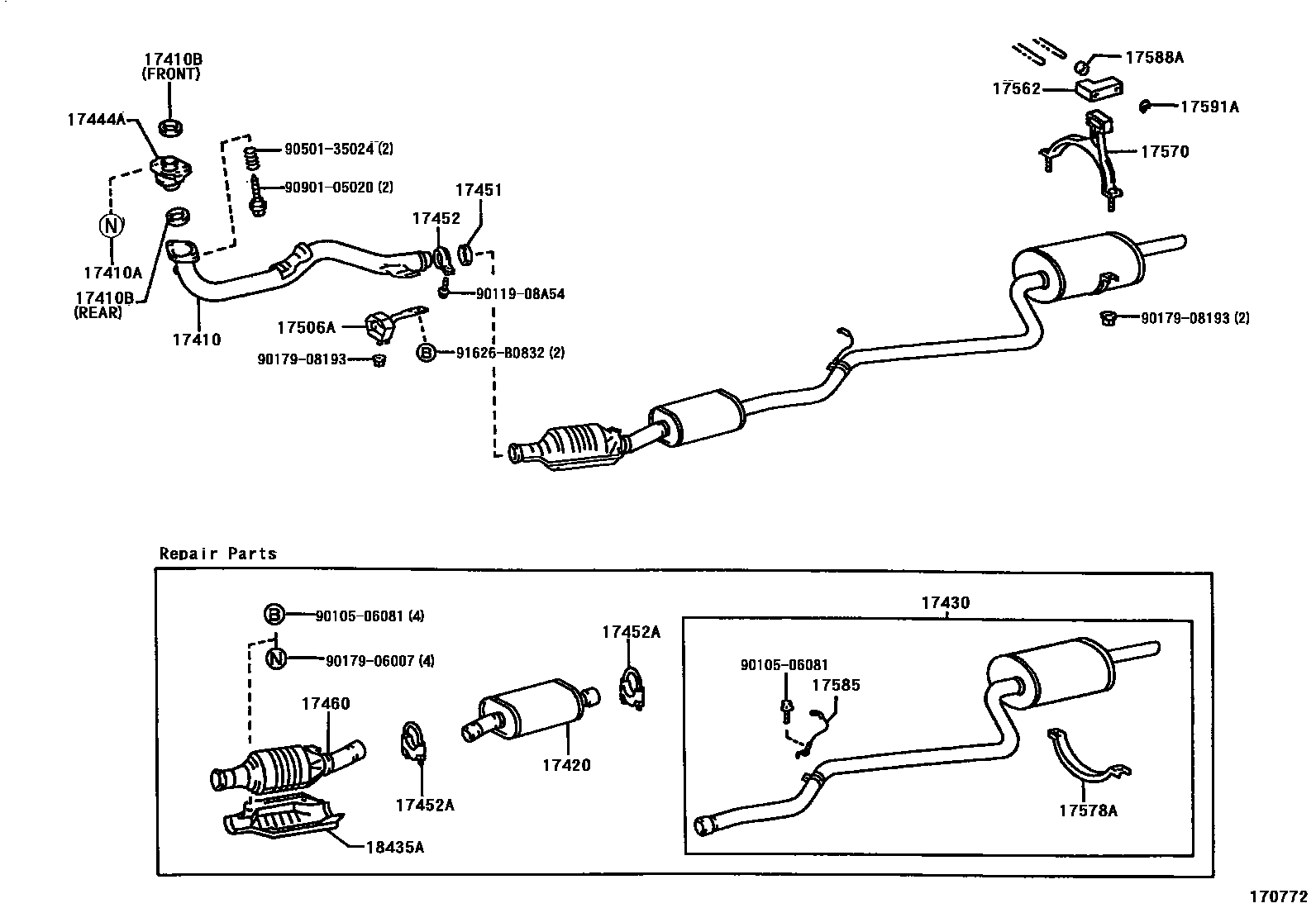

Toyota COROLLA Exhaust Pipe EPC diagram — 170772
Exhaust Pipe — 170772 (199704 – 199910)

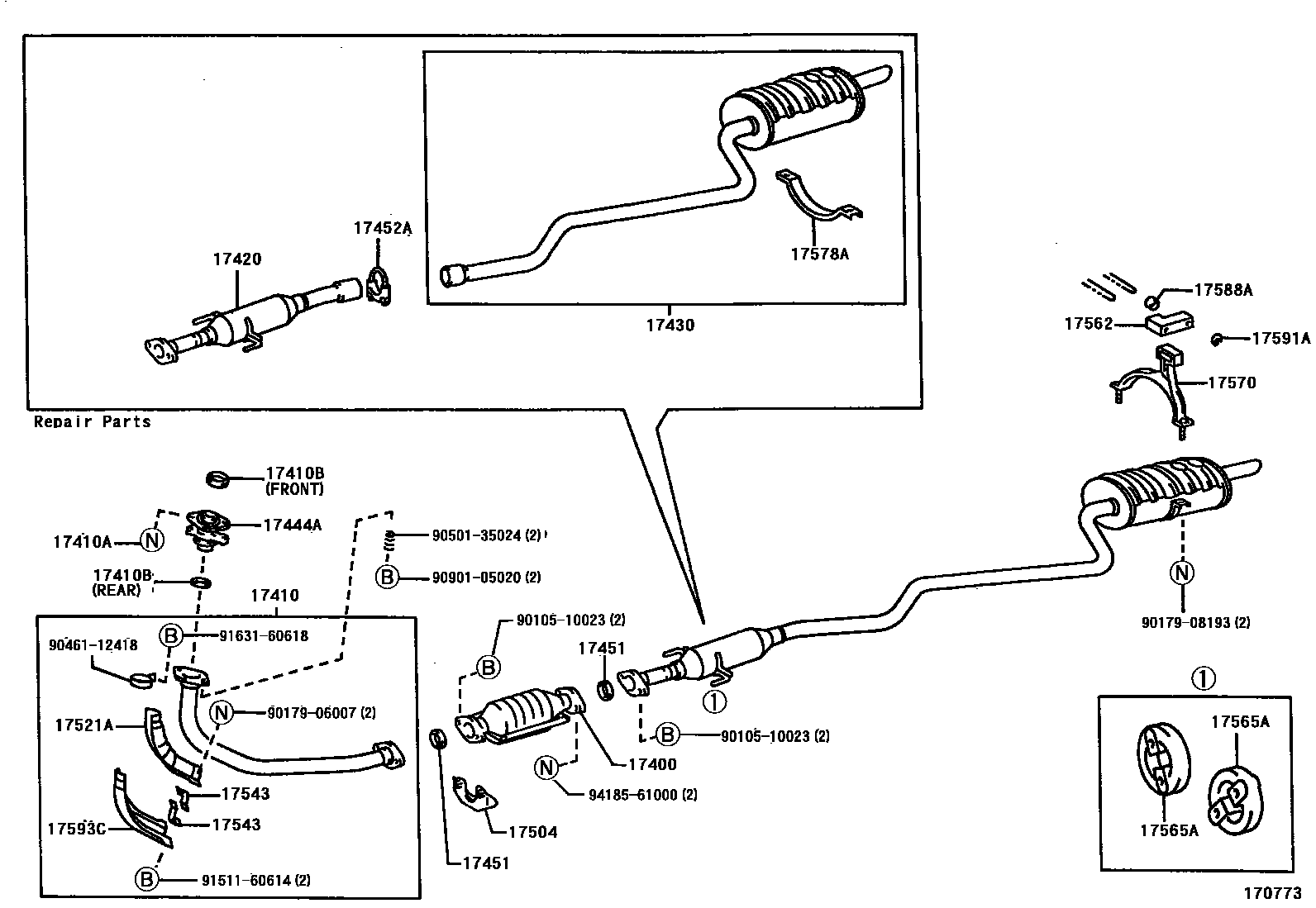

Toyota COROLLA Exhaust Pipe EPC diagram — 170773
Exhaust Pipe — 170773 (199704 – 199910)

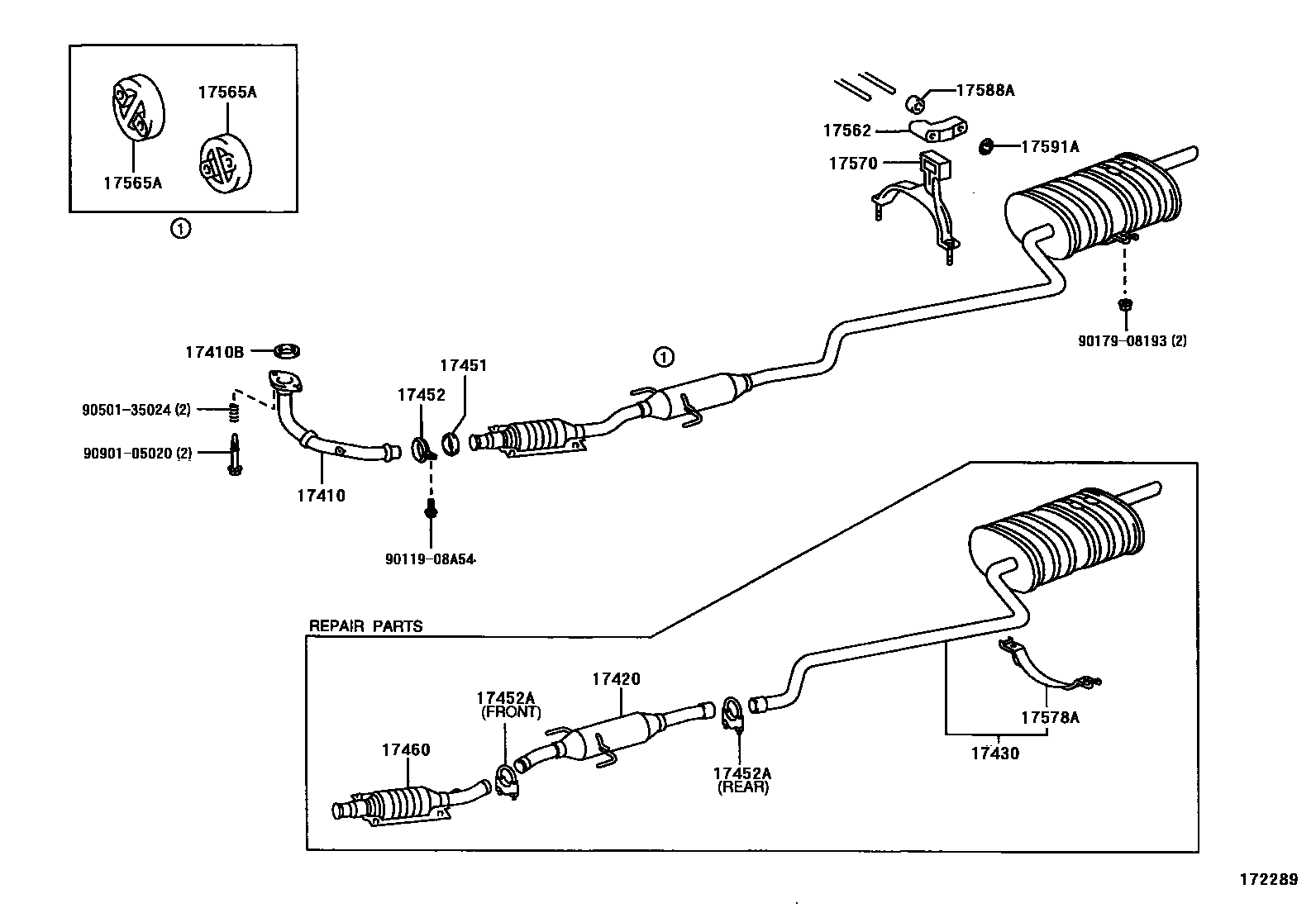

Toyota COROLLA Exhaust Pipe EPC diagram — 172289
Exhaust Pipe — 172289 (199910 – 999999)

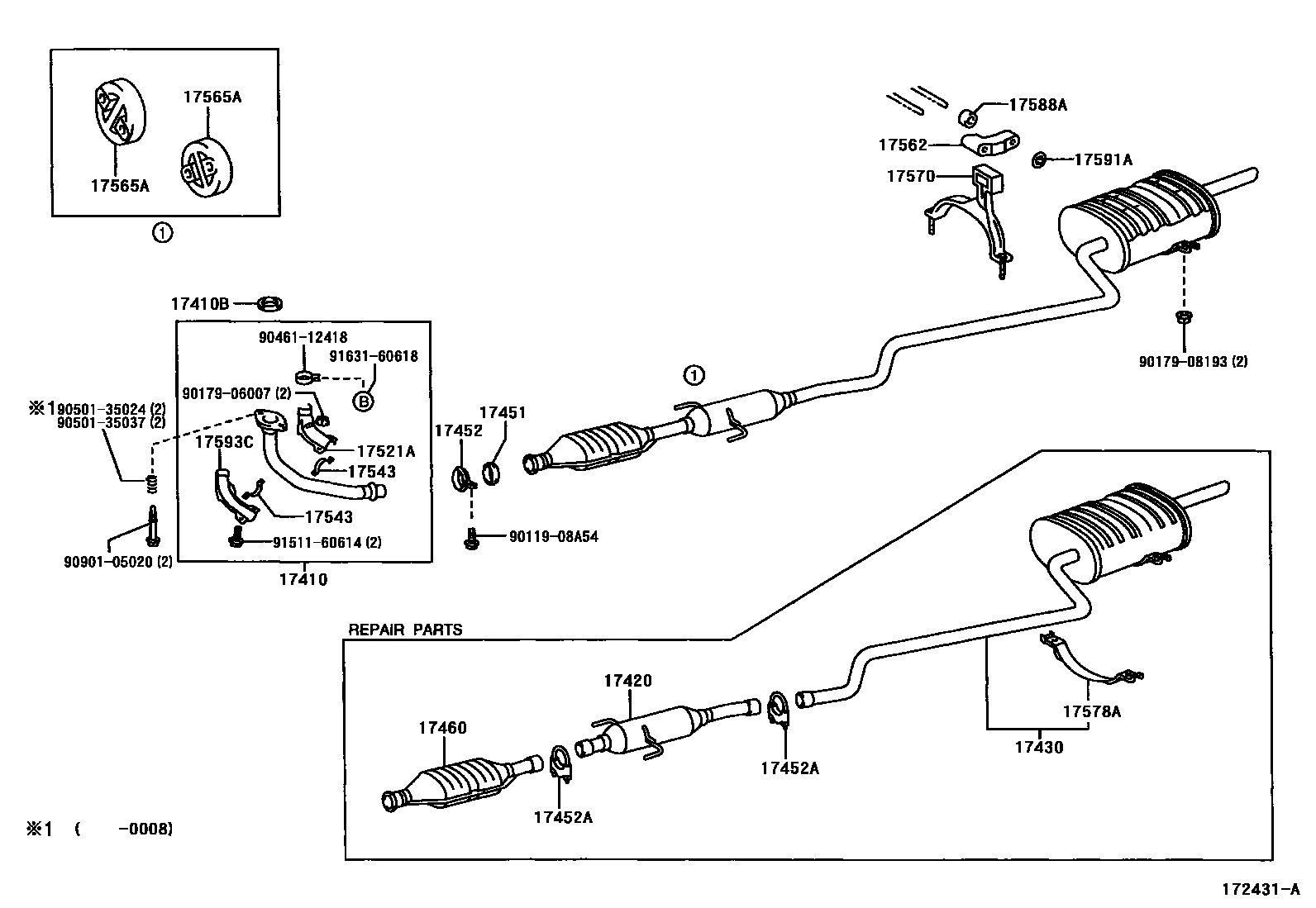

Toyota COROLLA Exhaust Pipe EPC diagram — 172431A
Exhaust Pipe — 172431A (200001 – 999999)

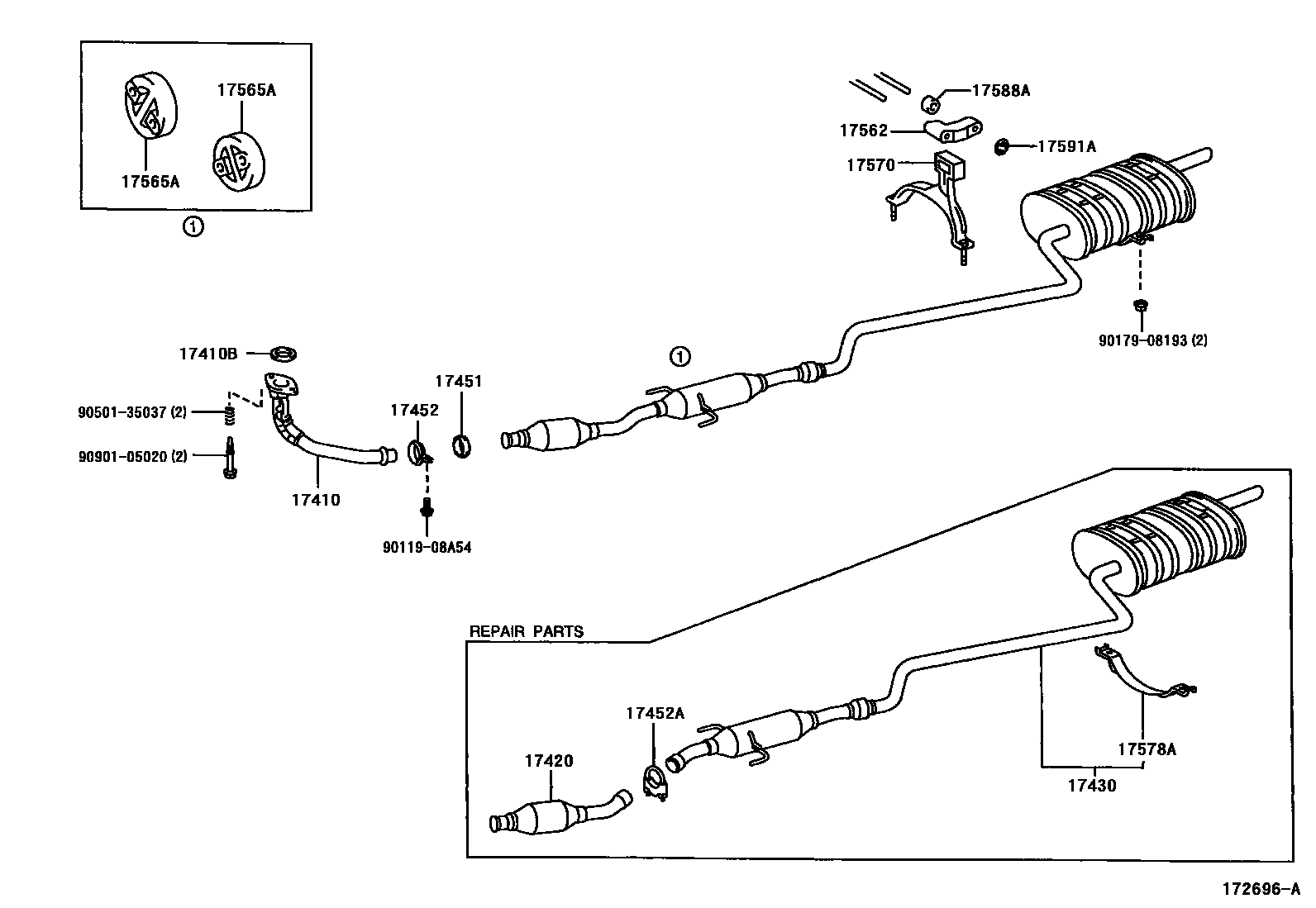

Toyota COROLLA Exhaust Pipe EPC diagram — 172696A
Exhaust Pipe — 172696A (200008 – 999999)

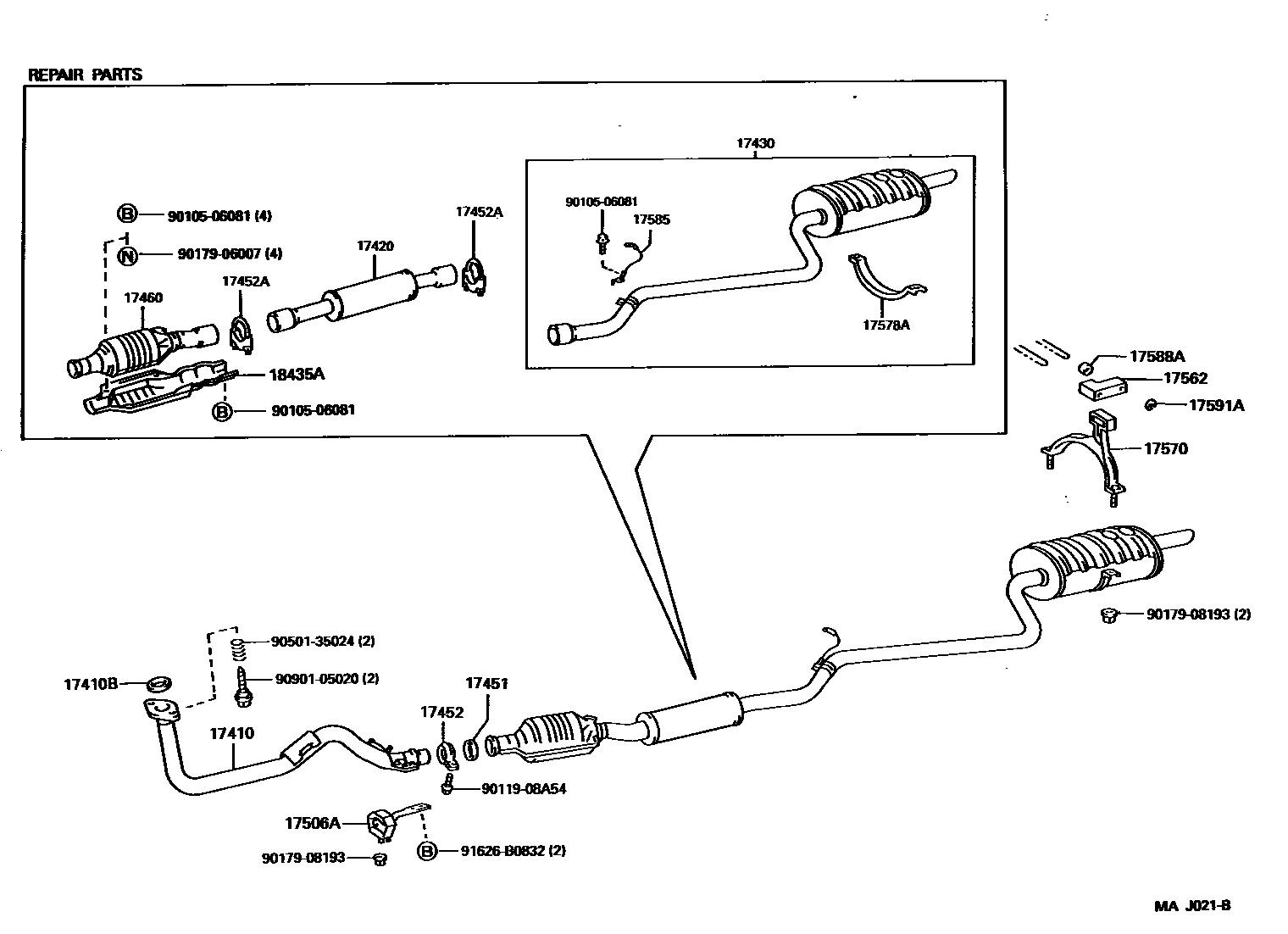

Toyota COROLLA Exhaust Pipe EPC diagram — MAJ021B
Exhaust Pipe — MAJ021B (199704 – 199910)

PNC and OE references

PNCPart nameOE numbers
17400Three-way catalytic converter assembly with catalyst18450-64010
17402No. 2 front exhaust pipe sub-assembly17402-11100
17410Front exhaust pipe assembly17401-11390 · 17401-11391 · 17410-1A320 · 17410-1A480 · 17410-1A490 · 17410-1B090 · 17410-22140 · 17410-27110 · 17410-53010 · 17410-64790
17410AExhaust pipe fixing studs and nuts90179-10070
17410BExhaust pipe gasket17451-16040 · 17451-22020 · 17451-74060 · 90917-06061 · 90917-06065 · 90917-06069 · 90917-06080
17420Central exhaust pipe assembly17420-11340 · 17420-11370 · 17420-16720 · 17420-22010 · 17420-27020 · 17420-53010 · 17420-64280
17430Exhaust tailpipe assembly17430-11820 · 17430-11821 · 17430-1A630 · 17430-1B070 · 17430-1D010 · 17430-1D310 · 17430-22120 · 17430-27100 · 17430-53040 · 17430-6A210
17444Afront exhaust pipe spacer17444-16050 · 17444-64030
17451Exhaust pipe gasket90917-06039 · 90917-06045 · 90917-06082 · 90917-06084
17452Exhaust pipe clamp90461-15013 · 90461-15016
17452AExhaust pipe clamp17452-15020 · 17452-16120 · 17452-16160
17460Three-way catalytic converter assembly with tube17460-11030 · 17460-16120 · 17460-16170 · 17460-16260 · 17460-16290 · 17460-22010 · 17460-53010
17504Three-way catalytic converter bracket sub-assembly17582-41030
17506ANo. 1 exhaust pipe bracket sub-assembly17506-11100 · 17506-16110
17521ANo. 1 upper exhaust pipe protection device17521-64180
17525No. 5 upper exhaust pipe protection device17525-16050
17526No. 6 upper exhaust pipe protection device17526-16040
17543No. 3 exhaust pipe protection device stay17543-26010
17562No. 2 exhaust pipe lifting lug17562-16240
17565ANo. 4 exhaust pipe lifting lug17565-11160
17570Exhaust pipe bracket assembly17570-11010 · 17570-16020 · 17570-16040
17571No. 1 exhaust pipe bracket17571-11240
17578Amuffler clip17578-11020 · 17578-11030 · 17578-16040 · 17578-16050
17585Exhaust pipe hanger17585-16060 · 17585-16100
17588AExhaust pipe hanger spacer17588-16020
17591AExhaust pipe bracket block17591-16020
17593CNo. 1 lower exhaust pipe protection device17593-64150
18435AIntegrated three-way catalytic converter protection device18435-11020 · 18435-11030 · 18435-16170 · 18435-20020
