Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 2 images and 4 PNC and OE references.

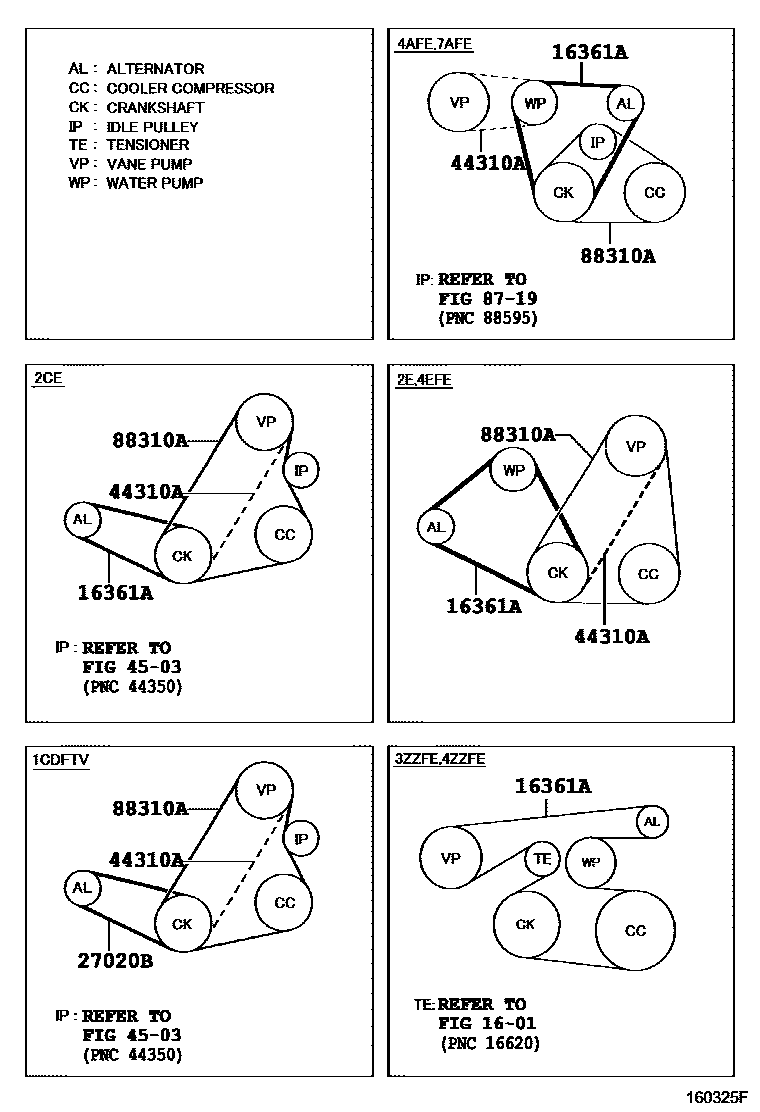

Toyota COROLLA V-Belt EPC diagram — 160325F
V-Belt — 160325F (199704 – 999999)

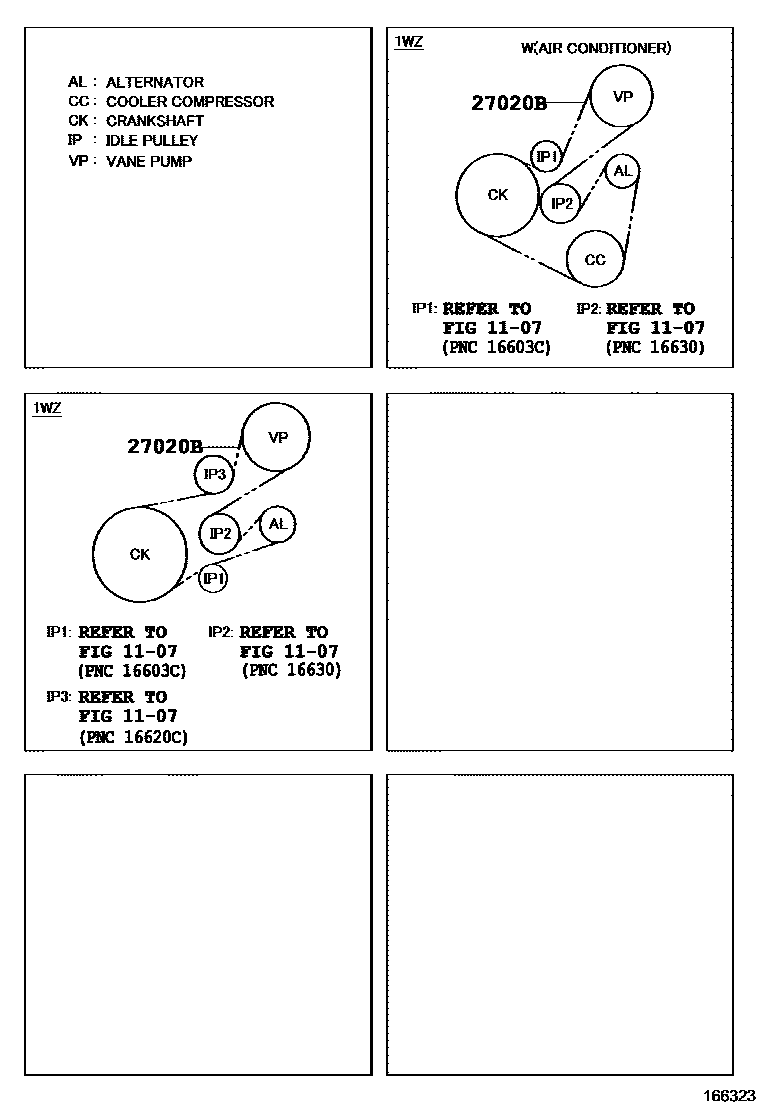

Toyota COROLLA V-Belt EPC diagram — 166323
V-Belt — 166323 (200001 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90080-91055 · 90916-02372 · 90916-02468 · 90916-02482 · 99364-20820 · 99364-30820 · 99365-20970 · 99366-31820
27020BV-belt (for generator)90080-91183 · 90080-91196 · 90916-02461
44310AV-belt (for vane pump)90080-91051 · 99363-90630 · 99365-21130 · 99365-30890 · 99365-90890 · 99365-91110
88310ANo. 1 V-belt (cooler compressor to crankshaft pulley)99364-20850 · 99365-21050 · 99365-21190
