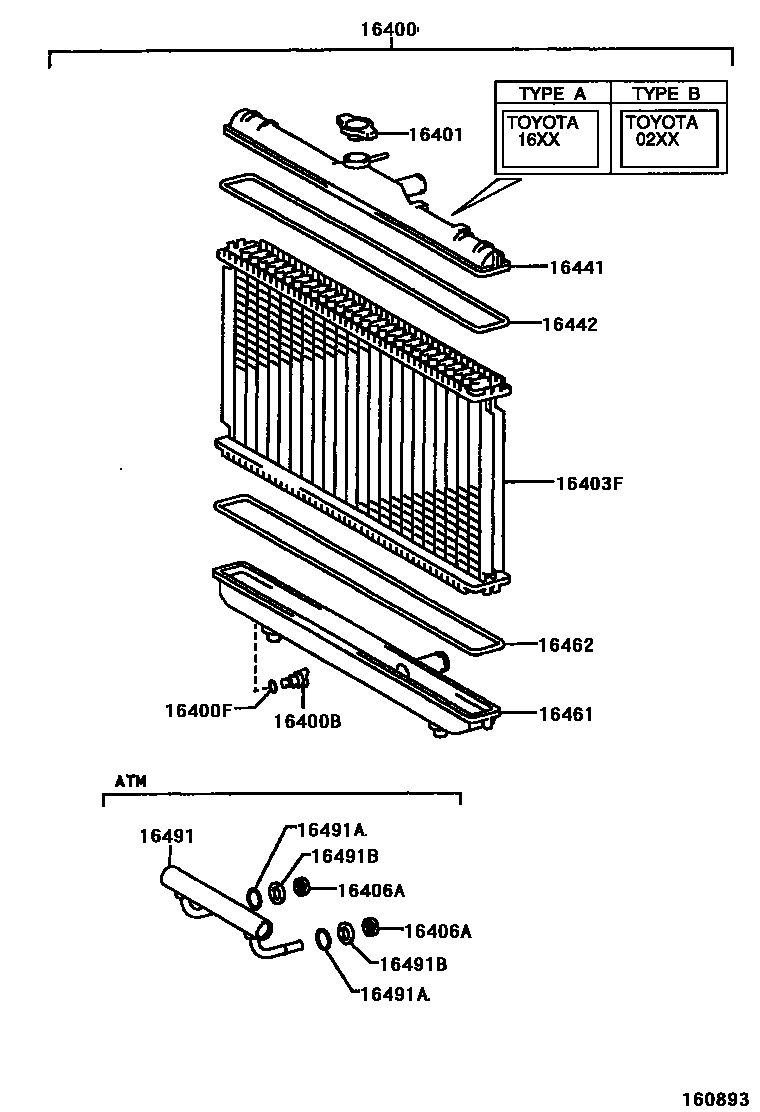

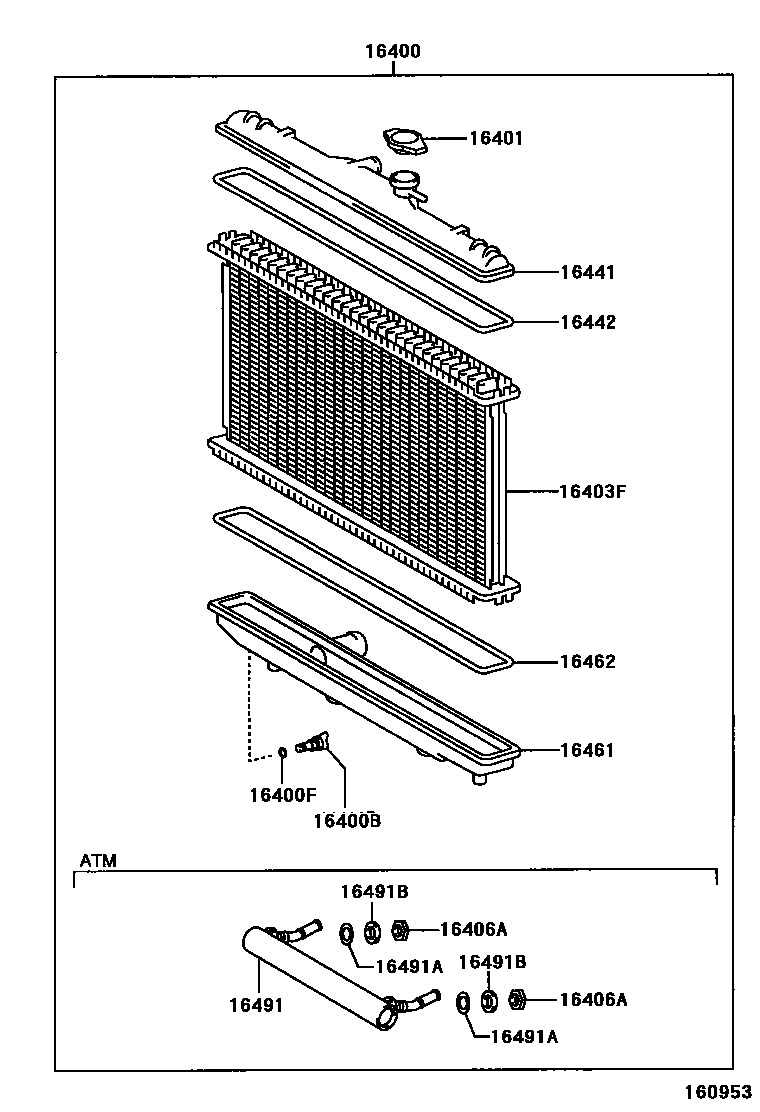

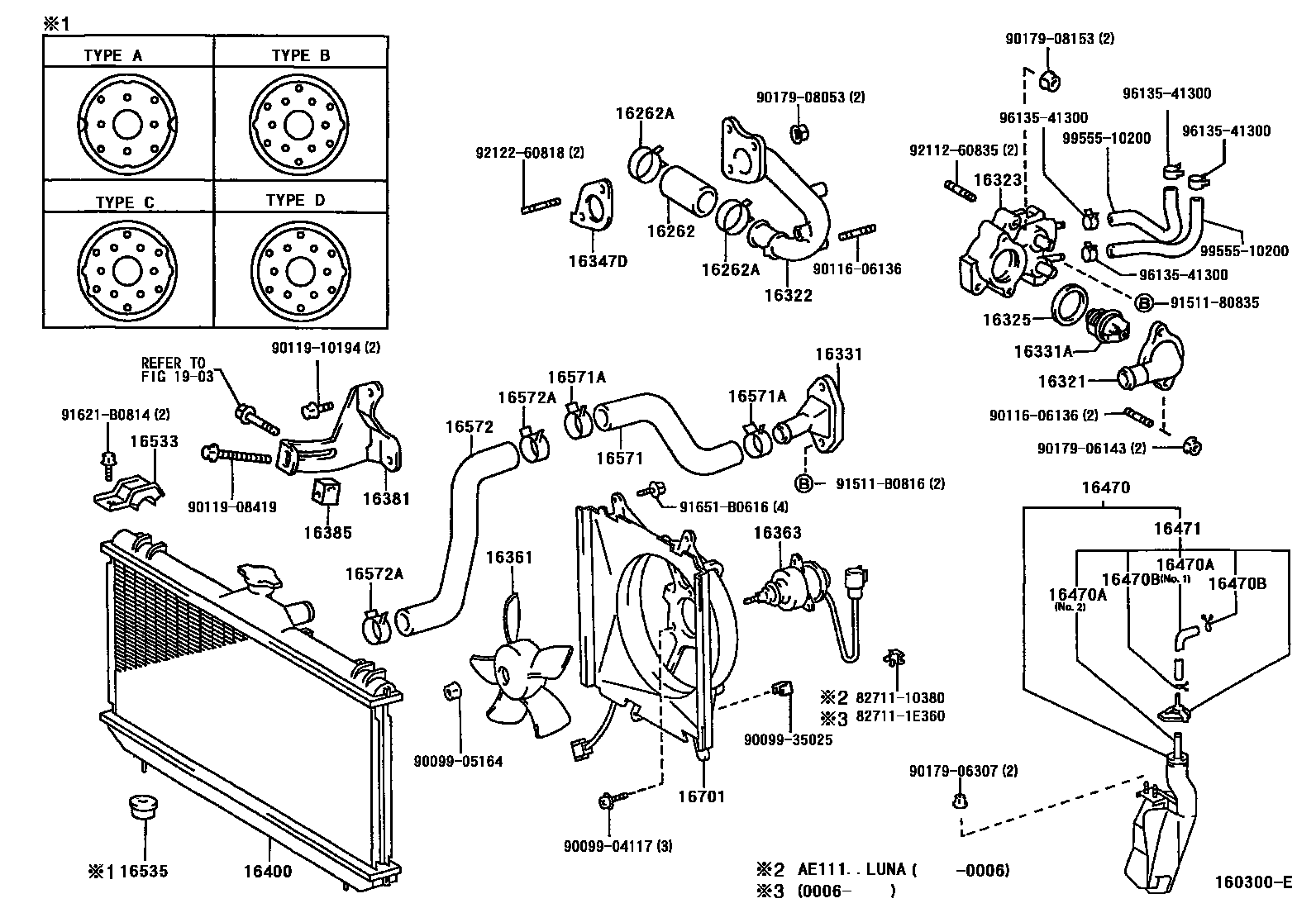

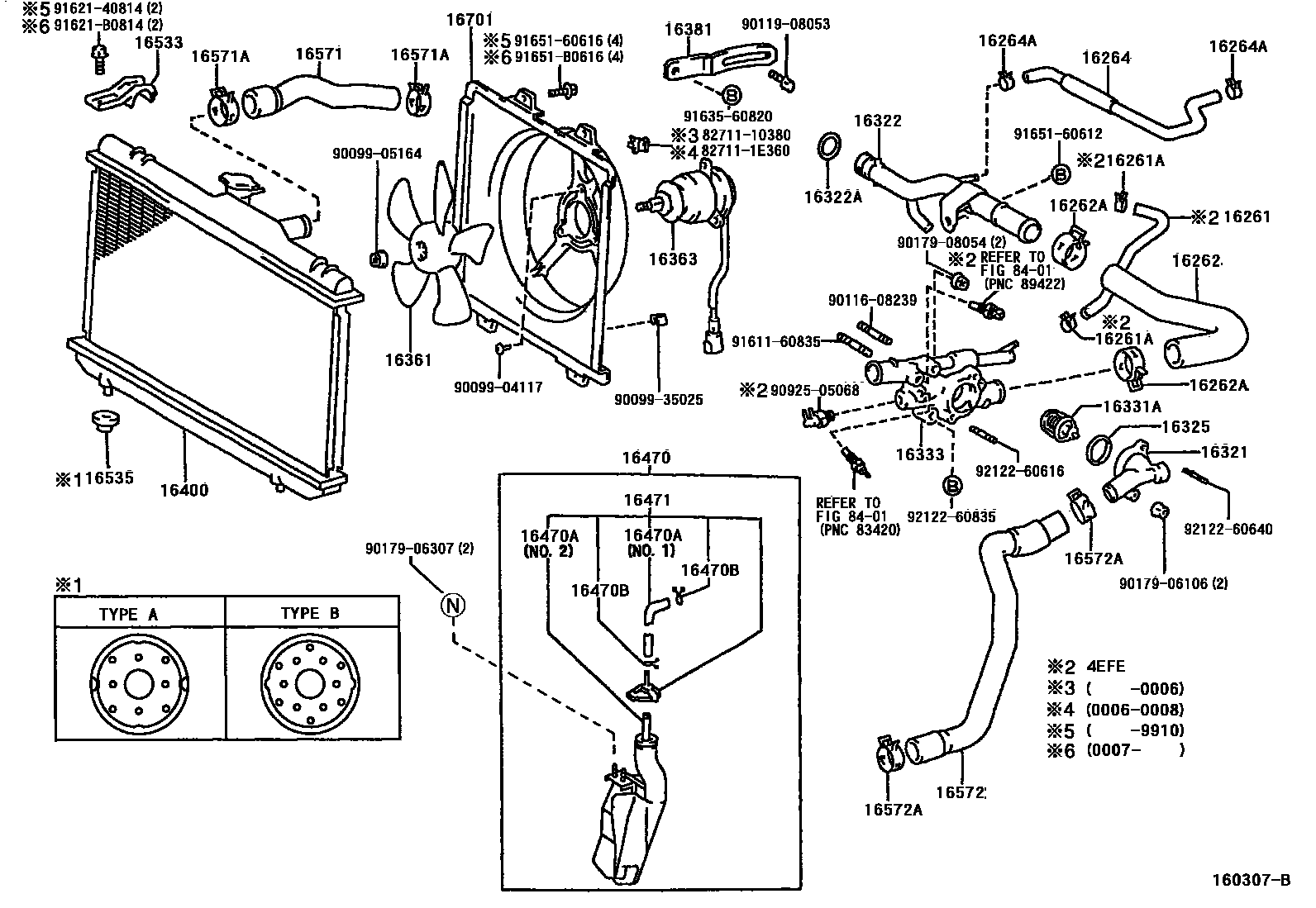

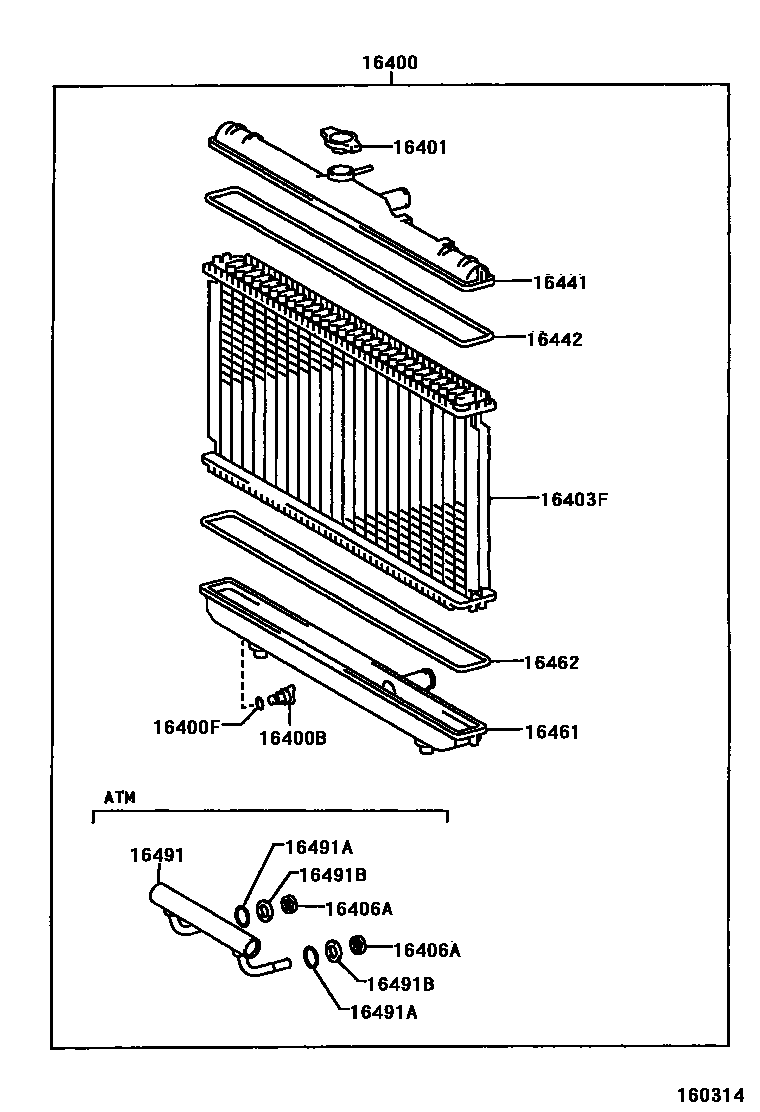

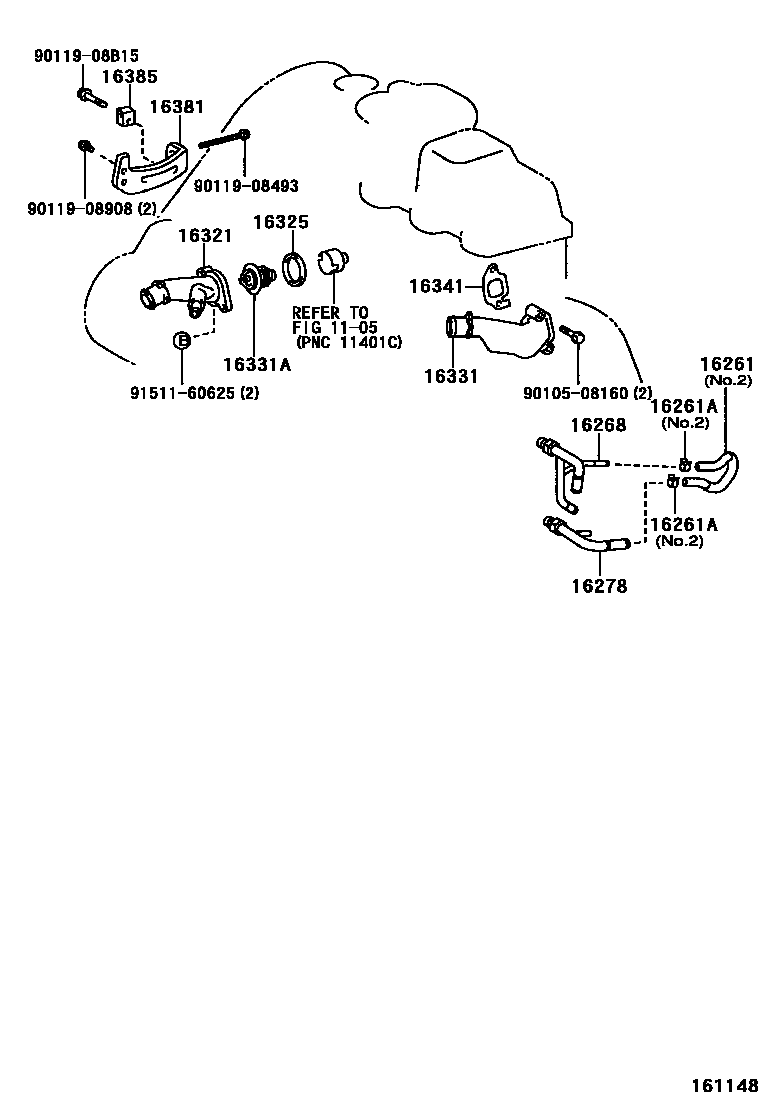

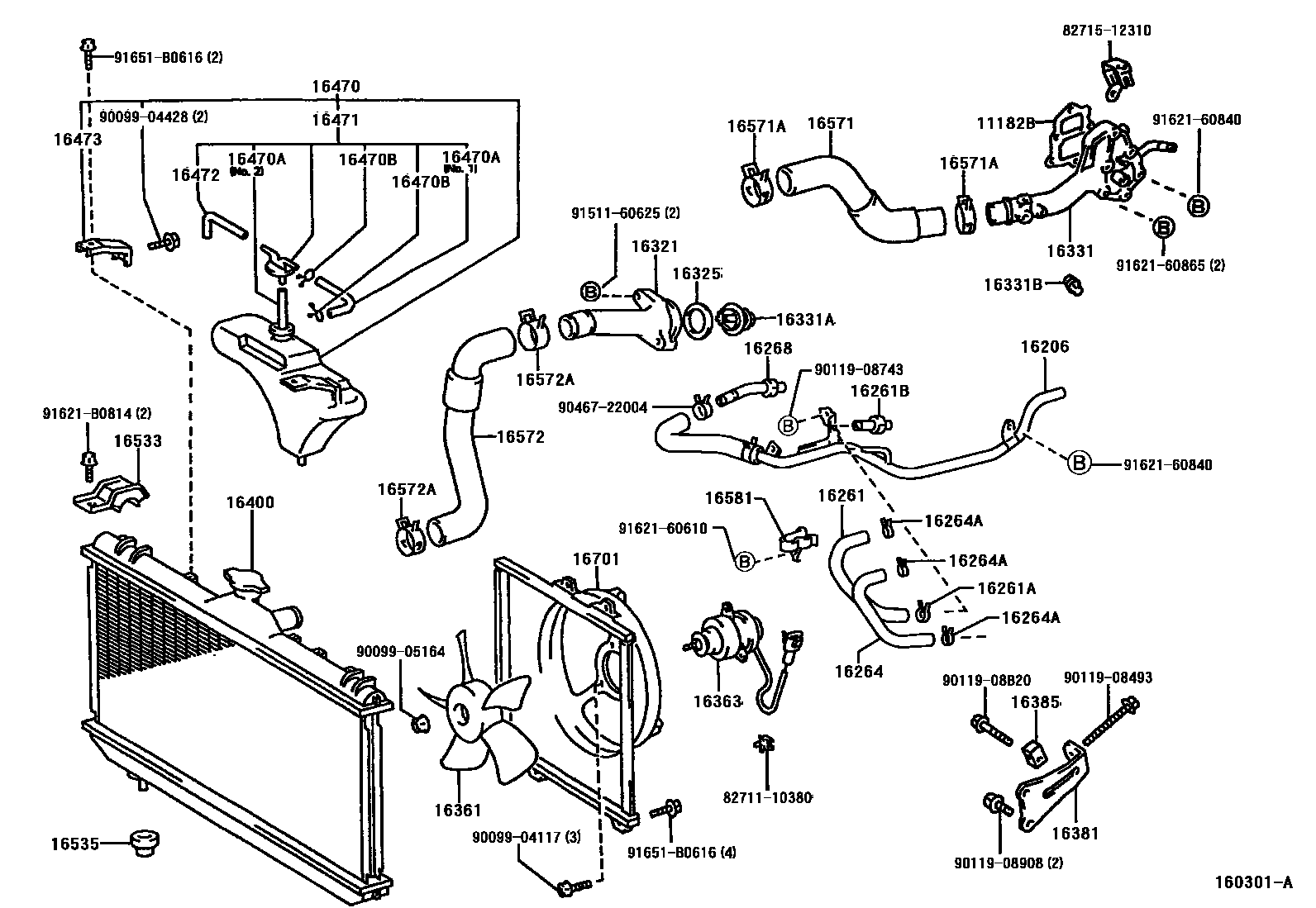

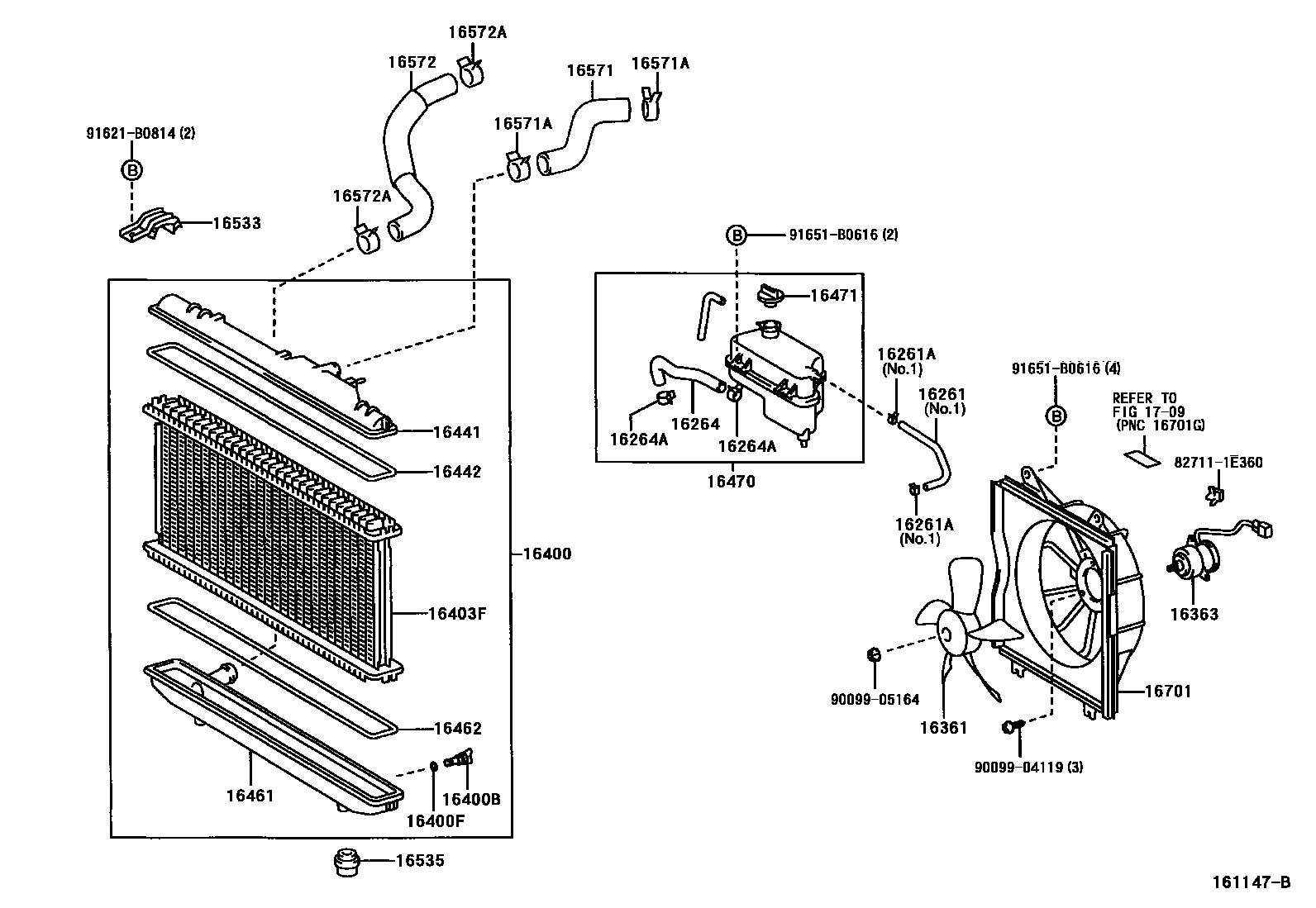

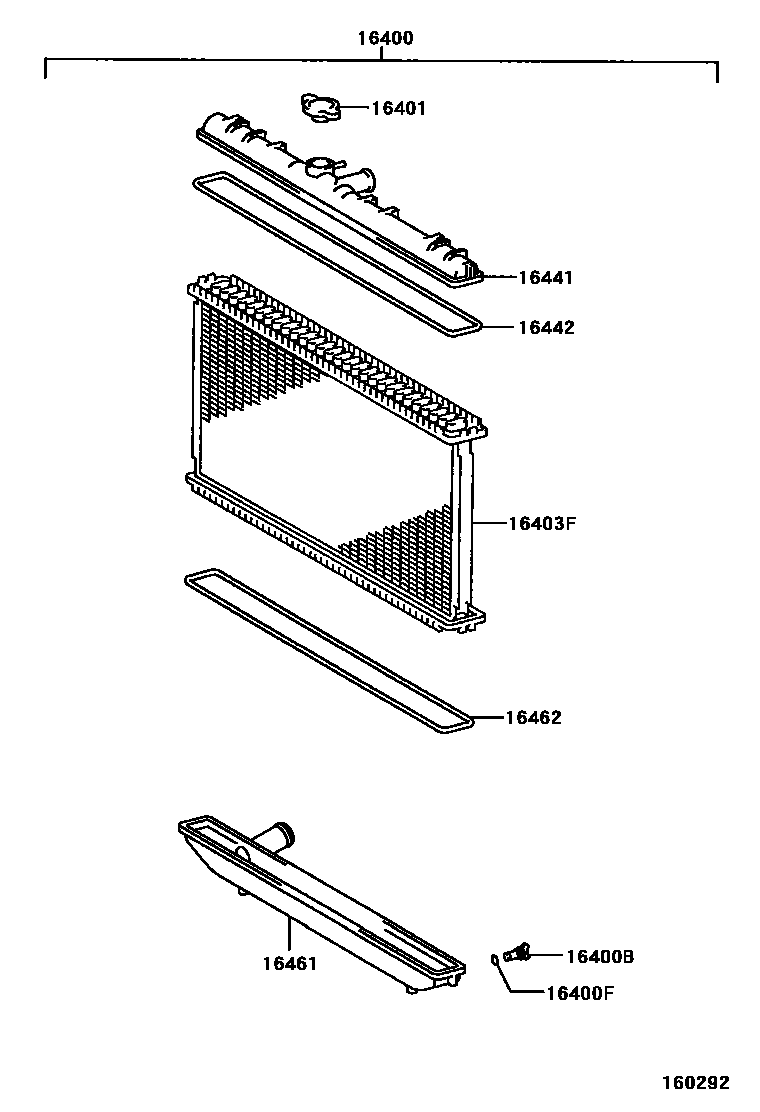

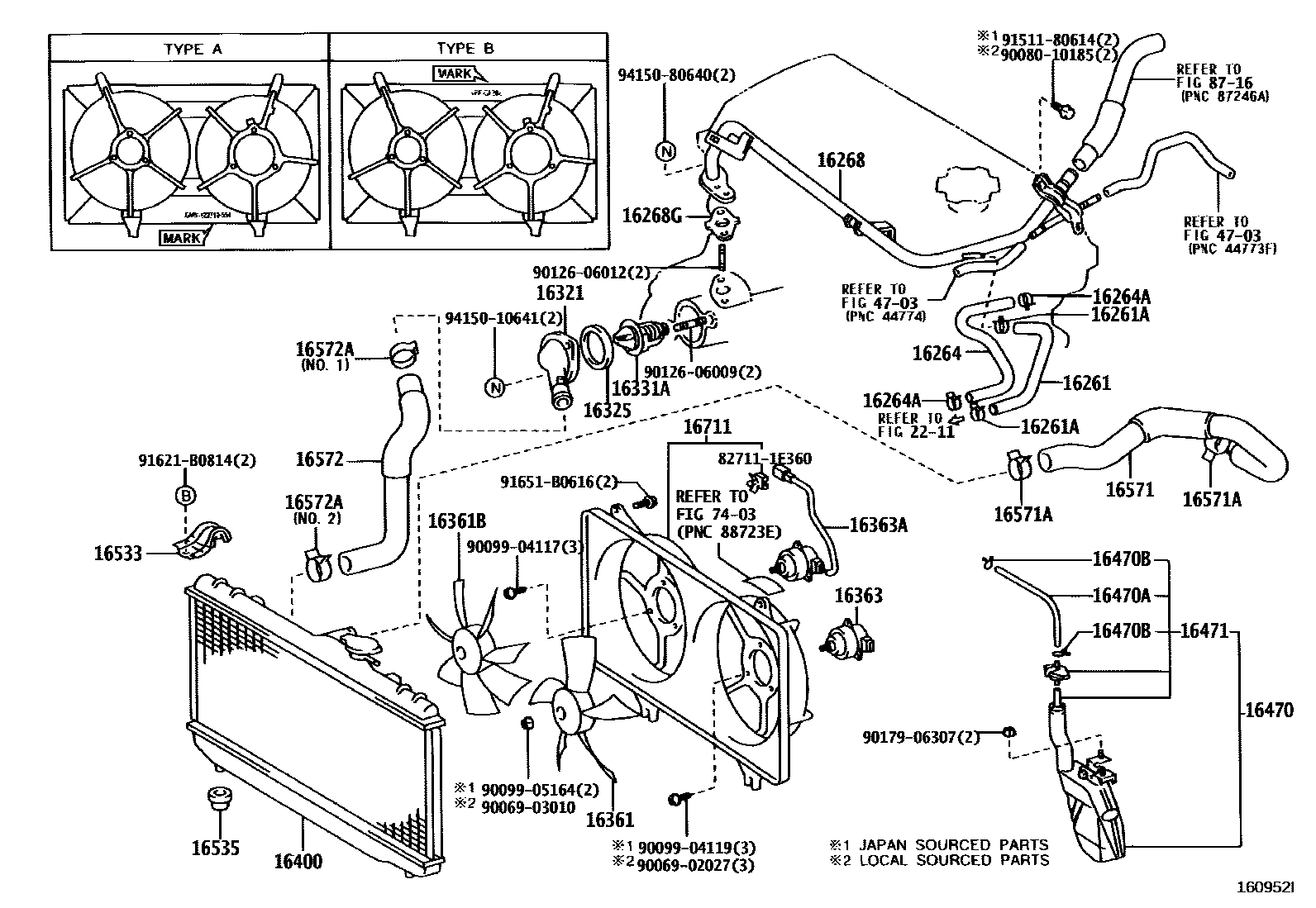

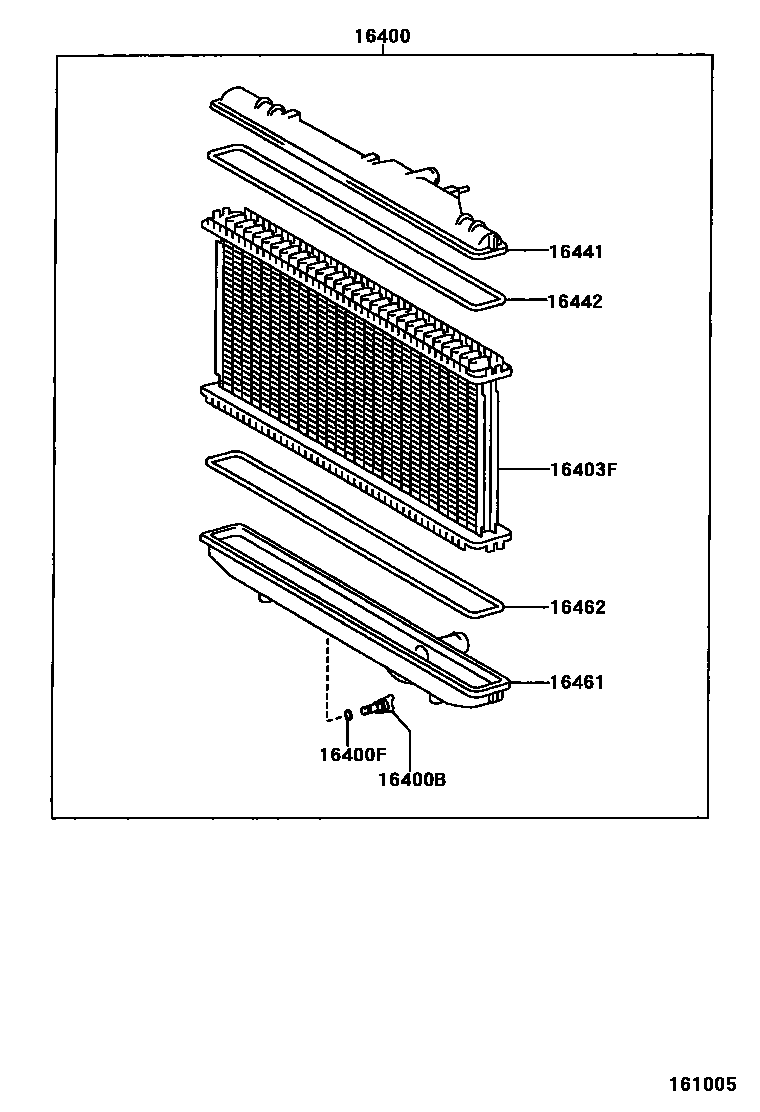

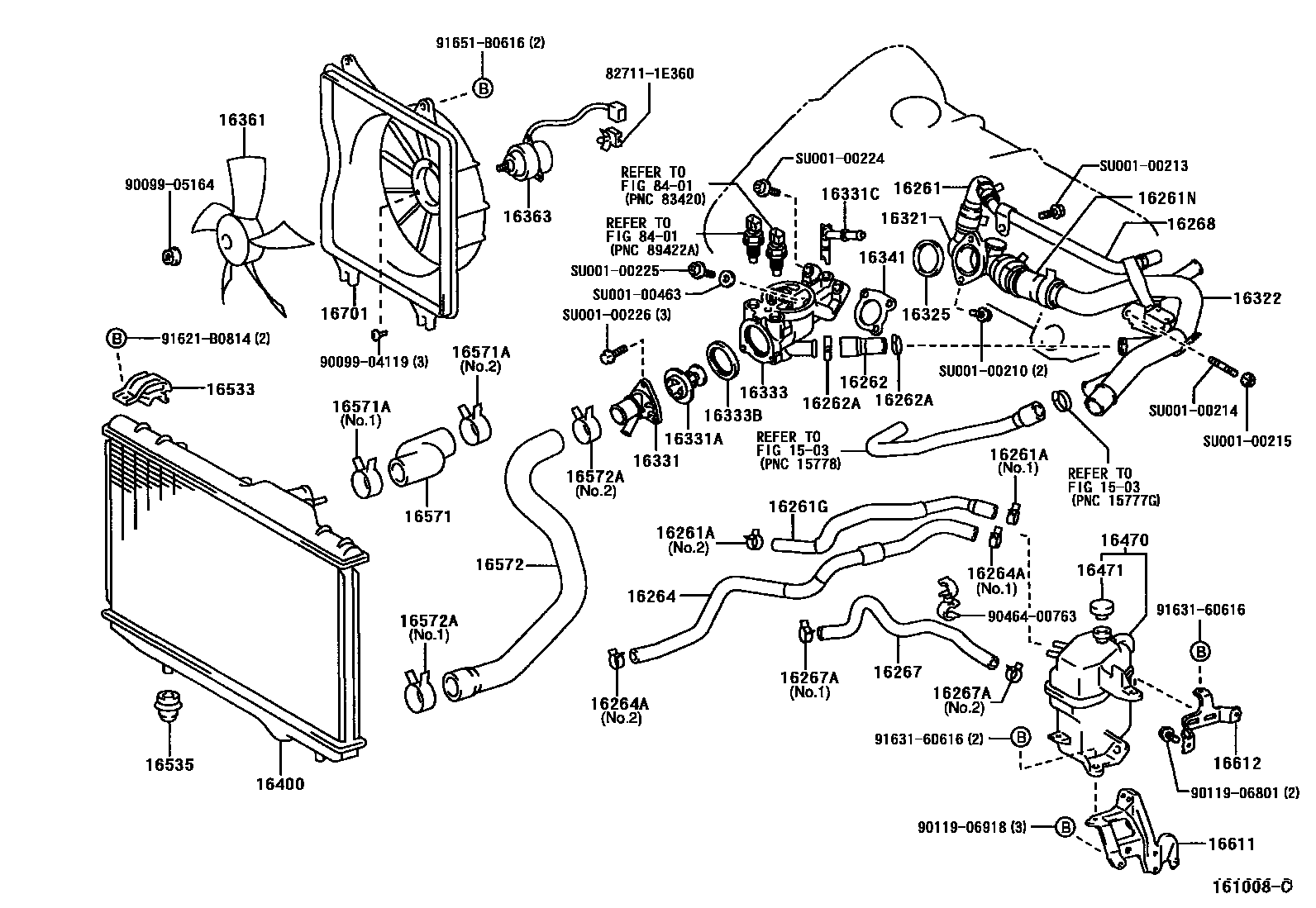

Toyota COROLLA RADIATOR & WATER OUTLET — Figure 1603
Toyota COROLLA EPC diagram 1603, RADIATOR & WATER OUTLET, with 12 images and 65 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11182B | Rear cylinder head gasket | 11182-64021 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-64060 · 16206-64070 |
| 16261 | HOSE, WATER BY-PASS | 16261-0X010 · 16261-22020 · 16261-22080 · 16261-27020 · 16261-27030 · 16261-64120 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90467-11009 · 90467-13128 · 90467-15004 · 90467-15022 · 90467-15025 · 90467-17011 · 96135-41300 |
| 16261B | Connector (for water bypass hose) | 90404-53059 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-53010 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | SU001-00211 |
| 16262 | water inlet hose | 16262-10011 · 16262-10022 · 16262-15040 · 16262-16030 · SU001-00212 |
| 16262A | Clamp (for water inlet hose) | 90467-34003 · 90467-37002 · SU001-00216 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-11090 · 16264-22060 · 16264-27020 · 16264-53010 · 16264-64130 · 16265-11040 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90467-11009 · 90467-13001 · 90467-13128 · 90467-15025 · 90467-17011 · 90467-21010 · 96135-41300 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-53010 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-23001 · 96134-52100 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0X010 · 16268-22090 · 16268-27020 · 16268-64100 |
| 16268G | Gasket (for water bypass pipe) | 16258-22010 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-27020 |
| 16321 | water inlet | 16031-27010 · 16321-11011 · 16321-15040 · 16321-22050 · 16321-22070 · 16321-64020 · SU001-00206 |
| 16322 | PIPE, WATER INLET | 16322-0X010 · 16322-11081 · 16322-11091 · 16322-11162 · 16322-15050 · 16322-16060 |
| 16322A | O-RING, WATER INLET | 96761-35028 |
| 16323 | HOUSING, WATER INLET | 16323-15180 · 16323-16420 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-27010 · 16325-62010 · 16325-63011 · SU001-00207 |
| 16331 | Water outlet | 16331-15080 · 16331-27030 · 16331-64120 · 16331-64150 · SU001-00221 |
| 16331A | thermostat | 90916-03046 · 90916-03084 · 90916-03109 · 90916-03115 · 90916-03123 · 90916-03125 · SU001-00223 |
| 16331B | Screw plug (for water outlet) | 90345-53030 |
| 16331C | Elbow (for water outlet) | SU001-00218 |
| 16333 | Water outlet shell | 16333-11190 · 16333-11211 · 16333-11260 · SU001-00217 |
| 16333B | O-ring (for outlet housing) | SU001-00222 |
| 16341 | GASKET, WATER OUTLET | 16341-27010 · SU001-00219 |
| 16347D | water bypass liner | 16347-15010 |
| 16361 | Fan | 16361-02050 · 16361-02110 · 16361-0D040 · 16361-11010 · 16361-11020 · 16361-22070 · 16361-53010 · 16361-63020 |
| 16361B | Fan No. 2 | 16361-0D050 · 16361-22080 |
| 16363 | cooling fan motor | 16363-02040 · 16363-15120 · 16363-23010 · 16363-53010 · 16363-74020 · 16363-74030 |
| 16363A | Cooling fan motor No. 2 | 16363-22010 |
| 16381 | Fan belt adjustment lever | 16381-11030 · 16381-15080 · 16381-27010 · 16381-64080 |
| 16385 | Fan belt adjustment slider | 16385-15020 · 16385-64011 |
| 16400 | Radiator assembly | 16400-02370 · 16400-02380 · 16400-0D050 · 16400-0D060 · 16400-0D070 · 16400-16620 · 16400-16660 · 16400-16680 · 16400-16690 · 16400-22080 · 16400-22090 · 16400-22100 · 16400-22150 · 16400-27020 · 16400-53010 · 16400-53020 · 16400-6A070 · 16400-6A160 |
| 16400B | Radiator drain switch screw plug | 23322-54010 · 90080-34010 |
| 16400F | Seal (for radiator drain switch) | 16492-21050 · 90080-30024 · 96711-19007 |
| 16401 | Radiator cover sub-assembly | 16401-72090 · 16401-7A020 |
| 16403F | Radiator core sub-assembly | 16403-02370 · 16403-02380 · 16403-16620 · 16403-16670 · 16403-16690 · 16403-16730 · 16403-16740 · 16403-22080 · 16403-22100 · 16403-27020 |
| 16406A | Bracket (for transmission oil cooler) | 16406-74520 |
| 16441 | Radiator water tank | 16441-02370 · 16441-15500 · 16441-16490 · 16441-22100 · 16441-27020 · 16441-53010 · 16441-64640 |
| 16442 | O-ring (for radiator tank) | 16442-02370 · 16442-11380 · 16442-16490 · 16462-42240 · 16462-62050 |
| 16461 | Radiator lower tank | 16461-02370 · 16461-02380 · 16461-15480 · 16461-15500 · 16461-16490 · 16461-22090 · 16461-22100 · 16461-27020 · 16461-53010 · 16461-64650 |
| 16462 | O-ring (for radiator lower tank) | 16462-02370 · 16462-11420 · 16462-16490 · 16462-42240 · 16462-62050 |
| 16470 | Radiator reservoir assembly | 16470-15100 · 16470-22040 · 16470-27020 · 16470-53010 · 16470-64130 |
| 16470A | Hoses or tubes (for radiator reservoir) | 16471-64130 · 16478-15090 · 16478-64130 |
| 16470B | Clip or clip (for radiator reservoir hose) | 90467-11085 |
| 16471 | Liquid storage tank cover sub-assembly | 16401-53010 · 16405-15100 · 16405-22020 · 16405-64080 |
| 16472 | Breather hose | 16477-64130 |
| 16473 | Bracket (for radiator reservoir) | 16473-64130 |
| 16491 | Oil cooler (for ATM) | 16491-11310 |
| 16491A | O-ring (for automatic transmission oil cooler) | 16492-02030 · 16492-62060 |
| 16491B | Flat Washer (for automatic transmission oil cooler) | 16493-74520 |
| 16533 | Radiator upper bracket | 16533-02020 · 16533-15120 · 16533-64120 |
| 16535 | Radiator lower support | 90916-04002 · 90916-04003 · 90916-04005 · 90916-04006 · 90916-04009 |
| 16571 | Radiator water inlet hose | 16571-02030 · 16571-02040 · 16571-02050 · 16571-02060 · 16571-11130 · 16571-15160 · 16571-16180 · 16571-22030 · 16571-27030 · 16571-53010 · 16571-64250 · 16571-64320 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90467-31003 · 90467-34003 · 90467-37005 · 90467-38002 · 90467-41006 |
| 16572 | Radiator outlet hose | 16572-02030 · 16572-02050 · 16572-11220 · 16572-11231 · 16572-15210 · 16572-16150 · 16572-22030 · 16572-27020 · 16572-53010 · 16572-64200 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-37002 · 90466-41001 · 90467-31003 · 90467-34003 · 90467-36001 · 90467-37002 · 90467-37005 · 90467-41006 |
| 16581 | Hose clamp (for water hose) | 16581-64010 |
| 16611 | Radiator reservoir bracket | 16611-53010 |
| 16612 | No. 2 radiator reservoir bracket | 16612-53010 |
| 16701 | Fan cover sub-assembly | 16711-02051 · 16711-02130 · 16711-02140 · 16711-15271 · 16711-15281 · 16711-16221 · 16711-16231 · 16711-27090 · 16711-53010 · 16711-64301 |
| 16711 | fan cover | 16711-0D030 · 16711-22080 |
