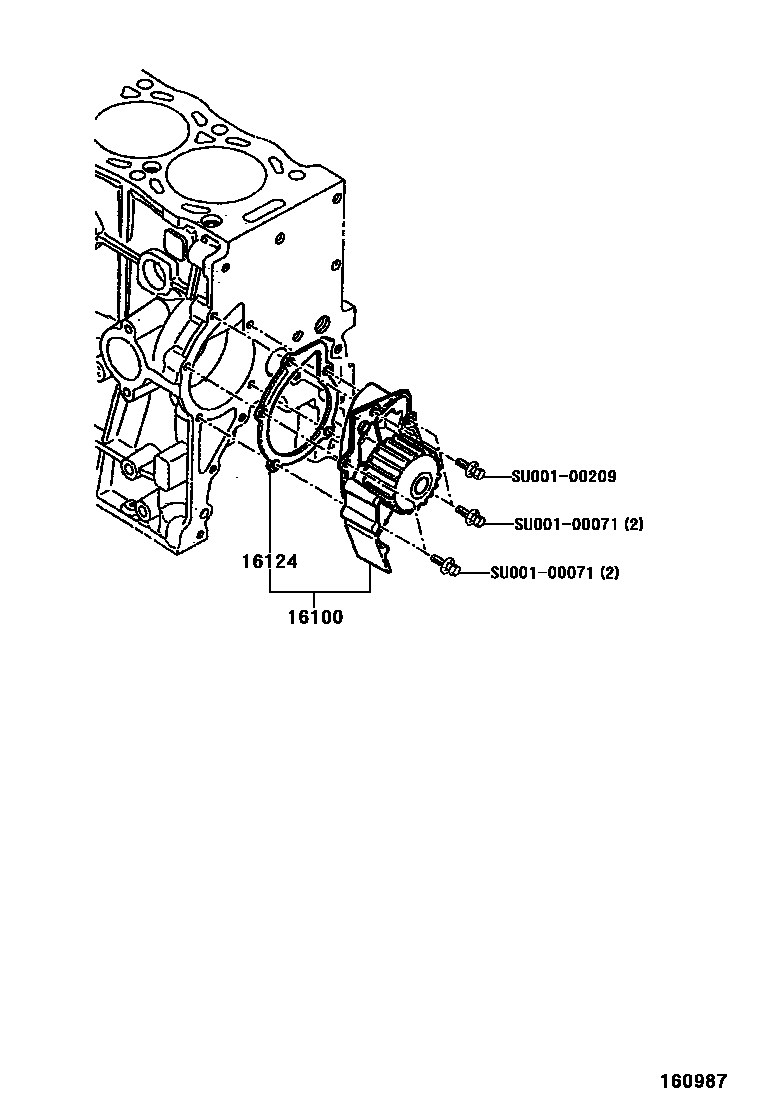

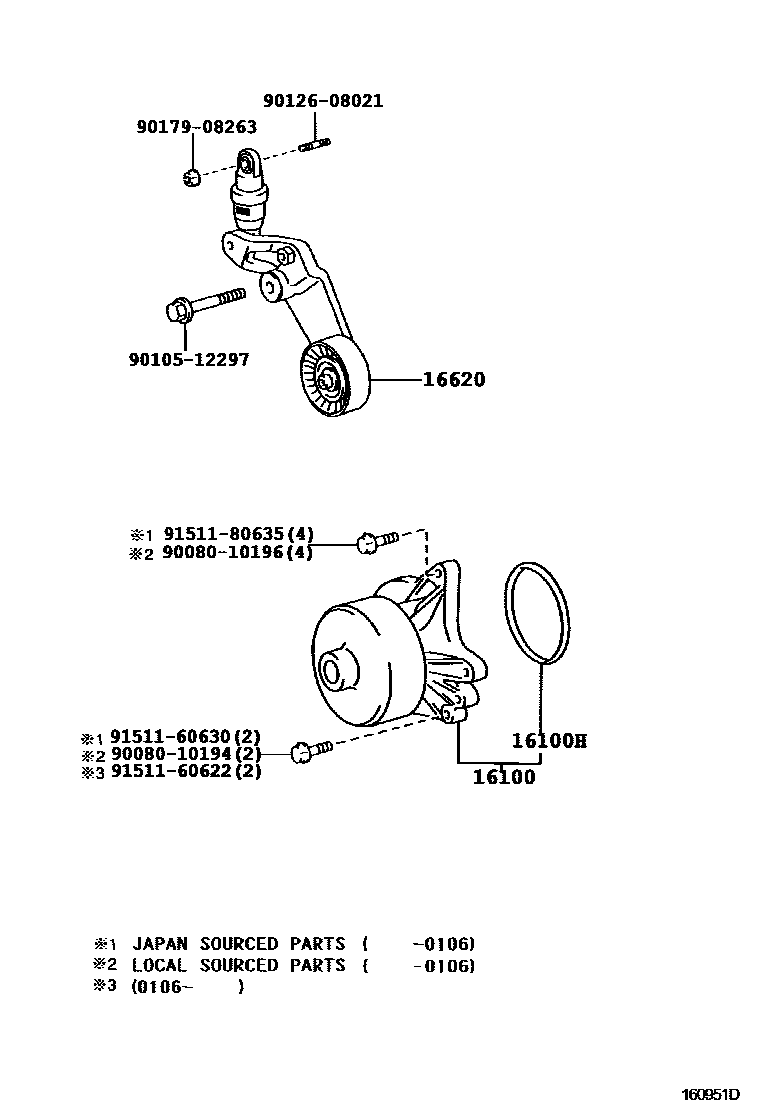

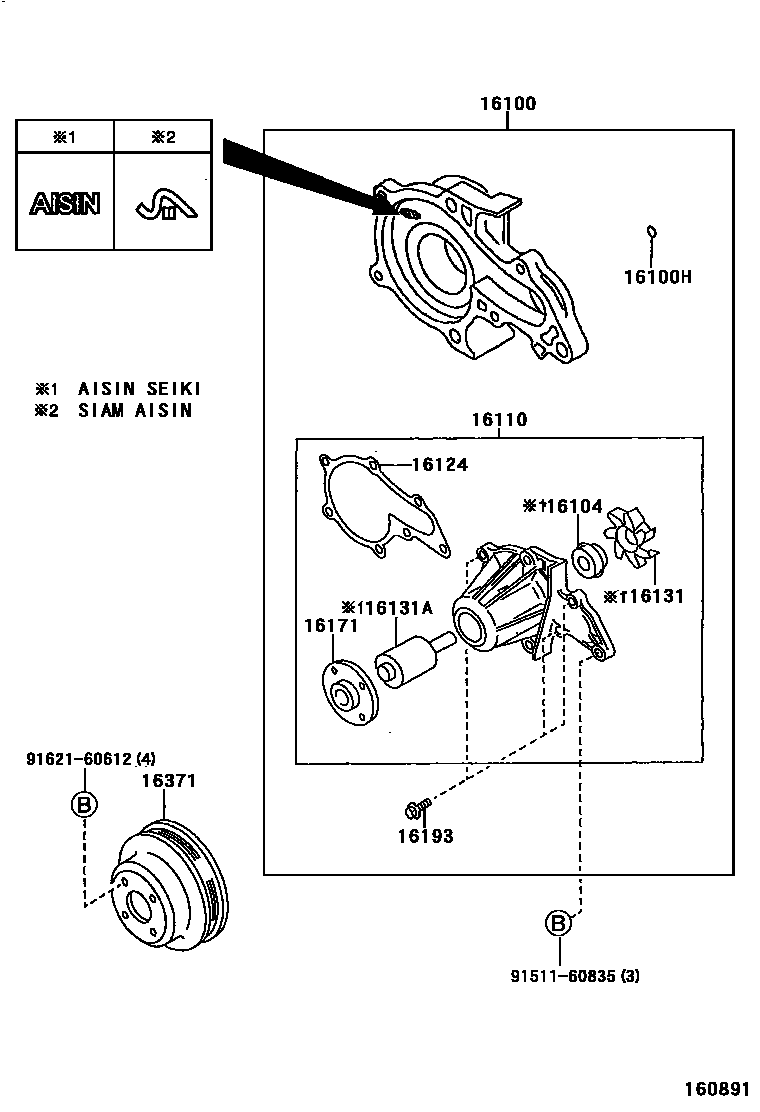

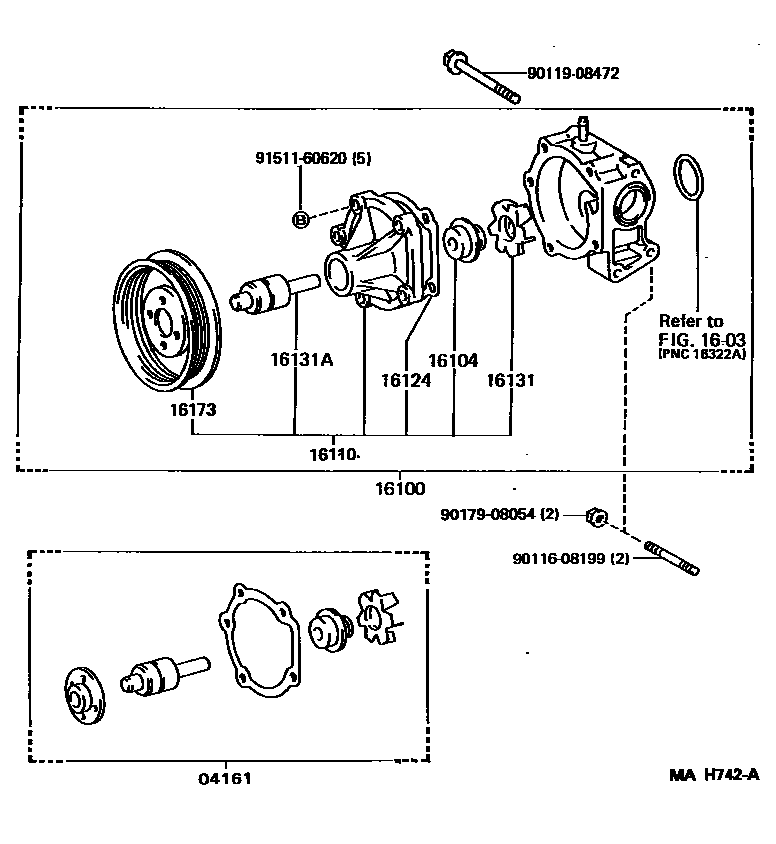

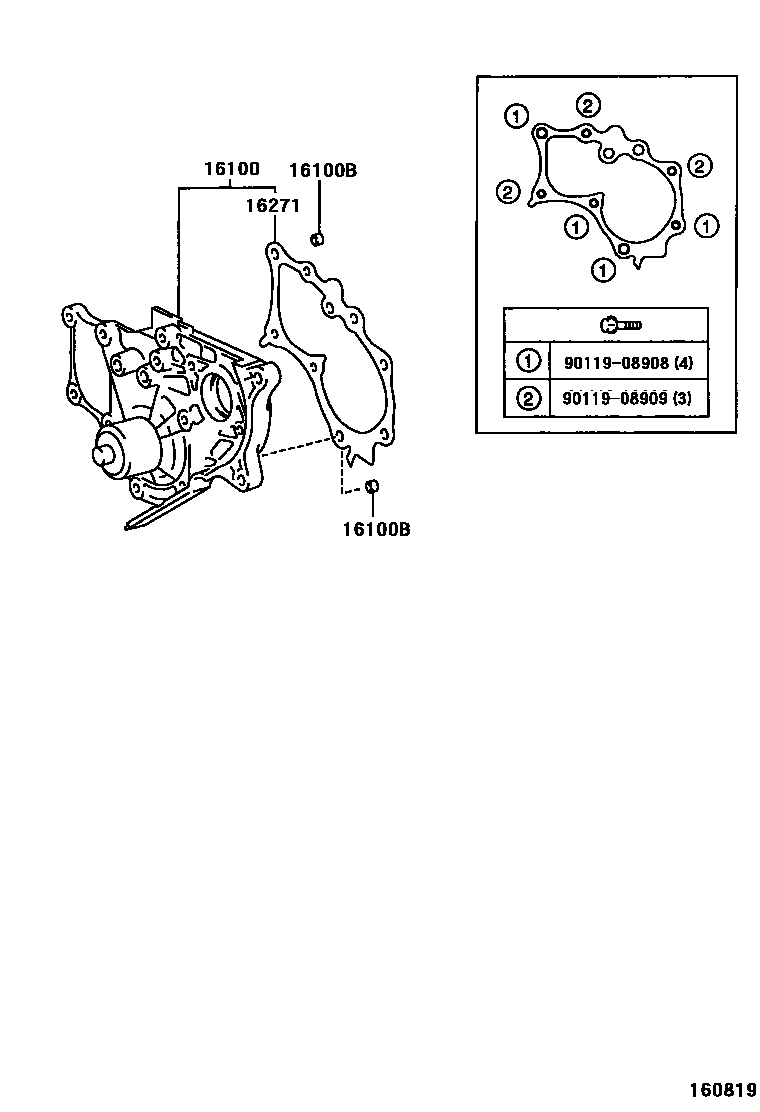

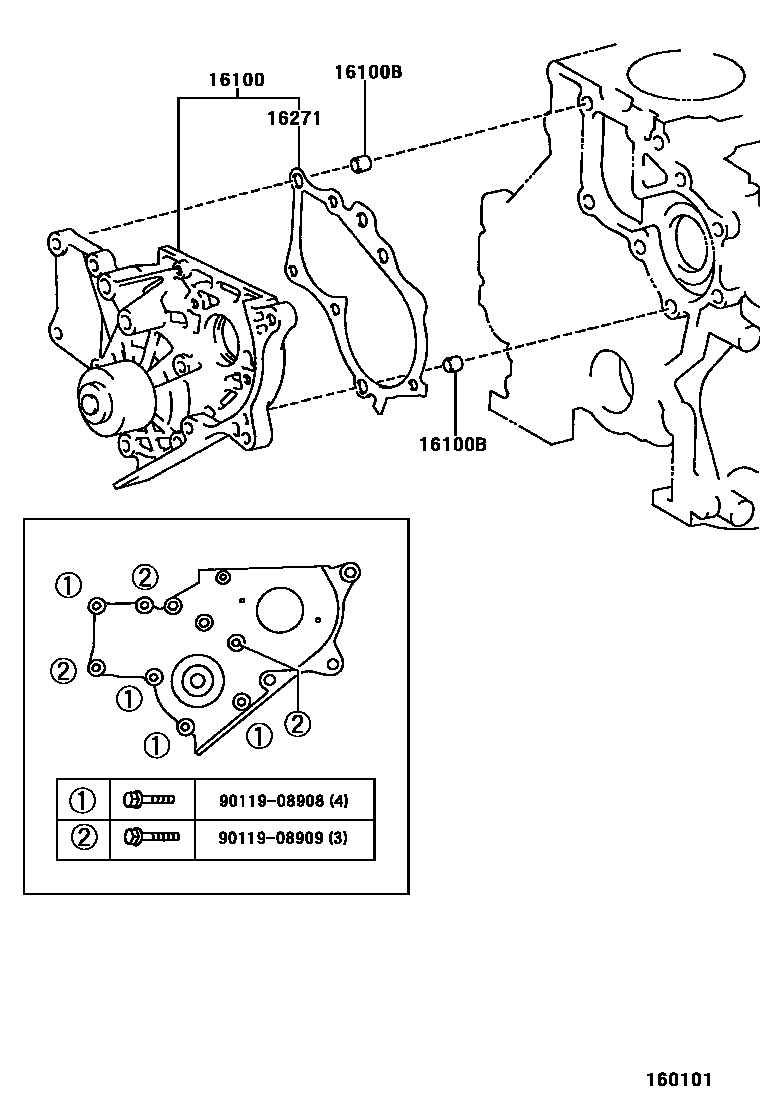

Toyota COROLLA Water Pump — Figure 1601
Toyota COROLLA EPC diagram 1601, Water Pump, with 6 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04161 | Water pump components | 04161-10023 |
| 16100 | Engine water pump assembly | 16100-09120 · 16100-19226 · 16100-19295 · 16100-19305 · 16100-29095 · 16100-29135 · 16100-29175 · 16100-69296 · 16100-69298 · SU001-00204 |
| 16100B | Ring pin (for water pump assembly) | 90253-11021 |
| 16100H | O-ring (for water pump) | 90301-69006 · 96761-24035 |
| 16104 | Water pump seal components | 16104-46060 · 16104-54030 |
| 16110 | Water pump assembly without coupling | 16110-19107 · 16110-19146 · 16110-19176 · 16110-19185 · 16110-19205 |
| 16124 | water pump cover gasket | 16124-10013 · 16124-15110 · 16124-16060 · SU001-00205 |
| 16131 | water pump rotor | 16131-10013 · 16131-16090 |
| 16131A | water pump bearings | 90029-36846 · 90029-36850 |
| 16171 | water pump pulley seat | 16171-10012 · 16171-15071 |
| 16173 | water pump pulley | 16173-10013 |
| 16193 | Studs (for water pump cover) | 16193-15011 · 16193-15100 |
| 16271 | water pump gasket | 16271-27010 · 16271-64030 · 16271-64031 |
| 16371 | fan pulley | 16371-02030 · 16371-15071 |
| 16620 | Poly V-belt tensioner assembly | 16620-22010 · 16620-22011 |
