Toyota COROLLA Oil Filter — Figure 1502

Toyota COROLLA EPC diagram 1502, Oil Filter, with 7 images and 15 PNC and OE references.

Toyota COROLLA Oil Filter EPC diagram — 150151
Oil Filter — 150151 (199910 – 999999)
Toyota COROLLA Oil Filter EPC diagram — 150334
Oil Filter — 150334 (200008 – 999999)

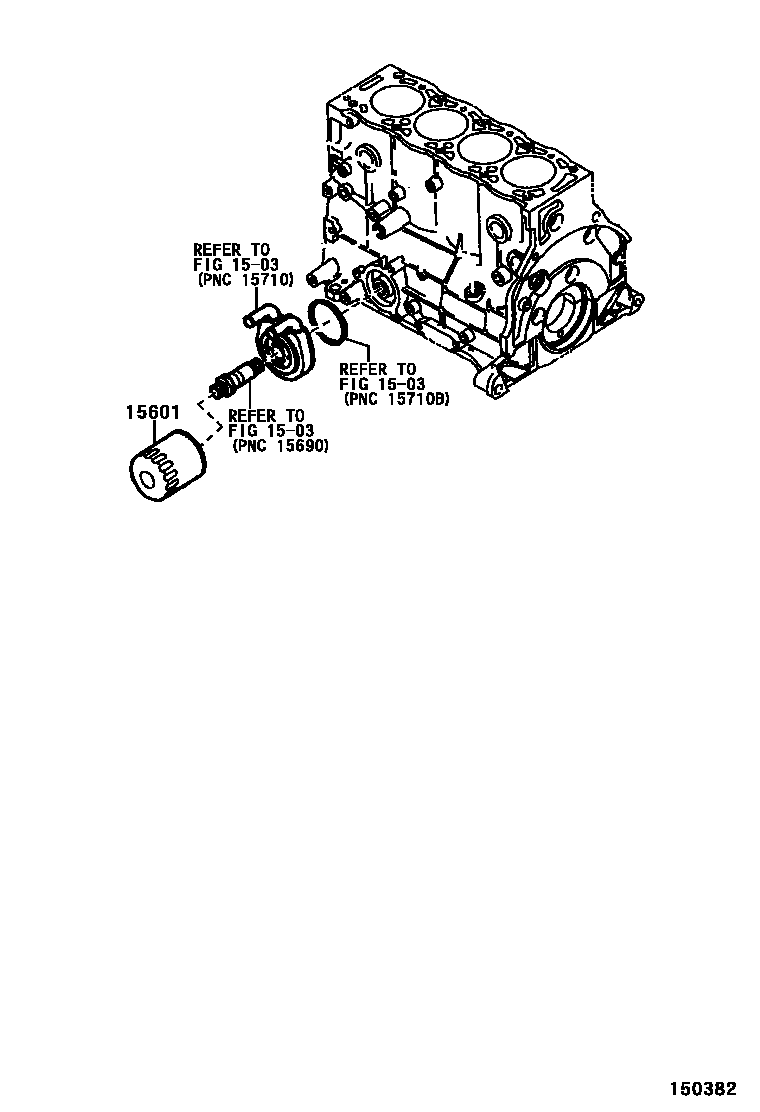

Toyota COROLLA Oil Filter EPC diagram — 150382
Oil Filter — 150382 (200001 – 999999)
Toyota COROLLA Oil Filter EPC diagram — 150460
Oil Filter — 150460 (199704 – 999999)

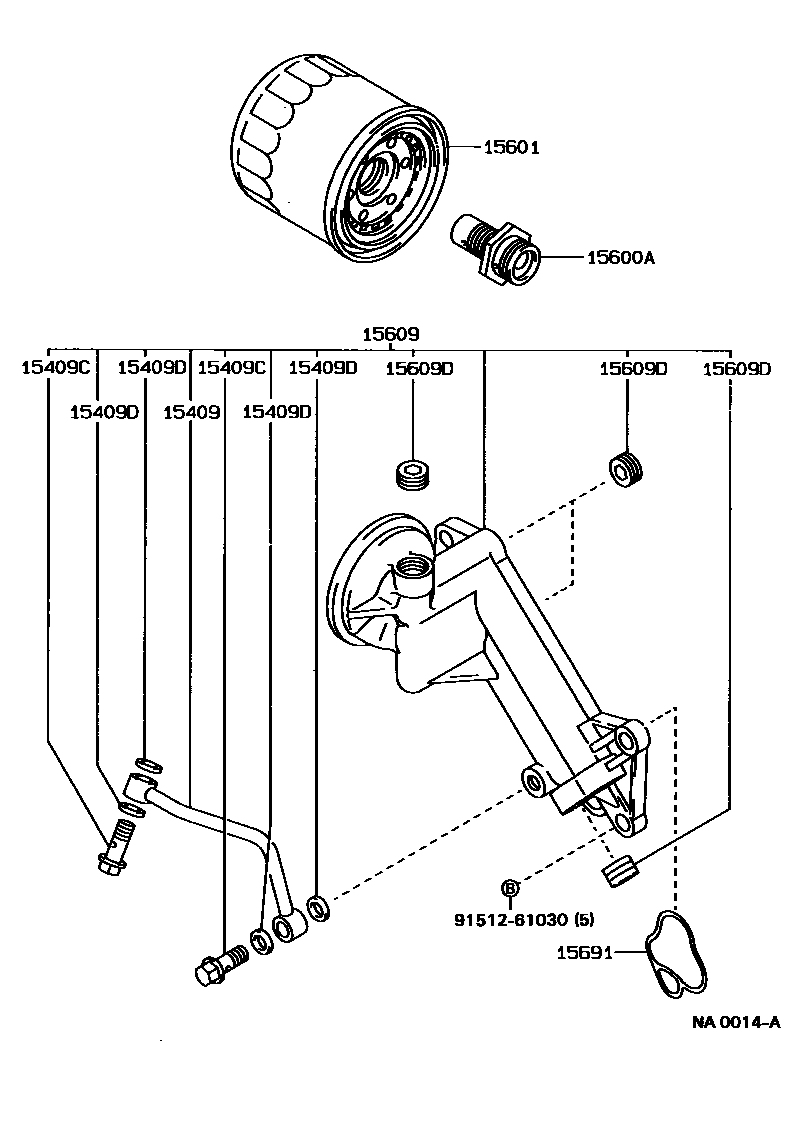

Toyota COROLLA Oil Filter EPC diagram — NA0014A
Oil Filter — NA0014A (199704 – 199910)
Toyota COROLLA Oil Filter EPC diagram — NA0088
Oil Filter — NA0088 (199704 – 199910)

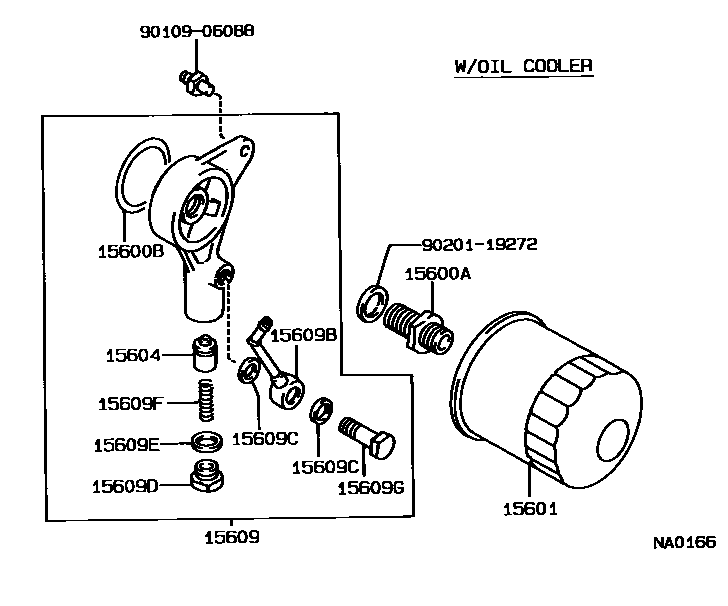

Toyota COROLLA Oil Filter EPC diagram — NA0166
Oil Filter — NA0166 (199704 – 999999)

PNC and OE references

PNCPart nameOE numbers
15409Oil filter outlet pipe or oil outlet hose15431-64030
15409CJoint bolt (for oil filter outlet pipe)90401-10031
15409DGasket (for oil filter outlet pipe)90430-10035
15600AConnector (for oil filter)15116-54021 · 90404-19001 · 90404-19007 · 90405-19003 · 90904-04002
15600BNo. 1 O-ring (for oil filter)15188-11010
15601Oil filter sub-assembly90080-91058 · 90915-10001 · 90915-10003 · 90915-30002 · 90915-30003 · SU001-00453
15604Oil safety valve sub-assembly15131-38030
15609Oil filter bracket sub-assembly15608-64041 · 15670-16030
15609BConnector (for oil filter bracket)90029-40004
15609CGasket (for oil filter holder connector)90430-14235
15609DStraight threaded plug with head (for oil filter bracket)15133-20010 · 90344-53002
15609EHeaded straight thread plug liner15134-20010
15609FSpring (for oil filter bracket)15132-21010
15609GConnector bolt (for oil filter bracket)90401-14003
15691oil filter gasket15691-64040 · 15691-64041
