Toyota COROLLA Engine Mounting — Figure 1107

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 8 images and 25 PNC and OE references.

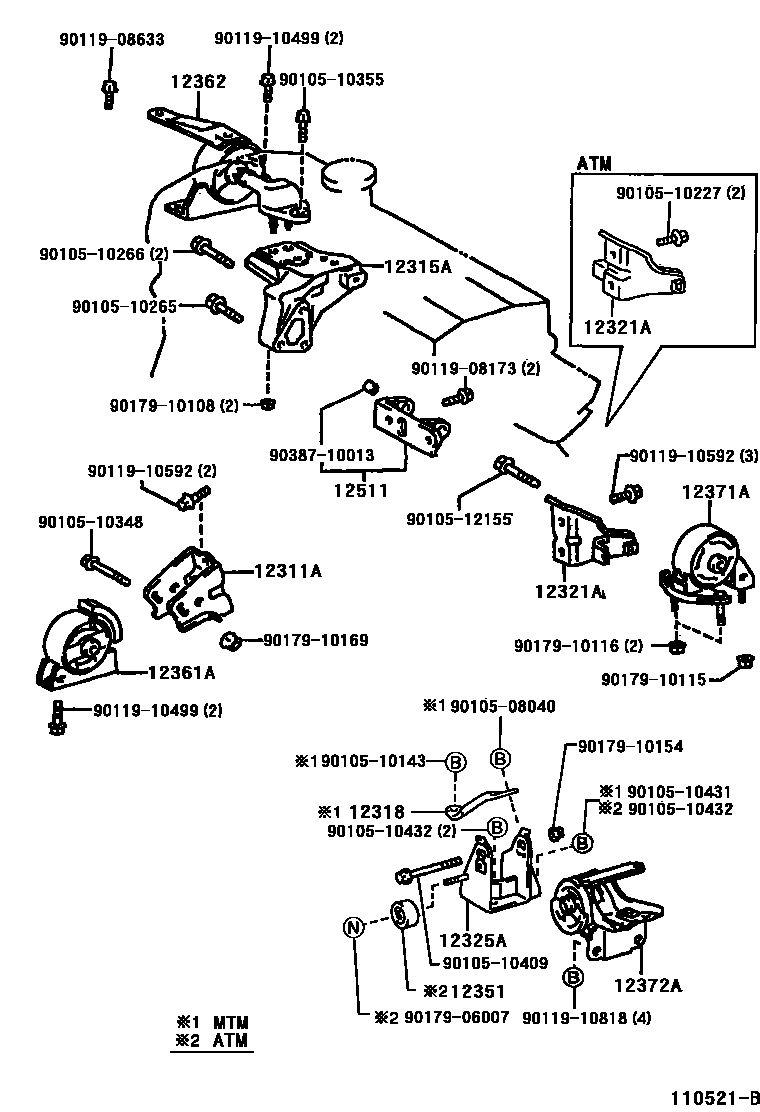

Toyota COROLLA Engine Mounting EPC diagram — 110521B — Engine Mounting — 110521B (199704 – 999999)

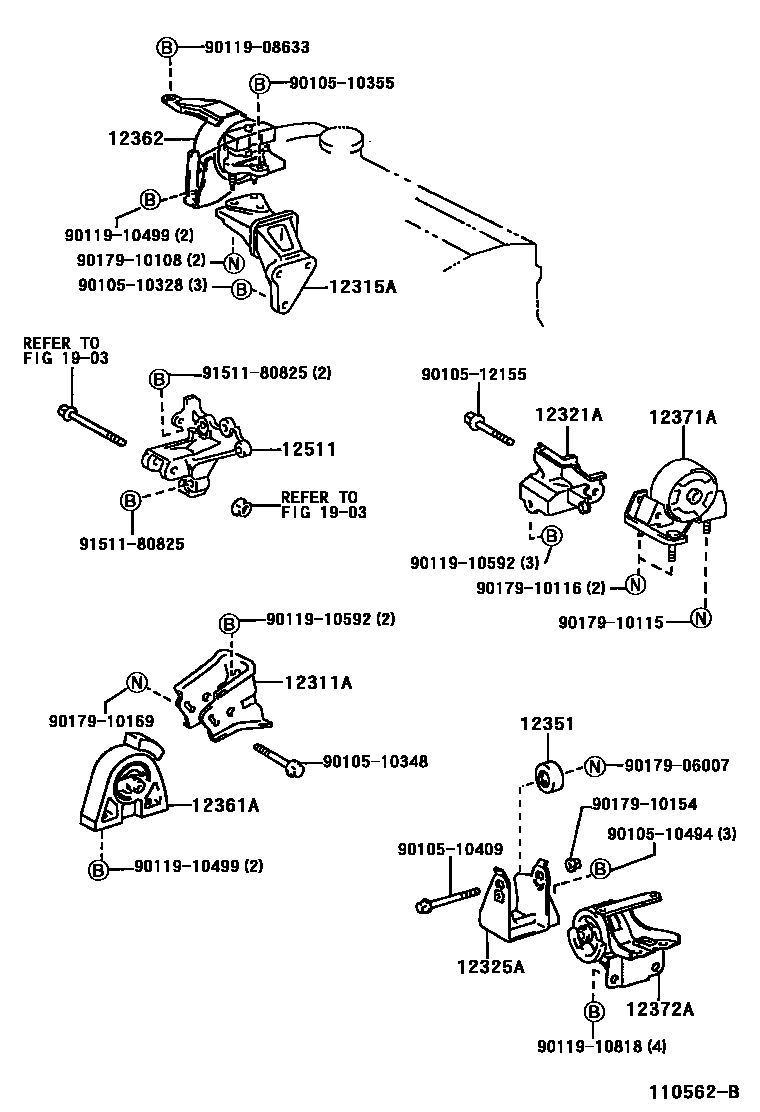

Toyota COROLLA Engine Mounting EPC diagram — 110562B — Engine Mounting — 110562B (199704 – 999999)

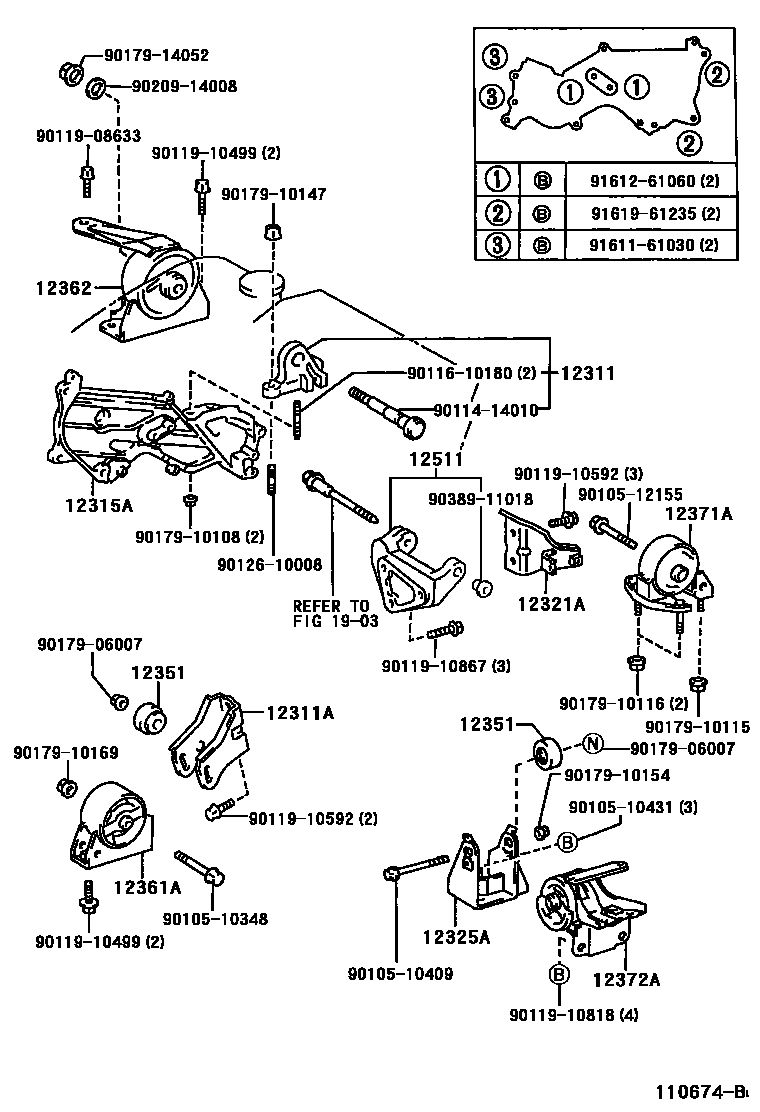

Toyota COROLLA Engine Mounting EPC diagram — 110674B — Engine Mounting — 110674B (199704 – 199910)

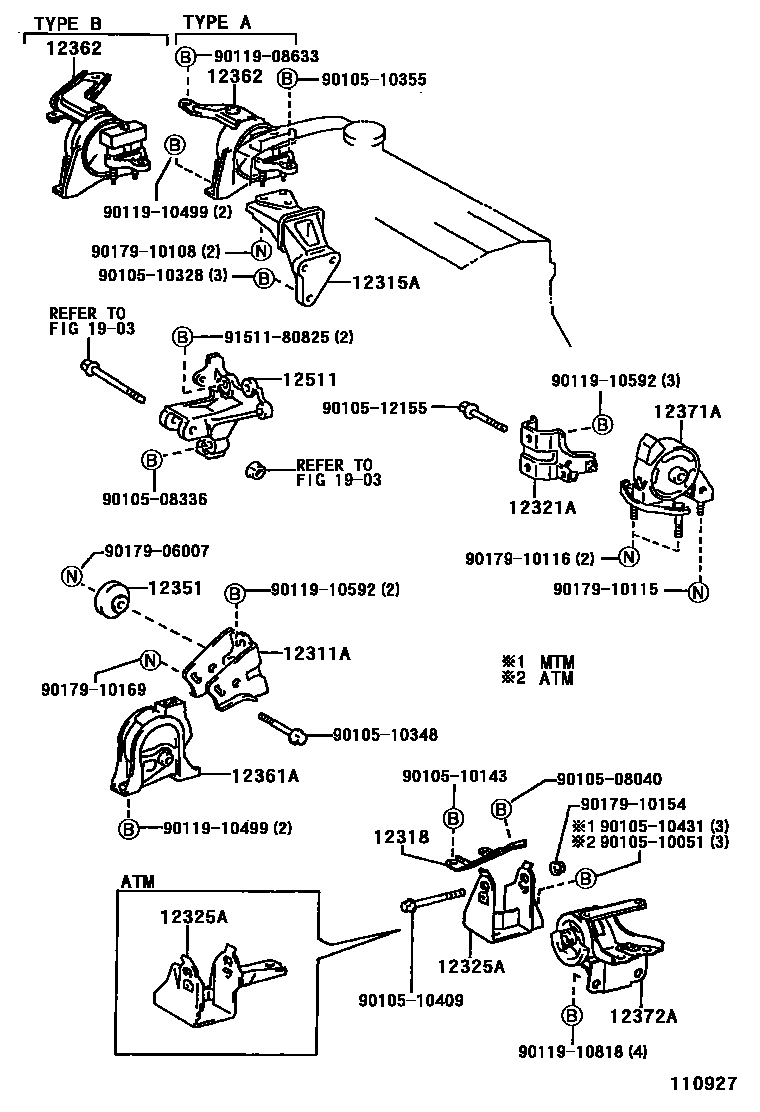

Toyota COROLLA Engine Mounting EPC diagram — 110927 — Engine Mounting — 110927 (199704 – 199910)

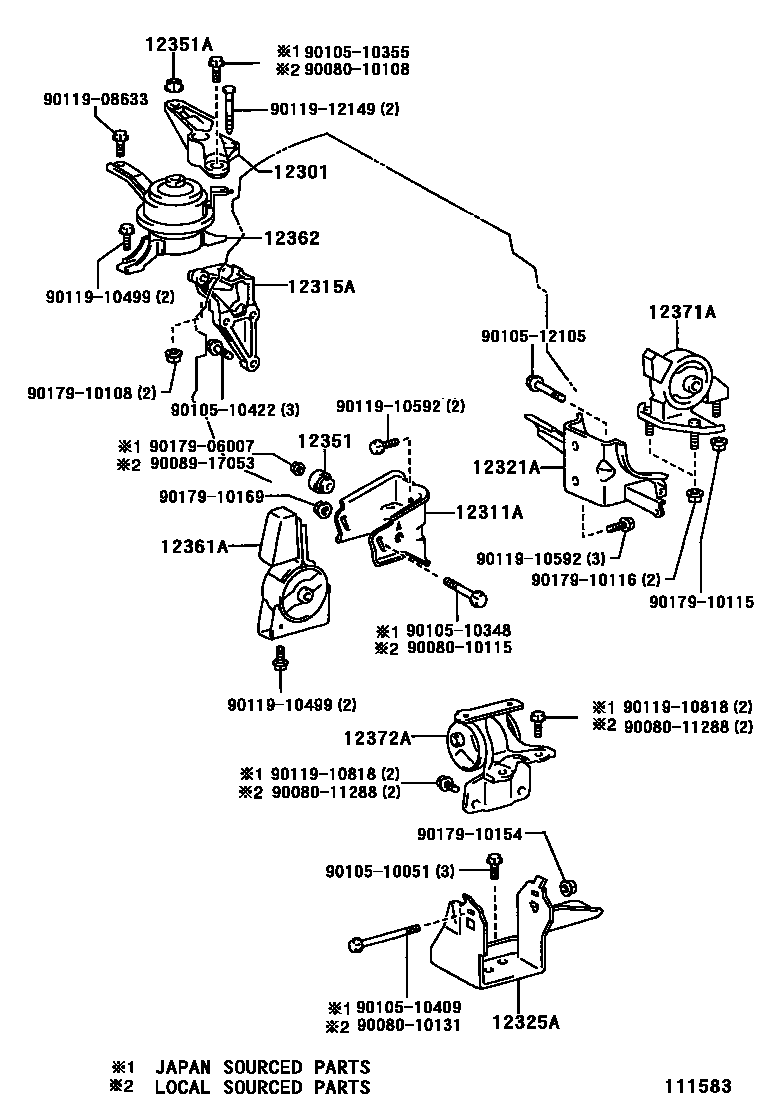

Toyota COROLLA Engine Mounting EPC diagram — 111583 — Engine Mounting — 111583 (199910 – 999999)

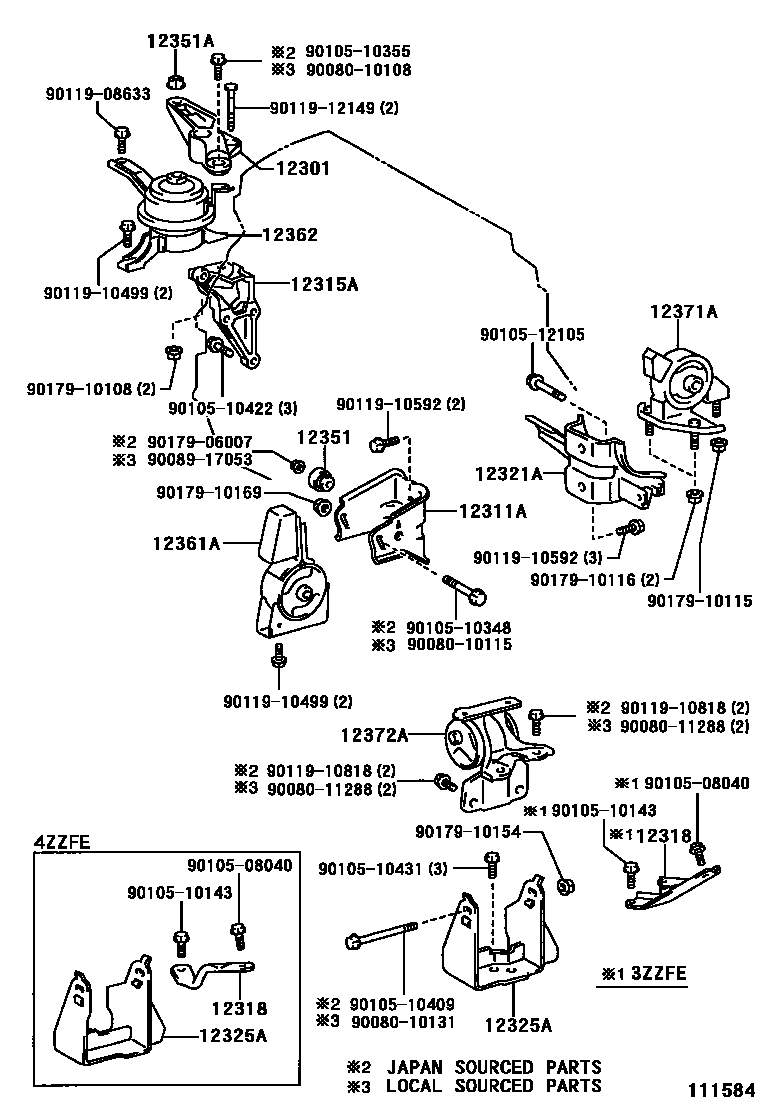

Toyota COROLLA Engine Mounting EPC diagram — 111584 — Engine Mounting — 111584 (199910 – 999999)

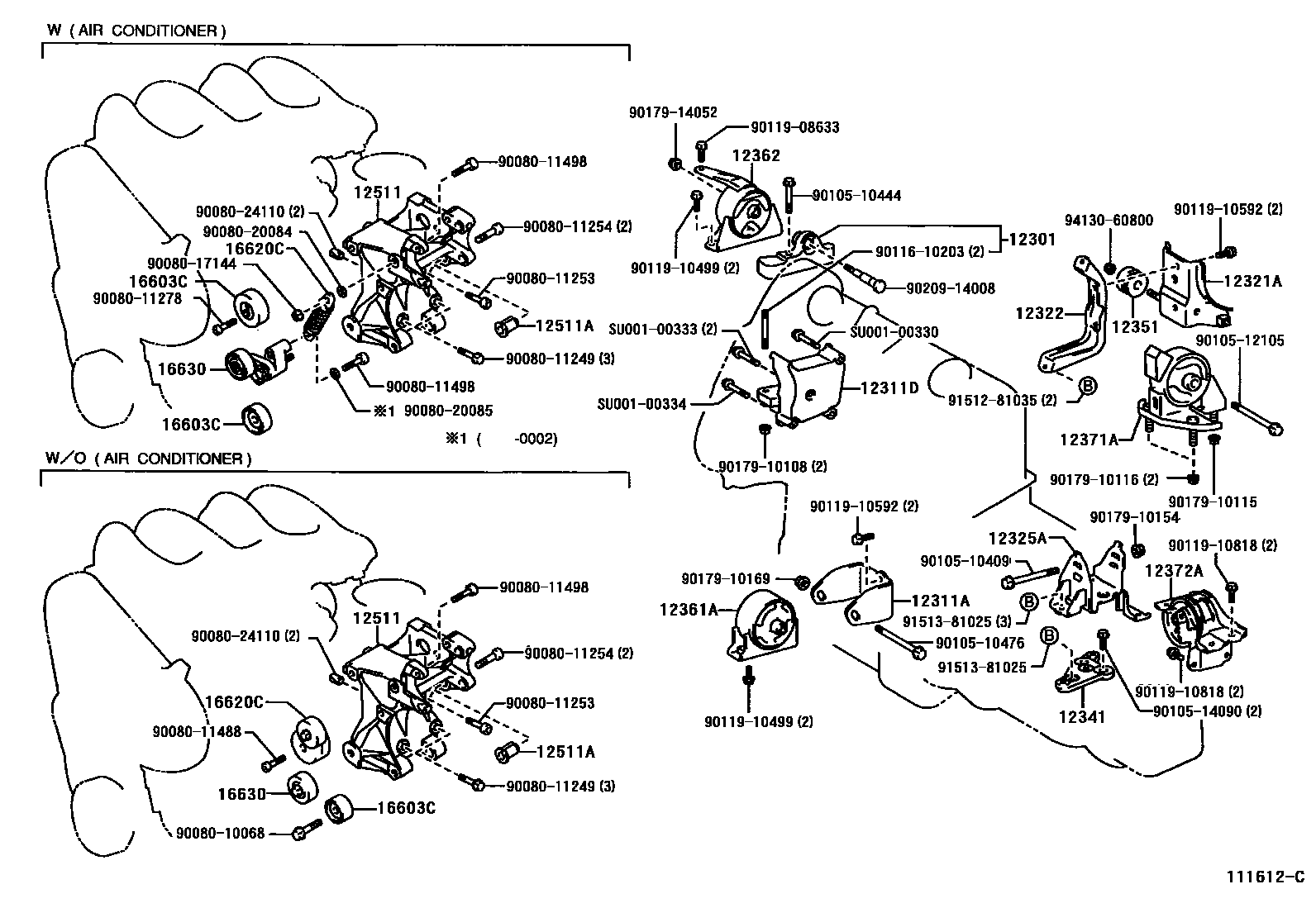

Toyota COROLLA Engine Mounting EPC diagram — 111612C — Engine Mounting — 111612C (200001 – 999999)

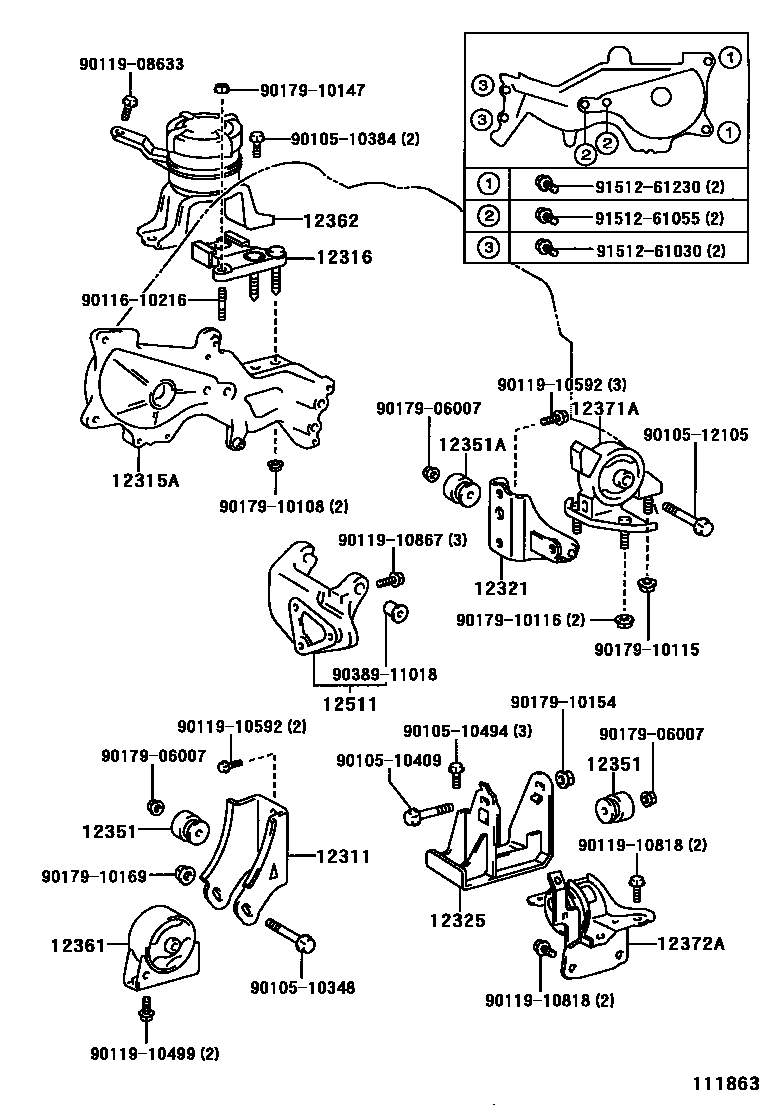

Toyota COROLLA Engine Mounting EPC diagram — 111863 — Engine Mounting — 111863 (200008 – 999999)

PNC and OE references

PNC	Part name	OE numbers
12301	Engine right front mounting bracket sub-assembly	12301-22040 · 12301-53010
12311	Engine Mounting Bracket No. 1, Front RH	12301-64020 · 12311-27010
12311A	Engine front mounting bracket (for transverse engine)	12311-11090 · 12311-15130 · 12311-16110 · 12311-22050 · 12311-53010 · 12311-64120
12311D	engine mounting bracket	12311-0X010
12315A	Engine right side mounting bracket (for transversely mounted engine)	12315-11051 · 12315-15070 · 12315-15081 · 12315-22010 · 12315-27010 · 12315-64050 · 12315-64160
12316	Engine No. 2 right side suspension bracket	12316-27010
12318	Engine left mounting bracket	12318-11050 · 12318-15080
12321	Engine No. 1 rear suspension bracket	12321-27010
12321A	Rear engine mounting bracket (for transverse engine)	12321-11191 · 12321-11200 · 12321-15120 · 12321-15140 · 12321-16240 · 12321-22020 · 12321-22050 · 12321-53010 · 12321-64190 · 12321-64191
12322	Engine No. 2 rear suspension bracket	12322-53010
12325	Engine No. 3 mounting bracket	12325-27010
12325A	Engine left side mounting bracket (for transversely mounted engine)	12325-11160 · 12325-11180 · 12325-15080 · 12325-15100 · 12325-15110 · 12325-15131 · 12325-16240 · 12325-53010 · 12325-64130
12341	engine mounting spacer	12341-53010
12351	engine mount shock absorber	12351-15060 · 12351-15070 · 12351-15080 · 12351-15110 · 12351-23010 · 12351-64050 · 12351-74130
12351A	Engine mount shock absorber (for vibration isolation pad)	12351-22040 · 12351-74130
12361	Engine front mounting vibration isolation pad	12361-27010
12361A	Engine front mounting vibration isolation pad (for transversely mounted engine)	12361-11181 · 12361-15170 · 12361-15171 · 12361-15180 · 12361-15181 · 12361-16270 · 12361-22010 · 12361-22020 · 12361-53010 · 12361-64241
12362	Engine right side mounting vibration isolation pad (for transversely mounted engine)	12305-11050 · 12305-11060 · 12305-15040 · 12305-16062 · 12305-16110 · 12362-22020 · 12362-27010 · 12362-53010 · 12362-64220
12371A	Engine rear mount vibration isolation pad	12371-11600 · 12371-15241 · 12371-22040 · 12371-22050 · 12371-53010 · 12371-53011 · 12371-64210 · 12371-64220
12372A	Engine left-side mounting vibration isolation pad (for transversely mounted engines)	12372-16380 · 12372-16390 · 12372-16400 · 12372-27010 · 12372-64270 · 12372-64271
12511	No. 1 generator bracket	12511-0X010 · 12511-11020 · 12511-15060 · 12511-16110 · 12511-64060
12511A	Generator bracket bushing	90080-38114
16603C	Idler gear sub-assembly	16603-0X010 · 16603-0X020
16620C	Poly V-belt tensioner assembly	16620-0X020 · 16620-0X030
16630	Idler gear assembly	16630-0X020 · 16630-0X030
