Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 7 images and 35 PNC and OE references.

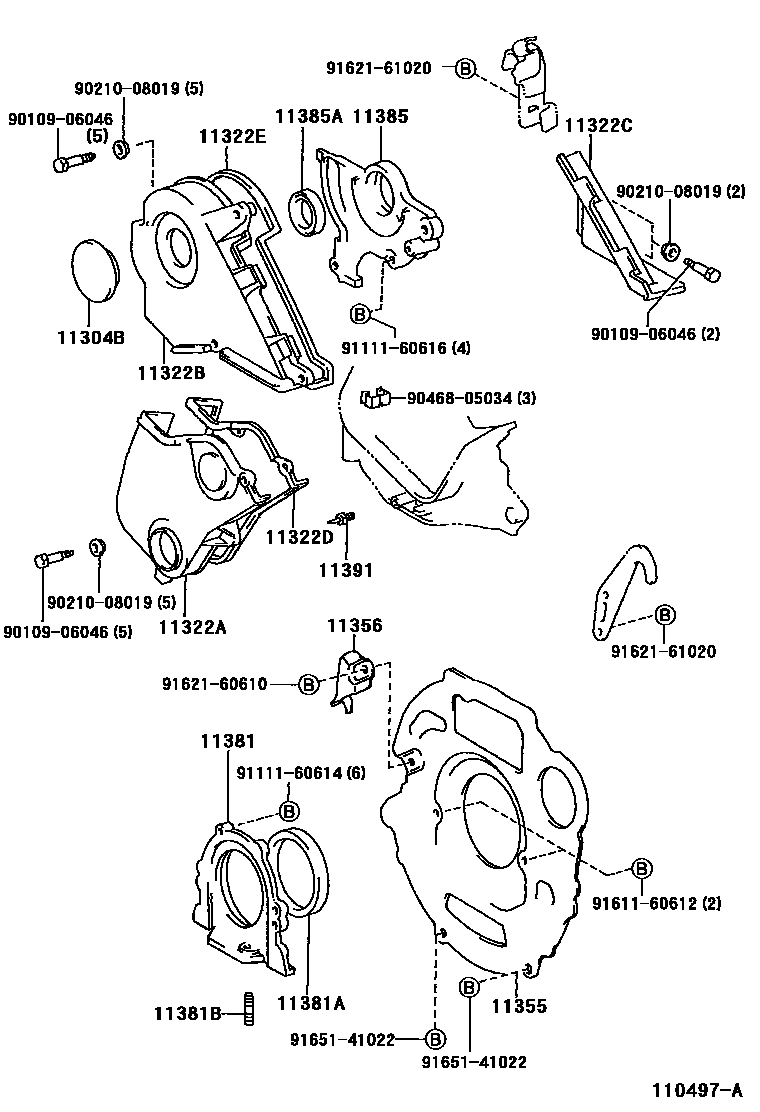

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 110497A
Timing Gear Cover & Rear End Plate — 110497A (199704 – 199910)

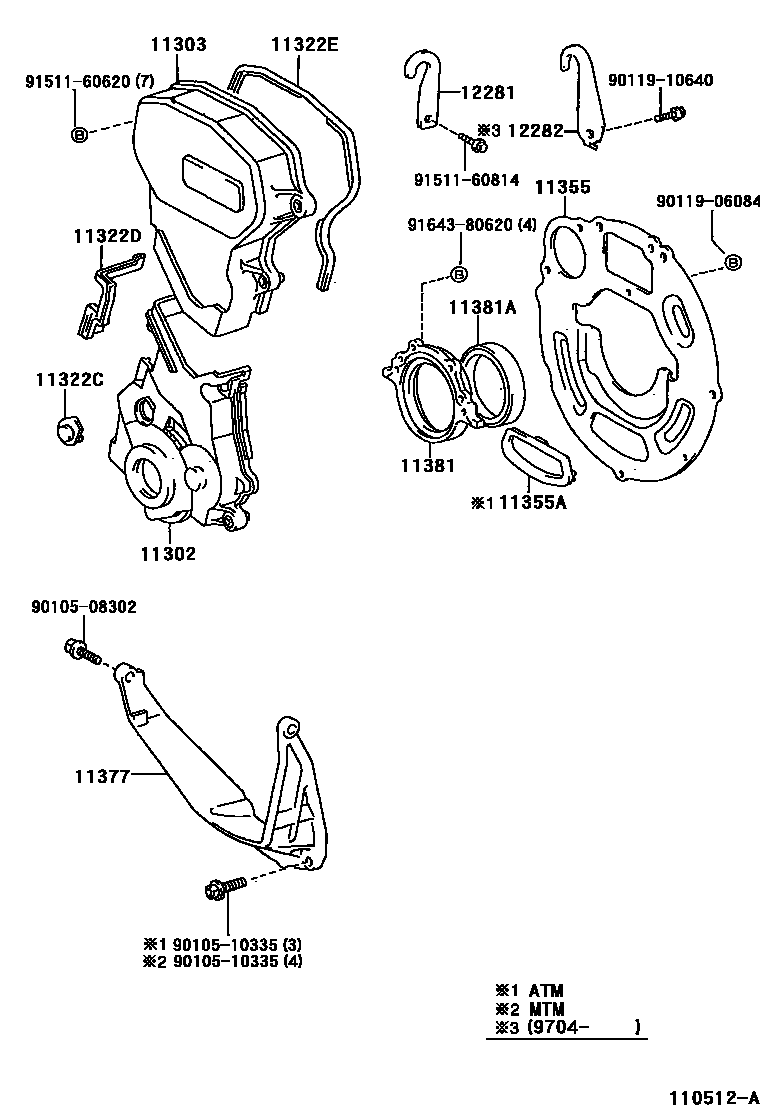

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 110512A
Timing Gear Cover & Rear End Plate — 110512A (199704 – 199910)

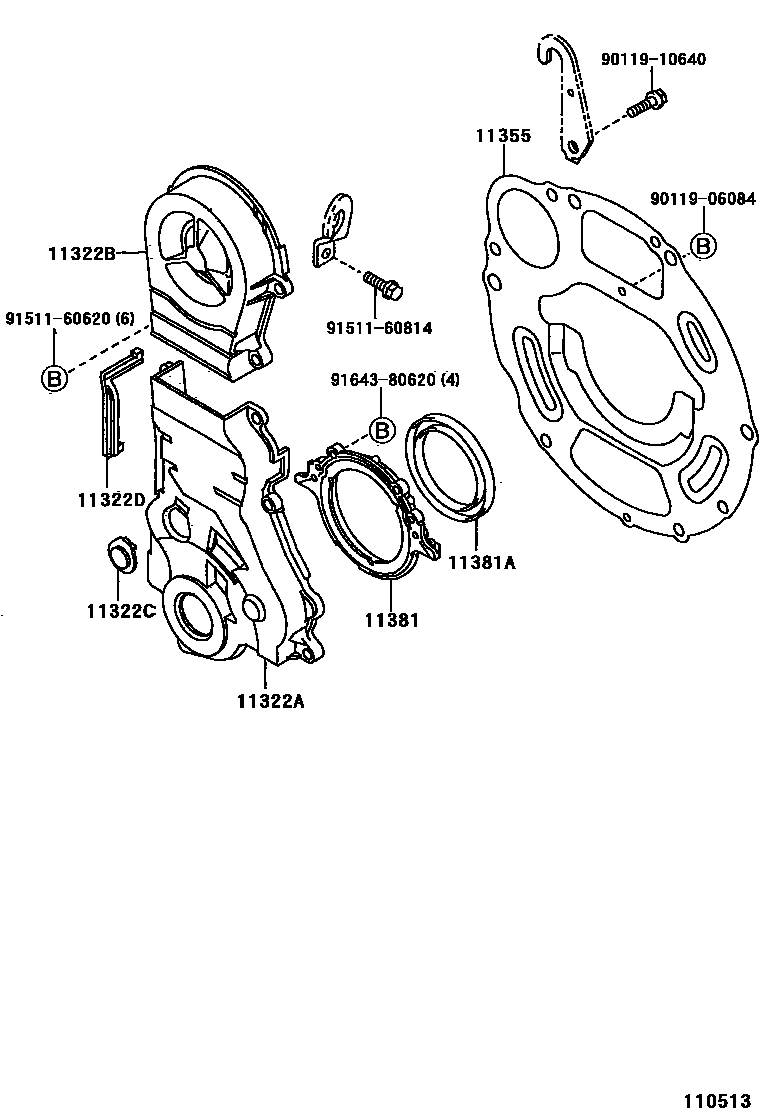

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 110513
Timing Gear Cover & Rear End Plate — 110513 (199704 – 999999)

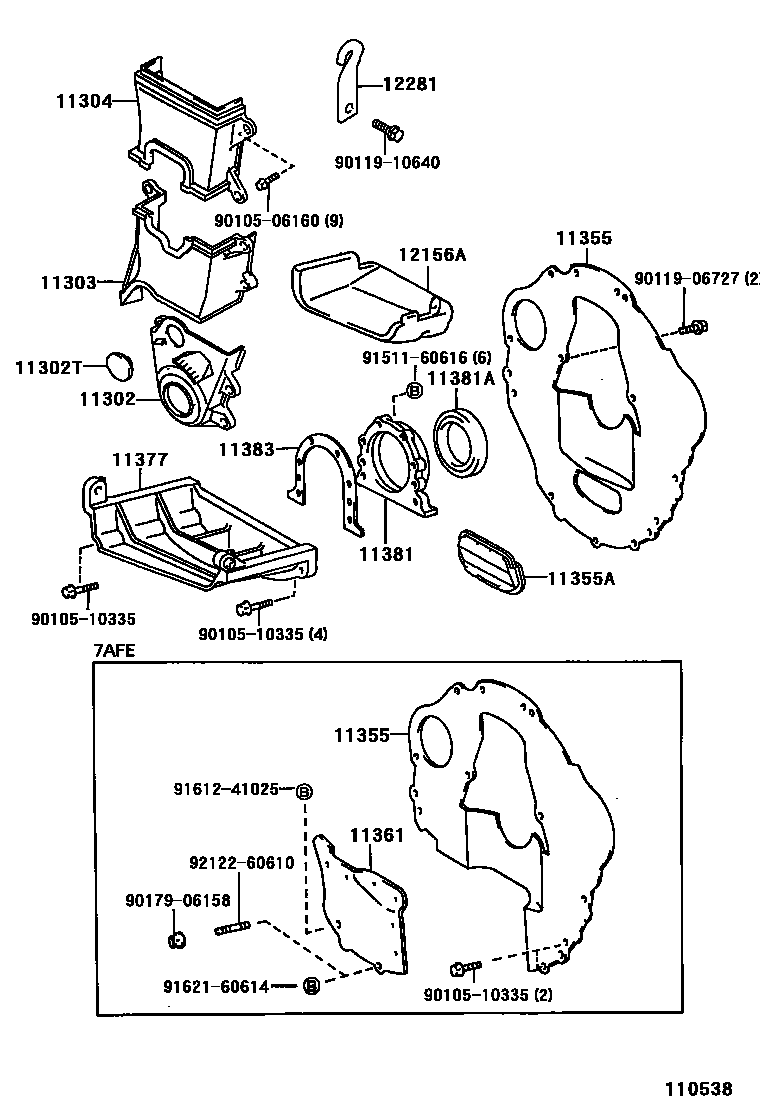

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 110538
Timing Gear Cover & Rear End Plate — 110538 (199704 – 999999)

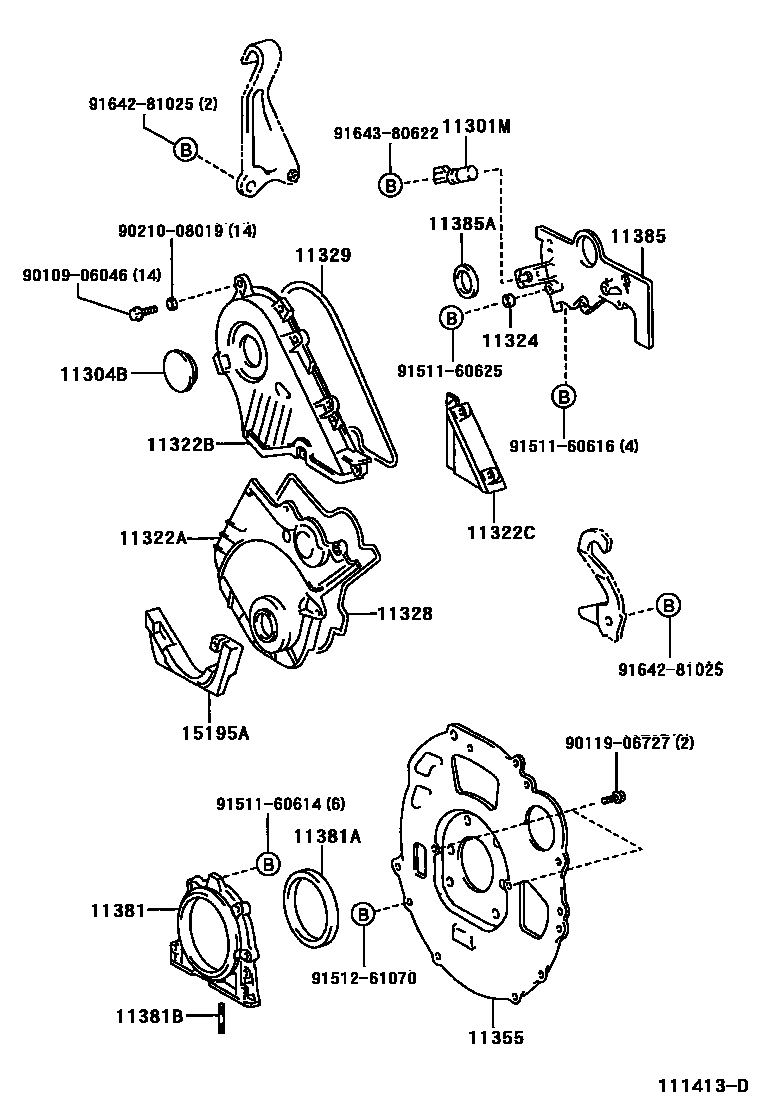

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 111413D
Timing Gear Cover & Rear End Plate — 111413D (200008 – 999999)

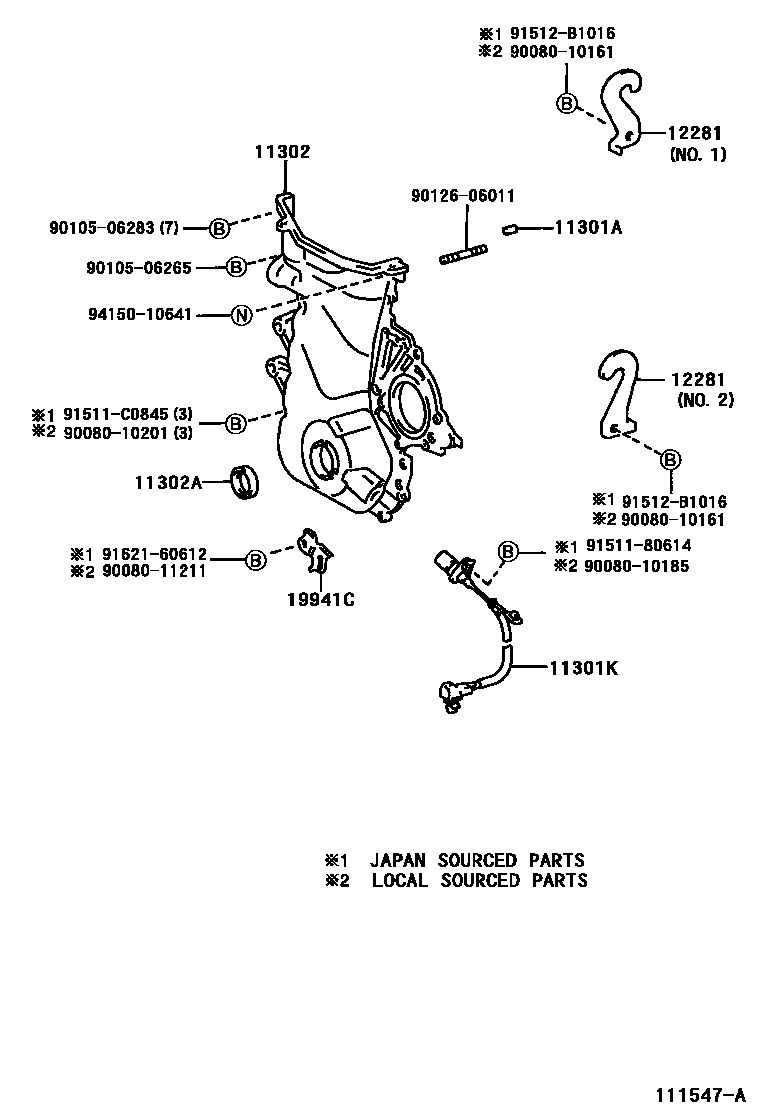

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 111547A
Timing Gear Cover & Rear End Plate — 111547A (199910 – 999999)

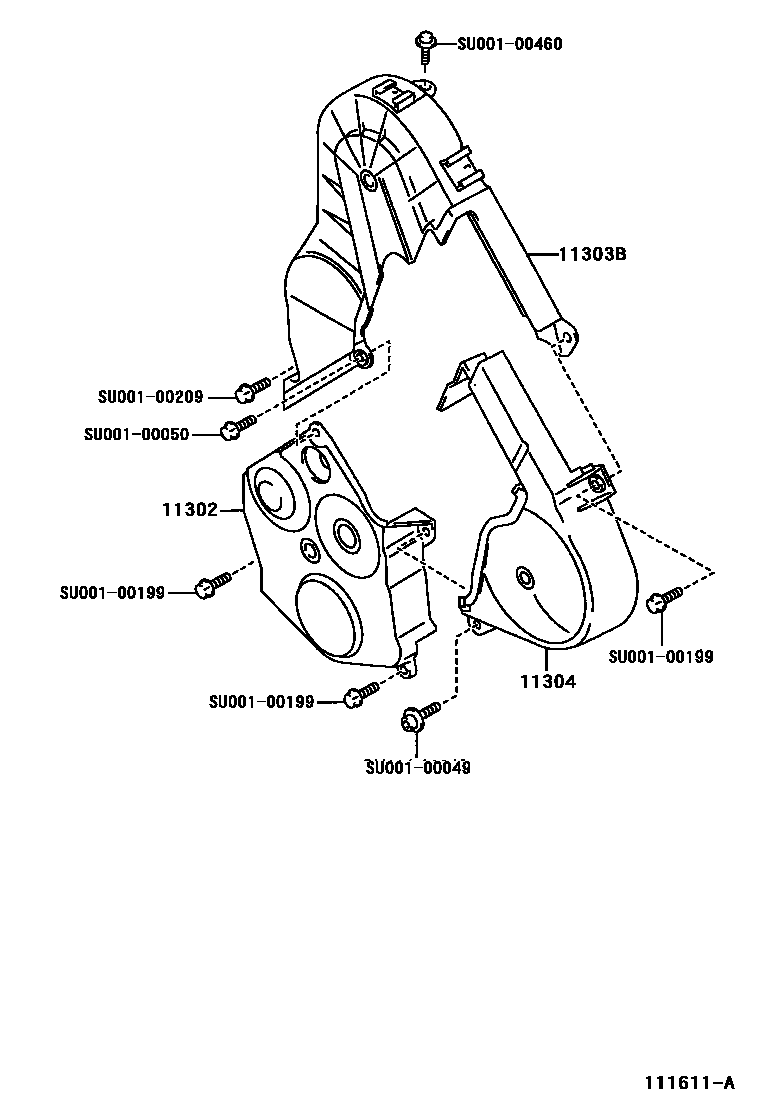

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 111611A
Timing Gear Cover & Rear End Plate — 111611A (200001 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301ADirect sales (for timing gearbox)90250-08074
11301Kcrankshaft position sensor90919-05030
11301MCam position sensor90919-05012
11302TIMING CHAIN OR BELT COVER SUB-ASSY11302-11110 · 11302-15050 · 11302-16040 · 11321-22021 · SU001-00046
11302AOil seal (for timing chain or timing belt cover)90311-38059
11302Thole plug90950-01783
11303Crankshaft gear or crankshaft pulley cover sub-assembly11303-11031 · 11303-15050 · 11303-16050 · 11303-16070
11303BNo. 2 timing belt cover sub-assemblySU001-00047
11304No. 2 timing chain or timing belt cover11304-15030 · 11304-16060 · SU001-00048
11304BHalf-round plug (for No. 2 timing chain cover)90950-01357
11322ANo. 1 timing belt cover11302-11072 · 11321-27010 · 11321-64020 · 11321-64070
11322BNo. 2 timing belt cover11303-10023 · 11322-27011 · 11322-64010
11322CNo. 3 timing belt cover11323-10011 · 11323-27010 · 11323-64011
11322DNo. 1 timing belt cover gasket11328-11041 · 11328-64040 · 11328-64070
11322ENo. 2 timing belt cover gasket11329-11010 · 11329-64020
11324Timing chain cover11324-27010
11328GASKET, TIMING GEAR OR CHAIN COVER11328-27010
11329Timing gear rear cover gasket11329-27010
11355rear end plate11355-10012 · 11355-11012 · 11355-15070 · 11355-15080 · 11355-16060 · 11355-27010 · 11355-27011 · 11355-64051
11355AHole plug (for rear end plate)90950-01264 · 90950-01548
11356No. 2 rear end plate11356-64040
11361Flywheel housing bottom cover11361-16050
11377Rear end plate reinforcement11377-11020 · 11377-15012
11381RETAINER, ENGINE REAR OIL SEAL11381-10021 · 11381-15010 · 11381-64012 · 11381-64020
11381ASEAL, ENGINE REAR OIL90311-70007 · 90311-75009 · 90311-90008
11381BStud bolts (for engine rear oil seal race)90116-06134 · 90126-06018
11383Engine rear oil seal seat gasket11383-16010
11385Camshaft oil seal race11382-27010 · 11382-64011
11385AOil seal (for camshaft)90311-38061 · 90311-38081
11391Timing pointer11391-64010
12156AOil pan vibration isolation pad12156-16010
12281Engine No. 1 hanger12281-11031 · 12281-15050 · 12281-22021
12282ENGINE HANGER, NO.212282-11022
15195AOil pump vibration isolation pad15195-27010 · 15195-27011
19941CWire clamp (for crankshaft position sensor)19941-22010
