Toyota COROLLA Cylinder Block — Figure 1105

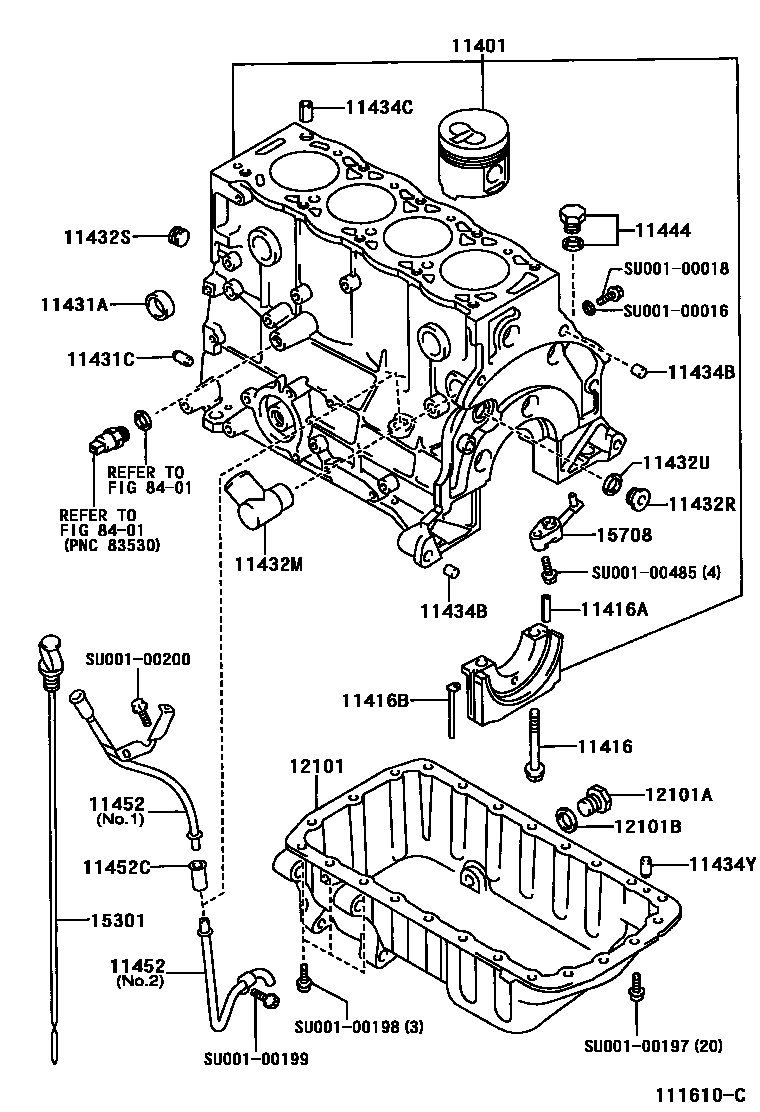

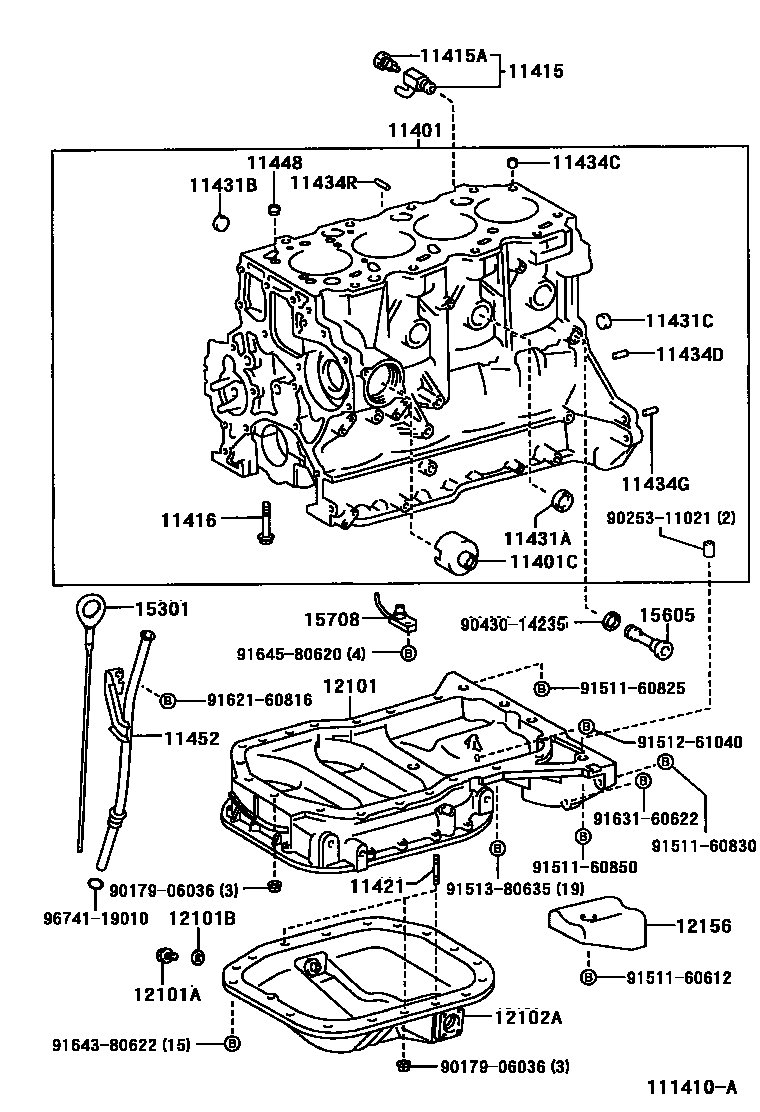

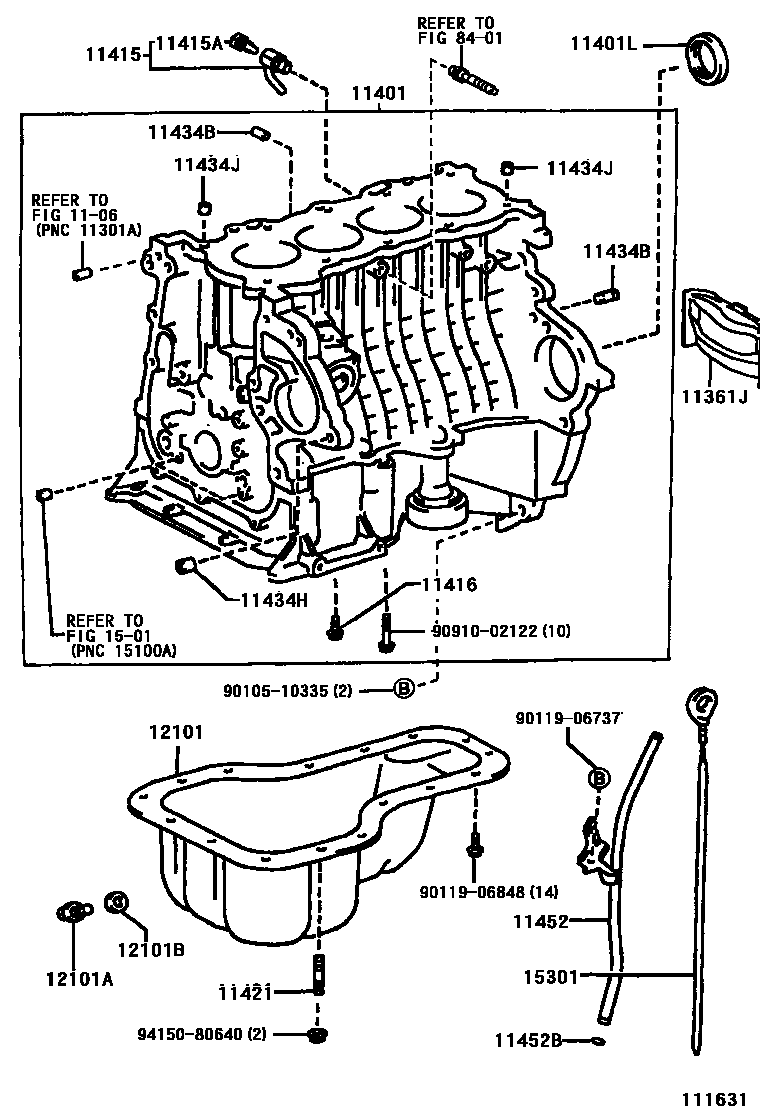

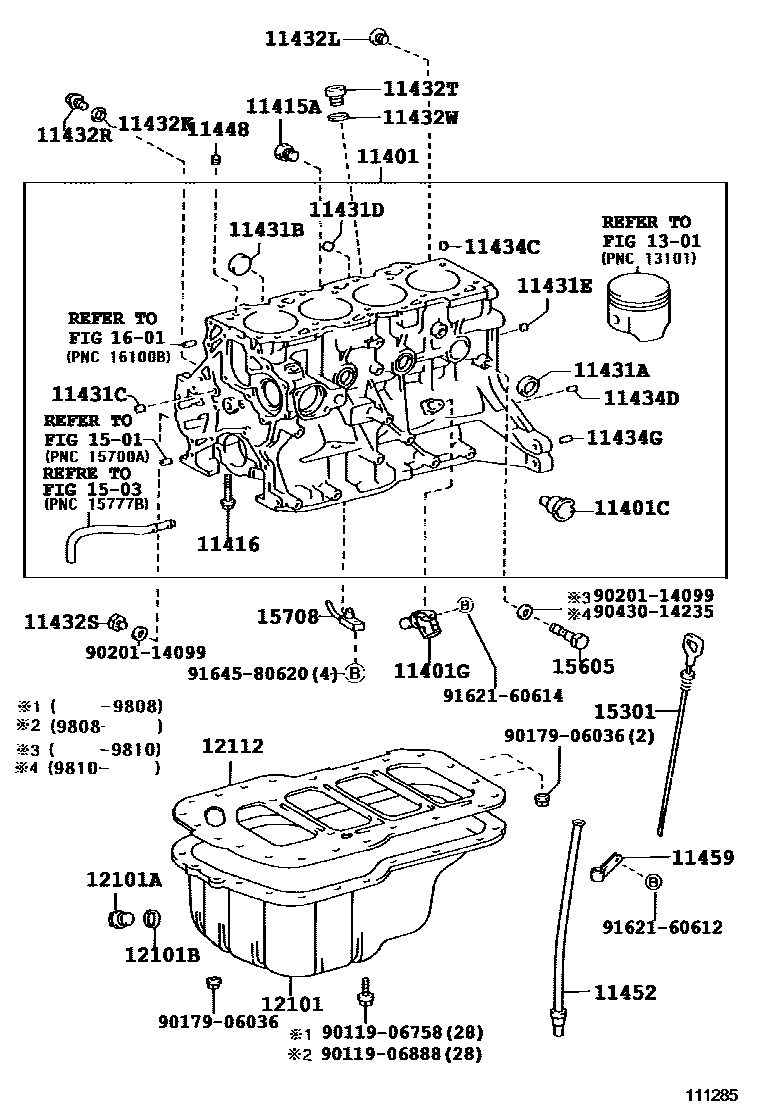

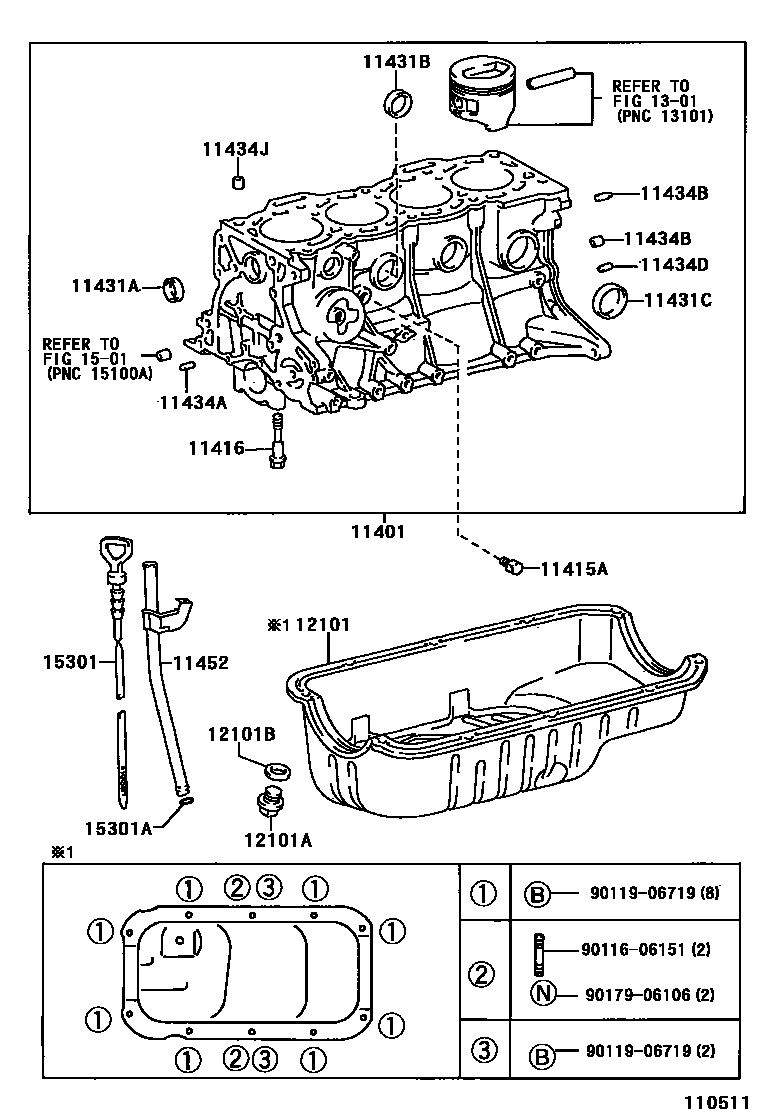

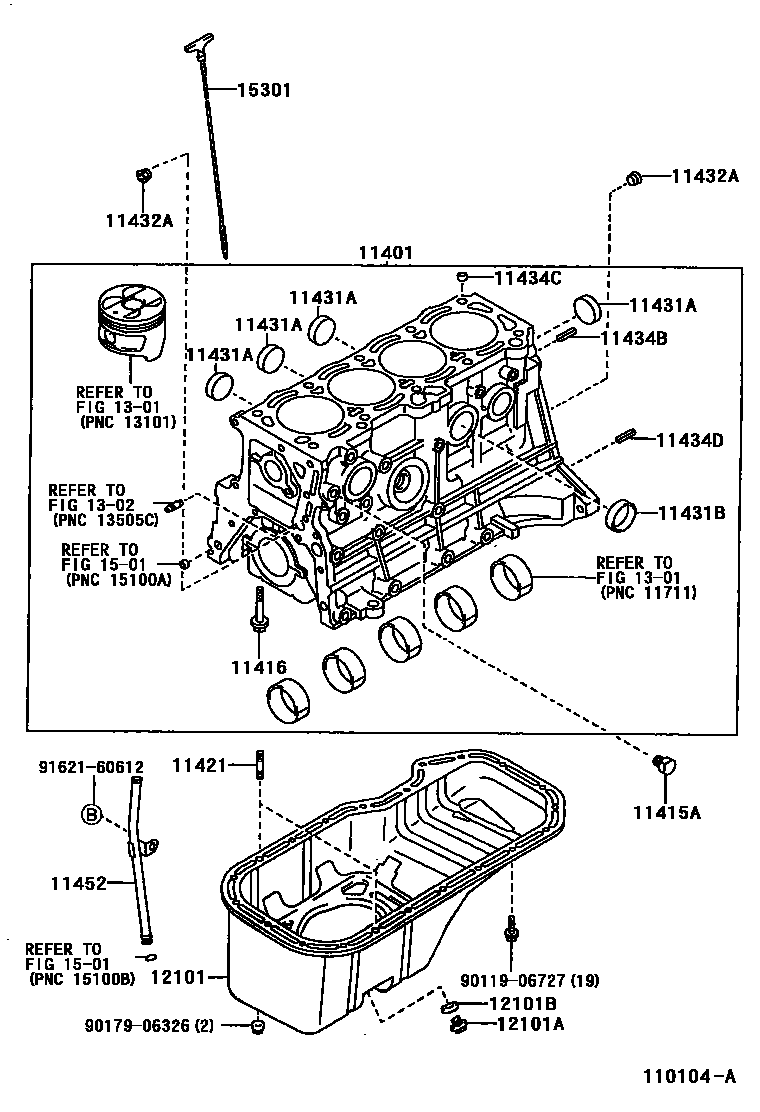

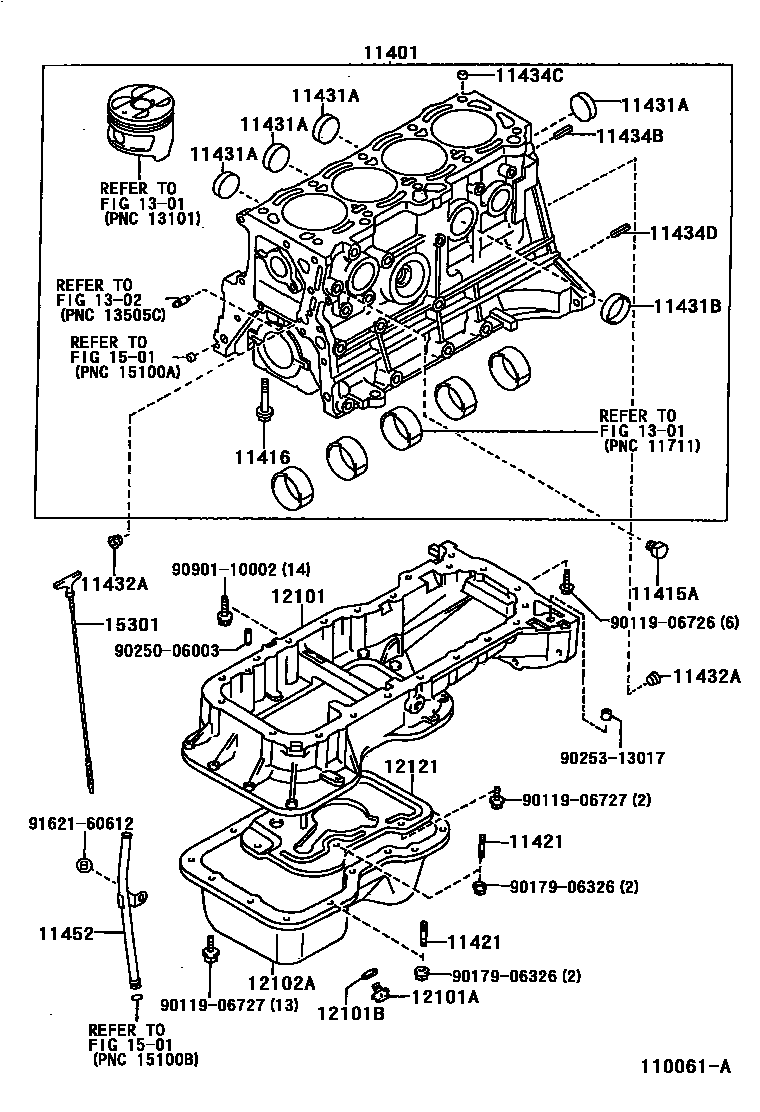

Toyota COROLLA EPC diagram 1105, Cylinder Block, with 7 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-22021 |
| 11401 | Cylinder block sub-assembly | 11401-19755 · 11401-29665 · 11401-69725 · 11401-69726 · 11401-69727 · 11401-80000 · 11401-80002 · 11401-80006 · 11401-80693 · 11401-80695 · 11410-29045 · 11410-29046 · 11410-29047 · 11410-29055 · 11410-29056 · 11410-29057 · SU001-00002 |
| 11401C | Flange (for water bypass pipe) | 16353-27010 · 16353-64011 |
| 11401G | crankshaft position sensor | 90919-05031 |
| 11401L | SEAL, ENGINE REAR OIL | 90311-76001 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09075 · 90910-09107 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90345-52001 · 90345-52003 · 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-08363 · 90105-10007 · 90910-02019 · 90910-02061 · 90910-02135 · SU001-00011 |
| 11416A | Ring pin (for crankshaft bearing cap assembly) | SU001-00009 |
| 11416B | Bearing cap seal | SU001-00010 |
| 11421 | Stud bolts (for oil pan) | 90116-06022 · 90116-06164 · 90126-06010 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-42500 · 96411-43500 · 96411-63500 · SU001-00004 · SU001-00005 · SU001-00006 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-43000 · 96411-44000 · 96411-63000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-41800 · 96411-43500 · SU001-00007 |
| 11431D | No. 4 sealing plug (for cylinder block) | 96411-41800 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-41800 |
| 11432A | No. 1 headed tapered thread plug | 90344-53006 |
| 11432K | Headed straight thread plug liner | 90430-10027 |
| 11432L | No. 4 headed straight thread plug (for cylinder block) | 90339-23002 |
| 11432M | Connector (for cylinder block) | SU001-00008 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-10002 · SU001-00013 |
| 11432S | No. 2 headed straight thread plug (for cylinder block) | 90341-14032 · SU001-00015 |
| 11432T | No. 3 headed straight thread plug (for cylinder block) | 90341-22001 |
| 11432U | No. 1 straight thread plug gasket (for cylinder block) | SU001-00014 |
| 11432W | No. 3 straight thread plug gasket (for cylinder block) | 90430-22003 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-06068 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10017 · 90250-10113 · 90253-15003 · SU001-00465 |
| 11434C | Direct sales (for cylinder head components) | 90253-13017 · 90253-14002 · 90253-14004 · SU001-00019 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-14003 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-12001 · 90253-13017 |
| 11434R | Direct selling (for drive shaft bearing bracket) | 90250-06003 |
| 11434Y | Direct sales (for oil pan) | SU001-00189 |
| 11444 | hole plug | SU001-00477 · SU001-00483 |
| 11448 | Cylinder block oil orifice | 11448-64010 · 11448-64020 |
| 11452 | Engine oil level gauge guide | 11452-11041 · 11452-15030 · 11452-22030 · 11452-27020 · 11452-64030 · 12142-0X010 · SU001-00190 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 |
| 11452C | Connector (for oil level gauge tube) | SU001-00012 |
| 11459 | Oil level gauge guide bracket | 90929-01049 |
| 12101 | Oil pan sub-assembly | 12101-11060 · 12101-16100 · 12101-16110 · 12101-22024 · 12101-64140 · 12101-64141 · 12111-0X010 · 12111-16150 · 12111-27010 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12026 · SU001-00187 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 · SU001-00188 |
| 12102A | No. 2 oil pan sub-assembly | 12102-16010 · 12102-27010 |
| 12112 | No. 2 oil pan | 12112-64040 |
| 12121 | No. 1 oil pan baffle | 12121-16040 |
| 12156 | Oil pan vibration isolation pad | 12156-27010 |
| 15301 | Engine oil level scoring assembly | 15301-0X010 · 15301-11050 · 15301-15051 · 15301-16091 · 15301-22030 · 15301-27020 · 15301-64090 |
| 15301A | O-ring (for engine oil level gauge) | 96721-19010 |
| 15605 | Oil check valve sub-assembly | 15605-64020 · 15703-27010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15790-27010 · 15790-64021 · SU001-00456 |
