Toyota COROLLA 扬声器 — Figure 8602

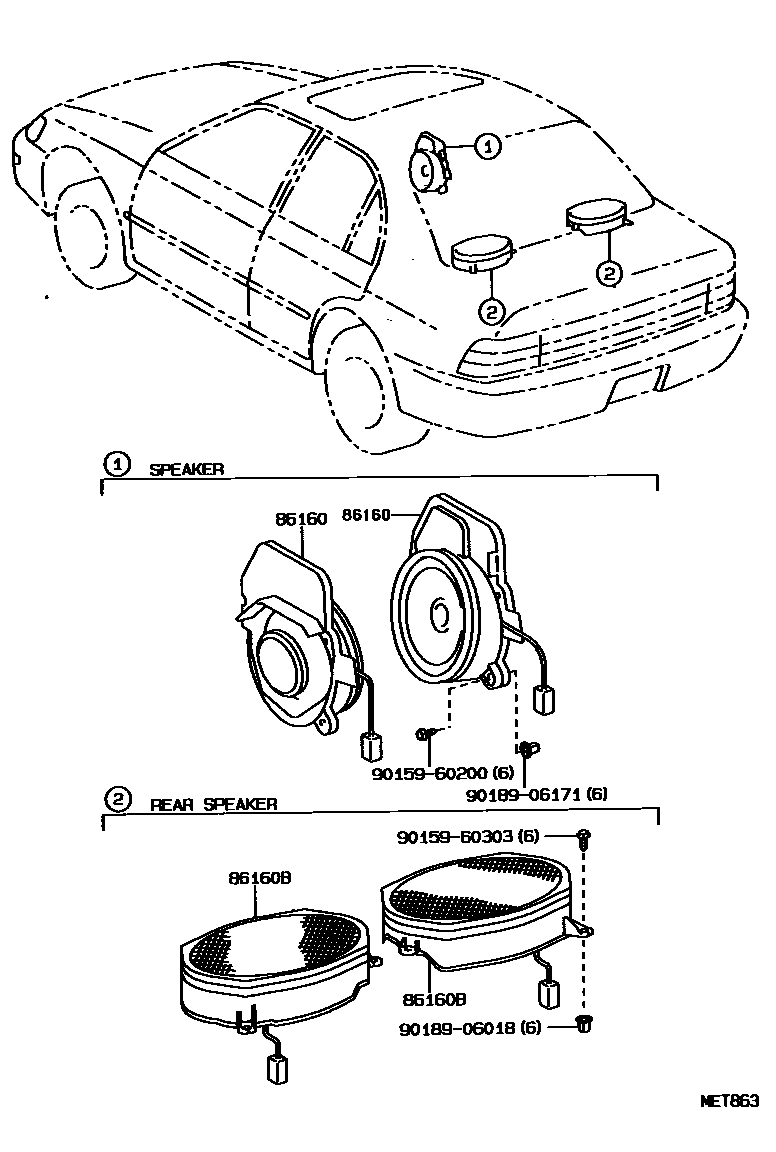

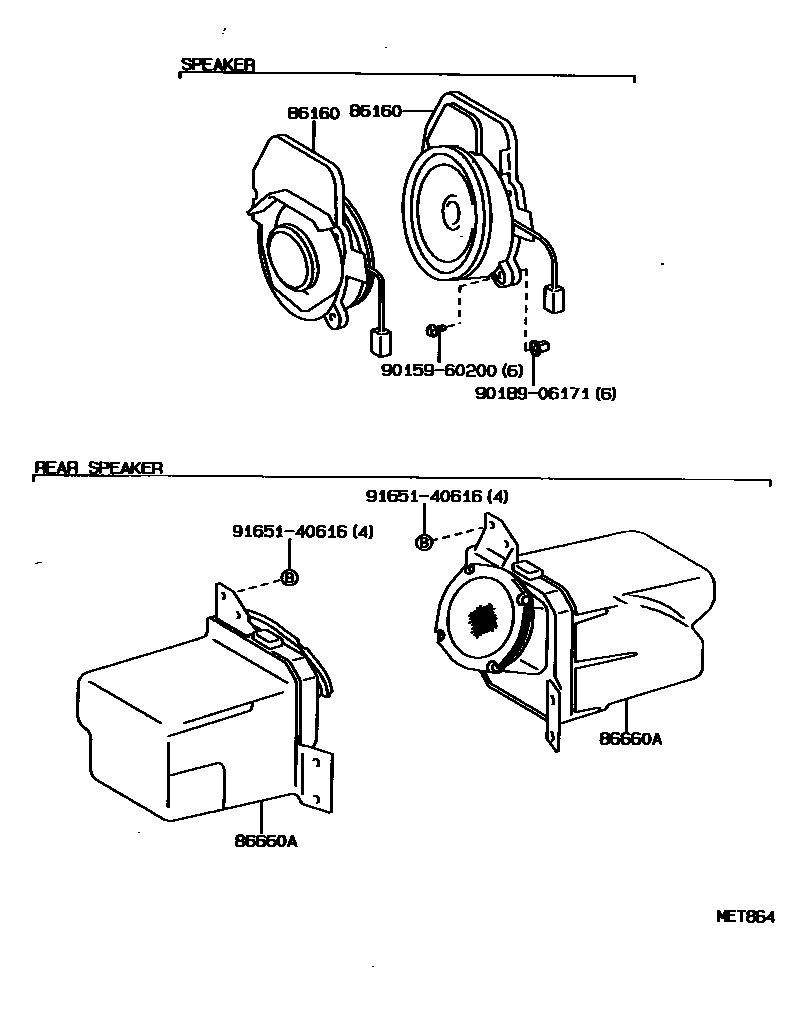

Toyota COROLLA EPC diagram 8602, 扬声器, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-12410 · 86160-12420 · 86160-12430 · 86160-12440 |
| 86160B | Rear speaker assembly | 86160-12450 · 86160-12460 |
| 86660A | Speaker assembly | 86660-13010 · 86660-13020 |
