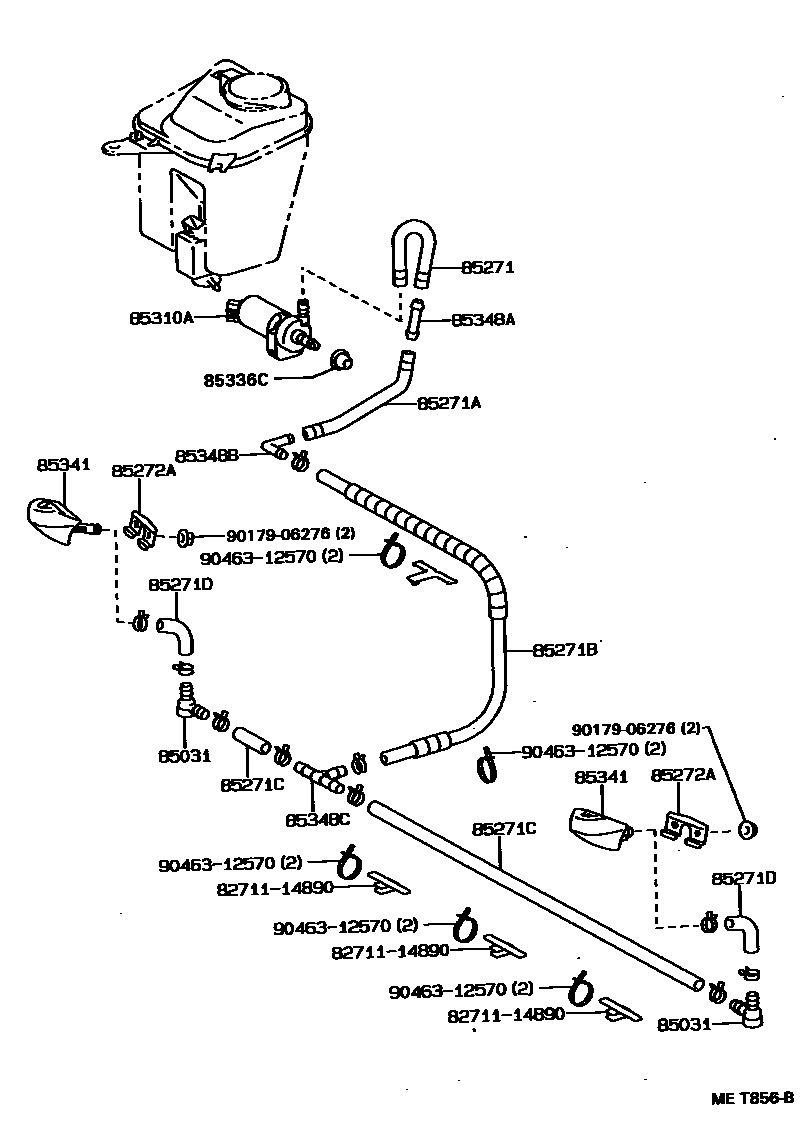

Toyota COROLLA 前大灯清洗器 — Figure 8505
Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-30020 |
| 85271 | No. 1 headlight washer hose | 85275-12580 |
| 85271A | No. 2 headlight washer hose | 85276-12580 |
| 85271B | No. 3 headlight washer hose | 85275-12570 |
| 85271C | No. 4 headlight washer hose | 90445-14055 |
| 85271D | No. 5 headlight washer hose | 85375-32011 |
| 85272A | Headlight washer No. 1 clip | 85272-12060 |
| 85310A | Headlight washer motor and pump assembly | 85280-12060 |
| 85336C | Headlight washer motor seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85044-12060 |
| 85348A | Headlight washer hose connector No. 1 | 85379-89131 |
| 85348B | No. 2 headlight washer hose connector | 85379-22080 |
| 85348C | No. 3 headlight washer hose connector | 85352-12010 |
