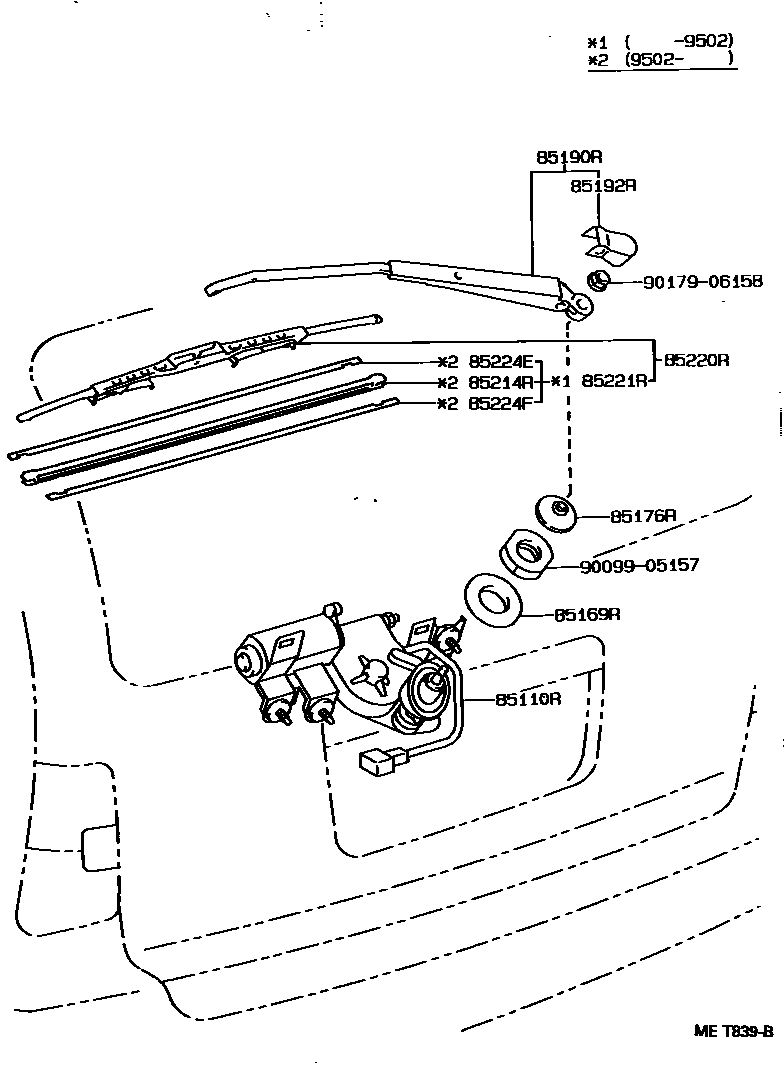

Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-13070 |
| 85169R | No. 1 rear wiper link pivot washer | 85134-13060 |
| 85176R | Rear wiper connecting rod cover | 85176-13070 |
| 85190R | Rear wiper arm assembly | 85241-13010 · 85241-13030 |
| 85192R | Rear wiper arm cover | 85245-13030 |
| 85214R | Rear wiper rubber strip | 85214-20340 |
| 85220R | Rear wiper blade assembly | 85242-13010 · 85242-13030 |
| 85221R | Rear wiper blade | 85243-13010 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-28100 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-28100 |
