Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

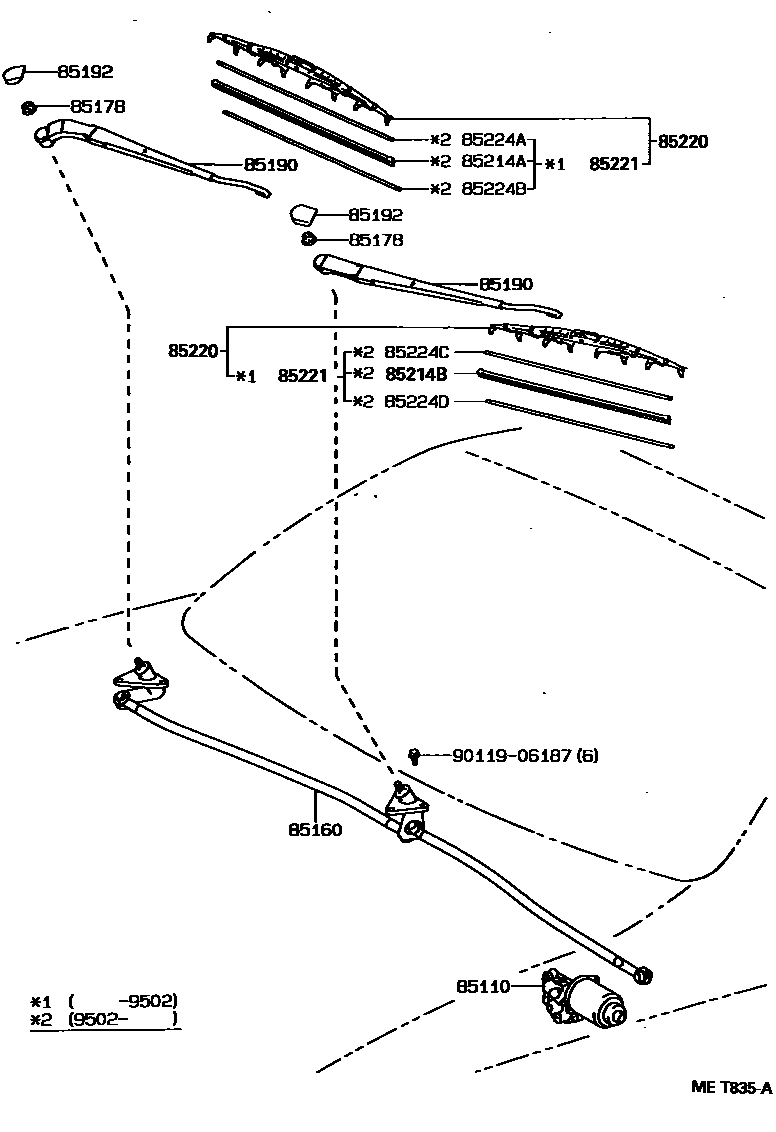

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-12800 · 85110-12810 |
| 85160 | Windshield wiper connecting rod assembly | 85150-12780 · 85150-12810 |
| 85178 | Nut (for securing front wiper arm) | 90179-08113 |
| 85190 | Windshield wiper arm assembly | 85211-12300 · 85211-12310 · 85211-12311 · 85221-12260 · 85221-12261 · 85221-12280 |
| 85192 | windshield wiper arm cover | 85292-12020 |
| 85214A | Right wiper rubber strip | 85214-20330 · 85214-30260 |
| 85214B | Left wiper rubber strip | 85214-20320 · 85214-30260 |
| 85220 | Windshield wiper blade assembly | 85212-12300 · 85212-12301 · 85212-12310 · 85212-12311 · 85212-12312 · 85222-12690 · 85222-12691 · 85222-12692 · 85222-12720 · 85222-12721 |
| 85221 | Windshield wiper blade | 85213-12300 · 85213-12310 · 85213-12330 · 85213-30270 · 85223-1G040 · 85223-30400 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-30380 · 85224-30430 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-30380 · 85224-30420 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-30380 · 85224-30430 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-30380 · 85224-30420 |
