Toyota COROLLA 防盗装置 — Figure 8424

Toyota COROLLA EPC diagram 8424, 防盗装置, with 2 images and 9 PNC and OE references.

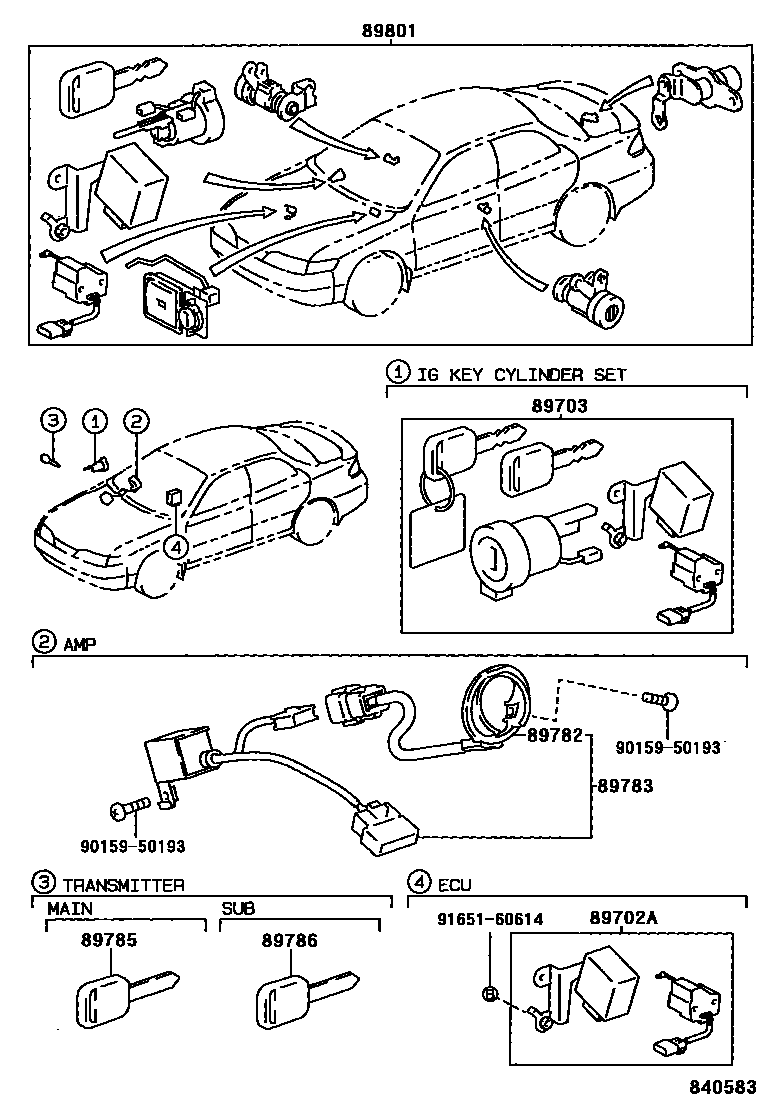

Toyota COROLLA 防盗装置 EPC diagram — 840583
防盗装置 — 840583 (199605 – 999999)

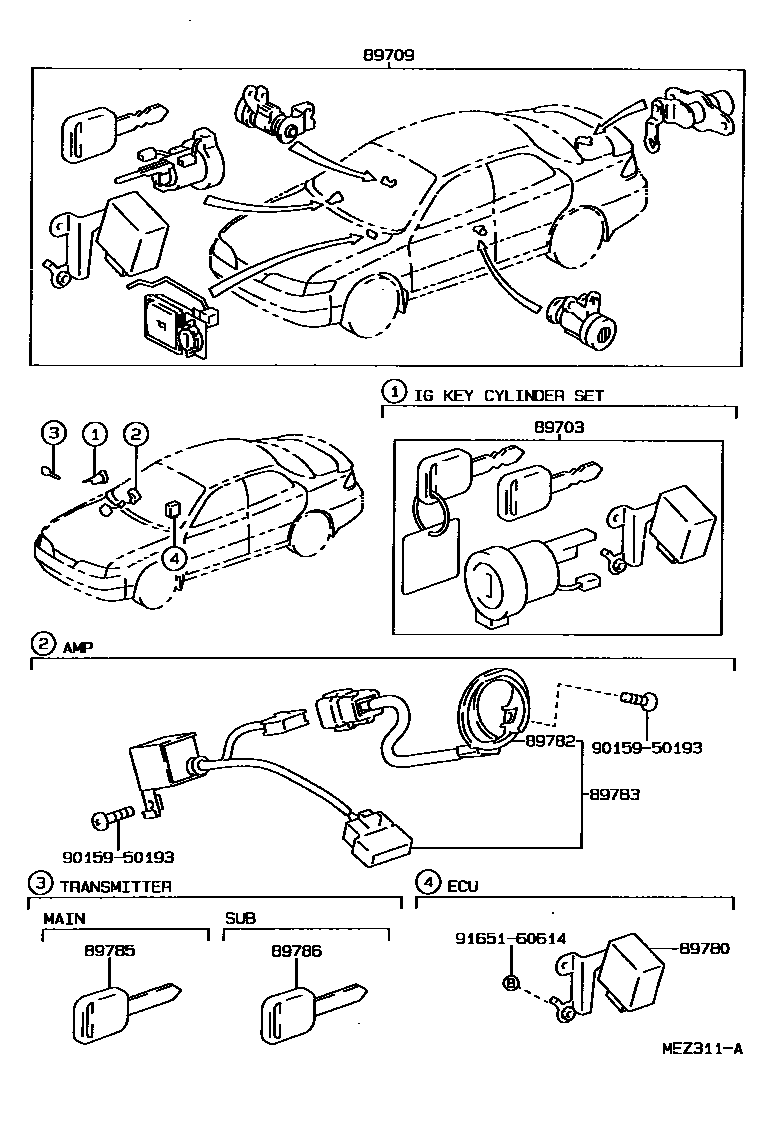

Toyota COROLLA 防盗装置 EPC diagram — MEZ311A
防盗装置 — MEZ311A (199505 – 999999)

PNC and OE references

PNCPart nameOE numbers
89702AValved transceiver control ECU assembly89702-12010 · 89702-12020
89703Ignition lock cylinder and key assembly with transceiver89703-12010 · 89703-12020 · 89703-12030 · 89703-12040 · 89703-12070 · 89703-12080 · 89703-12090 · 89703-12100
89709Transceiver key ECU assembly89709-12010 · 89709-12020 · 89709-12050 · 89709-12060 · 89709-12100
89780Transceiver key ECU assembly89780-12010 · 89780-12030
89782transceiver key coil89782-12010
89783transceiver key amplifier89783-12010
89785transceiver key master transmitter89785-12020 · 89785-12040
89786transceiver key secondary transmitter89786-12020 · 89786-12040
89801Diesel transceiver key ECU assembly89801-12010 · 89801-12020 · 89801-12040 · 89801-12050
