Toyota COROLLA 电子燃油喷射系统 — Figure 8404

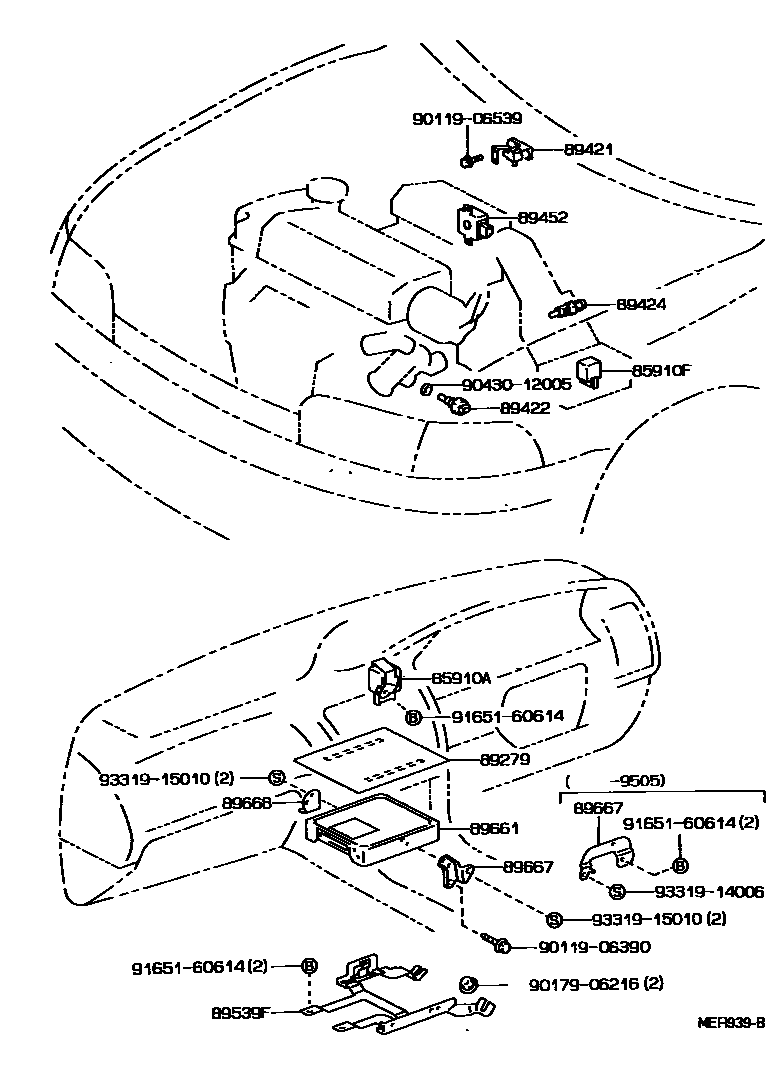

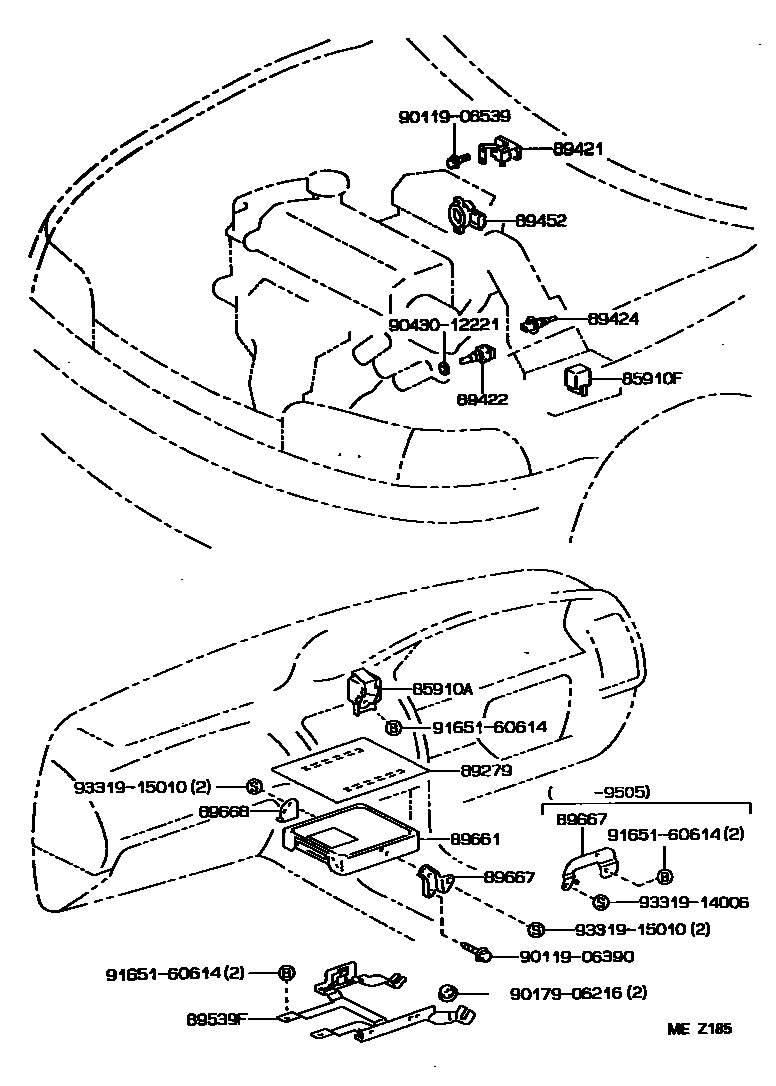

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-12020 · 85910-12060 |
| 85910F | ECU relay (for EFI) | 90987-02009 · 90987-02010 |
| 89279 | Engine control ECU cover | 89279-12080 · 89279-12100 · 89279-12110 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89420-02010 · 89420-12060 · 89420-12070 · 89420-12090 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-20010 · 89422-35010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-10010 · 89452-10040 · 89452-20130 · 89452-22090 |
| 89539F | ECU bracket | 89539-12050 |
| 89661 | Engine control ECU | 89661-12880 · 89661-1A080 · 89661-1A340 · 89661-1A410 · 89661-1A420 · 89661-1A500 · 89661-1A560 · 89661-1A570 · 89661-1A580 · 89661-1A650 · 89661-1A660 · 89661-1A670 · 89661-1A680 |
| 89667 | Engine control ECU bracket | 89667-12110 · 89667-12120 |
| 89668 | No. 2 engine control ECU bracket | 89668-12050 |
