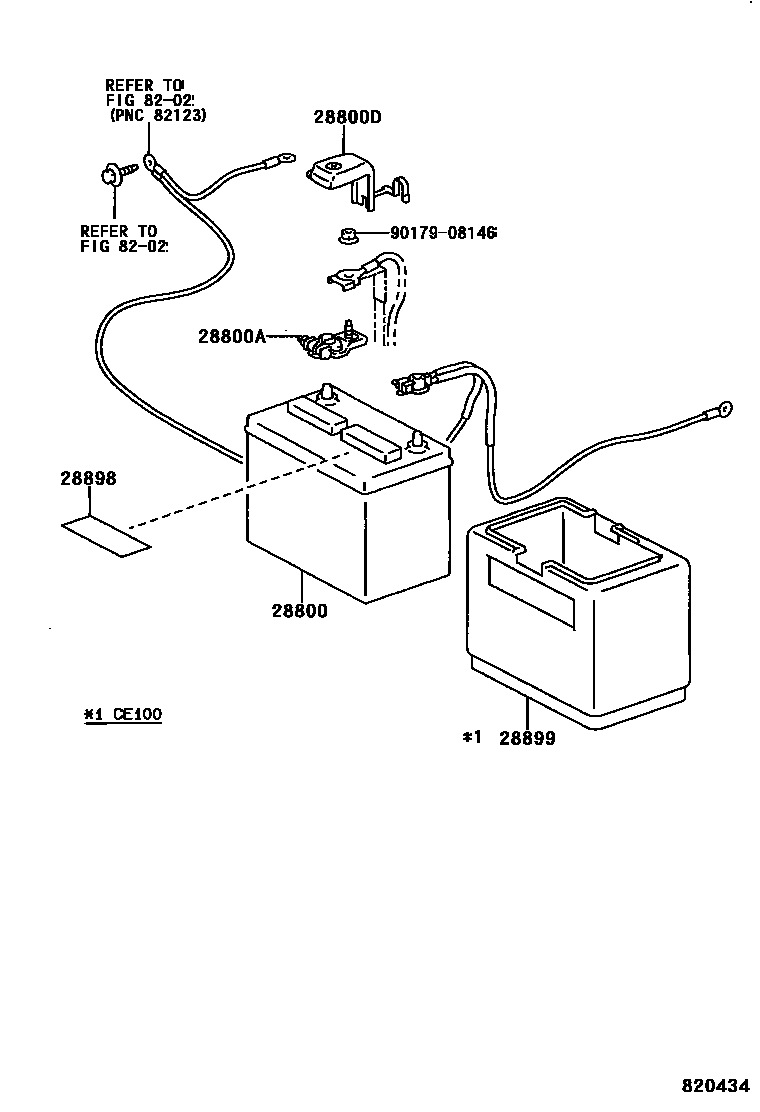

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-16130 · 28800-31010 · 28800-42030 · 28800-64130 · 28800-64180 · 28800-70060 |
| 28800A | battery positive terminal | 90982-05035 · 90982-05037 |
| 28800D | Connector cover (for battery terminals) | 82821-12290 · 82821-12300 |
| 28898 | battery plates | 28898-46010 · 28898-50070 |
| 28899 | Battery insulation cover | 28899-54050 · 28899-64080 · 28899-64090 · 28899-64110 |
