Toyota COROLLA 挡泥板和扰流板 — Figure 7601

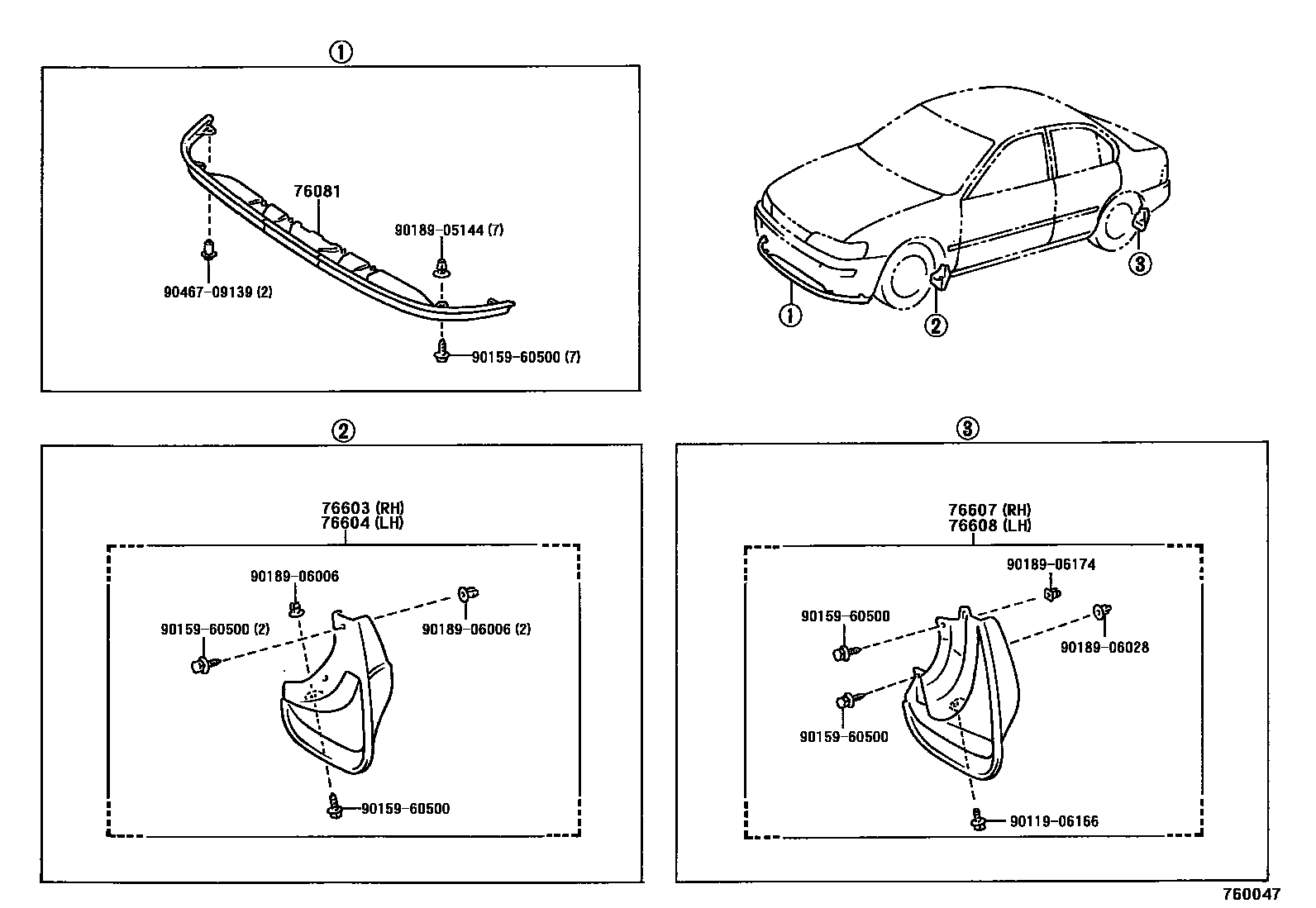

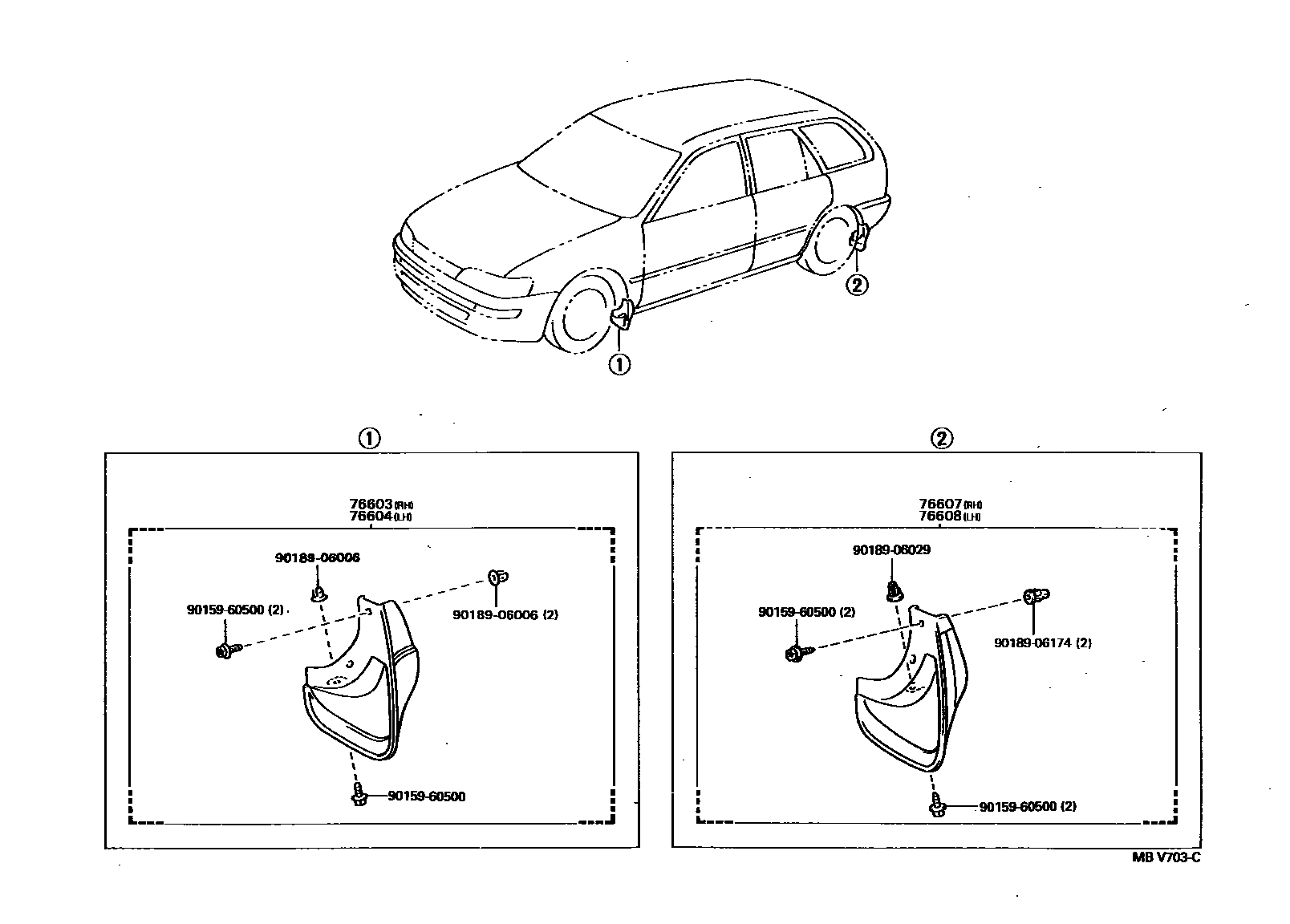

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76081 | Front spoiler sub-assembly | 76081-12120 |
| 76603 | Right front fender fender sub-assembly | 76621-19215 |
| 76604 | Left front fender fender sub-assembly | 76622-19215 |
| 76607 | Right rear side fender sub-assembly | 76625-19445 · 76625-19505 |
| 76608 | Left rear side fender sub-assembly | 76626-19445 · 76626-19505 |
