Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 9 PNC and OE references.

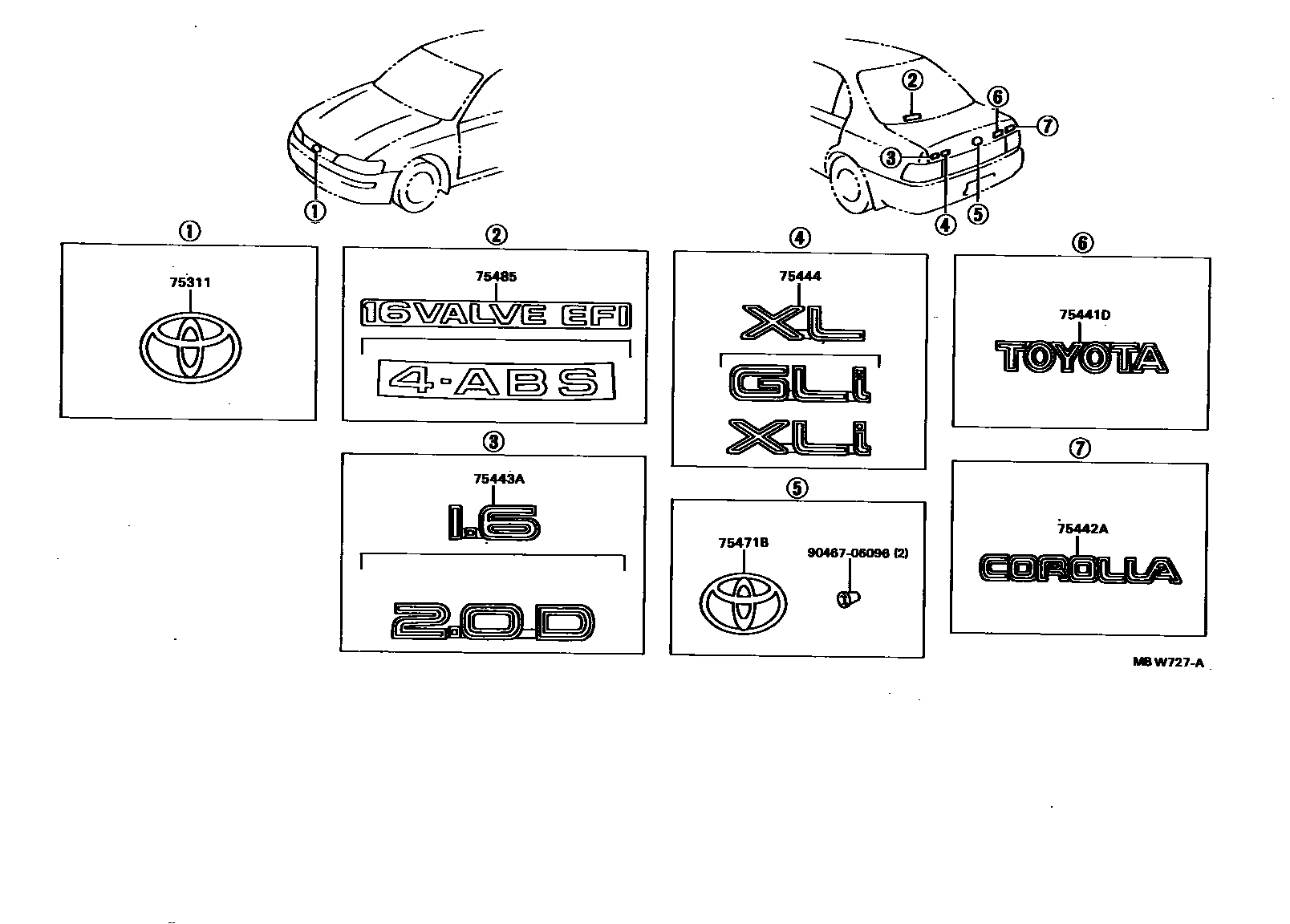

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — MBW727A
丰田徽标和铭牌(车外和车内) — MBW727A (199205 – 999999)

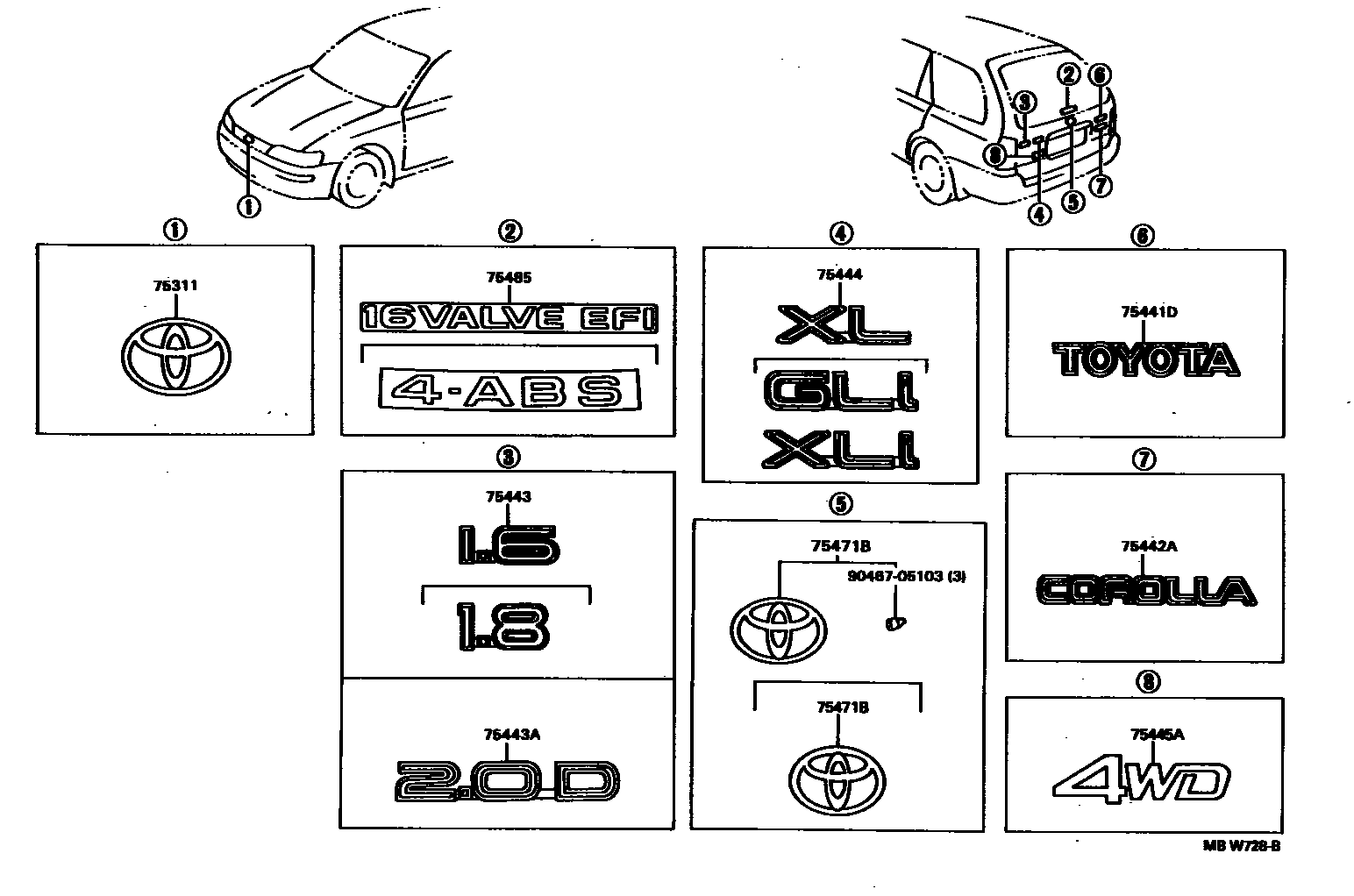

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — MBW728B
丰田徽标和铭牌(车外和车内) — MBW728B (199205 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75311-1A740
75441DTrunk door No. 1 name plate75441-12650
75442ANo. 2 nameplate on back door75442-1A180
75443No. 3 nameplate on back door75443-1A590 · 75443-20520
75443ATrunk door No. 3 nameplate75443-1A590 · 75443-1A640
75444Trunk door No. 4 nameplate75444-12750 · 75444-12770 · 75444-1A140
75445ANo. 5 nameplate on back door75444-2B400
75471BNo. 1 nameplate on rear body75471-12020 · 75471-13040 · 75471-13041
75485Back window nameplate75485-12210 · 75485-12260 · 75485-12310 · 75485-13010 · 75485-13020
