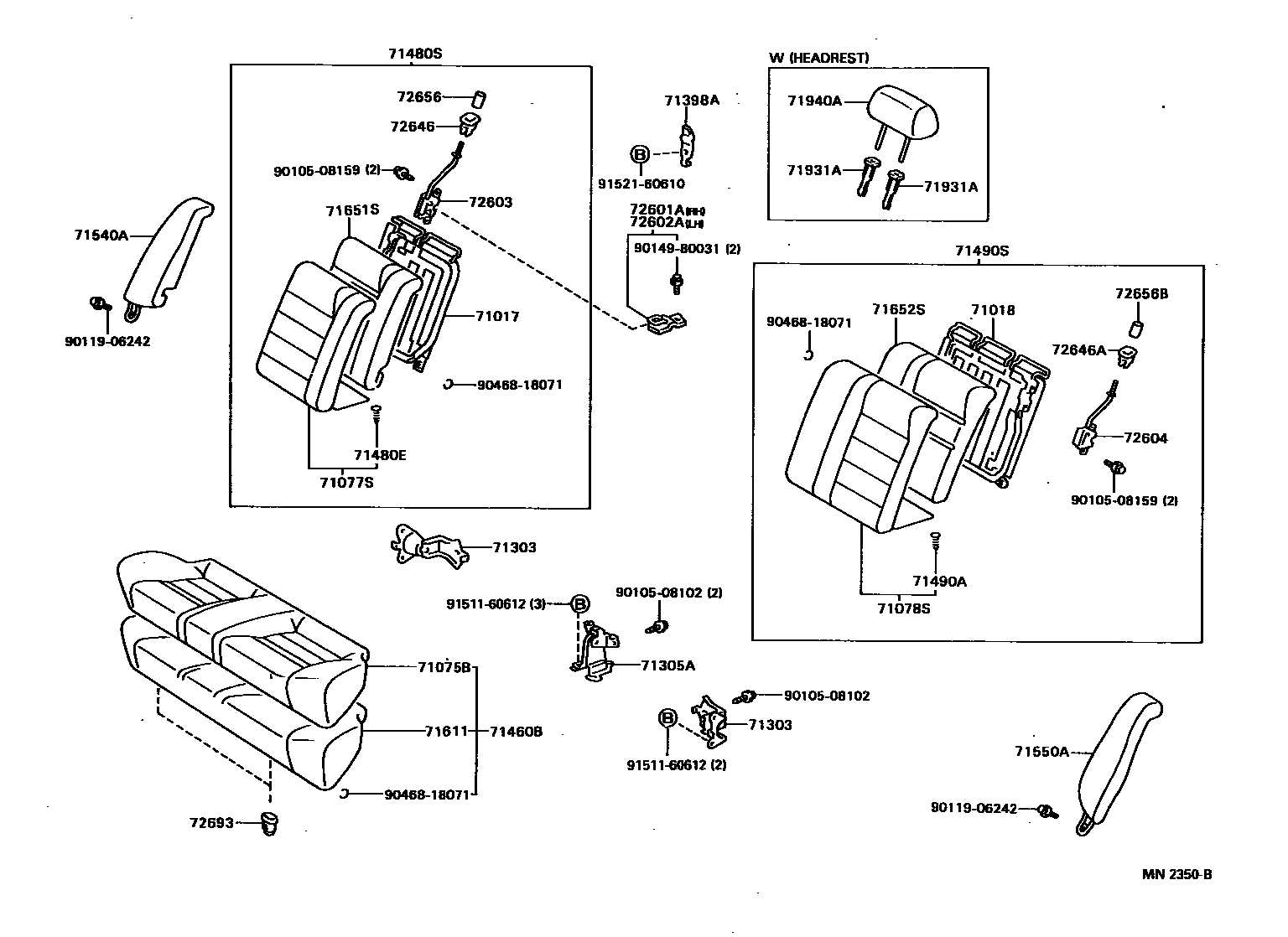

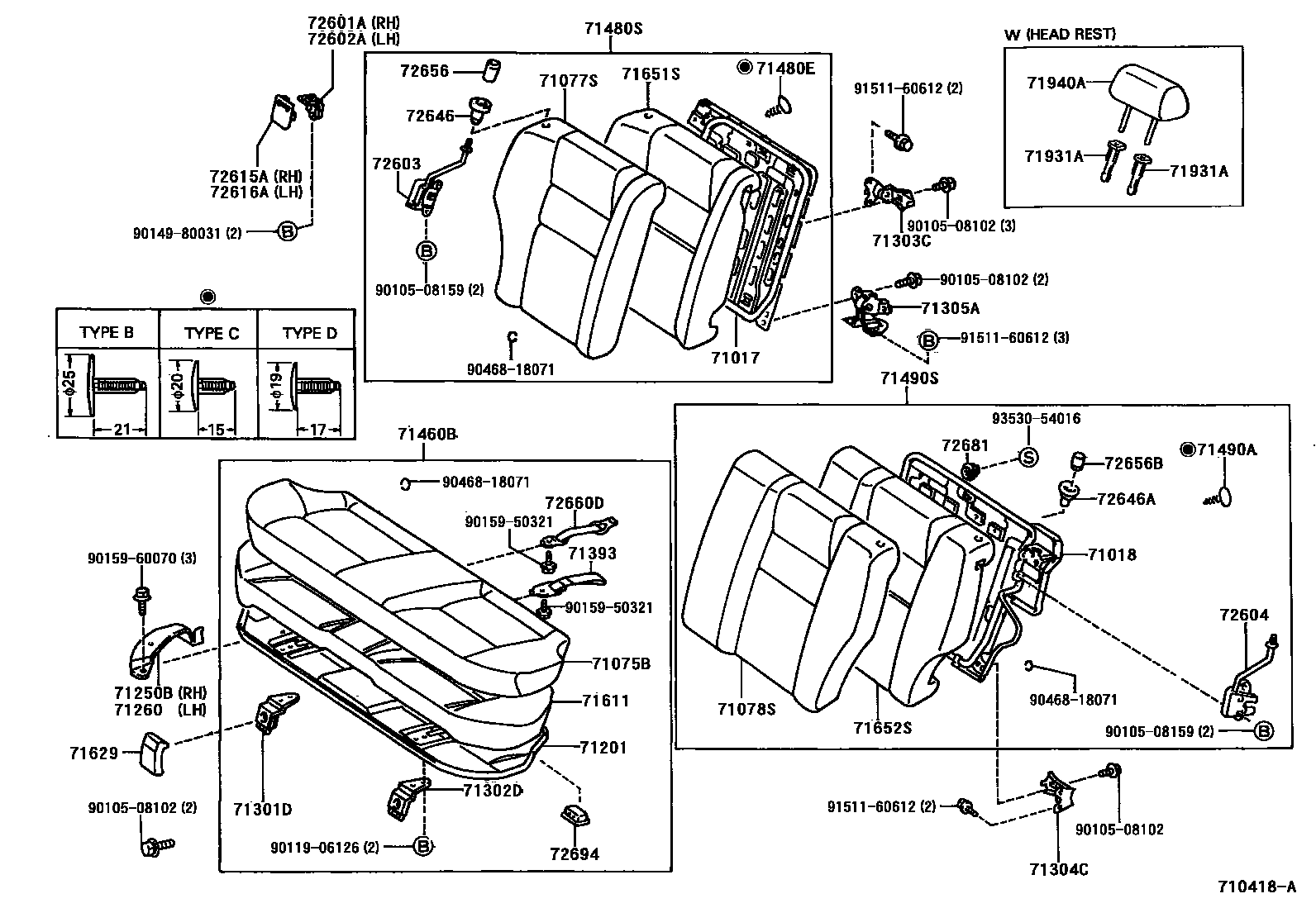

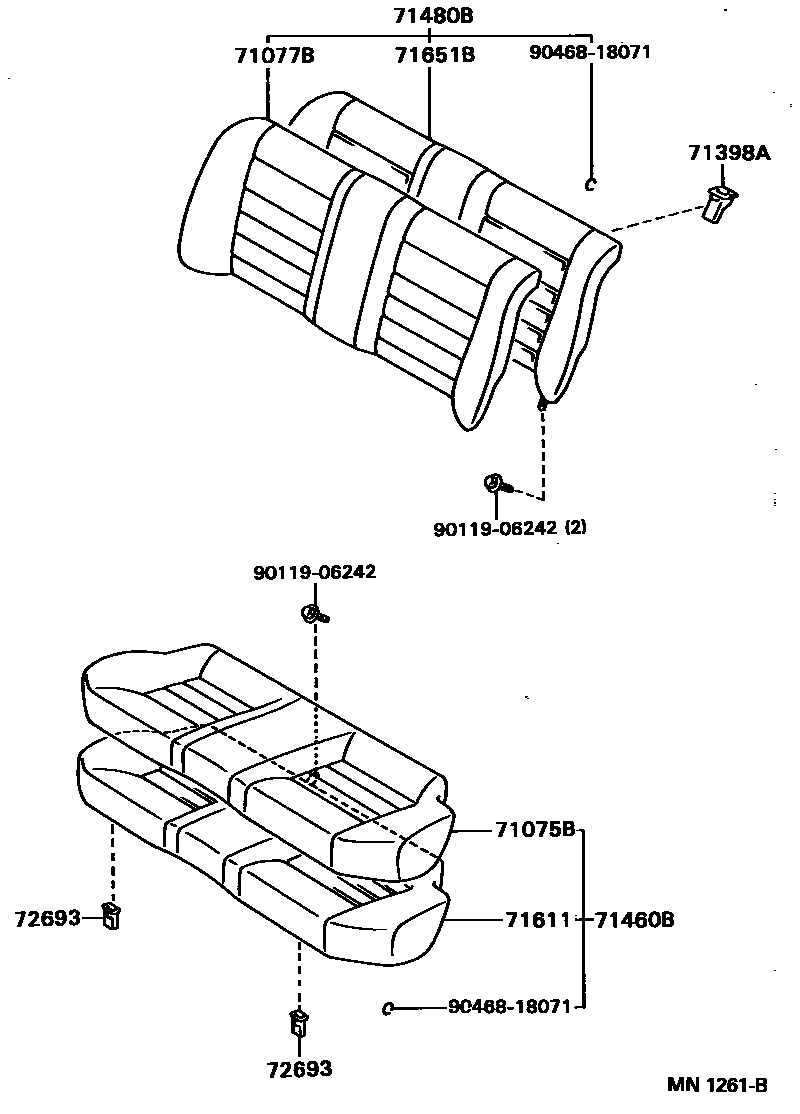

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-12410 · 71017-12430 · 71017-12460 · 71017-13160 · 71017-13190 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12140 · 71018-12150 · 71018-12180 · 71018-13020 · 71018-13040 |
| 71201 | Rear seat cushion panel sub-assembly | 71201-13150 |
| 71250B | Right seat outer bracket assembly | 71250-13010 |
| 71260 | Left side seat outer bracket assembly | 71260-13010 |
| 71301D | Rear right seat hinge sub-assembly | 71301-13070 |
| 71302D | Rear left seat hinge sub-assembly | 71302-13030 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12110 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-12110 |
| 71304C | Rear left seat back hinge sub-assembly | 71303-12110 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12110 |
| 71398A | Rear seat back retainer | 71398-12030 · 71398-12050 |
| 71480E | Rear right seat backrest clip | 90467-07135 |
| 71490A | Rear left seat back clip | 90467-07135 |
| 71611 | Rear seat cushion cushion | 71503-12040 · 71503-12060 · 71611-13150 · 71611-13180 |
| 71651B | Rear seat back cushions (for bench seats) | 71507-12100 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12600 · 71651-12720 · 71651-13161 · 71651-13210 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12520 · 71652-12540 · 71652-13081 · 71652-13090 |
| 72601A | Right rear seat back lock sub-assembly | 72601-12110 · 72601-13080 |
| 72602A | Rear left seat back lock sub-assembly | 72601-12110 · 72601-13080 |
| 72603 | Rear right seat back lock sub-assembly | 72630-12200 · 72630-13120 |
| 72604 | Rear left seat back lock sub-assembly | 72640-12190 · 72640-13120 |
| 72660D | Rear seat cushion bracket assembly | 72660-13010 |
| 72693 | Rear seat cushion hook | 72693-32020 |
| 72694 | Rear seat cushion lock cover | 72694-13010 |
