Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

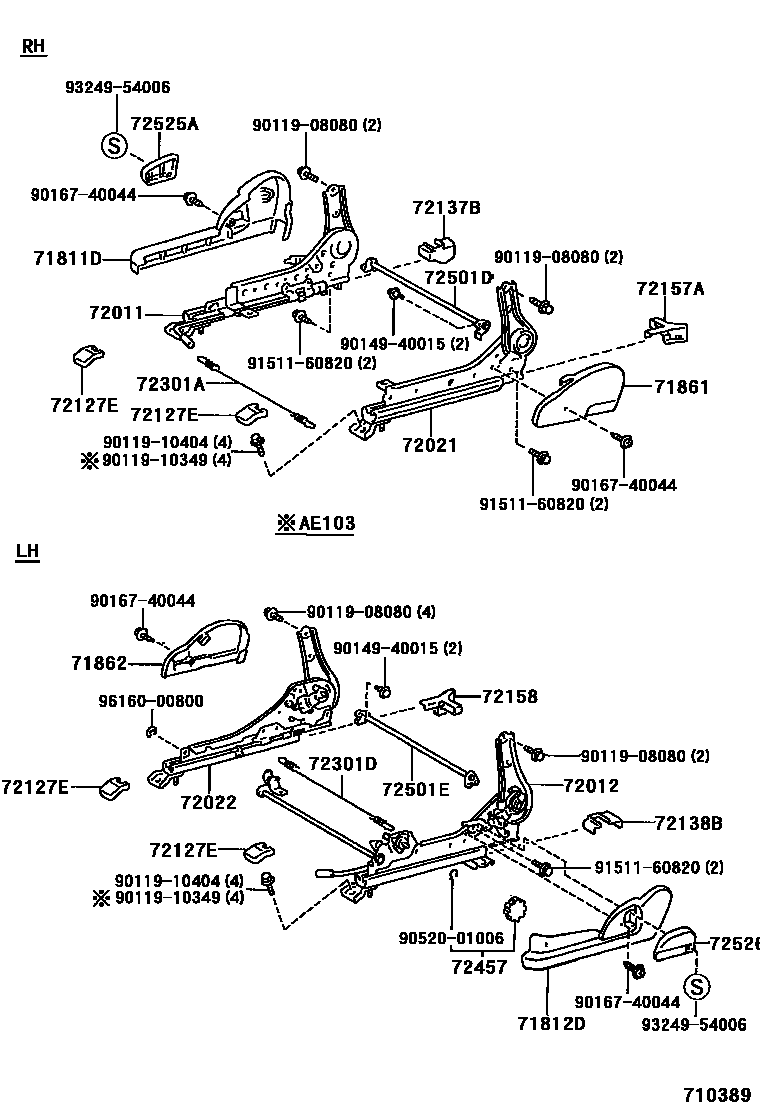

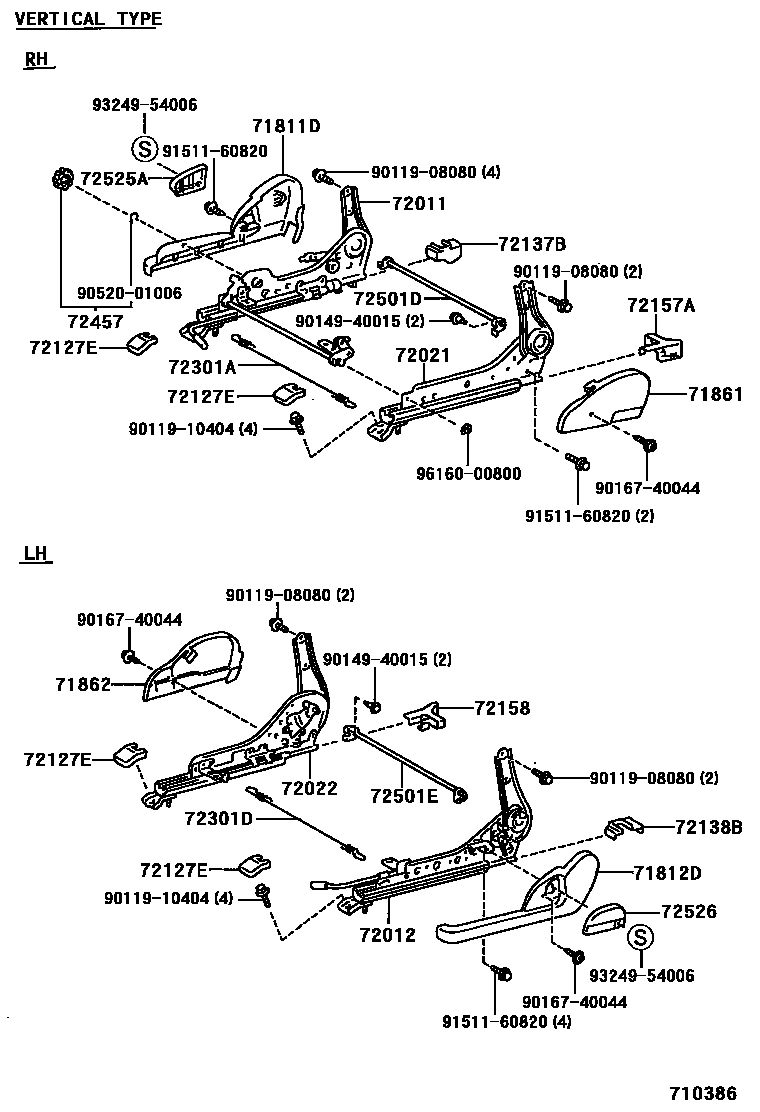

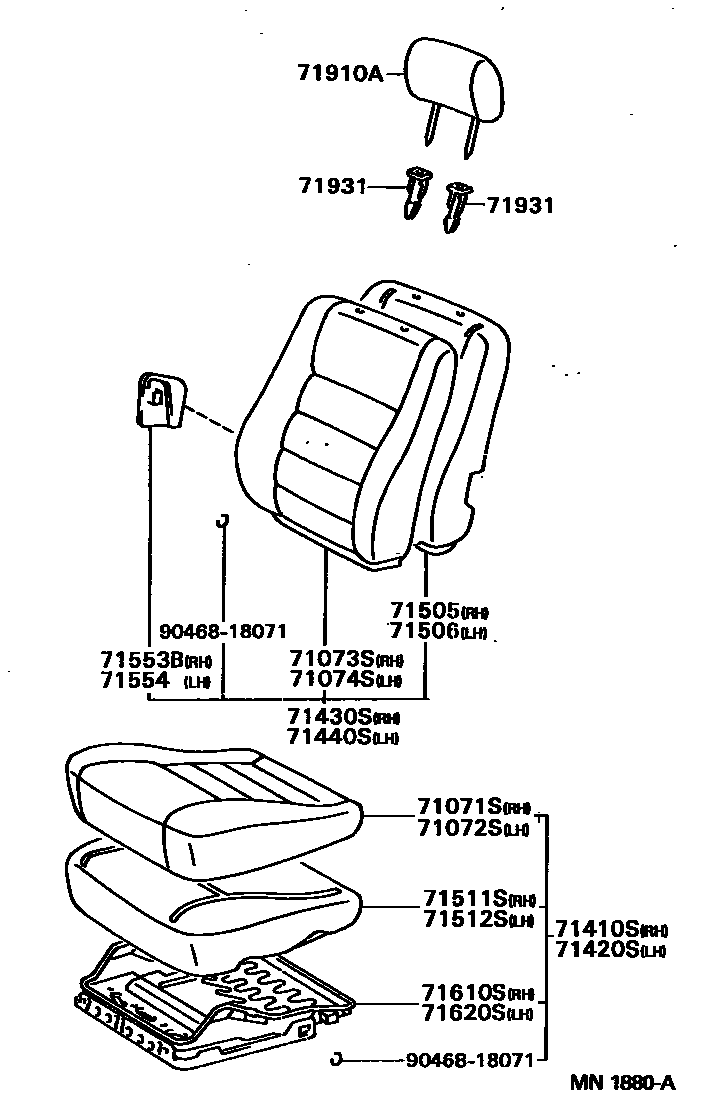

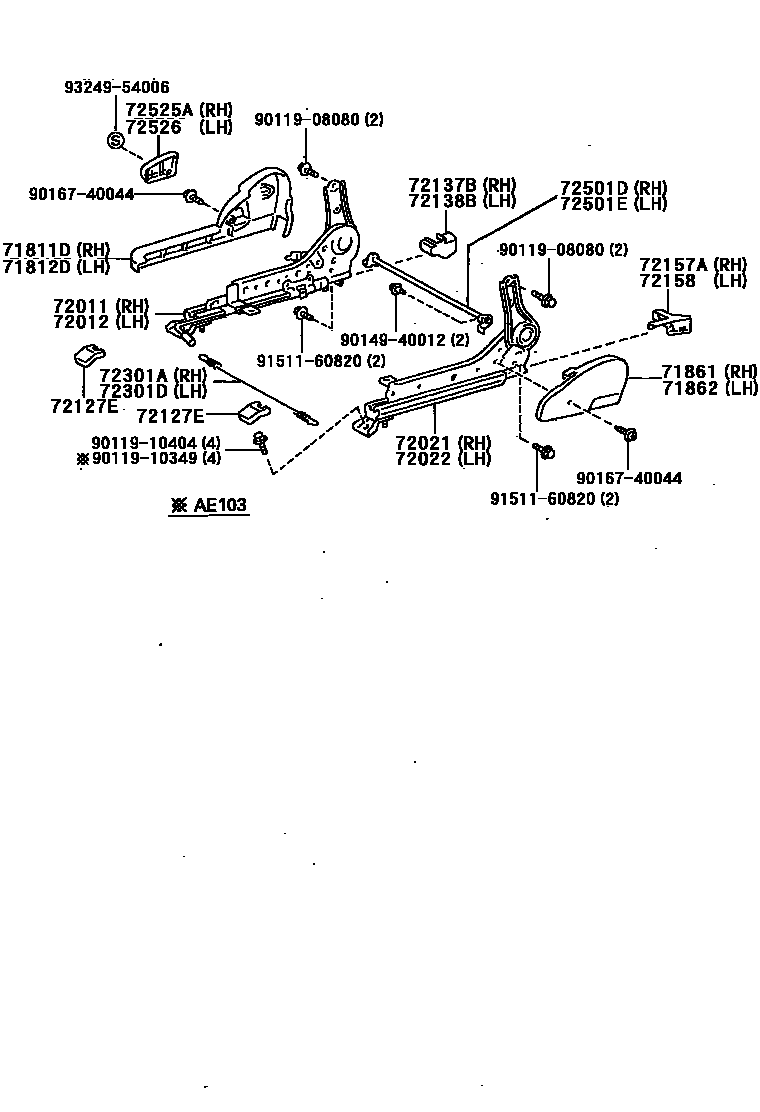

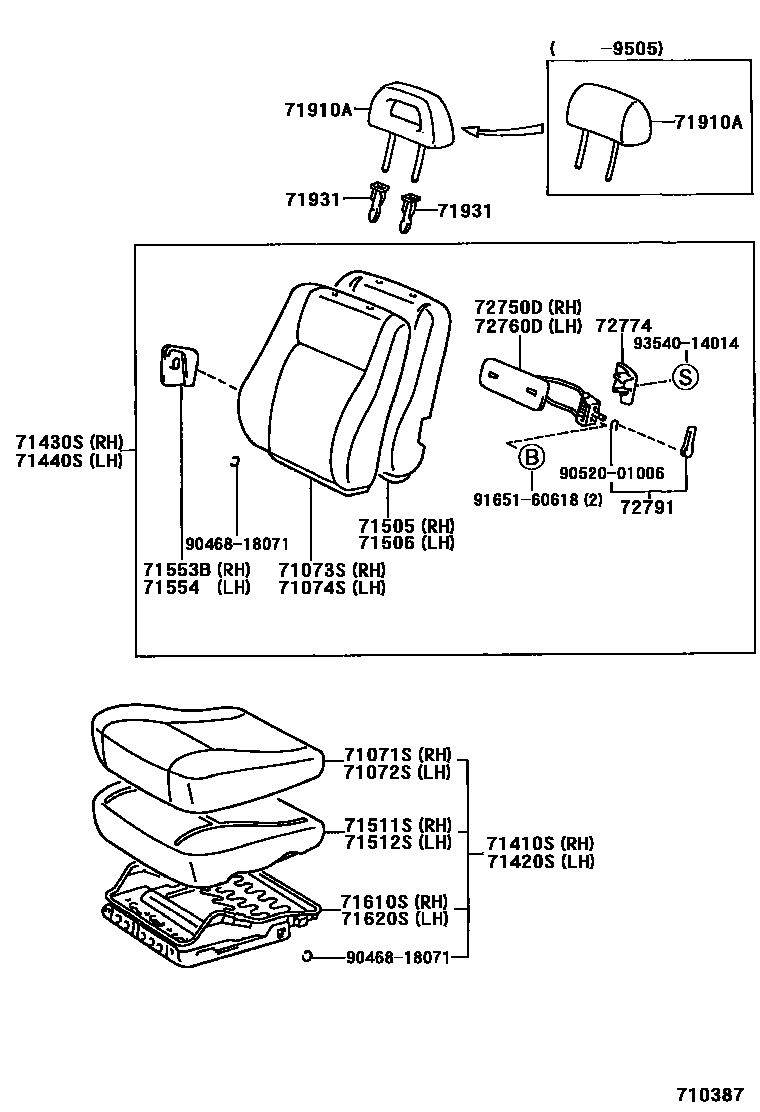

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-12261 · 71505-12301 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71506-12201 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12770 · 71511-12810 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12770 · 71511-12810 |
| 71553B | Front B seat back cushion | 71553-12290 · 71553-12330 |
| 71554 | Front C seat back cushion | 71554-12130 · 71554-12170 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12420 · 71610-12430 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-12280 · 71620-12290 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-12220 · 72011-12230 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12300 · 72012-12310 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12260 · 72021-12270 · 72021-13010 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12350 · 72022-12360 · 72022-13010 · 72022-13020 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-12140 · 72301-12160 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-12140 · 72301-12160 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72501-12080 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72501-12060 |
| 72750D | Right lumbar support adjuster assembly | 72750-12090 |
| 72760D | Left lumbar support adjuster assembly | 72760-12100 |
| 72774 | Lumbar support spring guard | 72774-12040 · 72775-12030 |
