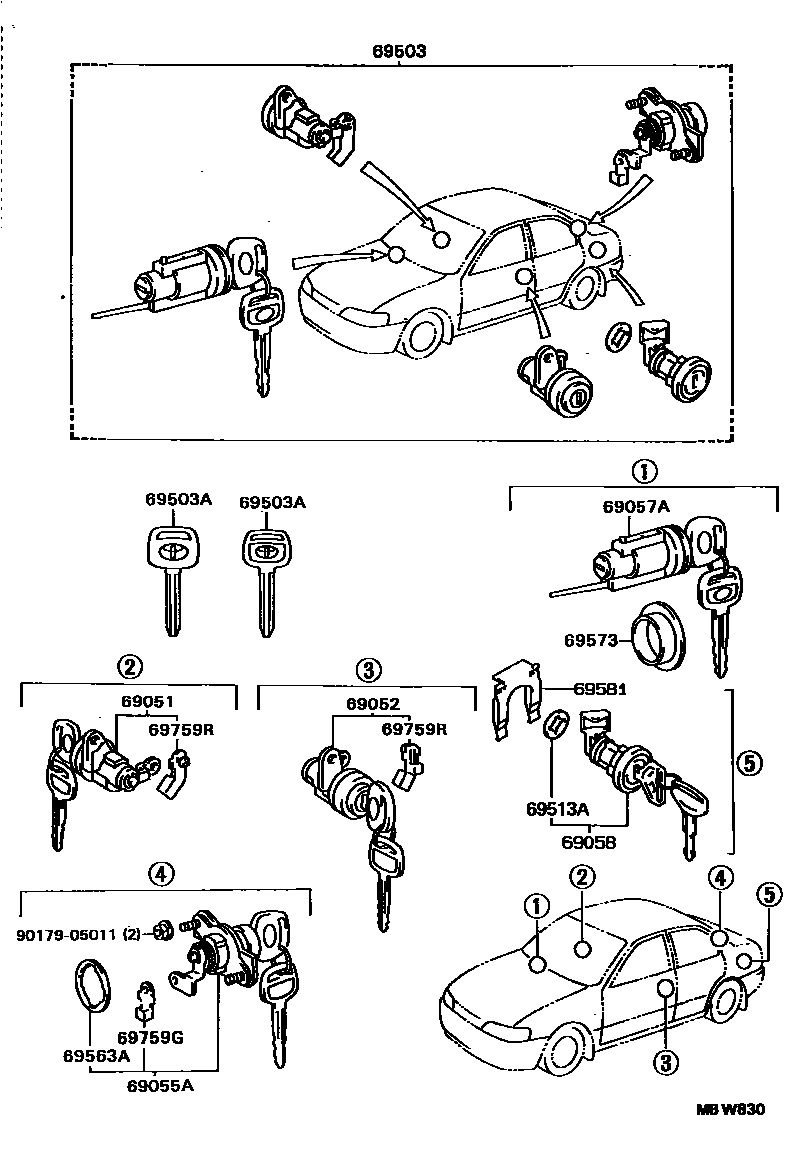

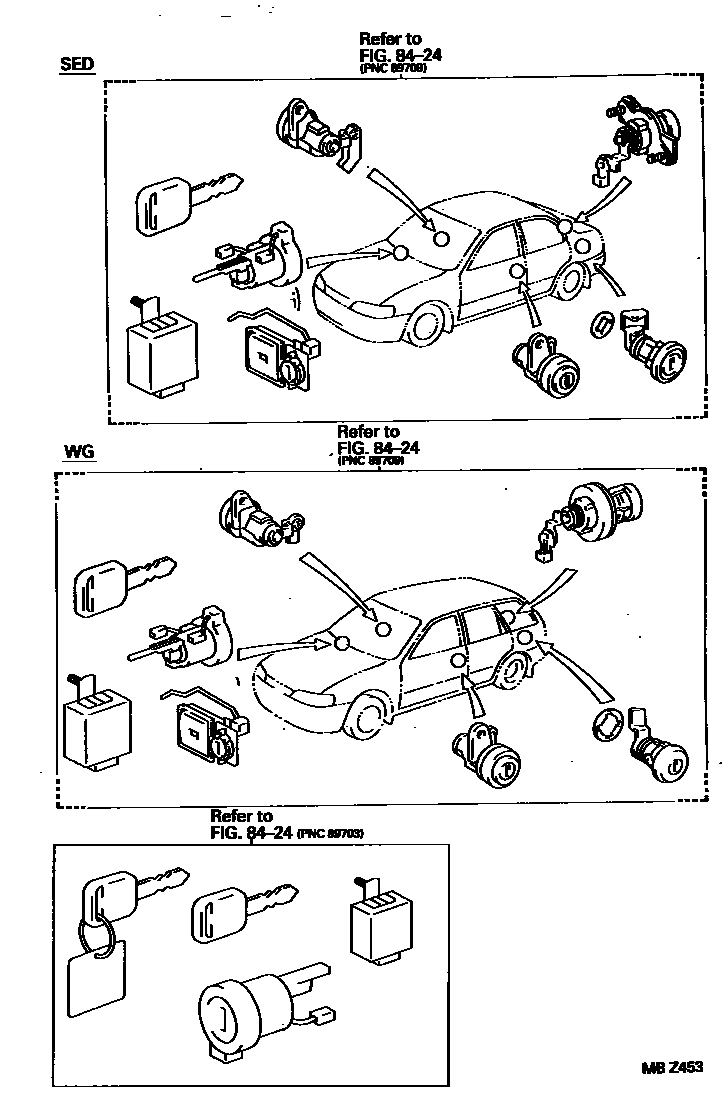

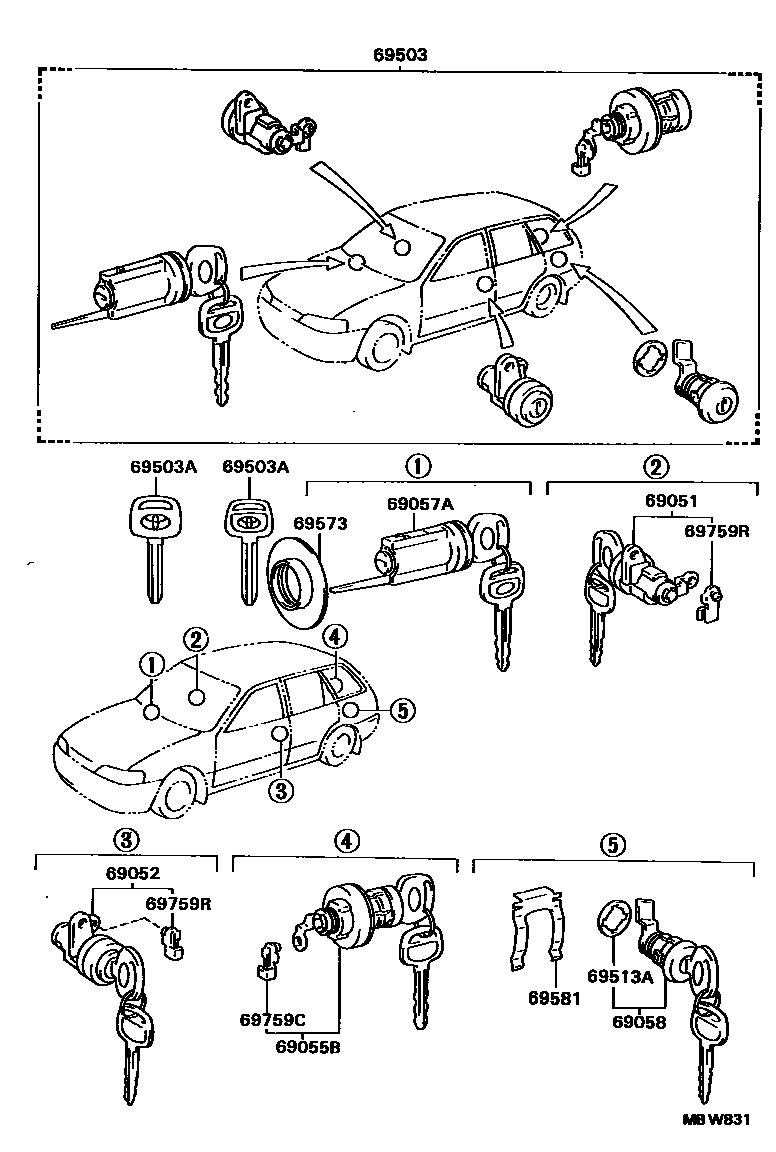

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-12360 · 69051-12450 · 69051-13140 |
| 69052 | Left door lock cylinder and key assembly | 69052-12360 · 69052-12450 · 69052-13140 |
| 69055A | Luggage lock cylinder and key assembly | 69055-12790 · 69055-12800 · 69055-1A140 · 69055-1A150 |
| 69055B | Rear door lock cylinder and key assembly | 69055-13150 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12220 · 69057-13130 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-12170 · 69058-12190 · 69058-13110 |
| 69503 | Door lock cylinder components | 69005-13230 · 69005-13290 · 69005-1A390 · 69005-1A400 |
| 69503A | external tooth key | 90999-00185 · 90999-00187 · 90999-00193 |
| 69513A | Door lock cylinder gasket | 69513-13010 · 69513-32010 |
| 69563A | Trunk door lock cylinder lining | 69563-12070 |
| 69573 | Ignition switch lock cylinder gasket | 69573-12010 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69581-12020 · 69581-13010 |
| 69759C | Back door lock cylinder buckle | 69759-24080 |
| 69759G | Trunk door lock core buckle | 69759-24090 |
| 69759R | Front door lock cylinder buckle | 69759-12080 · 69759-12090 |
