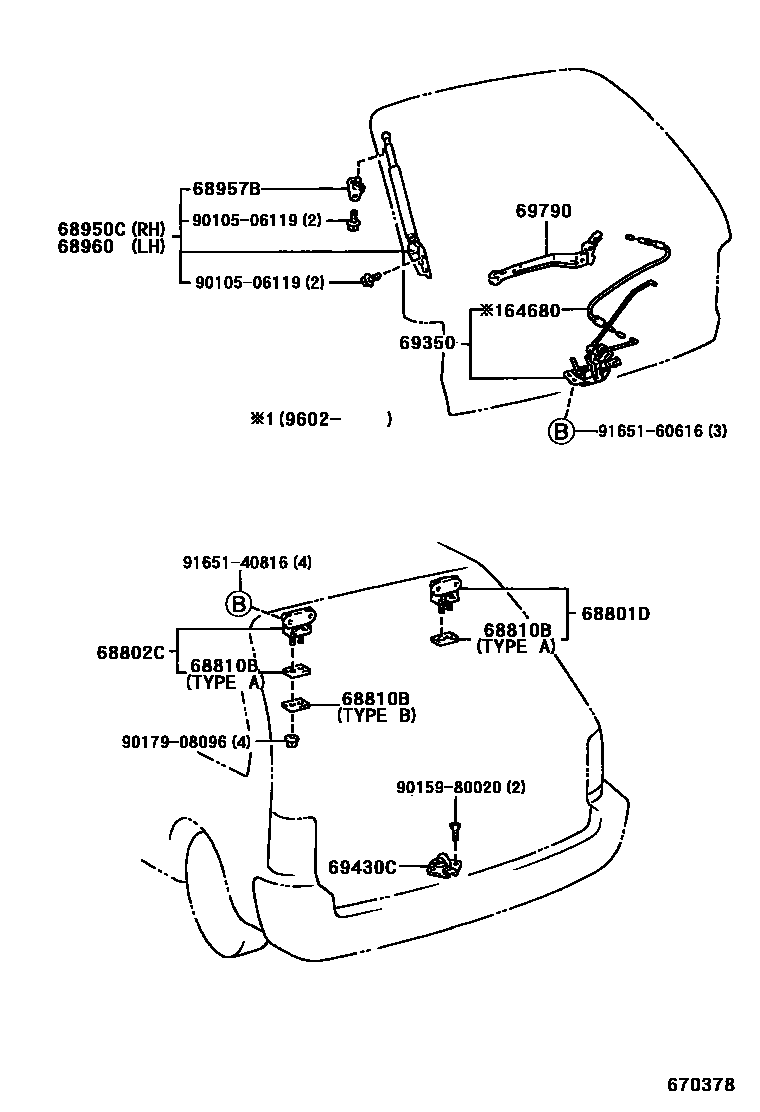

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64680 | Rear door lock control cable assembly | 64680-13031 |
| 68801D | Back door right hinge sub-assembly | 68801-13090 |
| 68802C | Back door left hinge sub-assembly | 68801-13090 |
| 68810B | Back door hinge gasket | 68838-13010 · 68863-13010 |
| 68950C | Back door right support rod assembly | 68950-19785 · 68950-19795 |
| 68957B | Rear door support rod lower bracket | 68957-13020 |
| 68960 | Back door left support rod assembly | 68960-19475 · 68960-19485 |
| 69350 | Rear door lock assembly | 69350-13140 · 69350-13150 · 69350-13160 · 69350-13172 · 69350-13182 |
| 69430C | Back door lock assembly | 69430-13010 |
| 69790 | Rear door lock control assembly | 69790-13010 |
