Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 6 PNC and OE references.

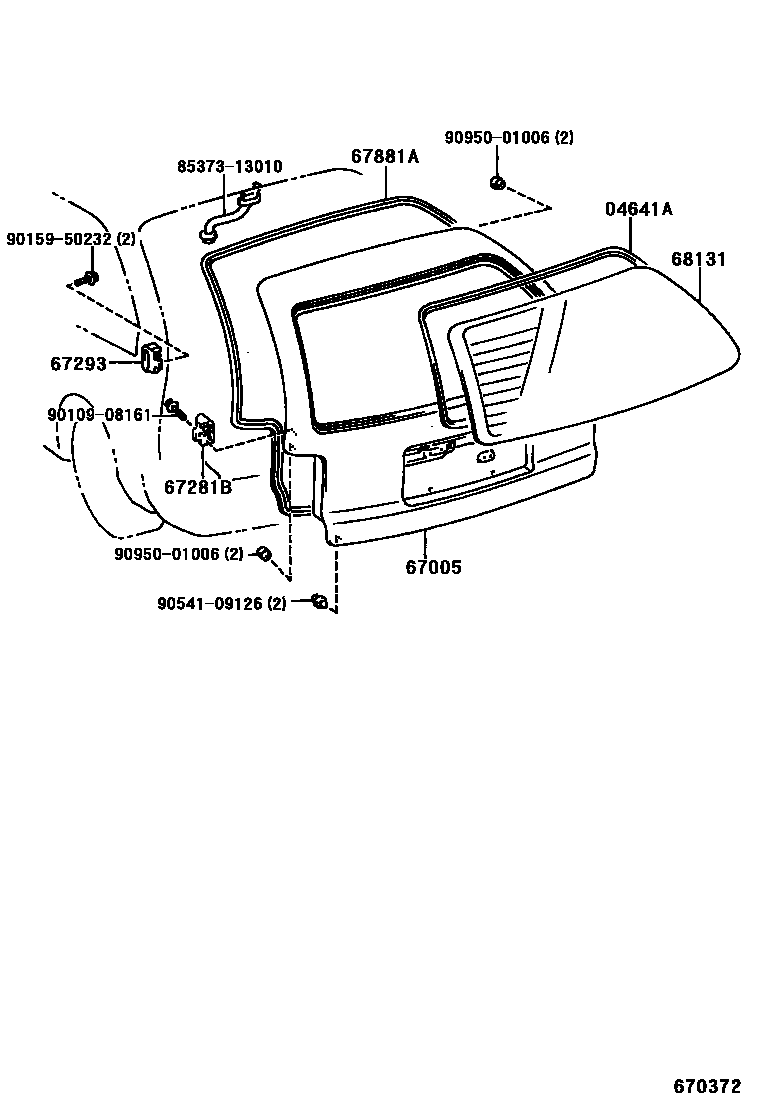

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04641A | Rear window glass adhesive sealing strip assembly | 68294-13010 · 68294-13031 |
| 67005 | Rear door panel sub-assembly | 67005-1F180 · 67005-1F181 · 67005-1F280 · 67005-1F281 · 67005-1F290 · 67005-1F291 · 67005-1F410 · 67005-1F420 · 67005-1F430 |
| 67281B | Back door lower block | 67281-13060 |
| 67293 | Back door lower block cushion | 67293-13020 |
| 67881A | Back door seal | 67881-13190 |
| 68131 | back door glass | 68131-13250 · 68131-13270 |
