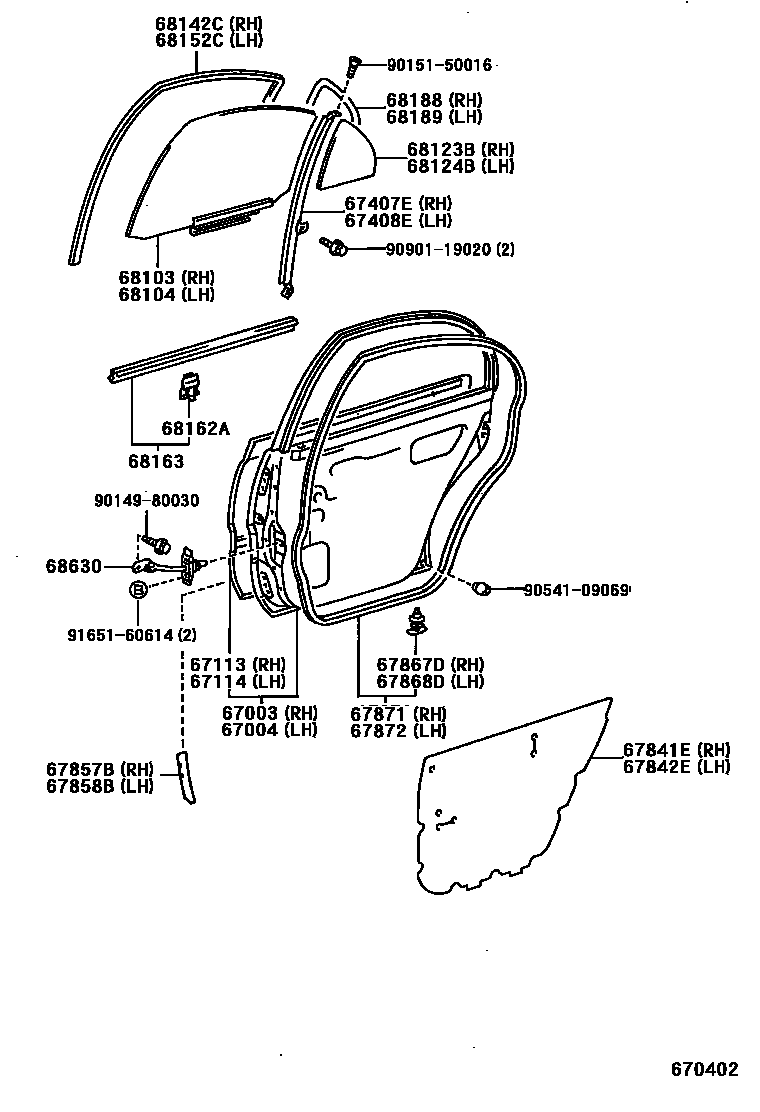

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-12560 · 67003-12670 · 67003-12680 · 67003-13240 · 67003-13250 |
| 67004 | Left rear door panel sub-assembly | 67004-12560 · 67004-12670 · 67004-12680 · 67004-13240 · 67004-13250 |
| 67113 | Right rear door outer panel | 67113-12210 · 67113-12230 |
| 67114 | Left rear door outer panel | 67114-12210 · 67114-12230 |
| 67407E | Right rear door window divider sub-assembly | 67407-12150 · 67407-13040 |
| 67408E | Left rear door window divider sub-assembly | 67408-12150 · 67408-13040 |
| 67603D | Right rear door trim panel fixing | 67771-12030 · 67771-12050 · 67771-12070 · 67771-13030 · 67771-16080 · 67771-16160 · 67771-16170 · 67771-28020 · 90467-08179 |
| 67603E | Catch (for rear door trim panel) | 90467-09141 |
| 67604D | Left rear door trim panel fixing | 67771-12030 · 67771-12050 · 67771-12070 · 67771-13030 · 67771-16080 · 67771-16160 · 67771-16170 · 67771-28020 · 90467-08179 |
| 67841E | Right rear door access hole cover | 67841-12250 |
| 67842E | Left rear door access hole cover | 67841-12250 · 67842-12080 |
| 67857B | Right rear door panel protector | 67857-12040 |
| 67858B | Left rear door panel protector | 67858-12030 |
| 67867D | Right rear door seal strip fixing | 67867-12150 · 67868-12050 · 67868-20140 |
| 67868D | Left rear door seal strip fixing | 67867-12150 · 67868-12050 · 67868-20140 |
| 67871 | Right rear door sealing strip | 67871-12380 · 67871-13100 |
| 67872 | Left rear door sealing strip | 67872-12380 · 67872-13090 |
| 68103 | Right rear door glass sub-assembly | 68103-12340 · 68103-12350 · 68103-13150 · 68103-13160 |
| 68104 | Left rear door glass sub-assembly | 68104-12350 · 68104-12360 · 68104-13140 · 68104-13150 |
| 68123B | Right rear door corner window glass | 68123-12420 · 68123-12430 · 68123-13150 · 68123-13160 |
| 68124B | Left rear door corner window glass | 68124-12420 · 68124-12430 · 68124-13140 · 68124-13150 |
| 68142C | Right rear door glass lift slot | 68142-12110 · 68142-13090 |
| 68152C | Left rear door glass lift slot | 68152-12030 · 68152-13050 |
| 68162A | Catch (for rear door glass outer sealing strip) | 68211-12160 |
| 68163 | Rear door glass outer seal strip | 68163-12090 · 68163-13010 · 68164-12050 · 68164-13010 |
| 68188 | Right rear door corner window seal | 68188-12240 · 68188-13070 |
| 68189 | Left rear door corner window seal | 68189-12210 · 68189-13070 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-12050 |
| 68630 | Rear door opening limiter assembly | 68630-12050 · 68630-12051 · 68640-12010 · 68640-12011 |
