Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

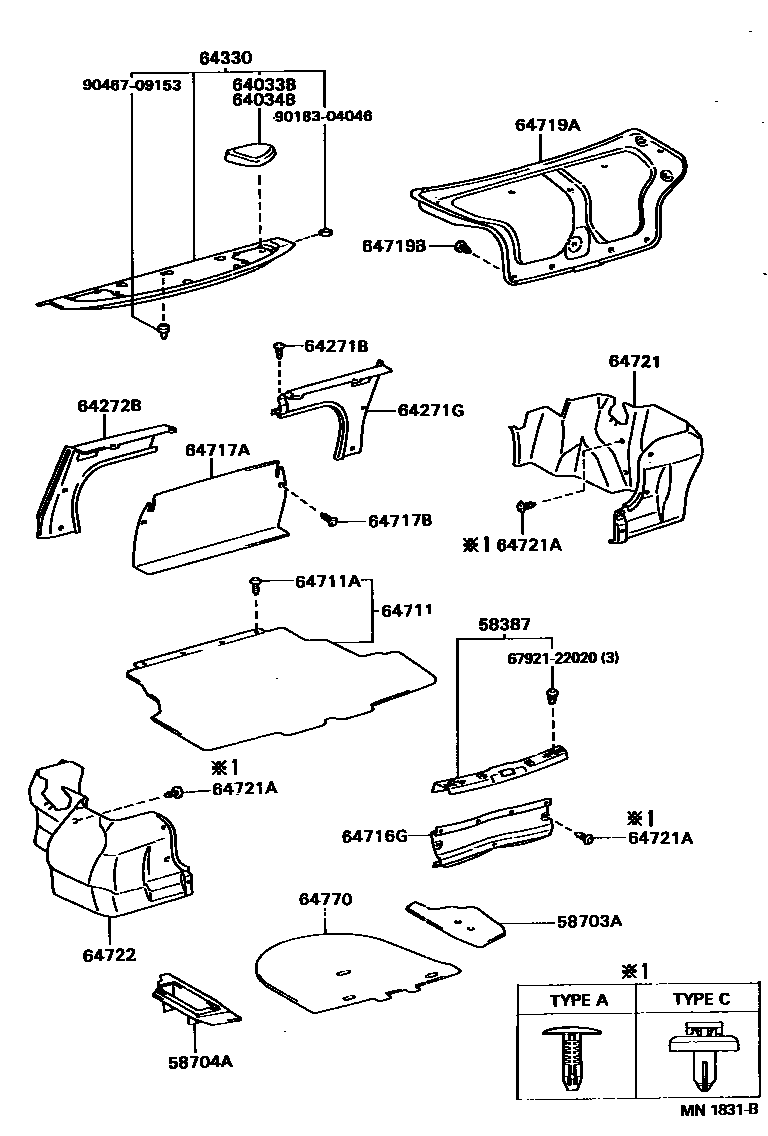

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58703A | Trunk door right side decorative cover sub-assembly | 58703-12070 |
| 58704A | Luggage door left decorative cover sub-assembly | 58704-12070 |
| 64717B | Clip (for trunk front decorative cover) | 90467-05027 |
| 64719B | Catch (for trunk door) | 90467-07138 · 90467-07146 |
| 64770 | Spare tire cover assembly | 64770-12171 |
