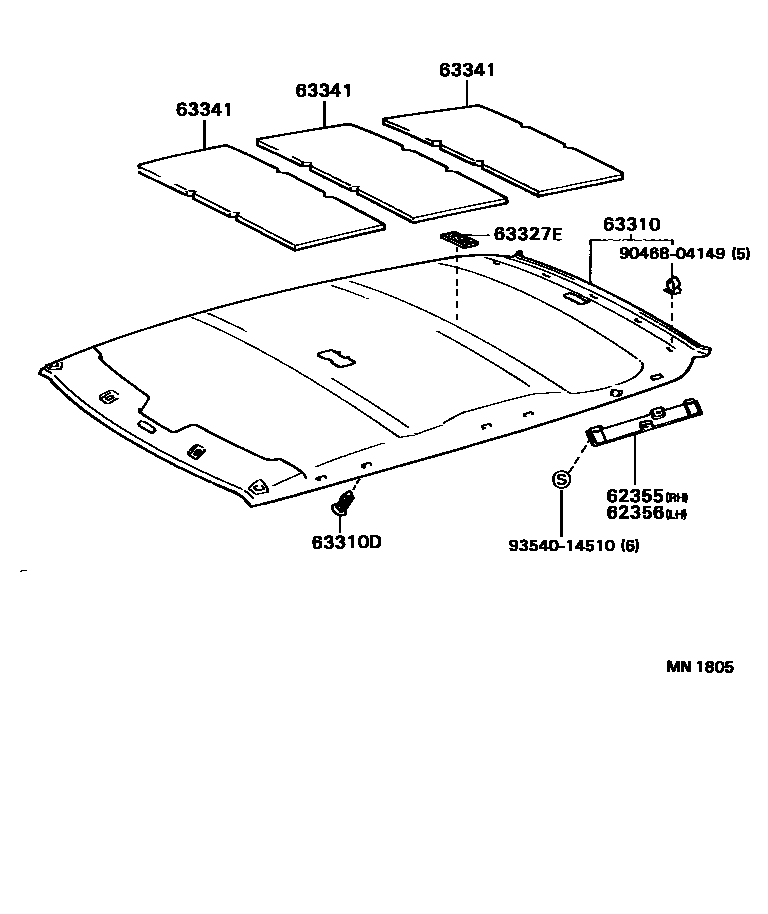

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62355 | Right corner window inner trim strip fixing | 62355-13030 |
| 62356 | Left corner window inner trim strip fixing | 62356-13030 |
| 63327E | Headlining fastener No. 1 | 63327-13010 |
| 63341 | No. 1 roof silencer mat | 63341-13100 |
| 63342 | No. 2 roof muffler pad | 63341-16010 · 63342-12060 · 63343-12050 |
