Toyota COROLLA 角窗 — Figure 6103

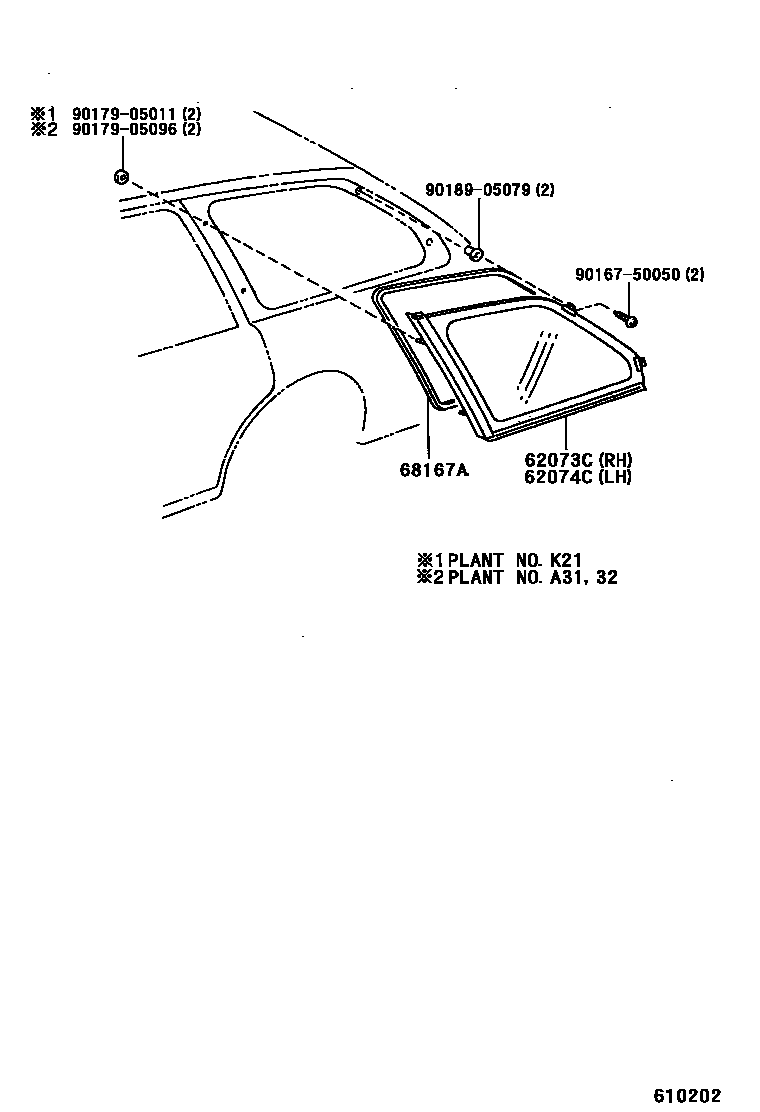

Toyota COROLLA EPC diagram 6103, 角窗, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62073C | Right rear corner window glass sub-assembly | 62073-13080 · 62073-13100 |
| 62074C | Left rear corner window glass sub-assembly | 62074-13080 · 62074-13100 |
| 68167A | Corner window No. 2 glass sealing strip | 68167-13020 |
