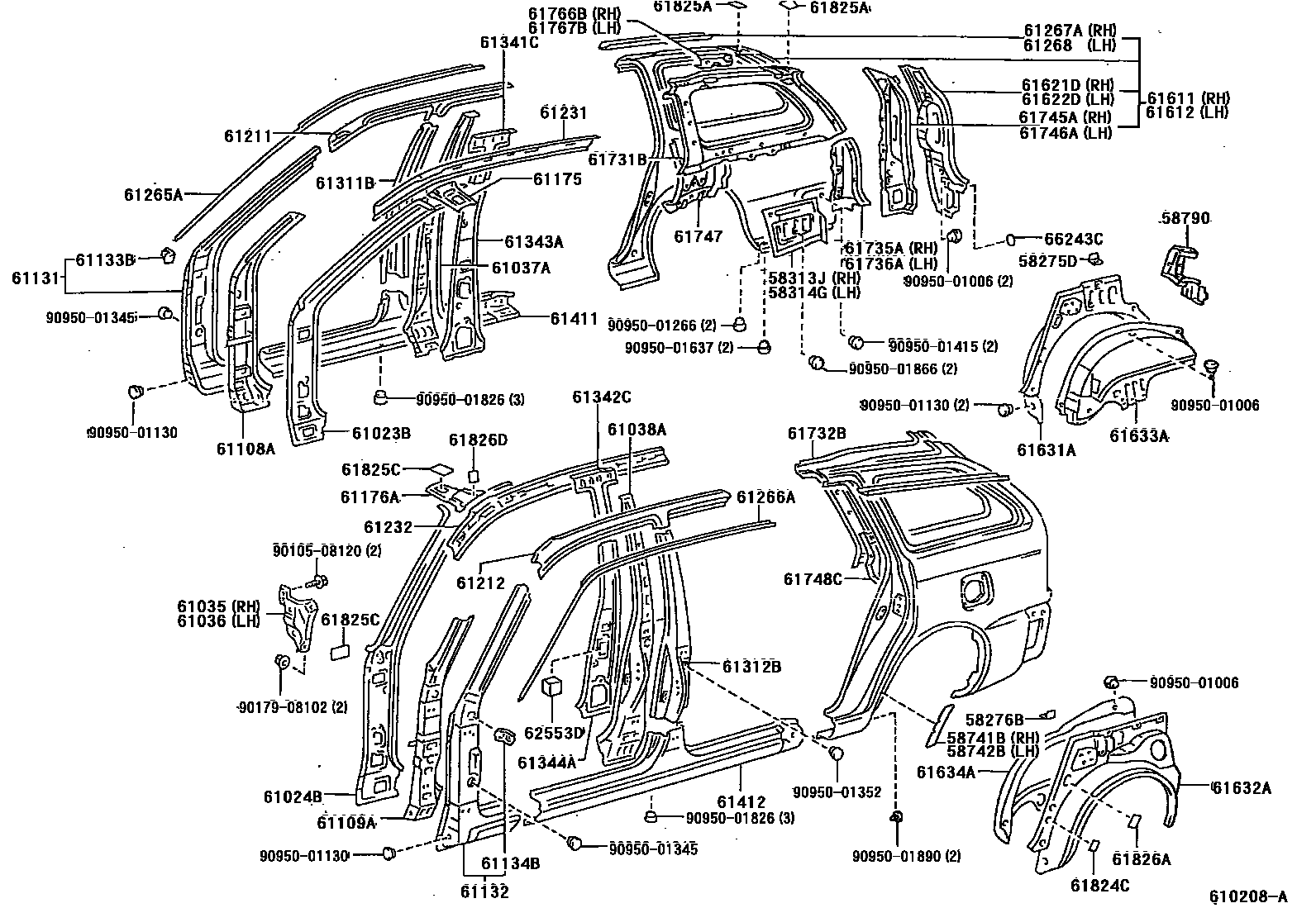

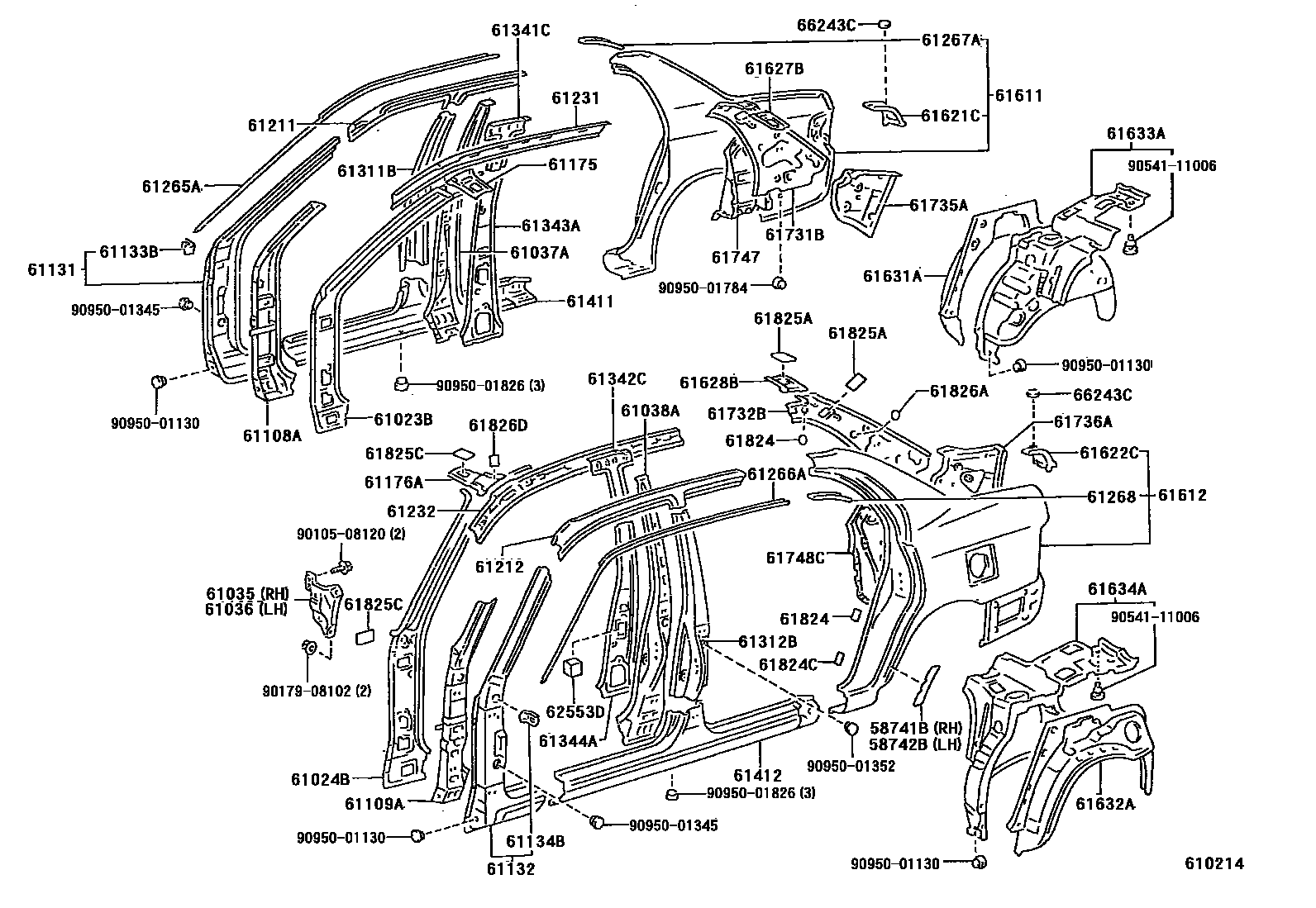

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 2 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58275D | Right harness protector bracket | 58275-13010 |
| 58276B | Left harness protector bracket | 58275-13010 |
| 58313J | Rear floor pan to right side apron extension | 58313-13120 · 58313-13121 |
| 58314G | Rear floor pan to left side apron extension | 58314-13110 · 58314-13111 |
| 58741B | Right side enclosure protection panel | 58741-12080 |
| 58742B | Left side enclosure protection panel | 58742-12070 |
| 58790 | Jack bracket assembly | 58790-13020 |
| 61023B | Right body inner front pillar sub-assembly | 61023-12050 · 61023-12060 · 61023-12070 |
| 61024B | Left body inner front pillar sub-assembly | 61024-12050 · 61024-12060 · 61024-12070 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61035-12050 · 61035-12060 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61036-12050 · 61036-12090 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-12050 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-12050 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-12110 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-12100 |
| 61131 | Right body outer front upper pillar | 61131-12350 · 61131-12360 |
| 61132 | Left body outer front upper pillar | 61132-12360 · 61132-12370 |
| 61133B | Right body outer front pillar bracket | 61133-12190 |
| 61134B | Left body outer front pillar bracket | 61133-12190 |
| 61175 | No. 2 right side body inner front pillar reinforcement | 61175-12080 |
| 61176A | No. 2 left body inner front pillar reinforcement | 61176-12080 |
| 61211 | Roof right outer longitudinal beam | 61211-12290 · 61211-13050 |
| 61212 | Roof left outer longitudinal beam | 61212-12290 · 61212-13050 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-12500 · 61231-12680 · 61231-13150 |
| 61232 | Roof left inner longitudinal beam | 61232-12550 · 61232-12590 · 61232-13140 |
| 61265A | Drainage channel in the middle section on the right side of the roof | 61265-12180 · 61265-13030 |
| 61266A | Drainage channel in the middle section of the left side of the roof | 61266-12180 · 61266-13030 |
| 61267A | Roof right rear gutter | 61267-12130 · 61267-13040 |
| 61268 | Roof left rear gutter | 61268-12130 · 61268-13040 |
| 61311B | Right body outer center pillar | 61311-12190 |
| 61312B | Left body outer center pillar | 61312-12230 |
| 61341C | Right inner middle pillar | 61341-12090 |
| 61342C | Left side inner center pillar | 61342-12090 |
| 61343A | Right body inner center pillar | 61343-12090 |
| 61344A | Left body inner center pillar | 61344-12090 |
| 61411 | Right door outer sill panel | 61411-12530 |
| 61412 | Left door outer sill panel | 61412-12520 |
| 61611 | Right side hoarding | 61601-13391 · 61601-1E919 · 61601-1E920 |
| 61612 | left side panel | 61602-13471 · 61602-1E924 · 61602-1E927 |
| 61621C | Luggage right opening slot | 61621-12360 |
| 61621D | Back door right opening slot | 61621-13020 |
| 61622C | Luggage trunk left opening slot | 61622-12360 |
| 61622D | Rear door left opening slot | 61622-13020 |
| 61627B | Right rear side panel extension | 61627-12070 |
| 61628B | Extension on left rear side panel | 61628-12090 |
| 61631A | Right wheel cover outer panel | 61631-12210 · 61631-13080 |
| 61632A | Left side wheel cover outer panel | 61632-12210 · 61632-13070 |
| 61633A | Right wheel housing lining panel | 61607-12916 · 61607-12917 · 61607-13080 · 61607-13130 |
| 61634A | Left side wheel housing lining panel | 61608-12914 · 61608-12915 · 61608-13080 · 61608-13130 |
| 61731B | Roof right inner panel | 61731-12910 · 61731-13280 · 61731-13320 |
| 61732B | Roof left inner panel | 61732-12910 · 61732-13280 · 61732-13320 |
| 61735A | Right rear roof inner panel | 61735-12904 · 61735-12906 · 61735-13070 |
| 61736A | Left rear roof inner panel | 61736-12905 · 61736-13070 |
| 61745A | Back door opening lower right reinforcement | 61745-13070 |
| 61746A | Rear door opening lower left reinforcement | 61746-13070 |
| 61747 | Roof right inner panel to wheel housing bracket | 61083-13010 · 61747-12180 |
| 61748C | Roof left inner panel to wheel arch bracket | 61084-13010 · 61748-12180 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-13060 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-13050 |
| 61824 | Noise Control Panel No. 1 | 61824-12040 |
| 61824C | No. 1 silencer panel gasket | 61815-32020 · 61824-12040 · 61826-12020 · 61827-12030 |
| 61825A | Noise Control Panel No. 2 | 61815-32020 · 61825-12010 |
| 61825C | No. 2 silencer panel gasket | 61815-32020 |
| 61826A | Noise Control Panel No. 3 | 61824-12040 · 61826-12020 |
| 61826D | Noise Control Panel No. 3 | 61824-12040 |
| 62553D | No. 3 column pad | 61667-12050 · 62553-12120 |
| 66243C | Rear body protection piece No. 1 | 66243-13010 · 66243-20010 |
