Toyota COROLLA 地板垫和地毯 — Figure 5804

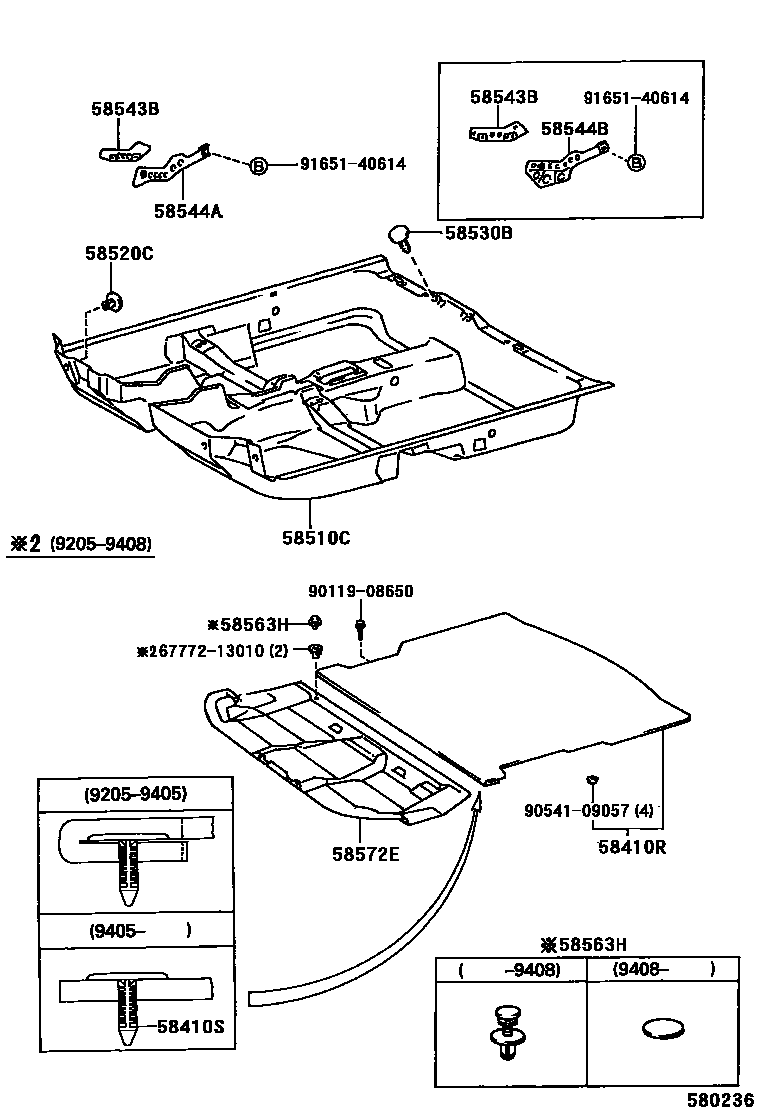

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58543B | Right carpet bracket | 58543-12011 |
| 58544A | left carpet bracket | 58544-12011 |
| 58544B | left carpet bracket | 58544-12030 · 58544-12031 |
| 58563H | Clip (for rear floor mat) | 90333-25001 · 90333-30002 · 90467-07136 |
| 58572E | Rear floor front mat | 58572-13010 · 58572-13020 |
