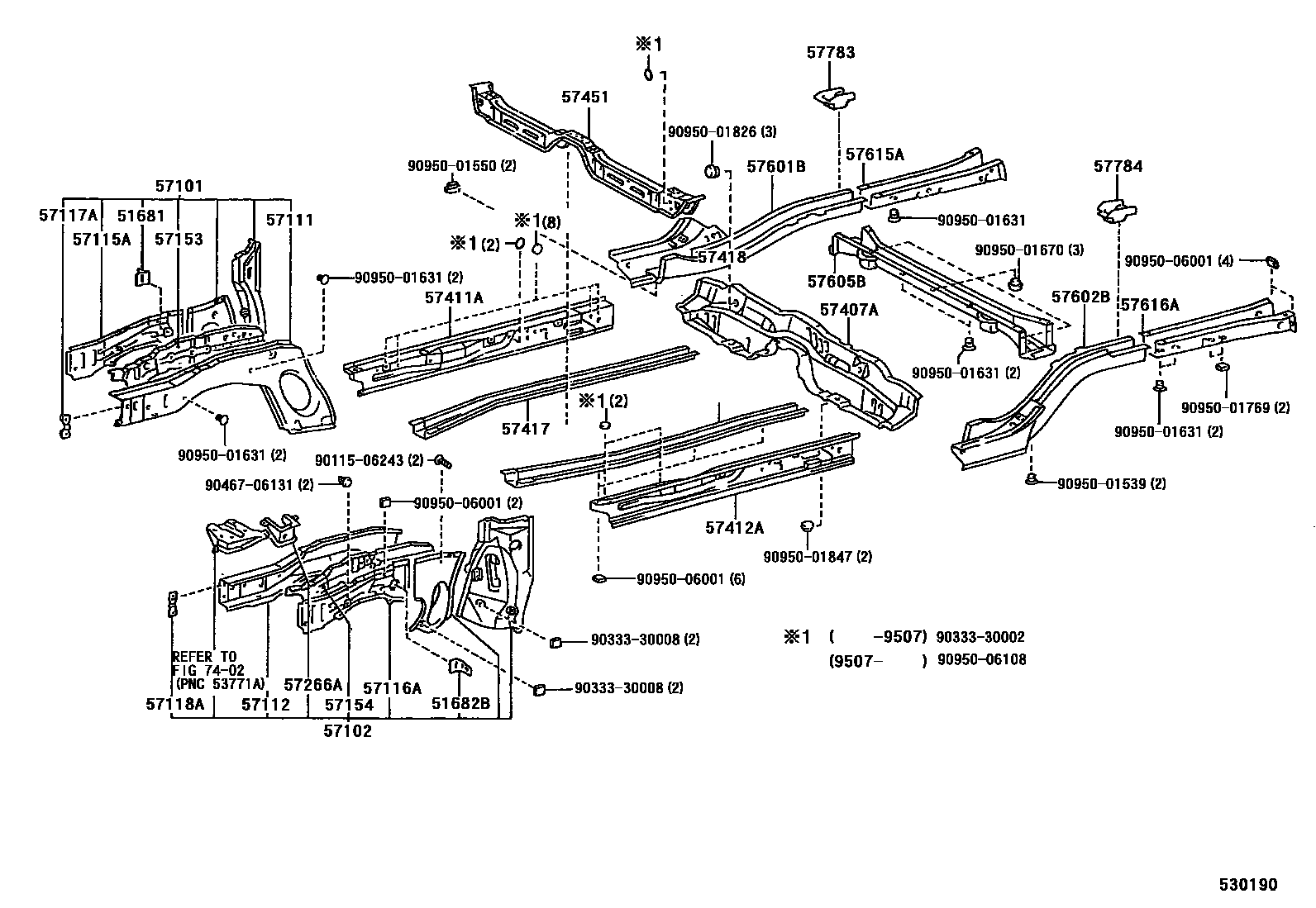

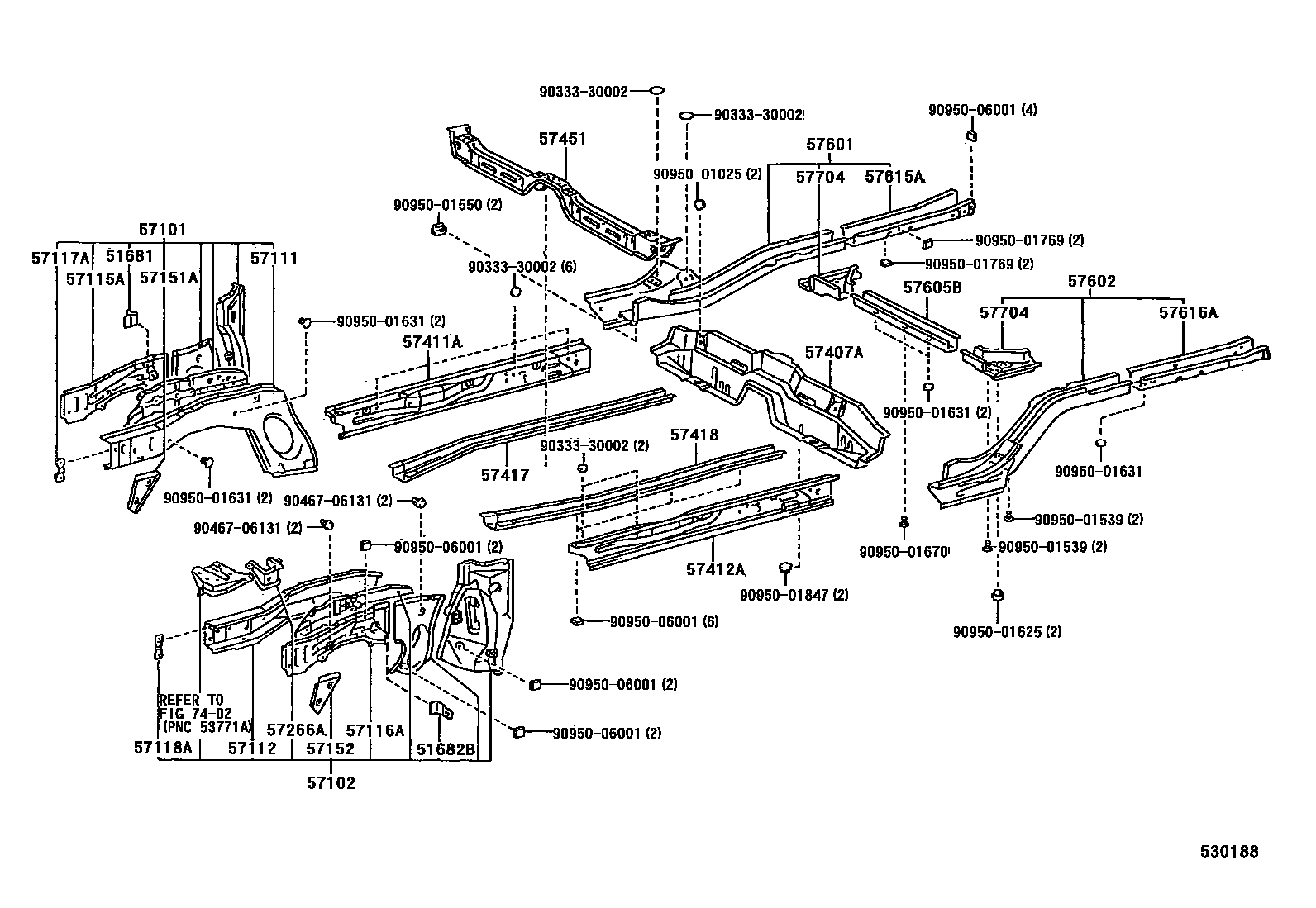

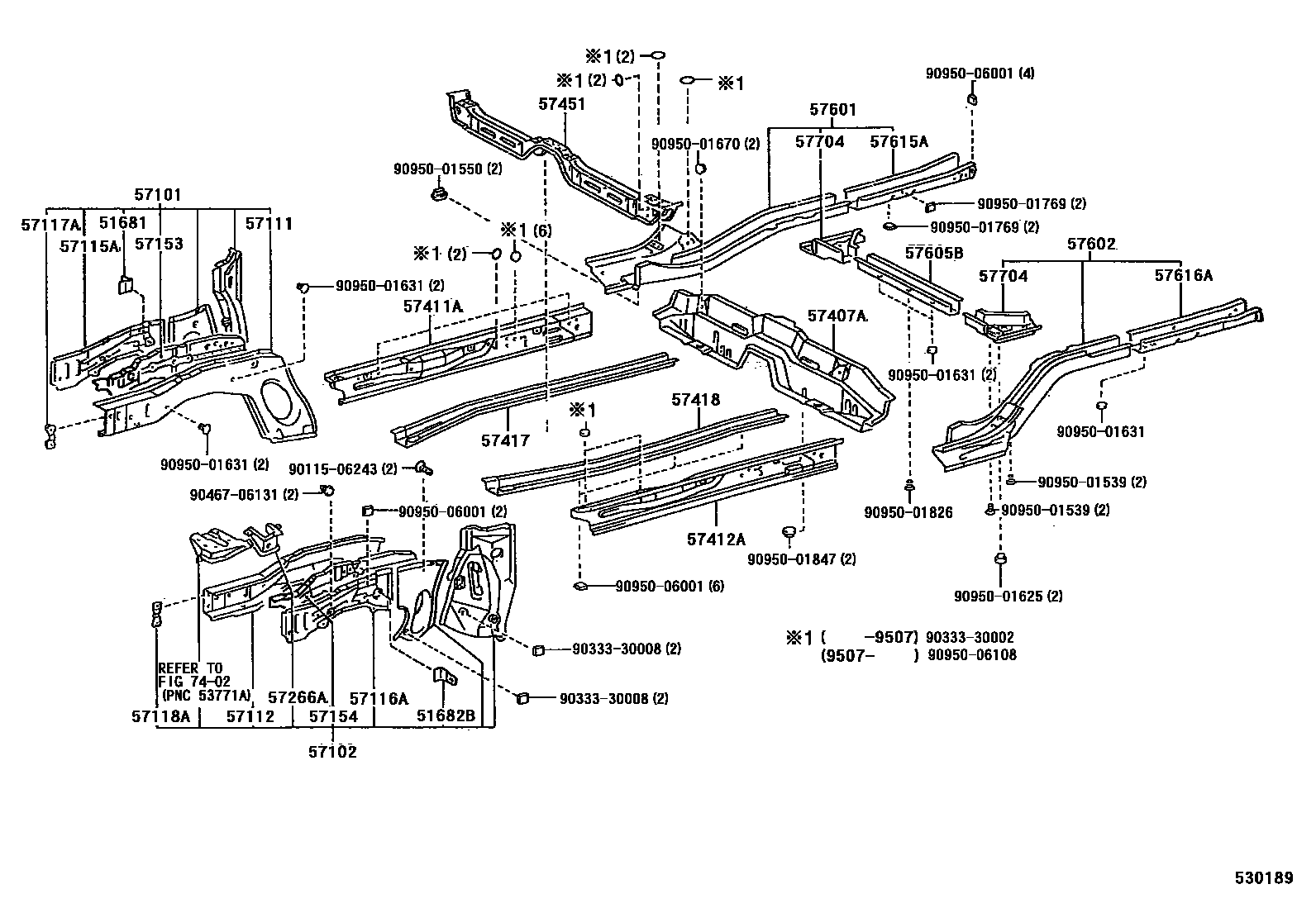

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51681 | Flexible hose bracket | 51681-12050 |
| 51682B | Left side flexible hose bracket | 51682-12060 |
| 57101 | Right front longitudinal beam sub-assembly | 57101-12440 · 57101-12441 · 57101-12450 · 57101-12451 · 57101-12480 · 57101-12481 · 57101-12490 · 57101-12491 |
| 57102 | Left front longitudinal beam sub-assembly | 57102-12400 · 57102-12401 · 57102-12410 · 57102-12411 · 57102-12440 · 57102-12441 · 57102-12450 · 57102-12451 |
| 57111 | Right front longitudinal beam | 57111-12200 · 57111-12201 |
| 57112 | Left front longitudinal beam | 57112-12140 · 57112-12141 · 57112-12142 |
| 57115A | Right front longitudinal beam outer panel | 57115-12060 |
| 57116A | Left front longitudinal beam outer panel | 57116-12060 |
| 57117A | Front bumper mounting reinforcement | 57117-12110 |
| 57118A | Install reinforcement on the left side of the front bumper | 57117-12110 |
| 57151A | No. 1 right front longitudinal beam reinforcement | 57151-12100 |
| 57152 | No. 1 left front longitudinal beam reinforcement | 57152-12070 |
| 57153 | No. 2 right front longitudinal beam reinforcement | 57016-12050 · 57016-12060 |
| 57154 | No. 2 left front longitudinal beam reinforcement | 57017-12030 · 57017-12040 |
| 57266A | Engine left mounting bracket | 57208-12100 · 57208-12110 · 57208-12111 · 57208-12120 · 57208-12121 |
| 57407A | Center floor beam sub-assembly | 57407-12040 · 57407-12050 |
| 57411A | Floor right inner longitudinal beam | 57401-12460 |
| 57412A | Floor left inner longitudinal beam | 57402-12460 |
| 57417 | Front floor lower right reinforcement | 57417-12100 |
| 57418 | Front floor lower left reinforcement | 57418-12060 |
| 57451 | front floor cross member | 57451-12130 · 57451-12131 · 57451-12141 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12924 · 57601-12931 · 57601-13190 · 57601-13240 · 57601-13901 · 57601-1A070 · 57601-1A900 |
| 57601B | Rear floor right front longitudinal beam sub-assembly | 57601-13900 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12730 · 57602-12926 · 57602-12929 · 57602-12930 · 57602-12934 · 57602-12939 · 57602-13180 · 57602-13210 |
| 57602B | Rear floor left front longitudinal beam sub-assembly | 57602-13900 |
| 57605B | Rear floor No. 1 cross member sub-assembly | 57605-12130 · 57605-12140 · 57605-12150 |
| 57615A | Rear floor right rear longitudinal member | 57615-12901 |
| 57616A | Rear floor left rear longitudinal member | 57616-12901 · 57616-12903 · 57616-12905 |
| 57704 | Rear suspension spring bracket sub-assembly | 57695-12030 · 57696-12030 · 57703-12060 · 57704-12080 |
| 57783 | Right body No. 8 mounting bracket | 57783-12010 |
| 57784 | Left body No. 8 mounting bracket | 57784-12010 |
