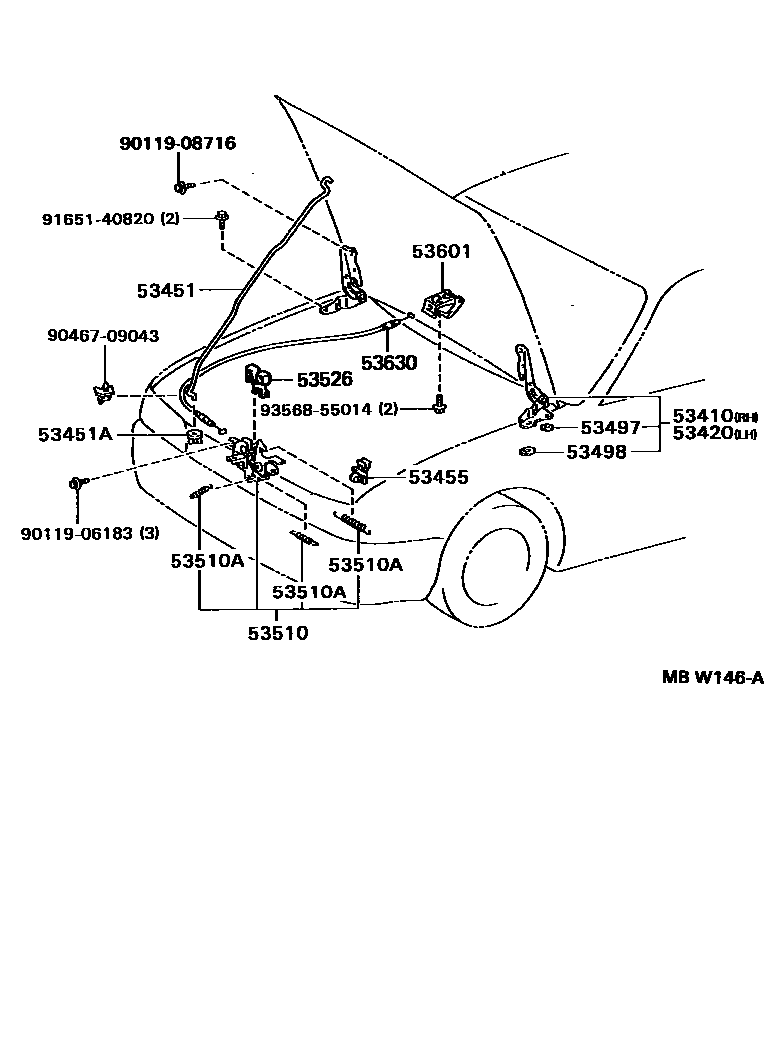

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-12190 · 53410-12220 · 53410-12250 · 53410-12260 |
| 53420 | Engine cover left hinge assembly | 53420-12180 · 53420-12210 · 53420-12240 · 53420-12250 |
| 53451 | Engine cover support rod | 53451-12170 · 53451-12171 |
| 53451A | Gasket (for engine cover support rod) | 90480-15020 · 90480-15027 |
| 53455 | Engine cover support rod clip | 53455-12060 · 53455-12090 |
| 53497 | No. 1 engine cover hinge gasket | 53497-12060 · 53497-12070 |
| 53498 | No. 2 engine cover hinge gasket | 53498-12060 · 53498-12070 |
| 53510 | Engine cover lock assembly | 53510-12380 · 53510-12500 |
| 53510A | Tension spring (for hood lock) | 90506-09055 · 90506-09057 · 90506-12067 · 90506-20065 · 90506-20066 |
| 53526 | No. 2 hood lock opening lever guard | 53526-12040 |
| 53630 | Engine hood lock control cable assembly | 53630-12410 · 53630-12440 · 53630-12460 |
