Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

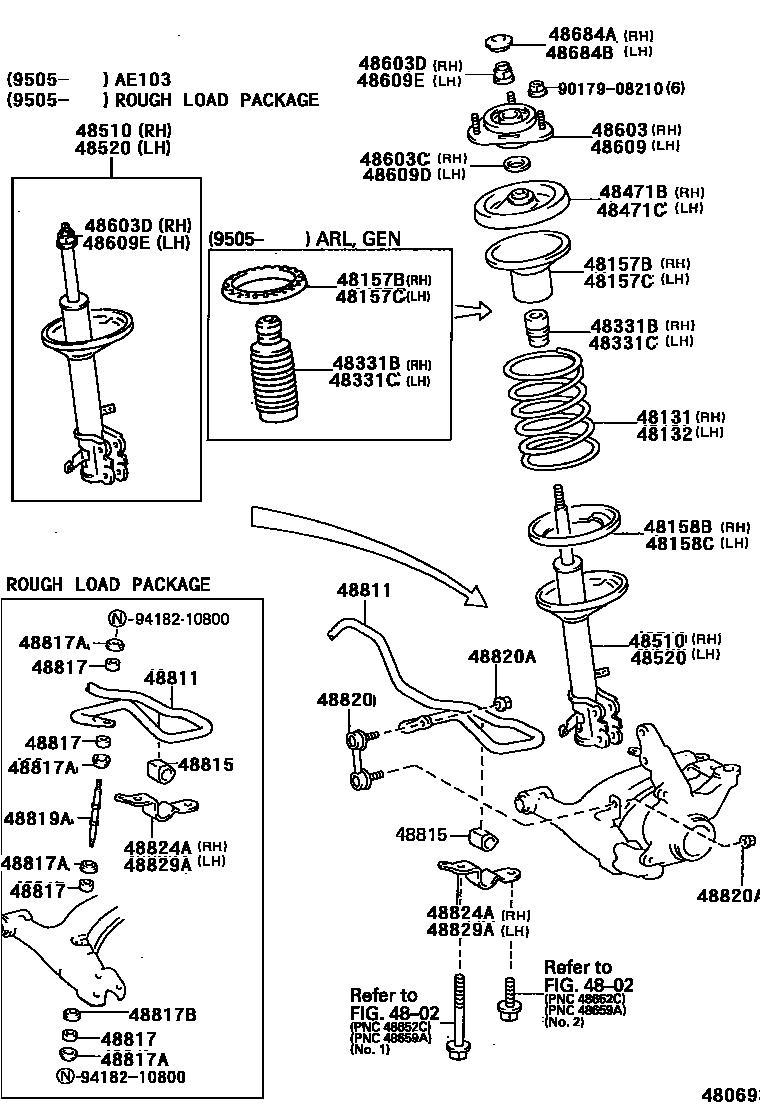

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-1K380 · 48131-1K400 · 48131-1K530 · 48131-1K540 · 48131-1K700 · 48131-1L270 · 48131-1L340 · 48131-1L770 |
| 48132 | Left front coil spring | 48131-1K380 · 48131-1K400 · 48131-1K530 · 48131-1K540 · 48131-1L290 · 48131-1L360 · 48131-1L770 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-12060 · 48157-12070 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-12060 · 48157-12070 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-12030 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-12030 |
| 48331B | Right front spring buffer block | 48331-12120 · 48331-12130 · 48331-12140 · 48331-12150 |
| 48331C | Left front spring buffer block | 48331-12120 · 48331-12130 · 48331-12140 · 48331-12150 |
| 48471B | Front coil spring upper right seat | 48044-01020 · 48044-12090 |
| 48471C | Front coil spring upper left seat | 48044-01020 · 48044-12090 |
| 48510 | Right front shock absorber assembly | 48510-12750 · 48510-12790 · 48510-12840 · 48510-19455 · 48510-19475 · 48510-1A010 |
| 48520 | Left front shock absorber assembly | 48520-12610 · 48520-12630 · 48520-12670 · 48520-12770 · 48520-19175 · 48520-19195 |
| 48603 | Right front suspension bearing sub-assembly | 48609-12250 · 48609-12270 · 48609-12290 · 48609-12330 · 48609-12340 · 48609-12350 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22049 |
| 48603D | Nut (for front mount to right front shock absorber) | 94182-11400 |
| 48609 | Left front suspension bearing sub-assembly | 48609-12250 · 48609-12270 · 48609-12290 · 48609-12330 · 48609-12340 · 48609-12350 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22049 |
| 48609E | Nut (for front mount to left front shock absorber) | 94182-11400 |
| 48684A | Right front suspension support dust cover | 48684-12070 · 48684-32010 |
| 48684B | Left front suspension support dust cover | 48684-12070 · 48684-32010 |
| 48811 | front stabilizer bar | 48811-12720 · 48811-12890 · 48811-1A040 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-12220 · 48815-12230 · 48815-12240 |
| 48817 | Front stabilizer bar cushion | 48817-30020 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-02032 |
| 48817B | Crash pad block No. 2 (for front stabilizer bar) | 90948-02015 |
| 48819A | front stabilizer bar bolt | 48819-20030 |
| 48820 | Front stabilizer bar connecting rod assembly | 48820-20021 · 48820-33010 |
| 48820A | Nut (for front stabilizer bar link) | 90179-10183 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-12130 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48829-12060 |
