Toyota COROLLA 前桥控制臂和转向节 — Figure 4802

Toyota COROLLA EPC diagram 4802, 前桥控制臂和转向节, with 3 images and 28 PNC and OE references.

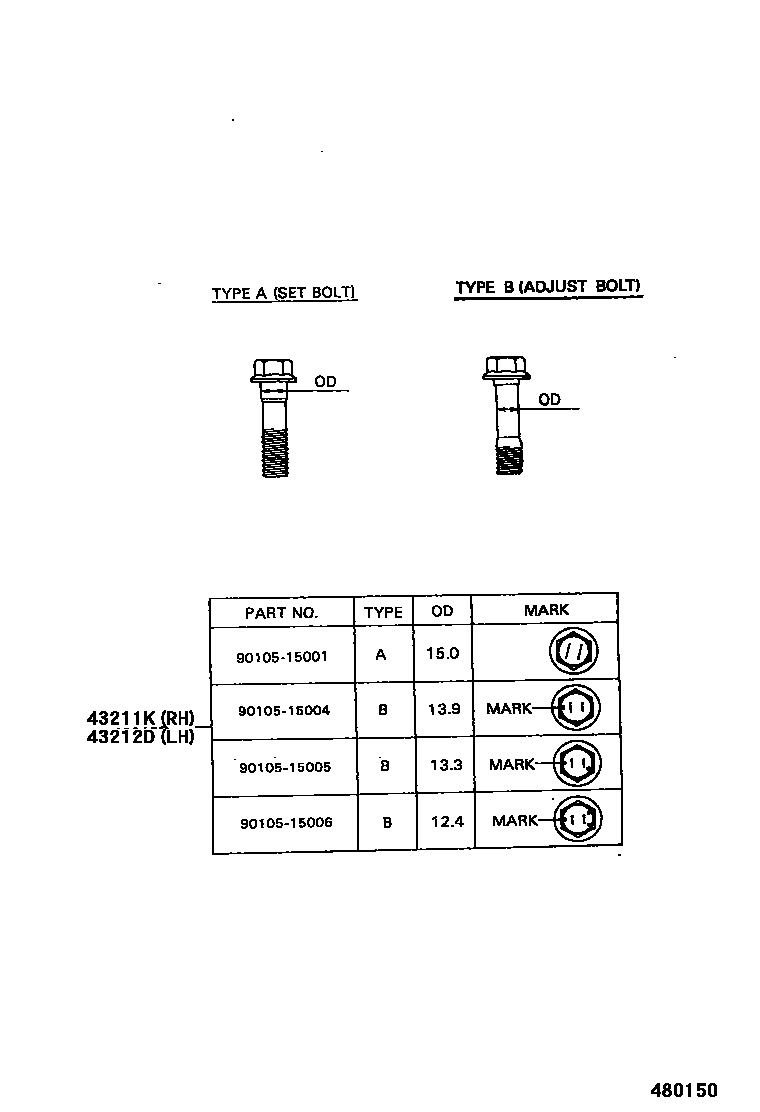

Toyota COROLLA 前桥控制臂和转向节 EPC diagram — 480150
前桥控制臂和转向节 — 480150 (199205 – 999999)

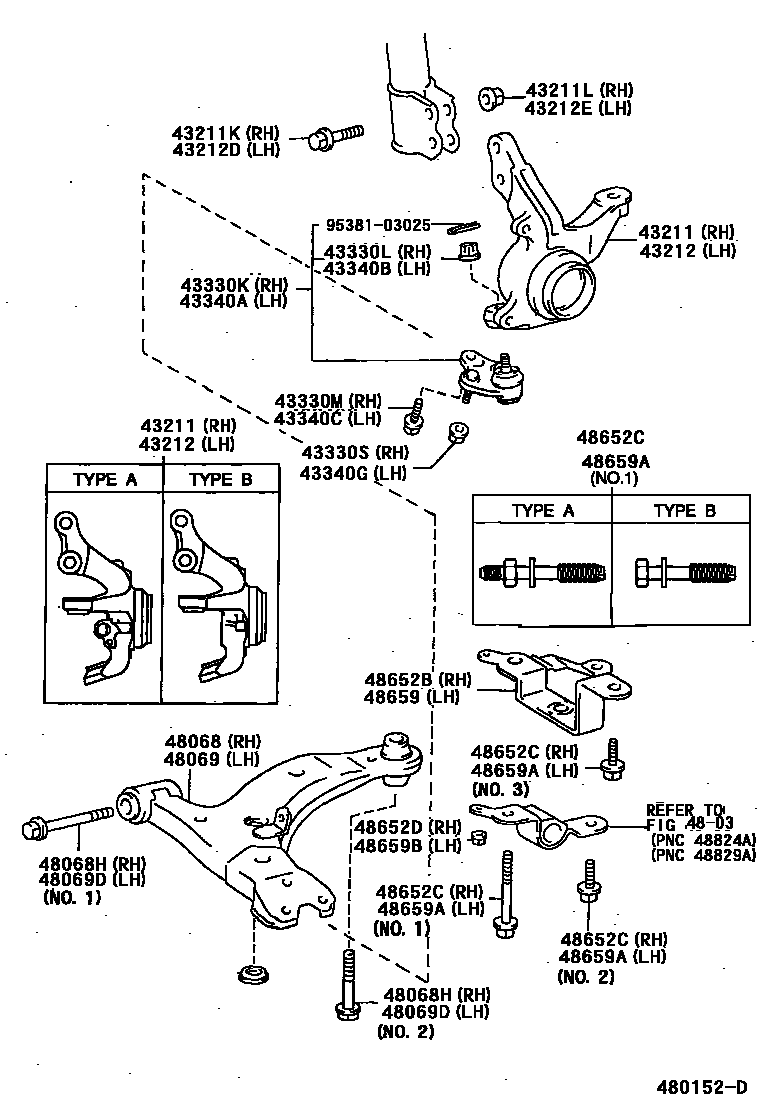

Toyota COROLLA 前桥控制臂和转向节 EPC diagram — 480152D
前桥控制臂和转向节 — 480152D (199505 – 999999)

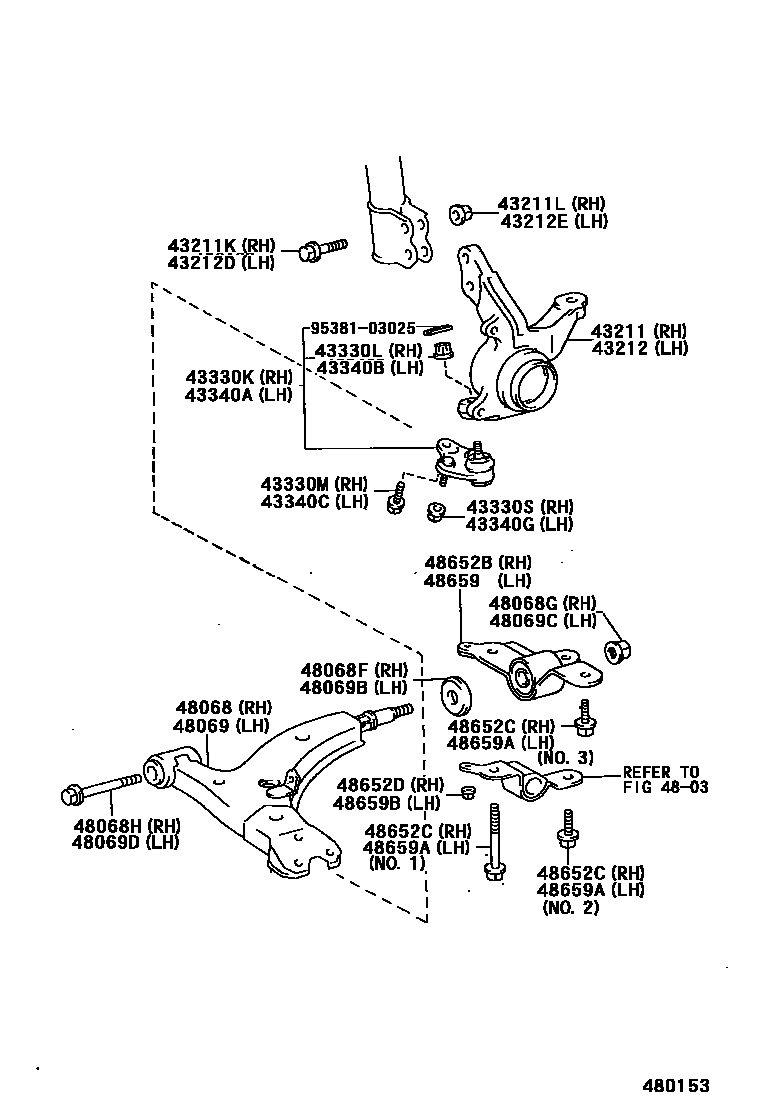

Toyota COROLLA 前桥控制臂和转向节 EPC diagram — 480153
前桥控制臂和转向节 — 480153 (199205 – 199505)

PNC and OE references

PNCPart nameOE numbers
43211Right steering knuckle43211-12200 · 43211-12220 · 43211-12230 · 43211-12240 · 43211-12290 · 43211-12300 · 43211-12310 · 43211-12320 · 43211-12370 · 43211-12380
43211KBolt (for right steering knuckle)90105-15001 · 90105-15004 · 90105-15005 · 90105-15006 · 90105-15007
43211LNut (for right steering knuckle)90179-15001
43212left steering knuckle43212-12160 · 43212-12180 · 43212-12190 · 43212-12200 · 43212-12250 · 43212-12260 · 43212-12270 · 43212-12280 · 43212-12330 · 43212-12340
43212DBolt (for left steering knuckle)90105-15001 · 90105-15004 · 90105-15005 · 90105-15006 · 90105-15007
43212ENut (for left steering knuckle)90179-15001
43330KRight front lower ball joint assembly43330-19095 · 43330-19115
43330LCastle nut (for right front lower ball joint)90171-14003
43330MBolt (for right front lower ball joint)90105-12156
43330SNut (for right front lower ball joint)90179-12070
43340ALeft front lower ball joint assembly43330-19095 · 43330-19115
43340BCastle nut (for left front lower ball joint)90171-14003
43340CBolt (for left front lower ball joint)90105-12156
43340GNut (for left front lower ball joint)90179-12070
48068Right front suspension No. 1 lower arm sub-assembly48068-12130 · 48068-12140 · 48068-12160 · 48068-12170 · 48068-12171 · 48068-12190 · 48068-12191
48068FCrash pad block (for right front suspension No. 1 lower arm)90948-02152
48068GNut (for right front suspension No. 1 lower arm)90179-14006
48068HBolt (for right front suspension No. 1 lower arm)90119-14023 · 90119-14041
48069Left front suspension No. 1 lower arm sub-assembly48069-12130 · 48069-12140 · 48069-12160 · 48069-12170 · 48069-12171 · 48069-12190 · 48069-12191
48069BCrash pad block (for left front suspension No. 1 lower arm)90948-02152
48069CNut (for left front suspension No. 1 lower arm)90179-14006
48069DBolt (for left front suspension No. 1 lower arm)90119-14023 · 90119-14041
48652BRight front lower arm brace48075-12010 · 48075-12031 · 48075-12040 · 48652-12060 · 48652-12070
48652CBolt (for right front lower arm bracket)90119-10692 · 90119-12125 · 90119-12238
48652DNut (for right front lower arm bracket)90179-08072 · 90179-08145
48659Left front lower arm brace48076-12010 · 48076-12031 · 48076-12040 · 48659-12060 · 48659-12070
48659ABolt (for left front lower arm bracket)90119-10692 · 90119-12125 · 90119-12238
48659BNut (for left front lower arm bracket)90179-08072 · 90179-08145
