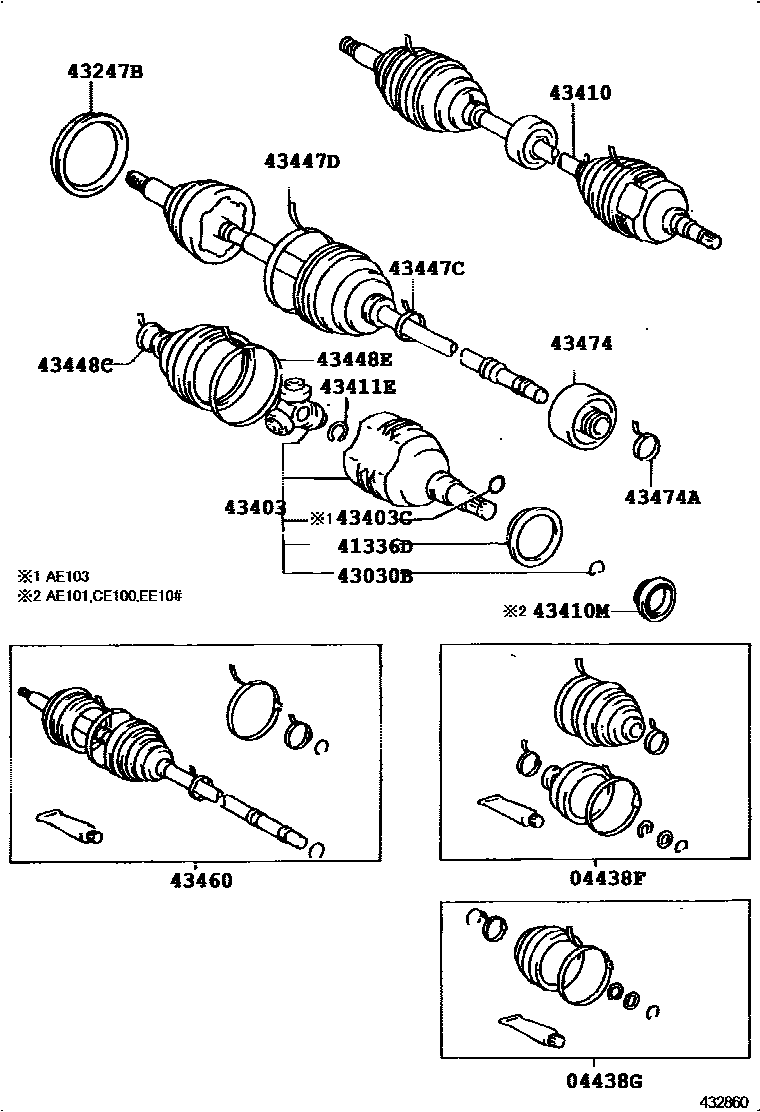

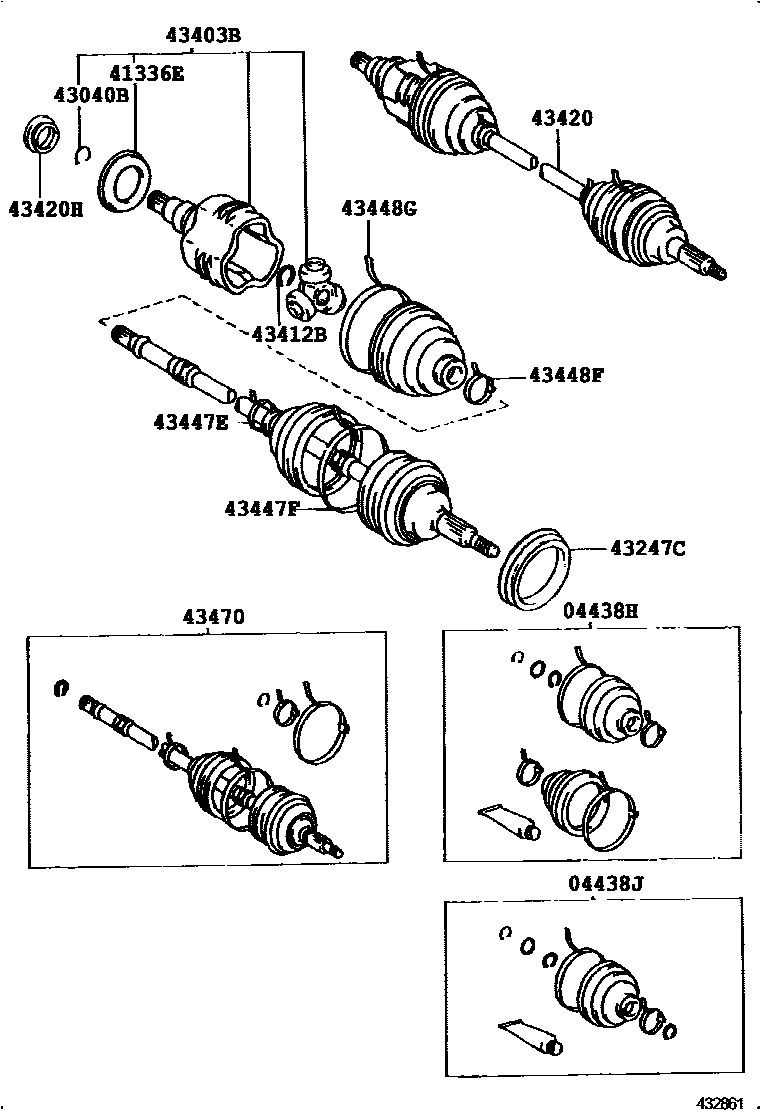

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 2 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04438-12172 · 04438-12270 · 04438-12290 · 04438-12300 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04438-12162 · 04438-12260 · 04438-12410 · 04438-12420 · 04438-32161 · 04438-32230 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04438-12172 · 04438-12270 · 04438-12290 · 04438-12300 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-12162 · 04438-12260 · 04438-12410 · 04438-12420 · 04438-32161 · 04438-32230 |
| 41336D | Right front driveshaft dust cover | 41336-12010 · 41336-20040 · 41336-32010 |
| 41336E | Left front driveshaft dust cover | 41336-12010 · 41336-12040 · 41336-32020 |
| 43030B | Hole snap ring (for right front drive shaft inboard universal joint) | 90521-26004 · 90521-27005 |
| 43040B | Hole snap ring (for left front drive shaft inboard universal joint) | 90521-26004 · 90521-27005 |
| 43247B | No. 2 right front wheel bearing dust cover | 43247-12010 · 43247-33010 |
| 43247C | No. 2 left front wheel bearing dust cover | 43247-12010 · 43247-33010 |
| 43403 | Right front axle inner universal joint assembly | 43030-20020 · 43403-12040 · 43403-12050 |
| 43403B | Left front axle inner universal joint assembly | 43040-20010 · 43403-12040 · 43403-12060 |
| 43403C | O-ring (for front drive shaft inboard universal joint) | 90301-26006 |
| 43410 | Right front driveshaft assembly | 43410-12350 · 43410-12400 · 43410-12410 · 43410-20152 · 43410-20341 · 43410-20430 · 43410-20440 · 43410-20450 · 43410-20470 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-34012 · 90311-34016 · 90311-34019 · 90311-34026 · 90311-34033 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 90520-22005 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 90520-22005 |
| 43420 | Left front drive shaft assembly | 43420-12320 · 43420-12340 · 43420-20111 · 43420-20121 · 43420-20281 · 43420-20350 · 43420-32121 · 43420-32161 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-34012 · 90311-34013 · 90311-34017 · 90311-35019 · 90311-35026 · 90311-35033 · 90311-44003 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-14010 · 90949-01078 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-16020 · 42345-16040 · 90949-01076 · 90949-01080 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-14010 · 90949-01078 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-16020 · 42345-16040 · 90949-01076 · 90949-01080 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 90949-01078 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-16040 · 90949-01076 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 90949-01078 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-16040 · 90949-01076 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-19307 · 43460-19655 · 43460-29098 · 43460-29147 · 43460-29167 · 43460-29235 · 43470-39087 |
| 43470 | Left front outer drive universal joint shaft assembly | 43460-19307 · 43470-19715 · 43470-29107 · 43470-29237 · 43470-29315 · 43470-29345 · 43470-39087 |
| 43474 | drive shaft damper | 43474-12020 · 43474-12030 · 43474-20050 |
| 43474A | Clamp (for securing driveshaft damper) | 42345-14010 · 42345-16030 · 90949-01696 |
