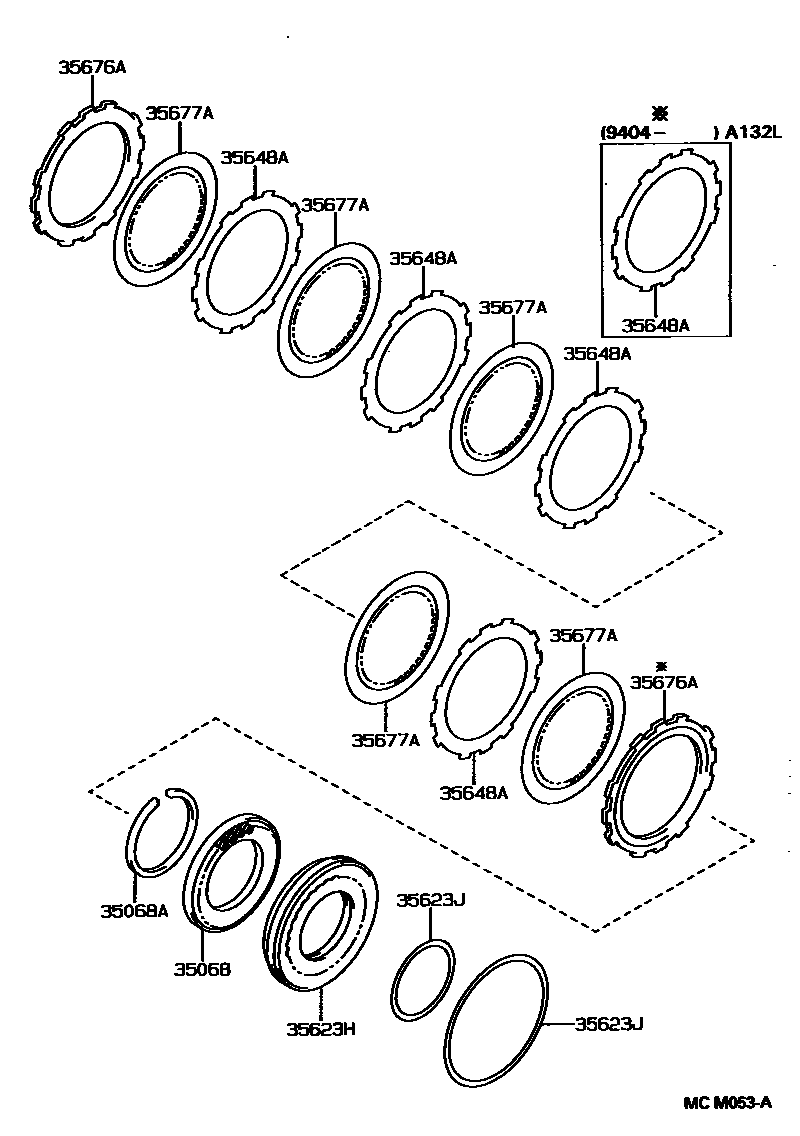

Toyota COROLLA 3号制动器、一档和倒档制动器(ATM) — Figure 3509
Toyota COROLLA EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35068 | First and reverse brake return spring sub-assembly | 35068-20010 · 35068-32010 |
| 35068A | Shaft snap ring (for first and reverse brake return spring) | 90520-90001 |
| 35623H | First and reverse brake piston | 35623-12050 · 35623-20010 · 35623-32010 · 35623-32050 |
| 35623J | O-ring (for first and reverse brakes) | 90301-94001 · 90301-99022 |
| 35648A | Clutch disc (for first and reverse brakes) | 35648-32020 |
| 35676A | Brake flange (for first and reverse brakes) | 35676-32010 |
| 35677A | Clutch disc (for first and reverse brake) | 35677-12040 · 35677-12060 · 35677-32040 · 35677-32060 |
