Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102

Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 5 images and 18 PNC and OE references.

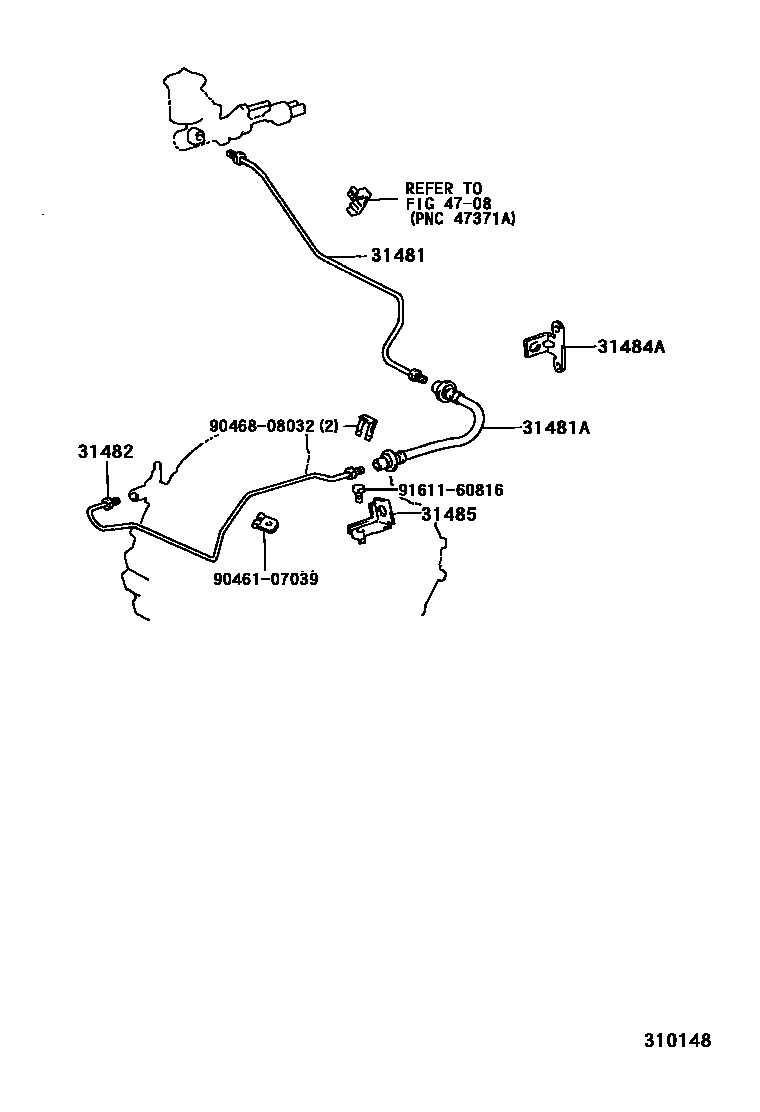

Toyota COROLLA 离合器踏板和挠性软管 EPC diagram — 310148
离合器踏板和挠性软管 — 310148 (199505 – 999999)

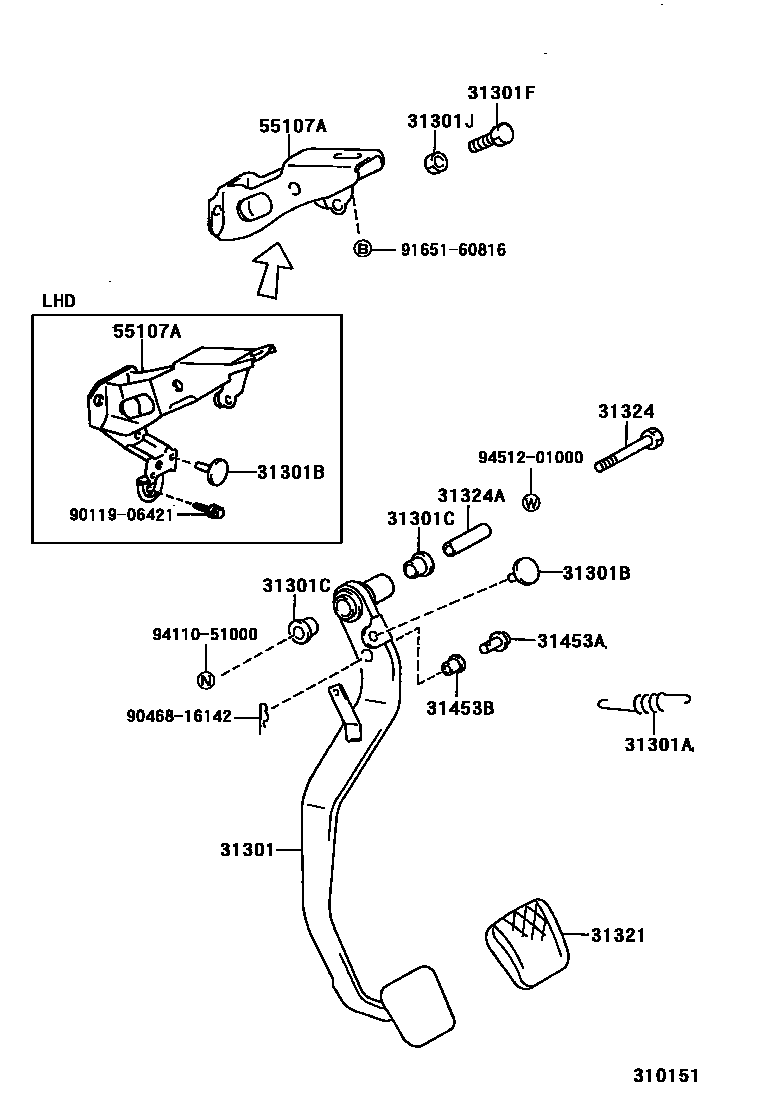

Toyota COROLLA 离合器踏板和挠性软管 EPC diagram — 310151
离合器踏板和挠性软管 — 310151 (199205 – 999999)

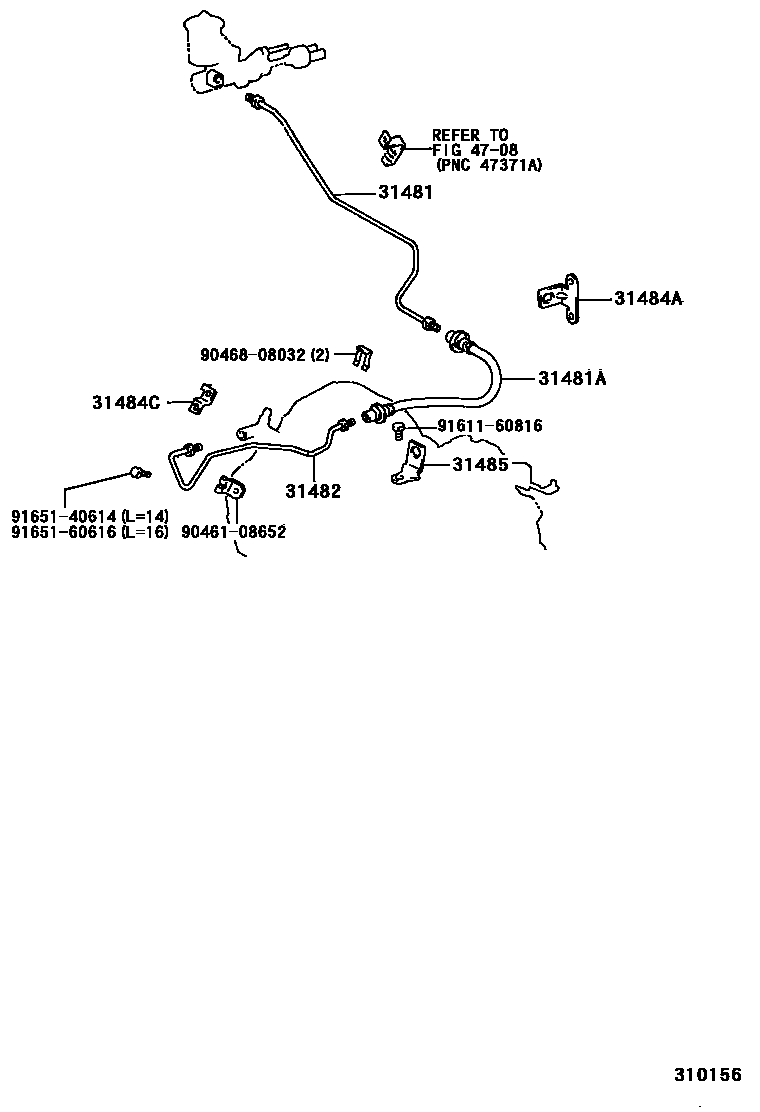

Toyota COROLLA 离合器踏板和挠性软管 EPC diagram — 310156
离合器踏板和挠性软管 — 310156 (199205 – 999999)

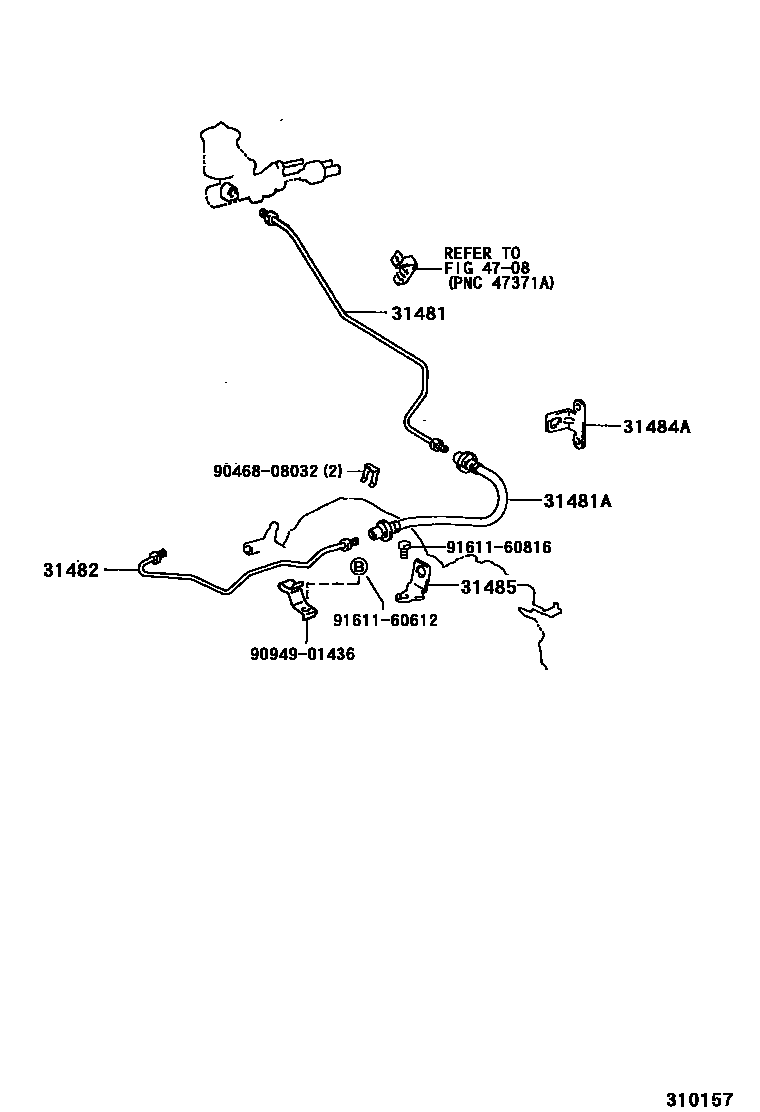

Toyota COROLLA 离合器踏板和挠性软管 EPC diagram — 310157
离合器踏板和挠性软管 — 310157 (199205 – 999999)

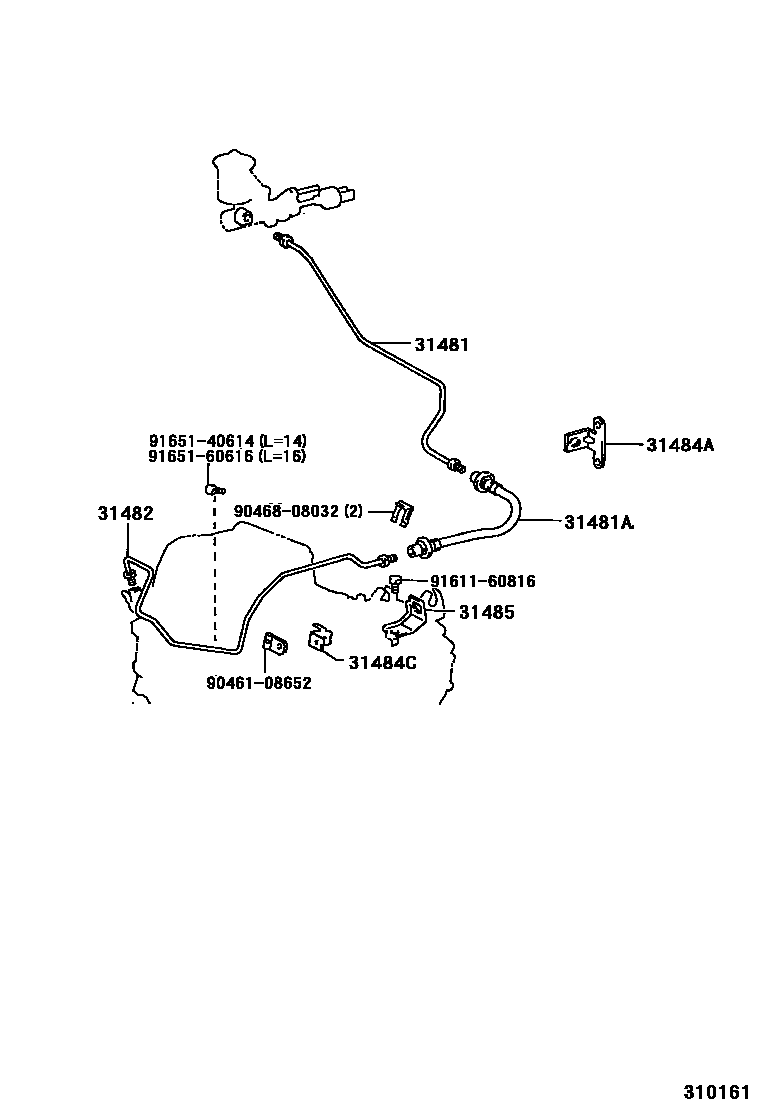

Toyota COROLLA 离合器踏板和挠性软管 EPC diagram — 310161
离合器踏板和挠性软管 — 310161 (199205 – 999999)

PNC and OE references

PNCPart nameOE numbers
31301Clutch pedal sub-assembly31301-12370 · 31301-12371 · 31301-12400
31301ASpring (for clutch pedal)90506-14052 · 90905-06007
31301BCushion pad No. 1 (for clutch pedal)90541-06036
31301CBushing (for clutch pedal)90386-13015
31301FBolt (for clutch pedal stop)90101-10369
31301JNut (for clutch pedal stop)94120-41000
31321clutch pedal pad31321-12040
31324clutch pedal shaft90101-10015
31324Aclutch pedal collar90387-10003
31453APin with hole (for clutch master cylinder push rod U-shaped clamp)47148-12010
31453BBushing (for clutch master cylinder push rod U-shaped clamp)90386-08002
31481Clutch master cylinder to flexible hose pipe31481-12210 · 31481-12231
31481ANo. 1 clutch hose90931-01060 · 90931-01061 · 90931-01102 · 90931-01104 · 90931-01113
31482Pipe from clutch release cylinder to flexible hose31482-12052 · 31482-12060 · 31482-12070 · 31482-32020
31484ANo. 1 flexible hose bracket (for clutch)31484-12160 · 31484-12240
31484CNo. 1 clutch tube bracket31484-12110 · 31484-32050
31485No. 2 flexible hose bracket (for clutch)31484-12180 · 31484-12190 · 31484-12200
55107AClutch pedal bracket sub-assembly55107-12160 · 55107-12170
