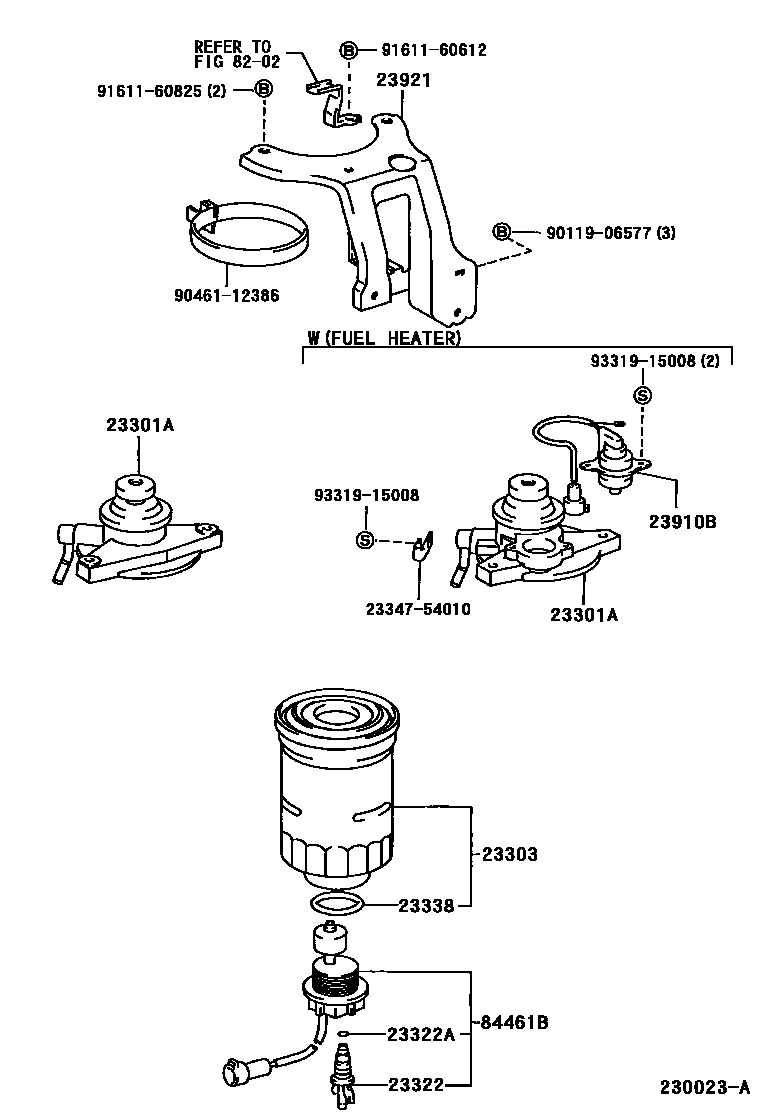

Toyota COROLLA fuel filter — Figure 2302
Toyota COROLLA EPC diagram 2302, fuel filter, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23300 | fuel filter assembly | 23300-15010 |
| 23301A | Fuel filter cover assembly | 23301-64300 · 23301-64310 |
| 23303 | Fuel filter element sub-assembly | 23303-64010 |
| 23322 | Drain plug (for fuel filter) | 23322-64020 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23910B | Fuel heater assembly | 23910-54050 · 23910-64020 |
| 23921 | Fuel filter support | 23264-11070 · 23921-64181 · 23921-64182 |
| 84461B | Liquid level warning switch | 84461-12060 |
