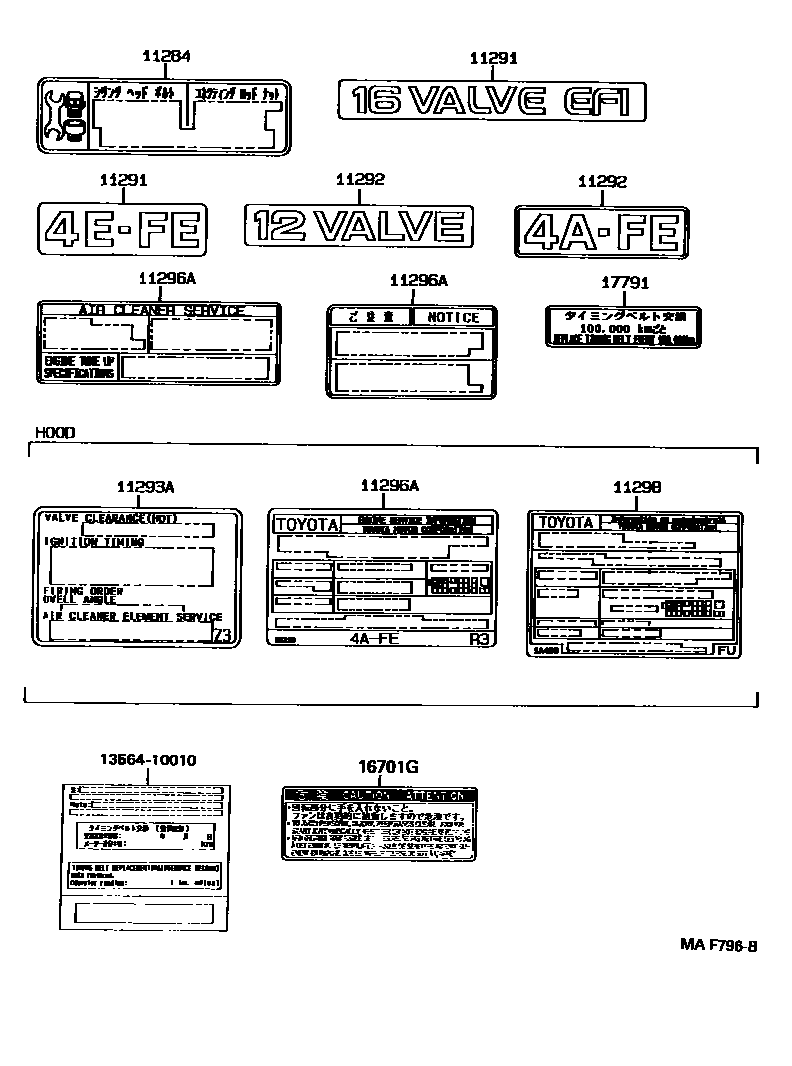

Toyota COROLLA 警示铭牌和名称铭牌(发动机) — Figure 1709
Toyota COROLLA EPC diagram 1709, 警示铭牌和名称铭牌(发动机), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11284 | Engine bolt information plate | 11284-16060 |
| 11291 | Engine name plate | 11291-11050 · 11291-16080 · 11292-11080 |
| 11292 | Engine No. 2 name plate | 11292-10010 · 11292-16020 · 11292-16030 |
| 11293A | Engine warning plate | 11293-10012 · 11293-11230 |
| 11296A | Engine maintenance information label | 11296-11271 · 11296-11290 · 11296-16170 · 11296-16210 · 11296-55020 · 11296-64010 · 11296-64020 · 11296-64040 |
| 11298 | Emission control information plate | 11298-11310 · 11298-1A480 · 11298-64110 |
| 16701G | warning label | 88723-12100 |
| 17791 | Maintenance information label | 17791-55010 |
