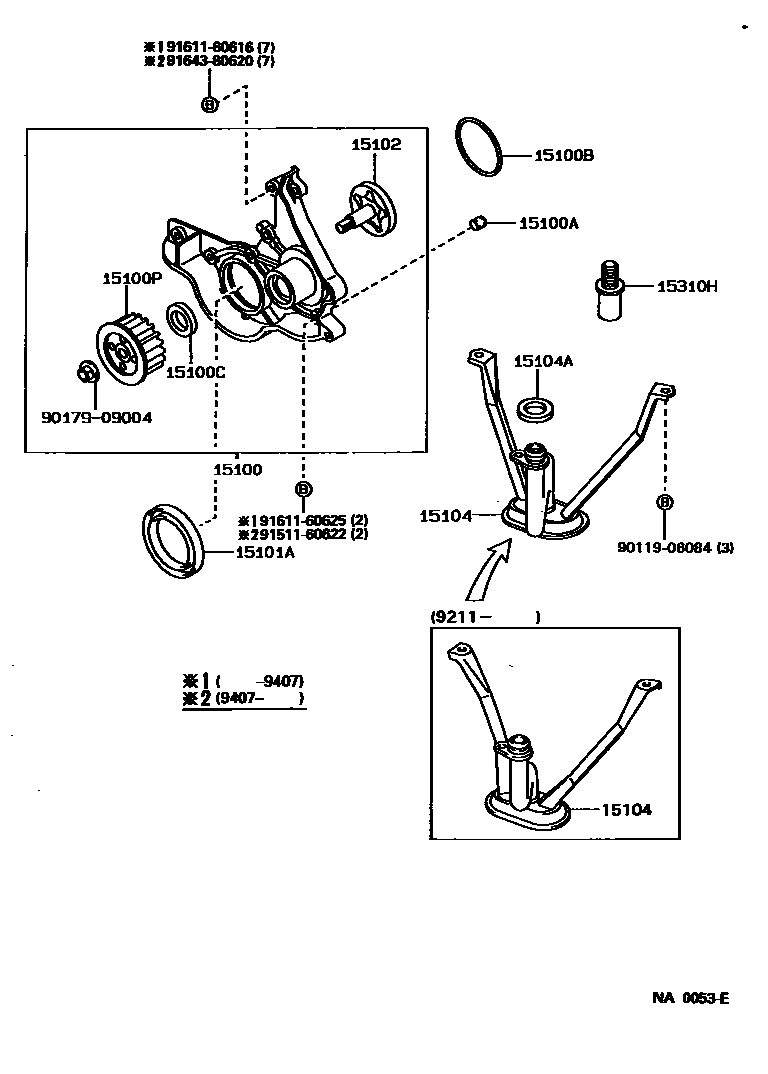

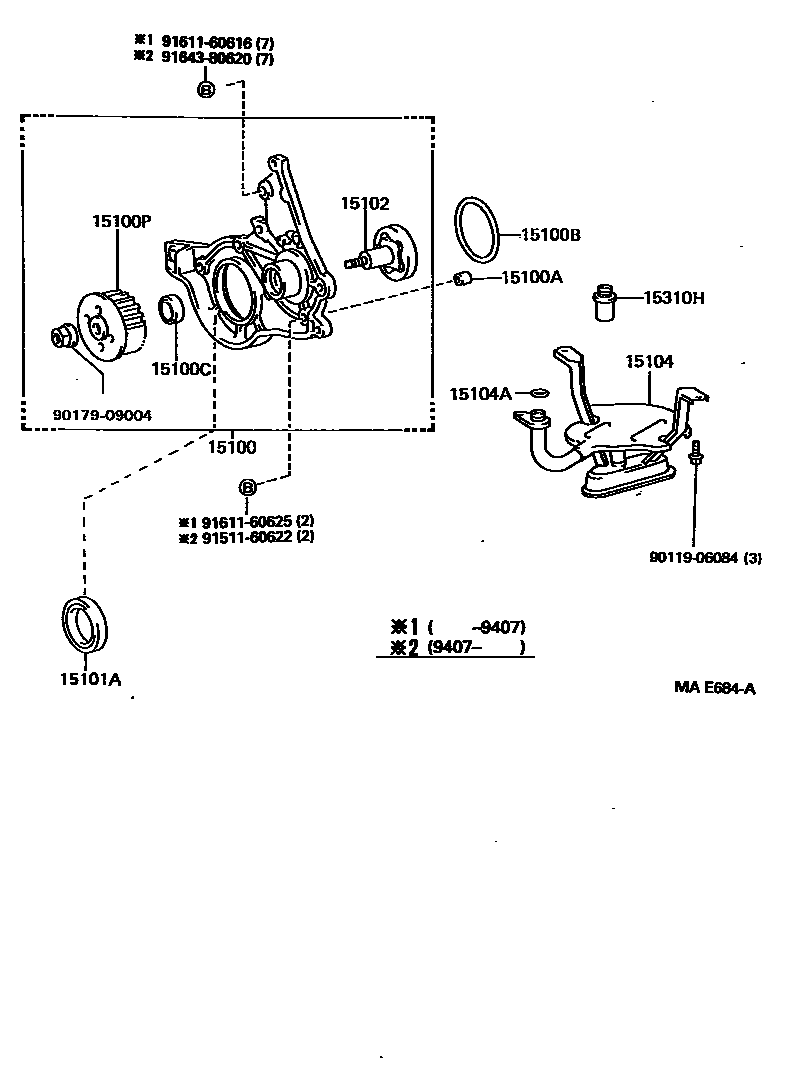

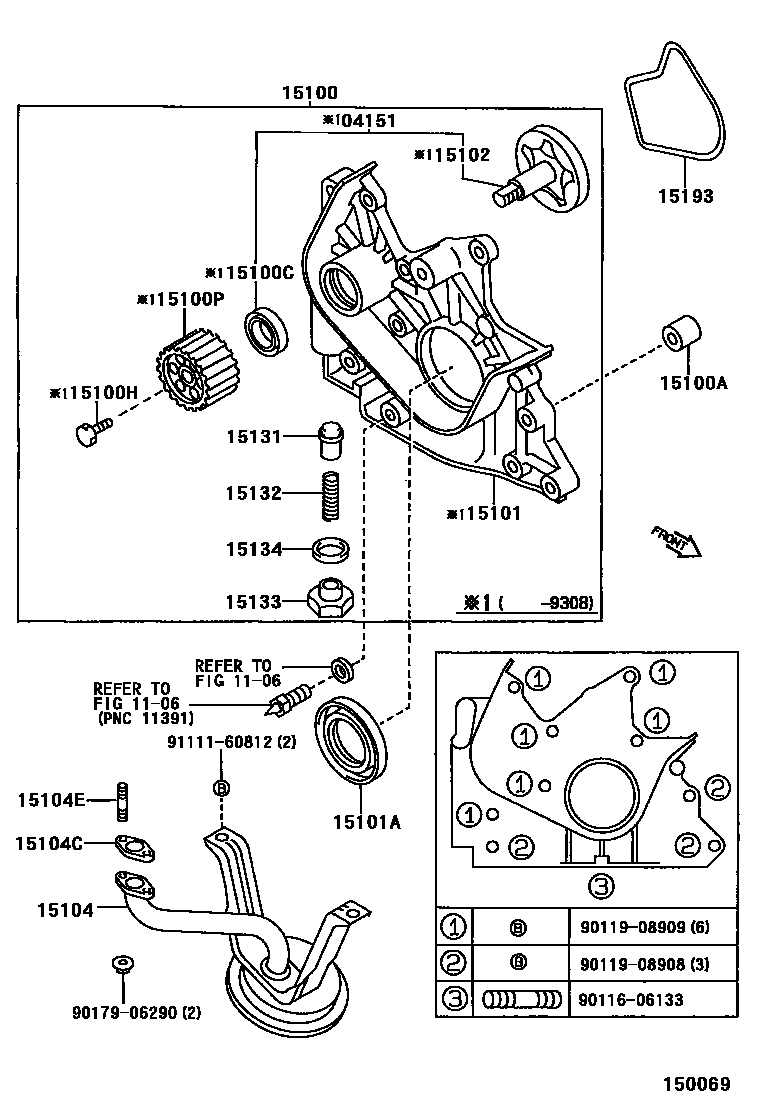

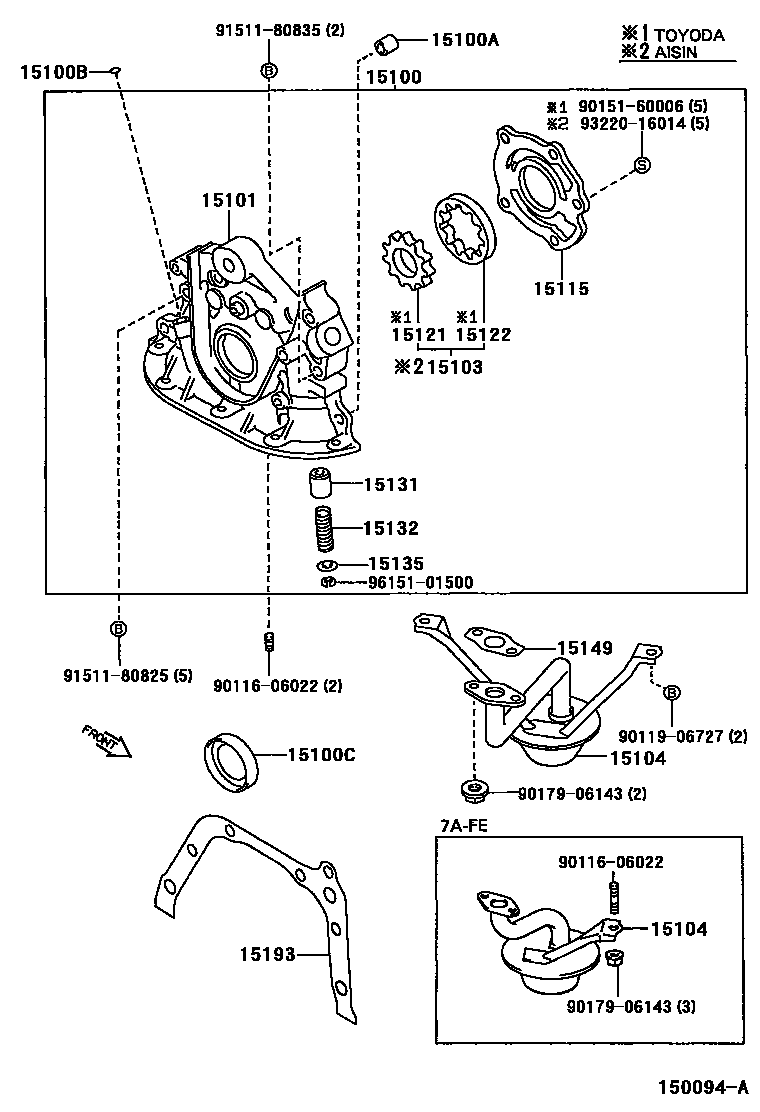

Toyota COROLLA Engine Oil Pump — Figure 1501
Toyota COROLLA EPC diagram 1501, Engine Oil Pump, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04151 | Oil pump rotor assembly | 04151-64020 |
| 15100 | Oil pump assembly | 15100-11050 · 15100-11051 · 15100-11070 · 15100-11071 · 15100-15060 · 15100-16040 · 15100-64040 |
| 15100A | Ring pin (for oil pump assembly) | 90253-09001 · 90253-11021 |
| 15100B | O-ring (for oil pump) | 90301-55005 · 90301-62006 · 96721-19010 |
| 15100C | Seals (for oil pump) | 90029-21007 · 90029-21020 · 90029-21022 · 90311-32018 · 90311-32020 |
| 15100H | Sealing bolt | 15189-55010 |
| 15100P | Oil pump drive shaft pulley | 13524-11010 · 13524-11020 · 13524-64020 |
| 15101 | Oil pump body sub-assembly | 15011-15060 · 15011-16040 · 15101-15070 · 15101-16050 · 15101-64030 |
| 15101A | Seals (for crankshaft) | 90311-35013 · 90311-35022 · 90311-35035 · 90311-35040 · 90311-42026 · 90311-42030 · 90311-42031 |
| 15102 | Oil pump rotor assembly | 15102-11040 · 15102-11080 · 15102-64040 |
| 15103 | Oil pump gear assembly | 15103-15020 · 15103-16040 |
| 15104 | Oil filter sub-assembly | 15104-11040 · 15104-11041 · 15104-11100 · 15104-11140 · 15104-11180 · 15104-15090 · 15104-16060 · 15104-64060 · 15104-64070 |
| 15104A | O-ring (for oil filter) | 96721-24015 |
| 15104C | Gasket (for oil filter) | 15149-64030 |
| 15104E | Stud bolts (for oil filter) | 90116-06132 |
| 15115 | oil pump cover | 15115-15020 · 15115-15030 · 15115-16060 |
| 15121 | Oil pump driving gear | 15121-15040 · 15121-16050 |
| 15122 | Oil pump driven gear | 15122-15040 · 15122-16050 |
| 15131 | Oil pump pressure reducing valve | 15131-15030 · 15131-24010 · 15131-64020 |
| 15132 | Oil pump pressure reducing valve spring | 15132-15030 · 15132-40010 · 15132-64012 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-20010 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-20010 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-15010 · 15135-15030 |
| 15149 | Oil filter flange gasket | 15149-16010 |
| 15193 | oil pump gasket | 15193-64021 · 15197-15012 · 15197-15030 · 15197-16010 |
| 15310H | Oil regulator assembly | 15310-10010 |
