Toyota COROLLA Engine Mounting — Figure 1107

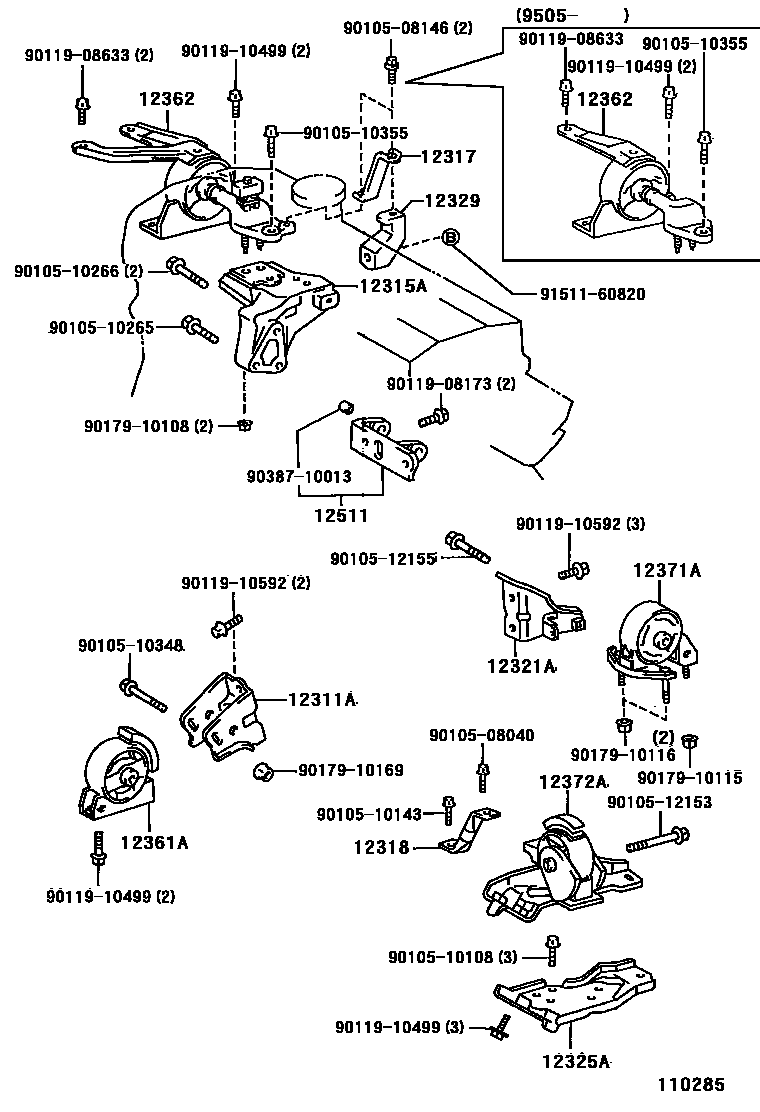

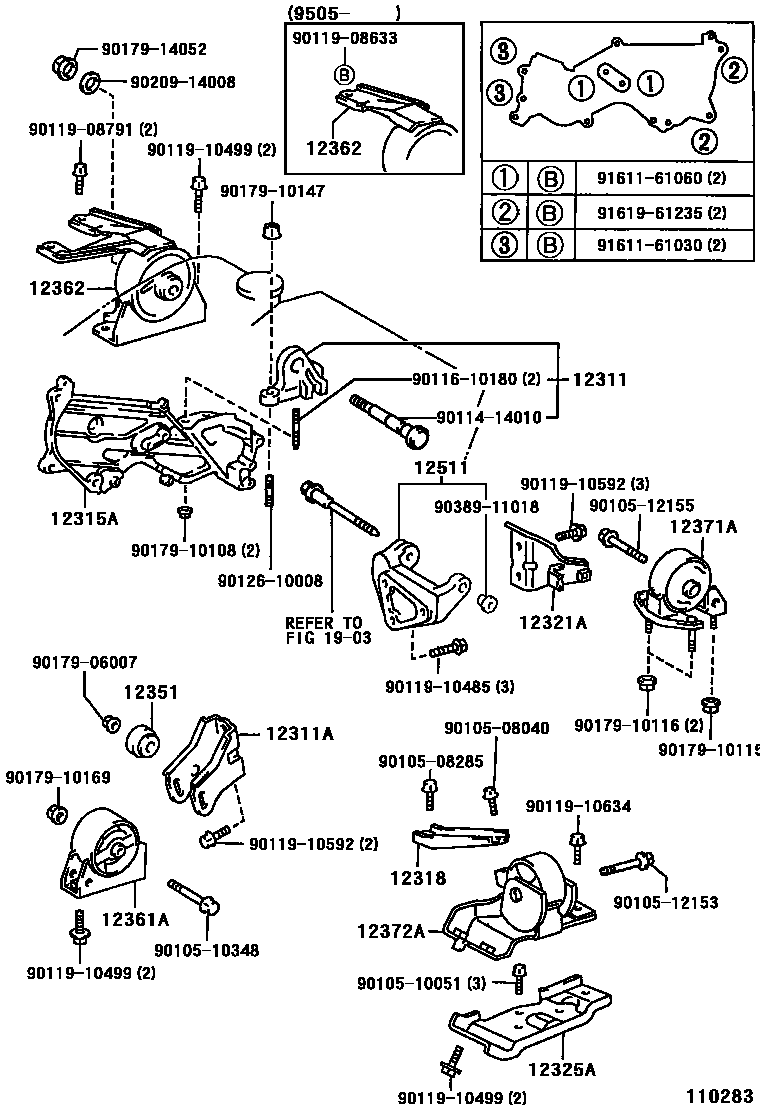

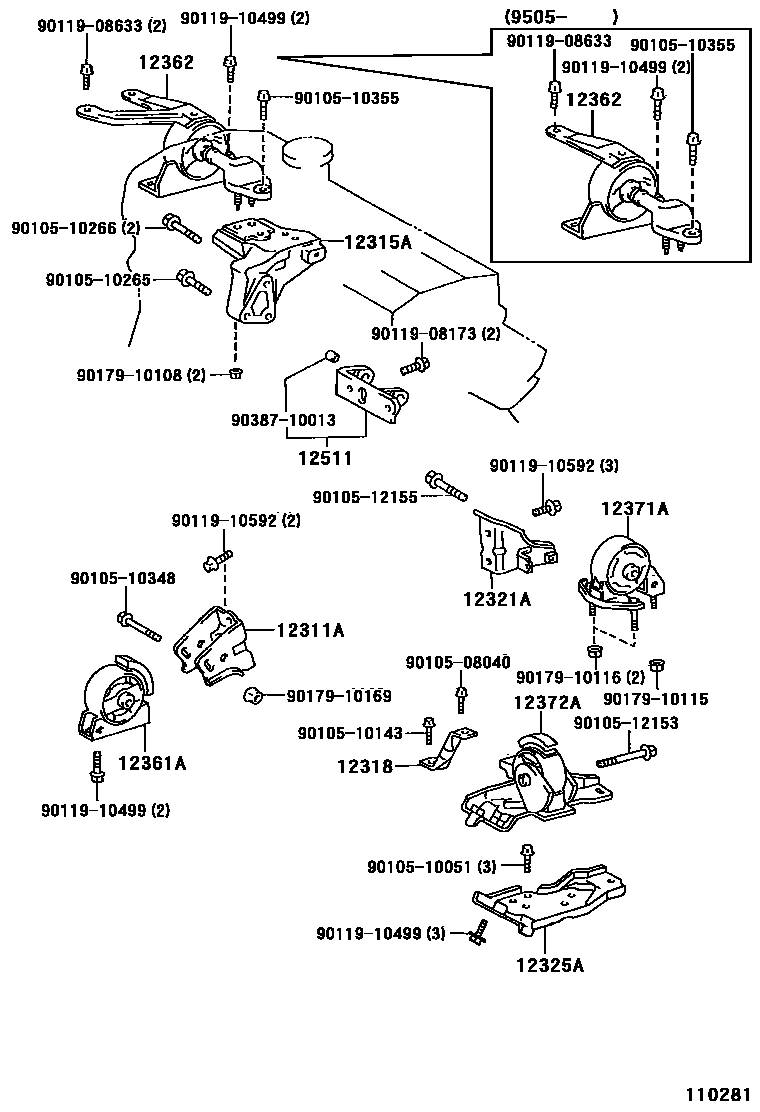

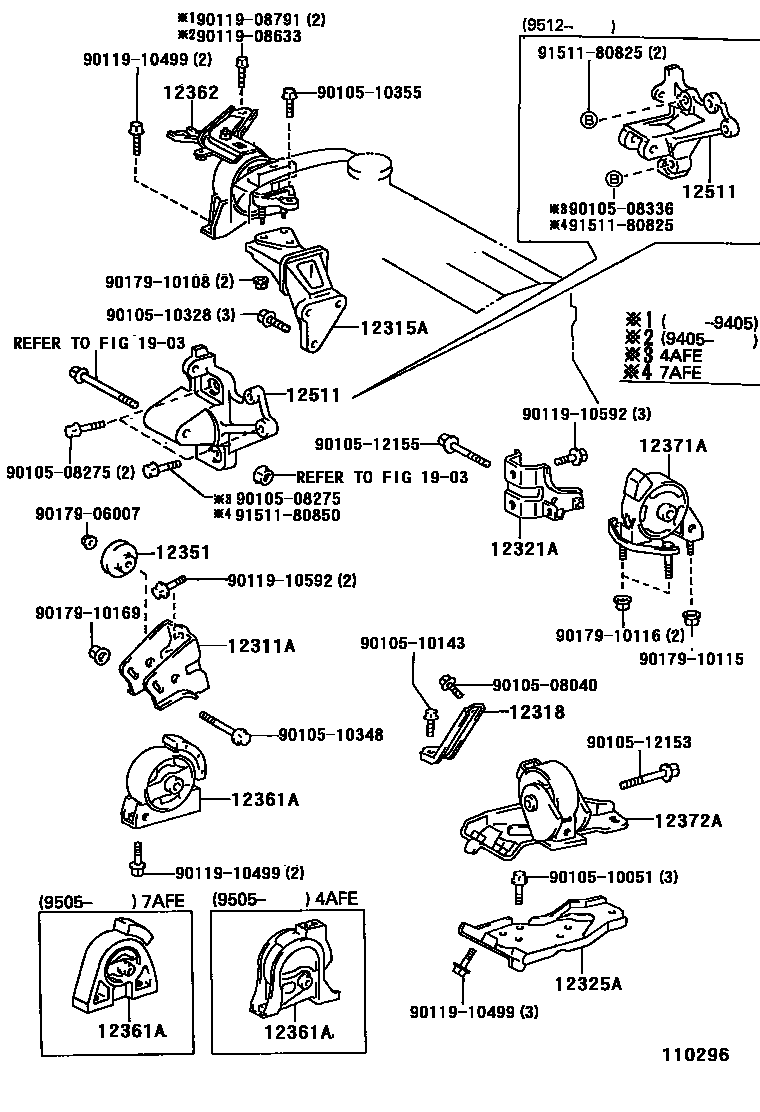

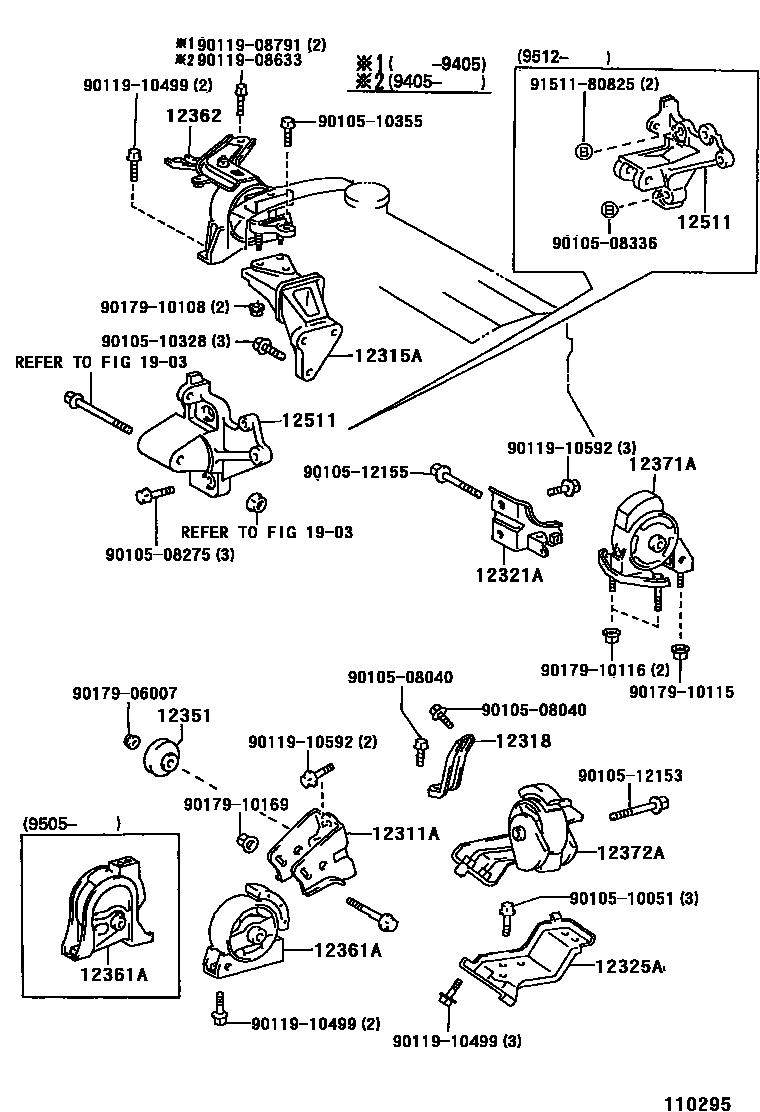

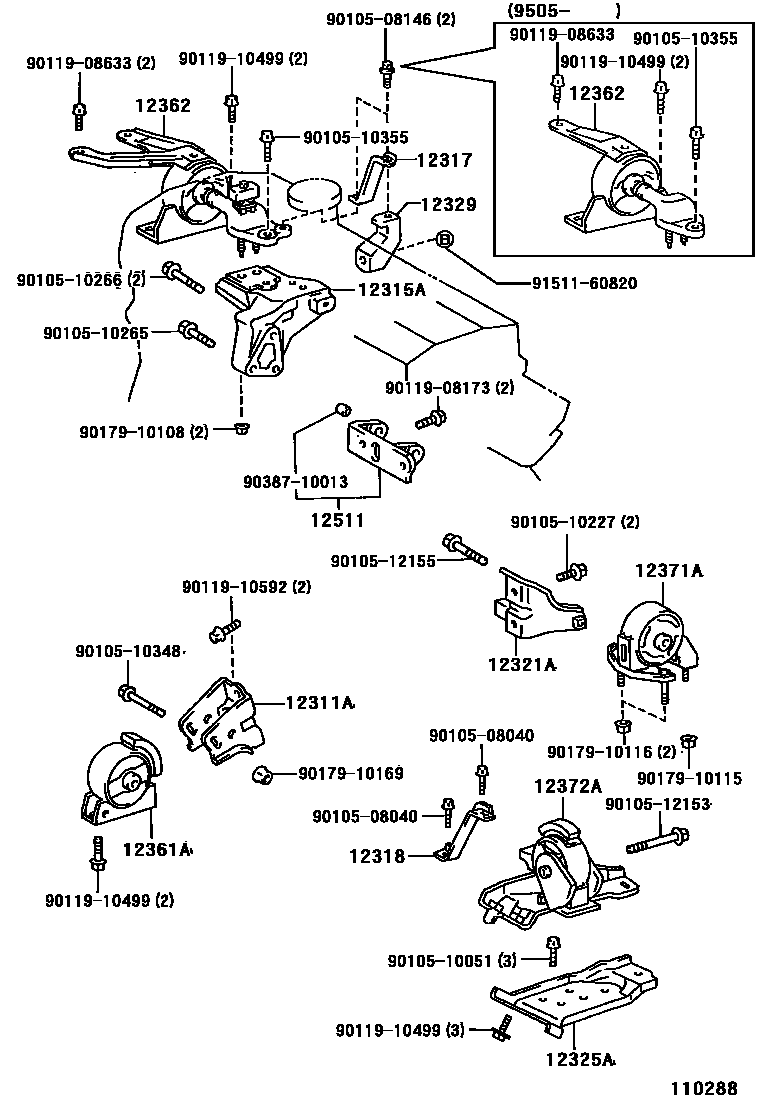

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 6 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12301-64020 |
| 12311A | Engine front mounting bracket (for transverse engine) | 12311-11090 · 12311-15130 · 12311-16110 · 12311-64120 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-11050 · 12315-11051 · 12315-15070 · 12315-15080 · 12315-15081 · 12315-64050 |
| 12317 | Engine right mounting bracket | 12317-11040 |
| 12318 | Engine left mounting bracket | 12318-11010 · 12318-11020 · 12318-15020 · 12318-15040 · 12318-15050 · 12318-16070 · 12318-16110 · 12318-64060 |
| 12321A | Rear engine mounting bracket (for transverse engine) | 12321-11190 · 12321-11191 · 12321-11200 · 12321-15120 · 12321-15140 · 12321-16240 · 12321-64190 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-11120 · 12325-11130 · 12325-16120 · 12325-16130 · 12325-16140 · 12325-64010 |
| 12329 | Engine mounting bracket | 12329-11030 |
| 12351 | engine mount shock absorber | 12351-15060 · 12351-64050 |
| 12361A | Engine front mounting vibration isolation pad (for transversely mounted engine) | 12361-11160 · 12361-11170 · 12361-11180 · 12361-11181 · 12361-15170 · 12361-15180 · 12361-16270 · 12361-64240 · 12361-64241 |
| 12362 | Engine right side mounting vibration isolation pad (for transversely mounted engine) | 12305-11010 · 12305-11020 · 12305-11030 · 12305-11050 · 12305-11060 · 12305-15020 · 12305-15040 · 12305-16080 · 12305-16110 · 12362-64150 · 12362-64220 |
| 12371A | Engine rear mount vibration isolation pad | 12371-11430 · 12371-11460 · 12371-11461 · 12371-11462 · 12371-15240 · 12371-15241 · 12371-16280 · 12371-64200 · 12371-64210 · 12371-64220 |
| 12372A | Engine left-side mounting vibration isolation pad (for transversely mounted engines) | 12372-11230 · 12372-11240 · 12372-11250 · 12372-15160 · 12372-15171 · 12372-15180 · 12372-15181 · 12372-16251 · 12372-64170 |
| 12511 | No. 1 generator bracket | 12511-11020 · 12511-15050 · 12511-15060 · 12511-16100 · 12511-16110 · 12511-64060 |
