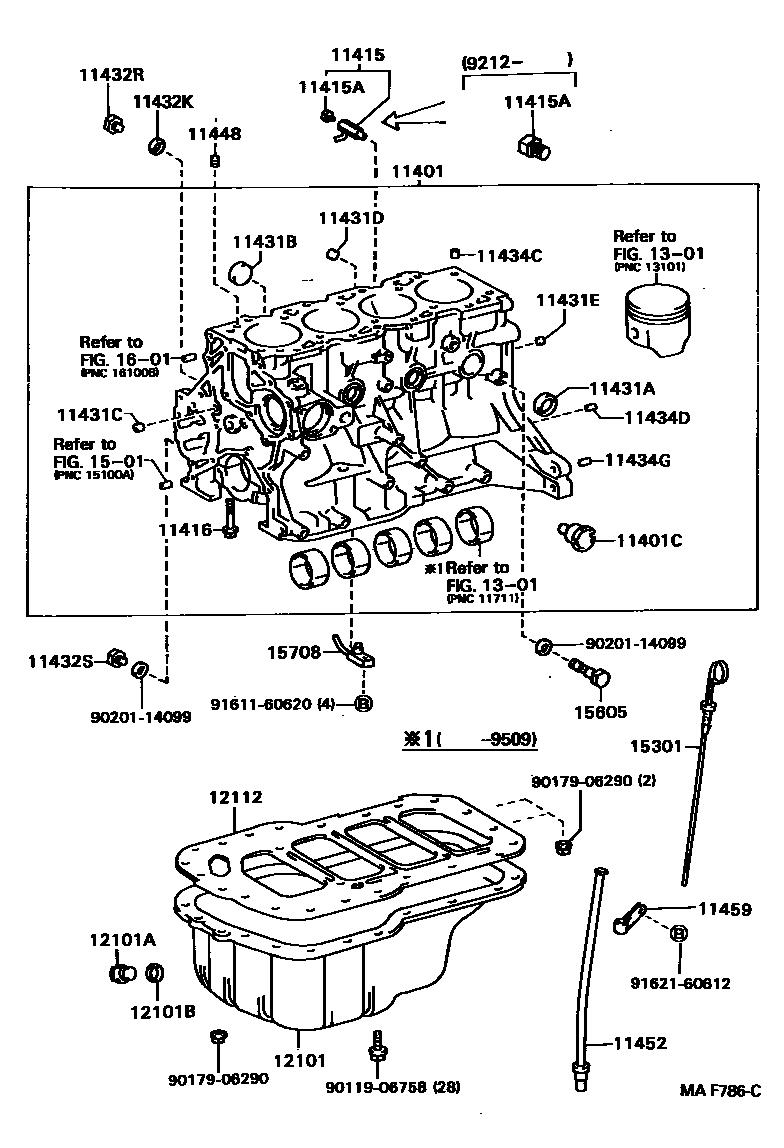

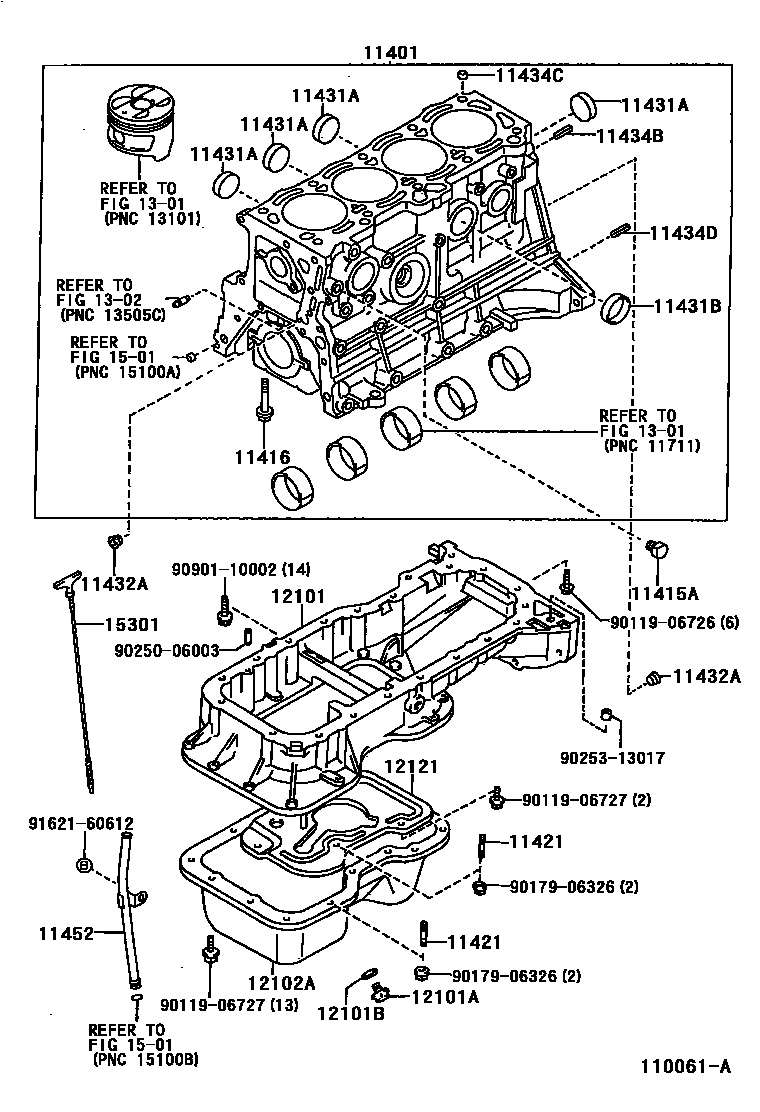

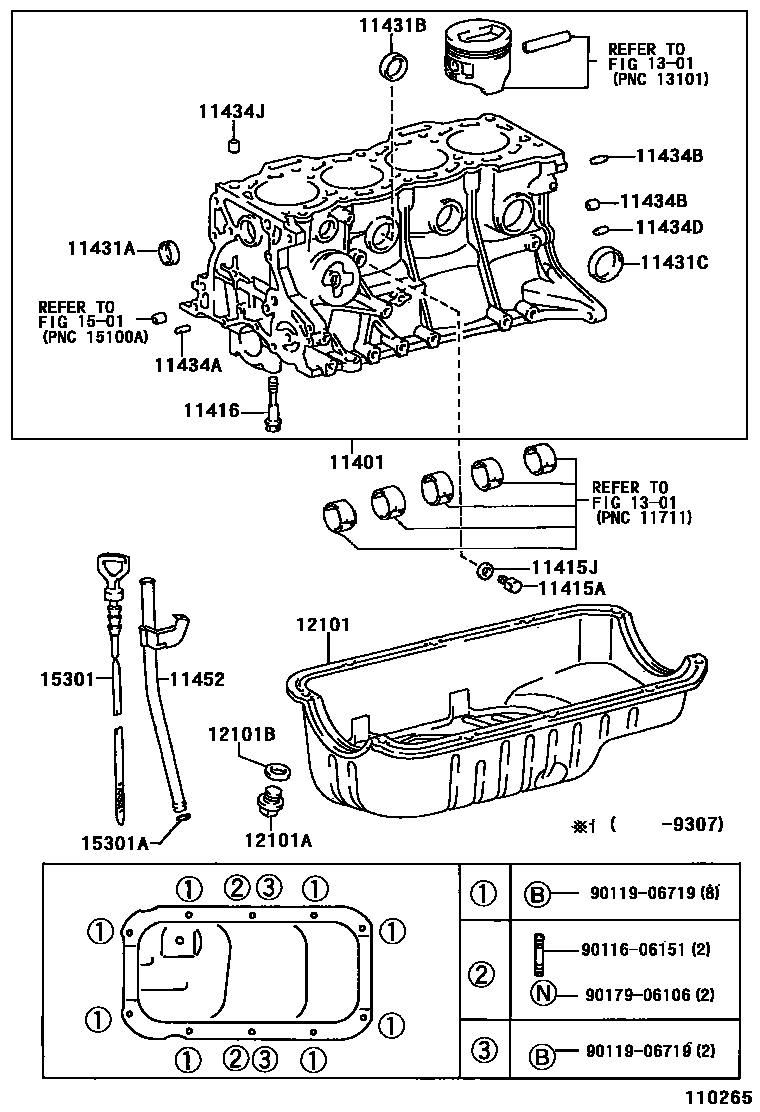

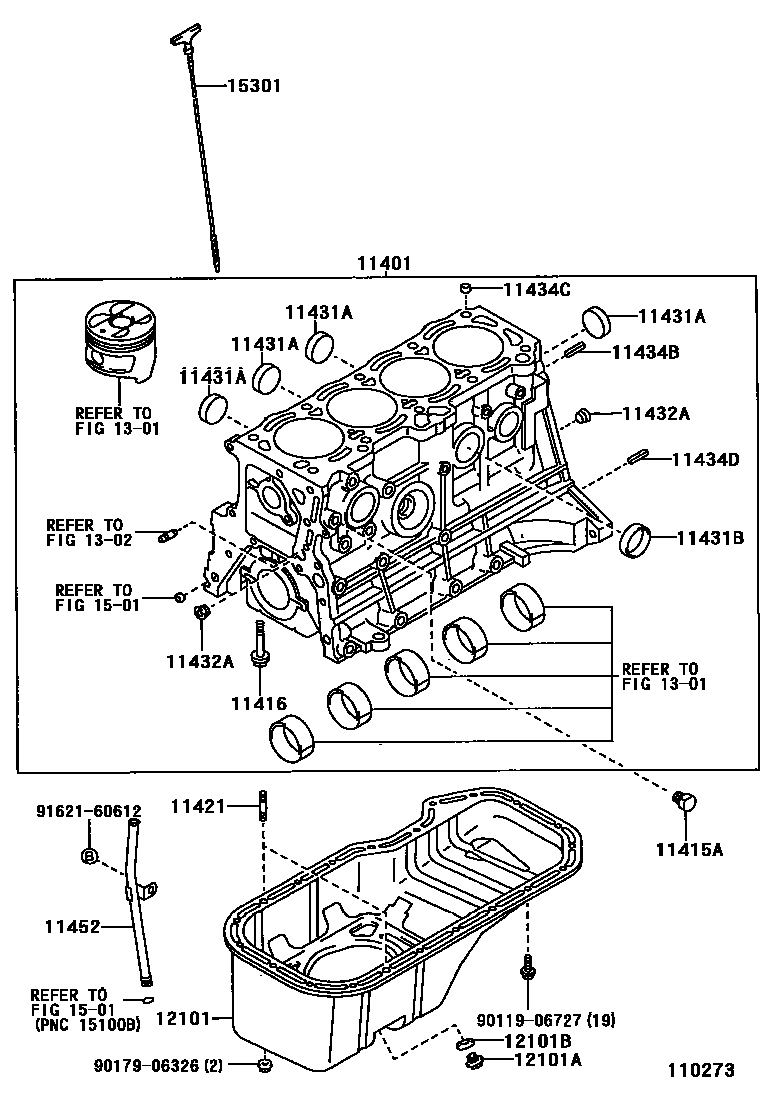

Toyota COROLLA Cylinder Block — Figure 1105
Toyota COROLLA EPC diagram 1105, Cylinder Block, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-19526 · 11401-19527 · 11401-19528 · 11401-19529 · 11401-19568 · 11401-19569 · 11401-19745 · 11401-19746 · 11401-19747 · 11401-19748 · 11401-19755 · 11401-69465 · 11401-69466 · 11401-69625 · 11401-69626 · 11401-69695 · 11401-80000 · 11401-80002 · 11401-80003 |
| 11401C | Flange (for water bypass pipe) | 16353-64011 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09088 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90341-12026 · 90345-52001 · 90345-52003 · 90910-09087 |
| 11415J | Gasket (for drain switch) | 90430-13002 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90105-10007 · 90910-02019 · 90910-02061 |
| 11421 | Stud bolts (for oil pan) | 90116-06022 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-42500 · 96411-43500 · 96411-63500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-43000 · 96411-44000 · 96411-63000 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-41800 · 96411-43500 |
| 11431D | No. 4 sealing plug (for cylinder block) | 96411-41800 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-41800 |
| 11432A | No. 1 headed tapered thread plug | 90344-53006 · 90344-53008 |
| 11432K | Headed straight thread plug liner | 90430-10027 · 90430-10035 |
| 11432R | No. 1 headed straight thread plug (for cylinder block) | 90341-10002 |
| 11432S | No. 2 headed straight thread plug (for cylinder block) | 90341-14032 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-06068 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10017 · 90250-10113 · 90253-15003 |
| 11434C | Direct sales (for cylinder head components) | 90253-13017 · 90253-14001 · 90253-14002 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10113 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-12001 |
| 11448 | Cylinder block oil orifice | 11448-54020 · 11448-64020 |
| 11452 | Engine oil level gauge guide | 11452-11040 · 11452-11041 · 11452-15030 · 11452-64030 |
| 11459 | Oil level gauge guide bracket | 90929-01049 |
| 12101 | Oil pan sub-assembly | 12101-11010 · 12101-11011 · 12101-11012 · 12101-11060 · 12101-16100 · 12101-16110 · 12101-64110 · 12101-64131 · 12111-16150 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12027 · 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-16010 |
| 12112 | No. 2 oil pan | 12112-64040 |
| 12121 | No. 1 oil pan baffle | 12121-16040 |
| 15301 | Engine oil level scoring assembly | 15301-11040 · 15301-11050 · 15301-15050 · 15301-15051 · 15301-16091 · 15301-64042 |
| 15301A | O-ring (for engine oil level gauge) | 96711-19010 · 96721-19010 |
| 15605 | Oil check valve sub-assembly | 15605-64020 |
| 15708 | No. 1 oil nozzle sub-assembly | 15790-64021 |
