Toyota COROLLA Standard Tools — Figure 0901

Toyota COROLLA EPC diagram 0901, Standard Tools, with 1 images and 11 PNC and OE references.

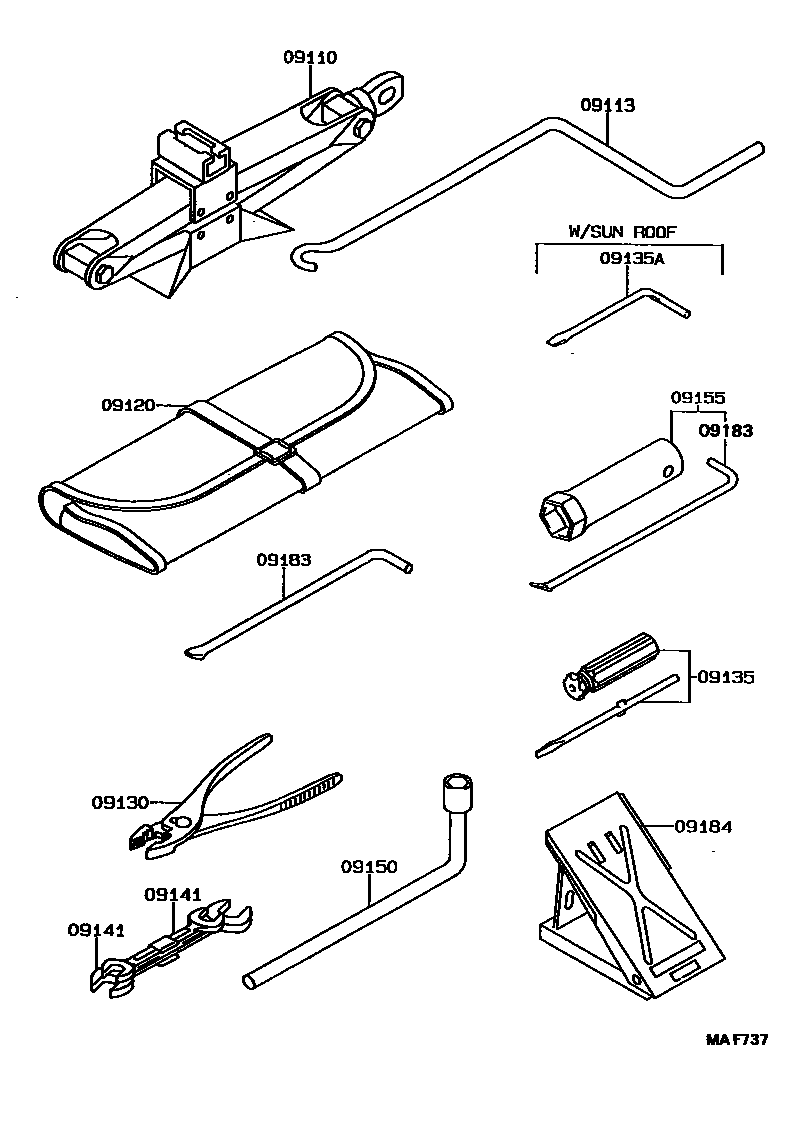

Toyota COROLLA Standard Tools EPC diagram — MAF737
Standard Tools — MAF737 (199205 – 999999)

PNC and OE references

PNCPart nameOE numbers
09110Jack Assembly09111-03011 · 09111-12090 · 09111-12100 · 09111-12130 · 09111-12140
09113Jack Handle09113-12010 · 09113-12020
09120Tool Bag09120-12011 · 09120-16030
09130Pliers99913-11500
09135Screwdriver99915-10700
09135Ascrewdriver tip09135-00012
09141Wrench99914-10810 · 99914-11214
09150Wheel Nut Wrench09150-26010
09155Spark Plug Wrench09155-41020 · 09155-74020
09183Wheel Cap Remover09183-00010
09184Wheel Chock09184-00010
