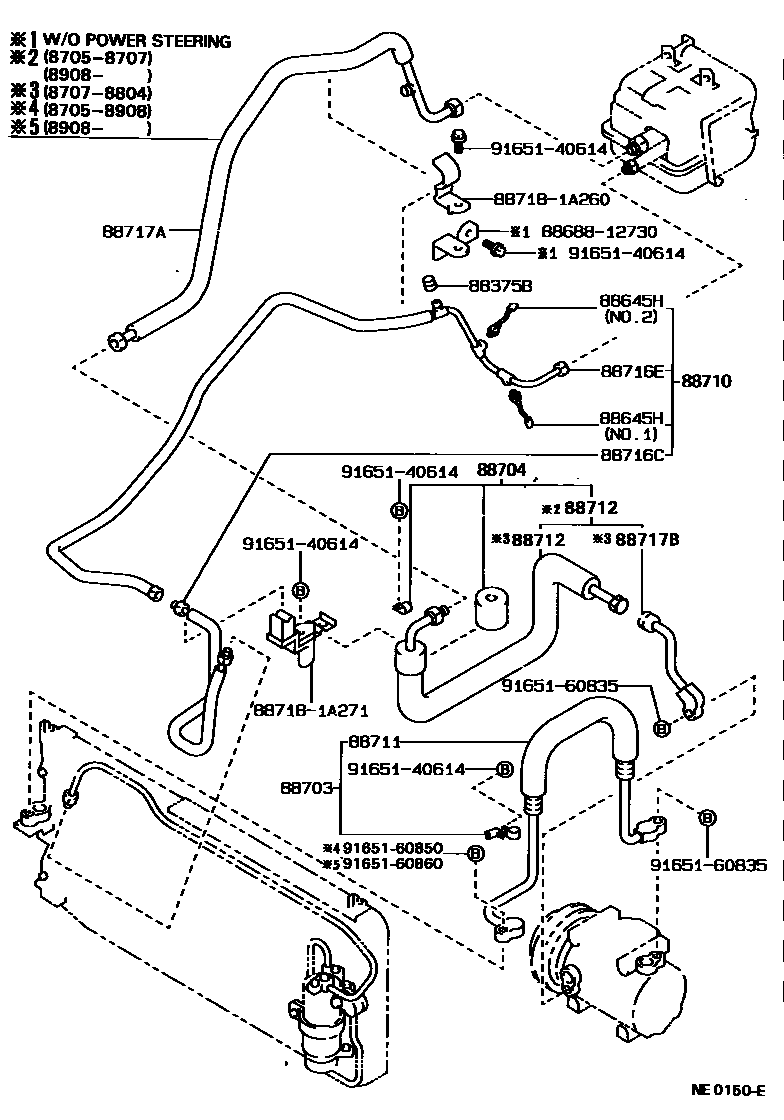

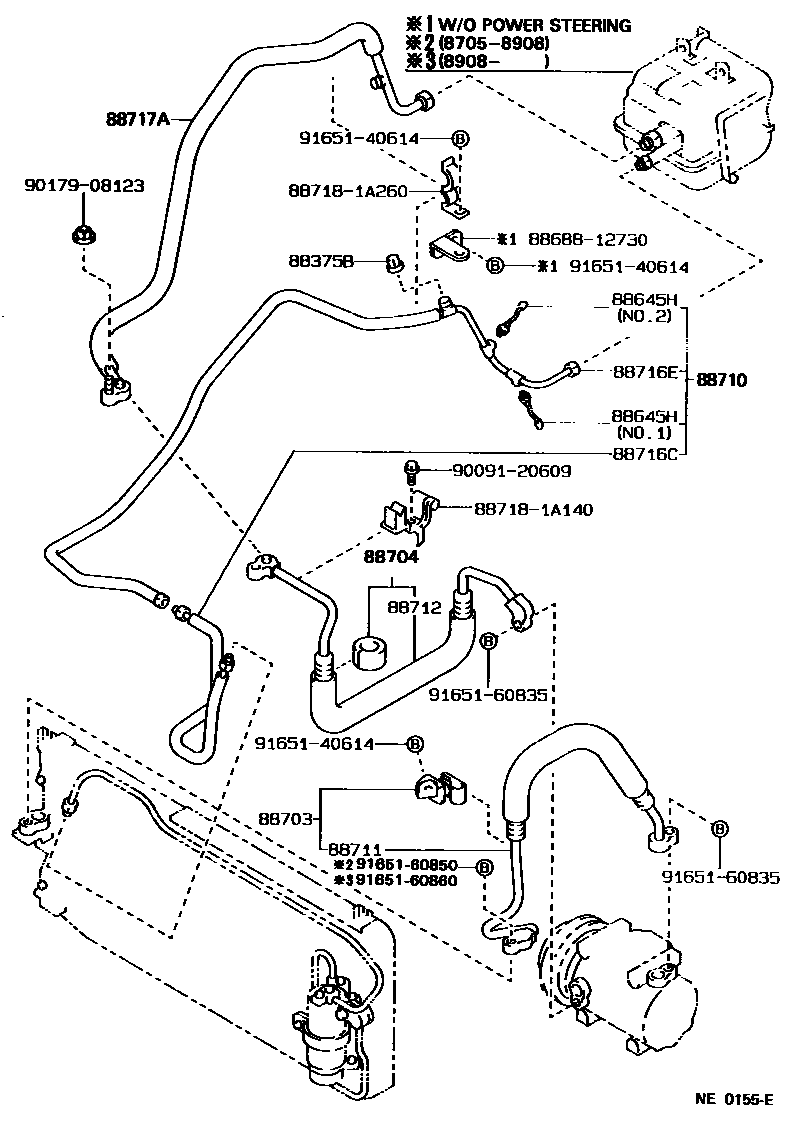

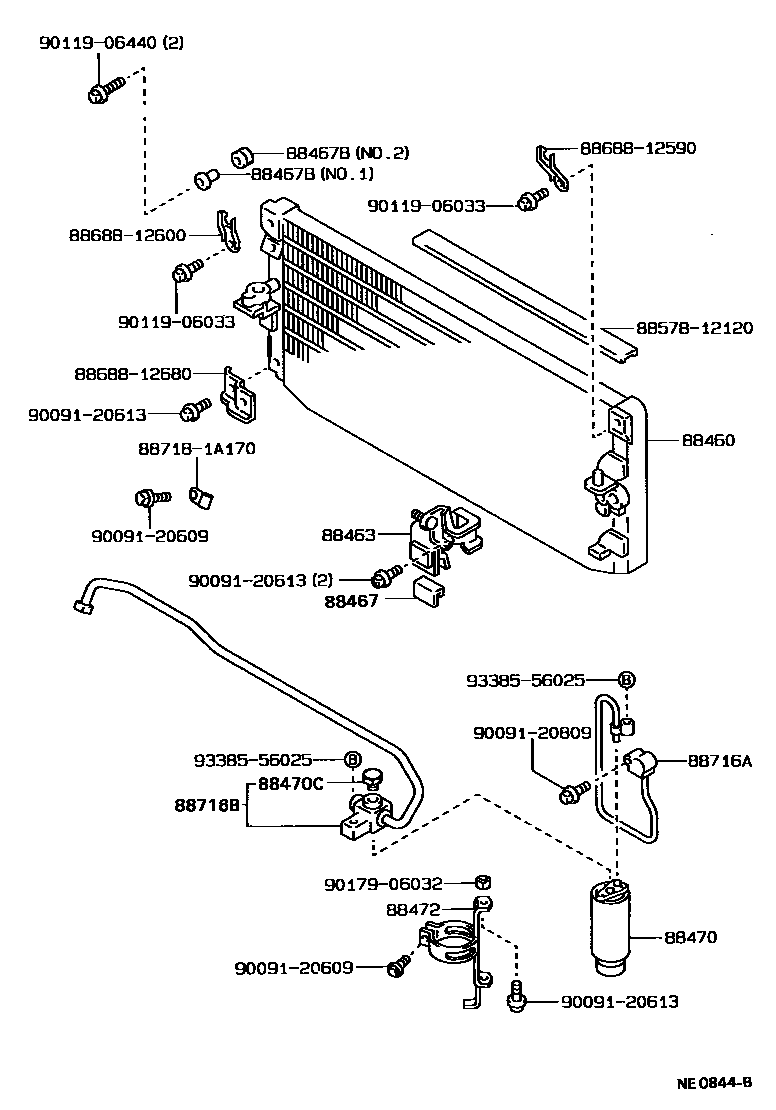

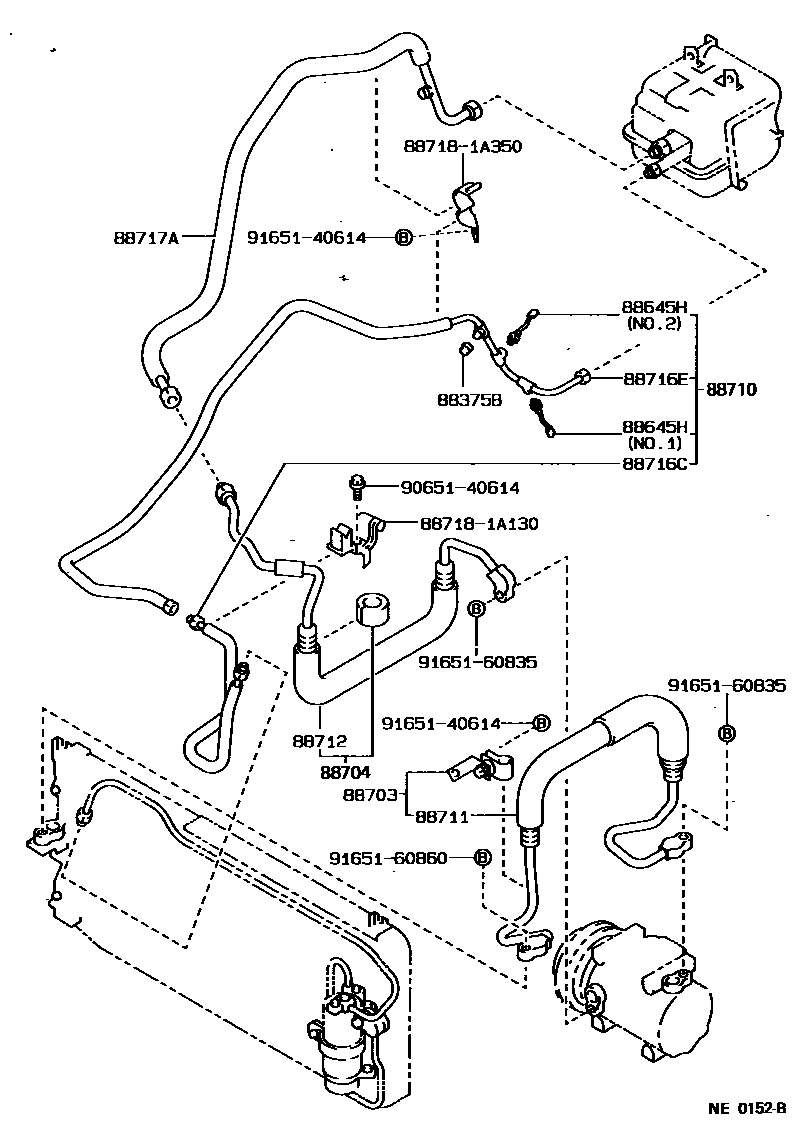

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375B | No. 1 maintenance valve cover | 88375-20010 · 88375-24010 |
| 88453A | cooling fan | 88453-12050 · 88453-32020 |
| 88454A | fan cover | 88454-12100 · 88454-12120 |
| 88460 | Air conditioning condenser assembly | 88460-12370 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-12040 · 88463-12041 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12080 · 88467-12081 |
| 88467B | Air conditioning condenser fixed vibration isolation pad | 88467-14070 · 88467-20040 |
| 88470 | Cooler reservoir and dryer assembly | 88471-12020 · 88471-16040 |
| 88470C | fuse bolt | 88475-12020 |
| 88472 | No. 1 liquid storage tank bracket | 88473-12040 · 88473-12070 |
| 88550 | Blower motor assembly (for condenser) | 88550-12090 · 88550-12120 |
| 88590 | Blower assembly with hood | 88590-12150 · 88590-12170 · 88590-12180 |
| 88596C | No. 2 warning nameplate | 88723-12020 · 88723-12030 |
| 88645H | No. 1 pressure switch | 88645-10020 · 88645-12030 · 88645-16050 |
| 88703 | Discharge hose sub-assembly | 88703-12060 · 88703-12061 · 88703-12070 · 88703-12090 |
| 88704 | Oil suction hose sub-assembly | 88704-12060 · 88704-12061 · 88704-12070 · 88704-12071 · 88704-12100 |
| 88710 | Air conditioning pipe assembly | 88706-12031 · 88706-12032 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12450 · 88711-12460 · 88711-12480 · 88711-12590 · 88711-12591 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-12640 · 88712-12641 · 88712-12650 · 88712-12651 · 88712-12680 · 88712-12790 · 88712-12791 |
| 88716A | Cooler refrigerant liquid pipe A | 88726-12240 · 88726-12340 |
| 88716B | Cooler refrigerant liquid pipe B | 88726-12250 · 88726-12251 |
| 88716C | Cooler refrigerant liquid pipe C | 88726-12290 · 88726-12291 |
| 88716E | Cooler refrigerant liquid pipe E | 88726-12270 · 88726-12271 |
| 88717A | Cooler refrigerant suction pipe A | 88707-12010 · 88717-12410 · 88717-12470 · 88717-12471 |
| 88717B | Cooler refrigerant suction pipe B | 88717-12500 |
