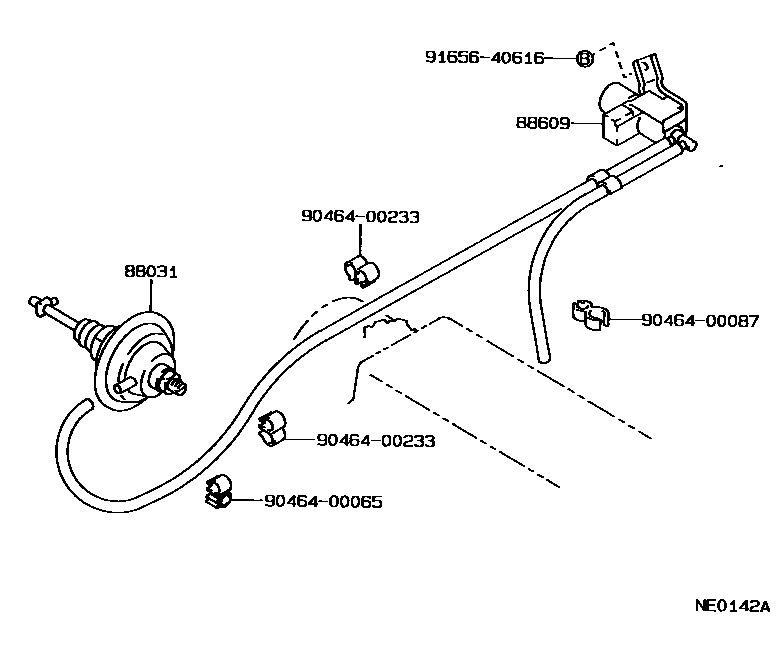

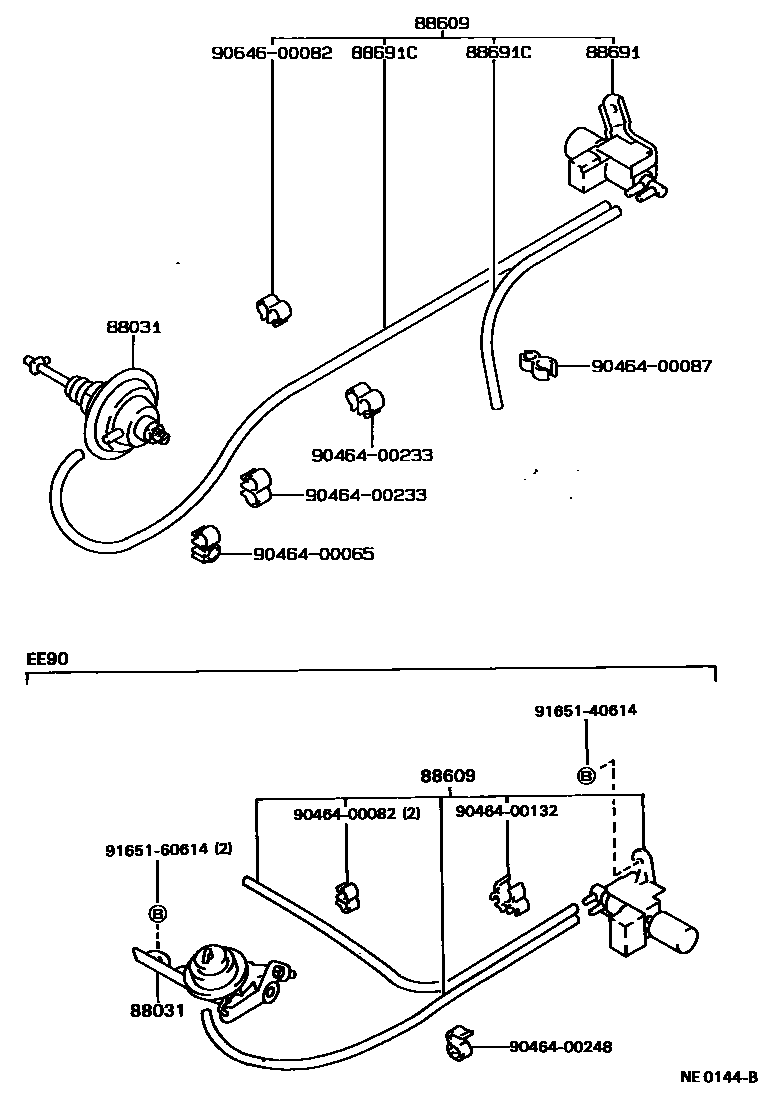

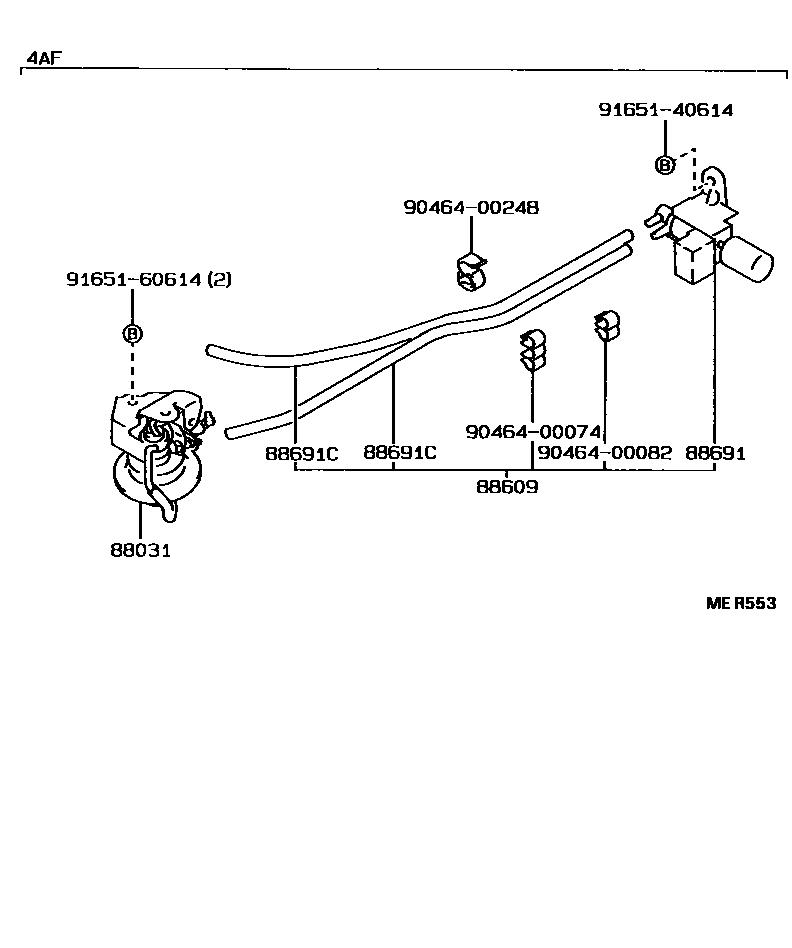

Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 3 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 88031-12140 · 88031-12150 · 88031-12200 · 88031-20080 |
| 88609 | Idle speed lifting device sub-assembly | 88609-12430 · 88609-12450 · 88609-12490 · 88609-12510 · 88609-12511 · 88609-12520 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12430 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 95411-10030 · 95411-19926 |
