VOCR EPC

Toyota COROLLA 喇叭 — Figure 8611

Toyota COROLLA EPC diagram 8611, 喇叭, with 1 images and 3 PNC and OE references.

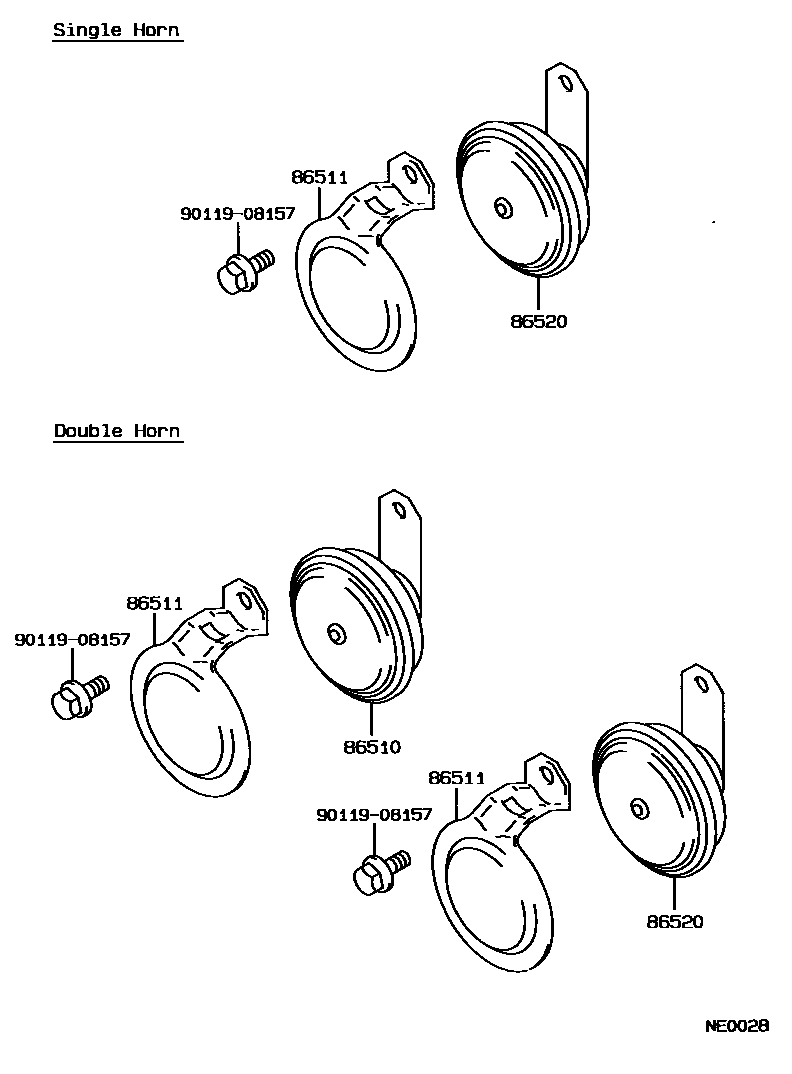

Toyota COROLLA 喇叭 EPC diagram — NE0028
喇叭 — NE0028 (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
86510tweeter assembly86510-12440 · 86510-12470
86511tweeter cover86511-12550
86520Subwoofer assembly86520-12660
