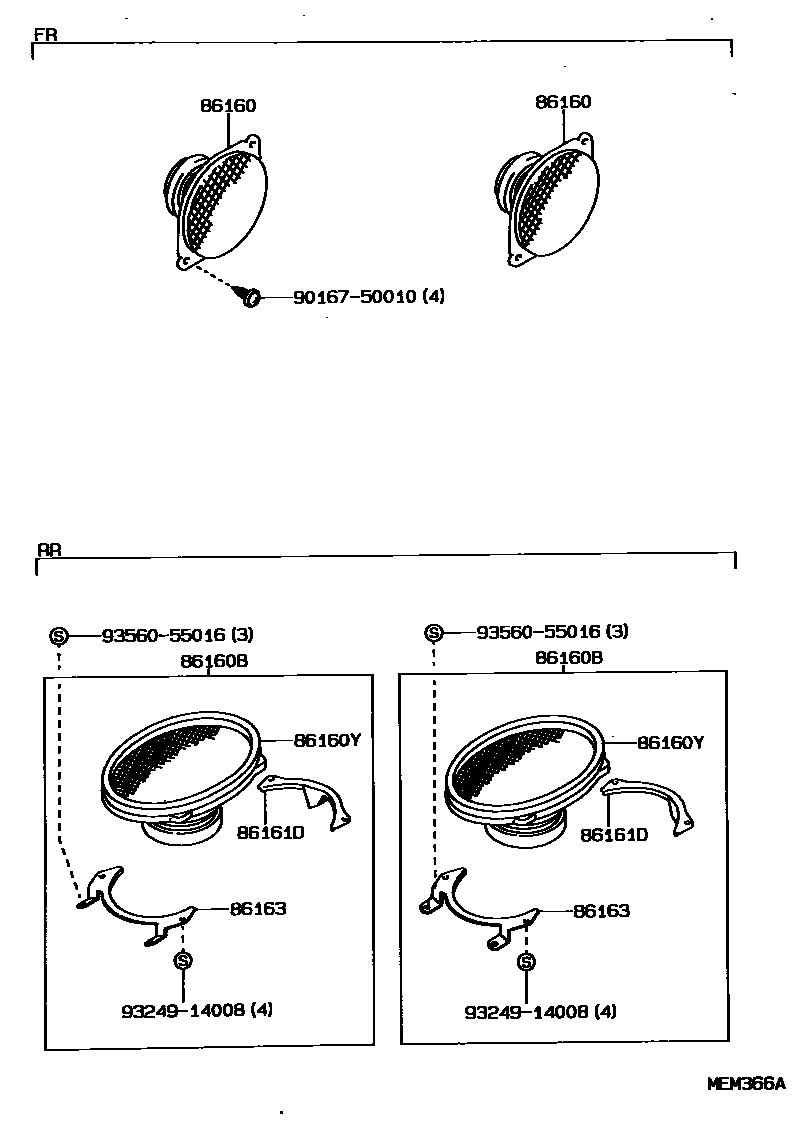

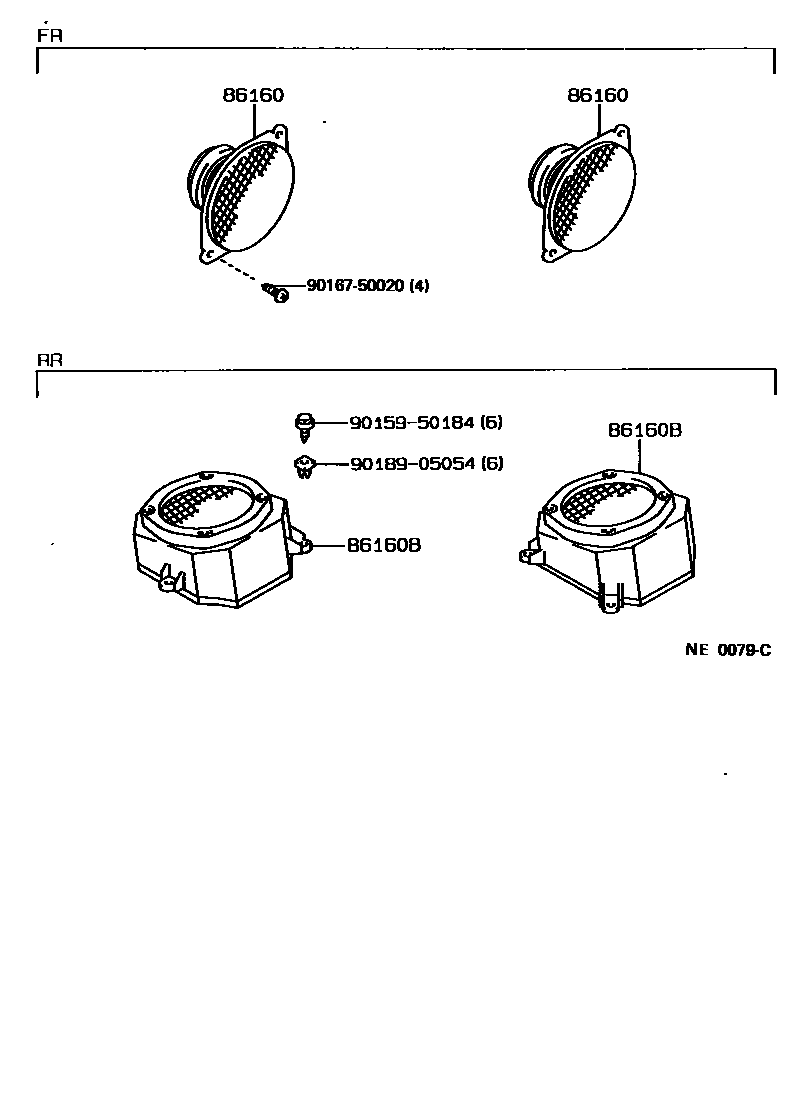

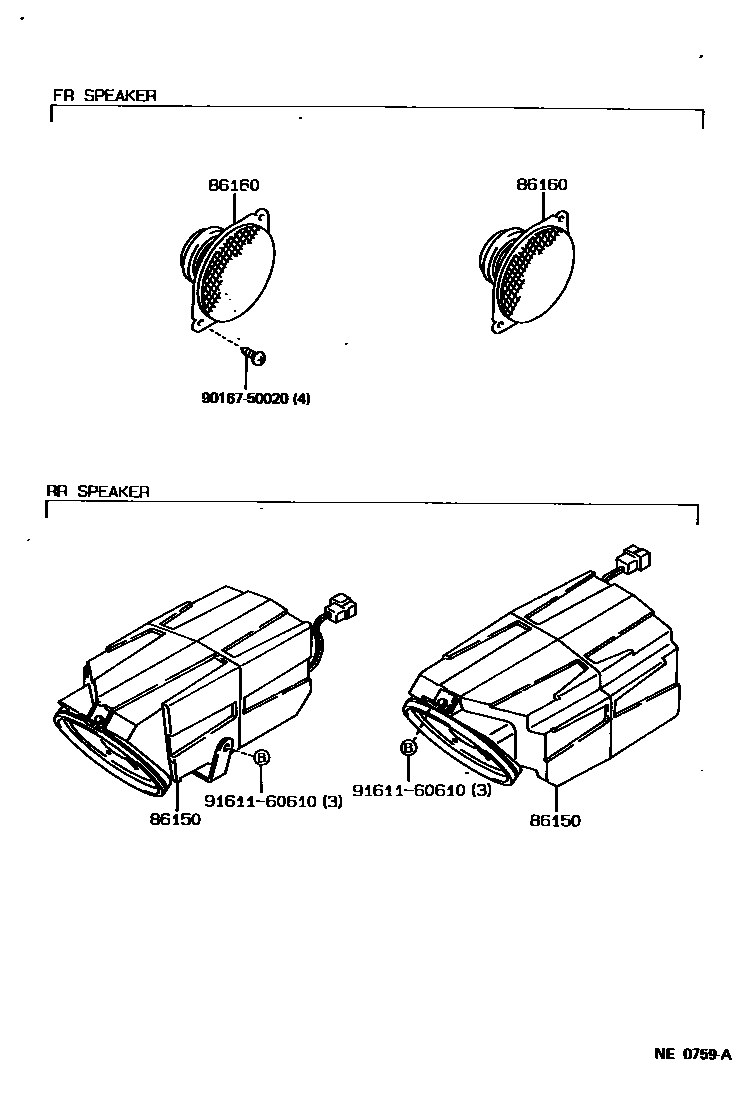

Toyota COROLLA 扬声器 — Figure 8602
Toyota COROLLA EPC diagram 8602, 扬声器, with 4 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150 | No. 1 loudspeaker assembly with box | 86150-12100 · 86150-12110 |
| 86160 | No. 1 front speaker assembly | 86160-12280 · 86160-12290 |
| 86160B | Rear speaker assembly | 86160-12231 · 86160-12241 · 86160-12250 · 86160-12260 |
| 86160Y | No. 2 rear speaker assembly | 86160-12310 |
| 86161D | Speaker 1 mounting bracket | 86161-12010 · 86161-12020 |
| 86163 | Speaker stand No. 2 | 86163-12010 · 86163-12020 |
