Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 4 PNC and OE references.

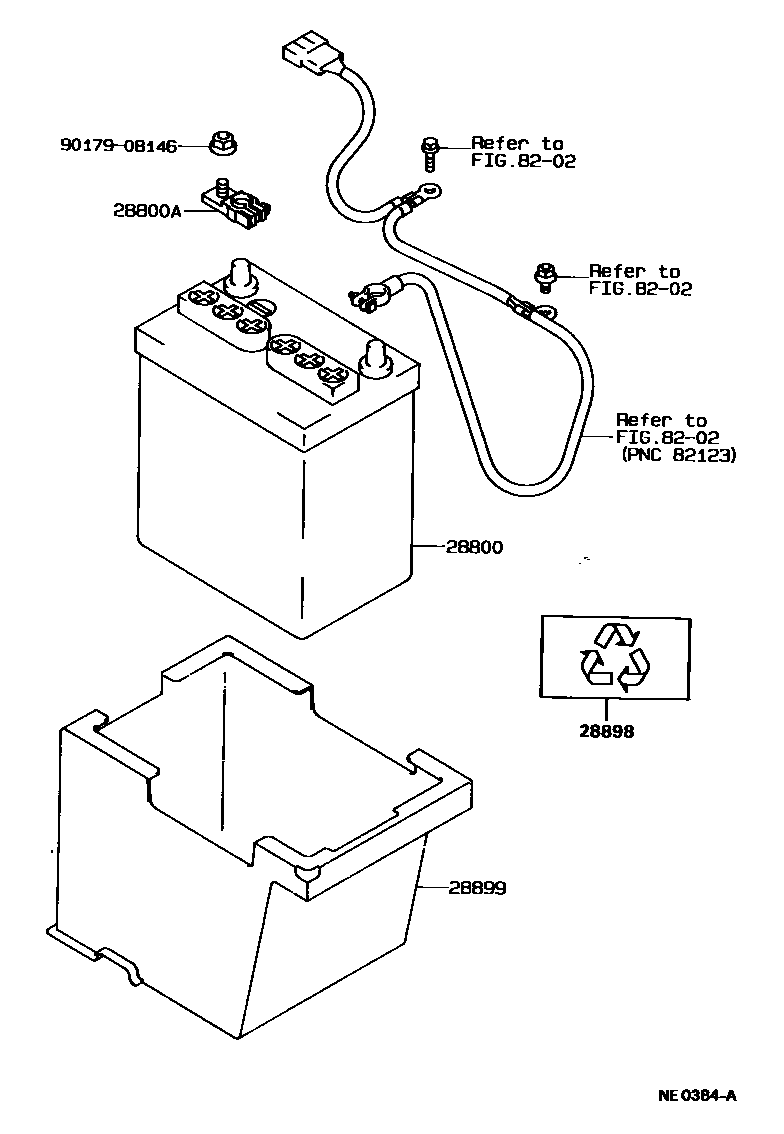

Toyota COROLLA 蓄电池和蓄电池电缆 EPC diagram — NE0384A
蓄电池和蓄电池电缆 — NE0384A (198705 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800battery28800-15050 · 28800-31021 · 28800-31200 · 28800-31210 · 28800-31220 · 28800-31230 · 28800-31240 · 28800-42030 · 28800-54200 · 28800-64070 · 28800-64130 · 28800-64180 · 28800-70060
28800Abattery positive terminal90982-05035 · 90982-05037
28898battery plates28898-50070
28899Battery insulation cover28899-64010 · 28899-64020
