Toyota COROLLA 车内灯 — Figure 8121

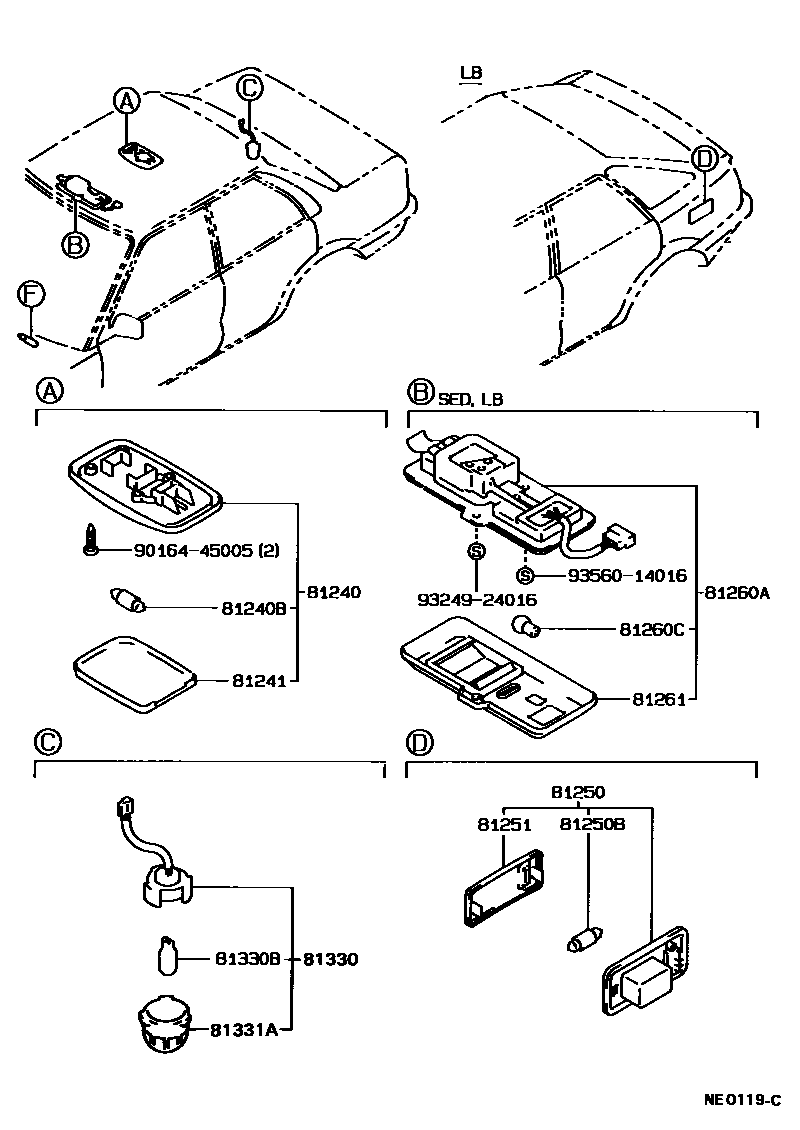

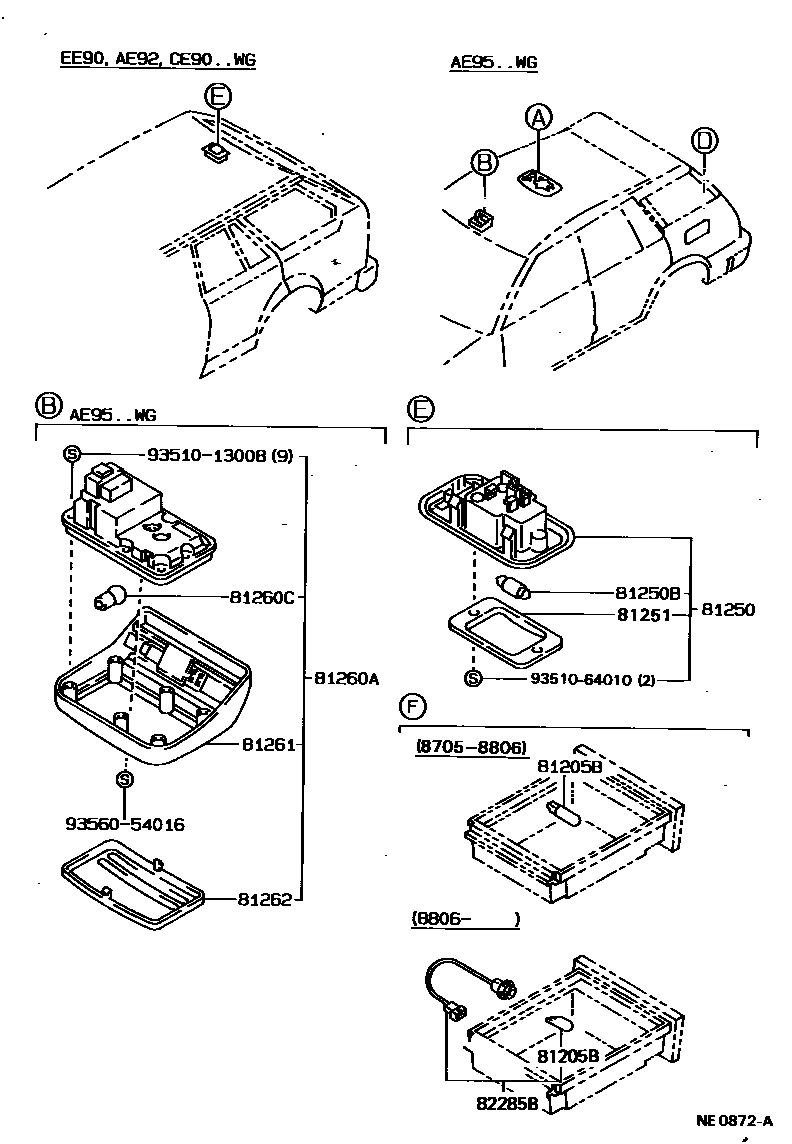

Toyota COROLLA EPC diagram 8121, 车内灯, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205B | ashtray light bulb | 90981-11014 |
| 81240B | Interior light bulb No. 1 | 99132-12100 |
| 81241 | Interior light cover No. 1 | 81241-12020 |
| 81250B | Interior light bulb No. 2 | 99132-13050 |
| 81251 | Interior light cover No. 2 | 81251-12030 · 81251-14030 |
| 81260A | Reading light assembly | 81260-16040 |
| 81260C | Light bulb (for reading lamp) | 90981-12014 |
| 81262 | reading lamp shade | 81262-12060 |
| 81330 | No. 1 trunk light assembly | 81330-22031 |
| 81330B | trunk light bulb | 90981-11020 |
| 81331A | Trunk light cover | 81331-22030 |
| 82285B | lighting harness | 82285-12010 |
