Toyota COROLLA 后雾灯 — Figure 8116

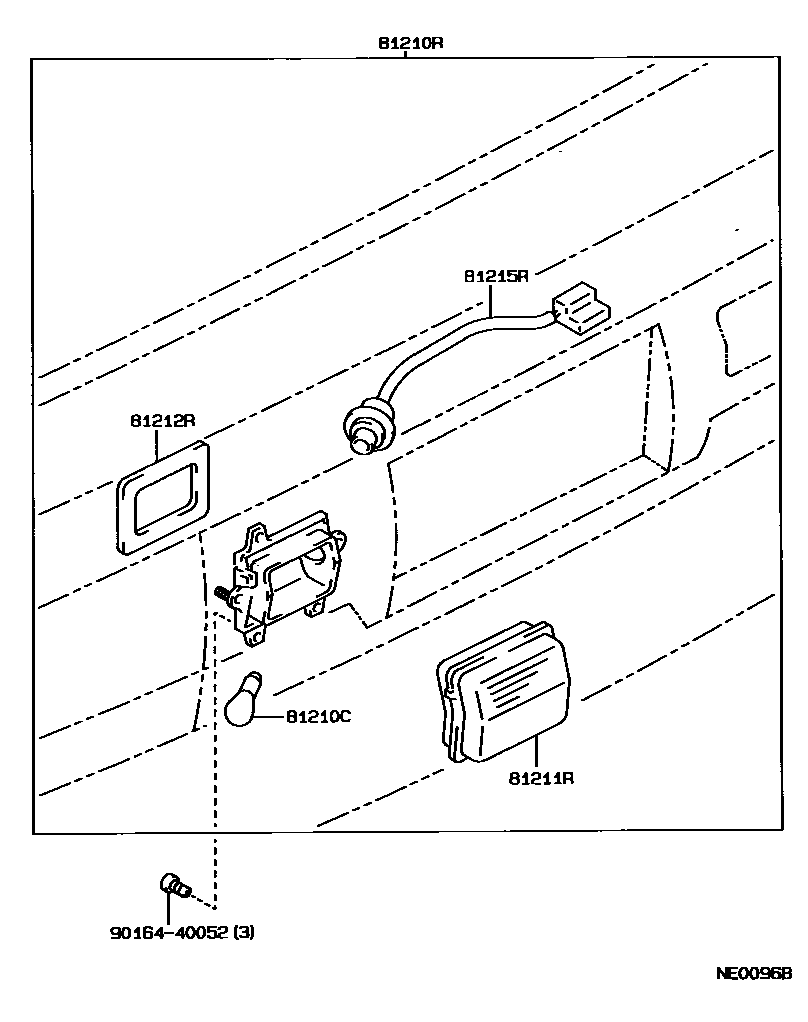

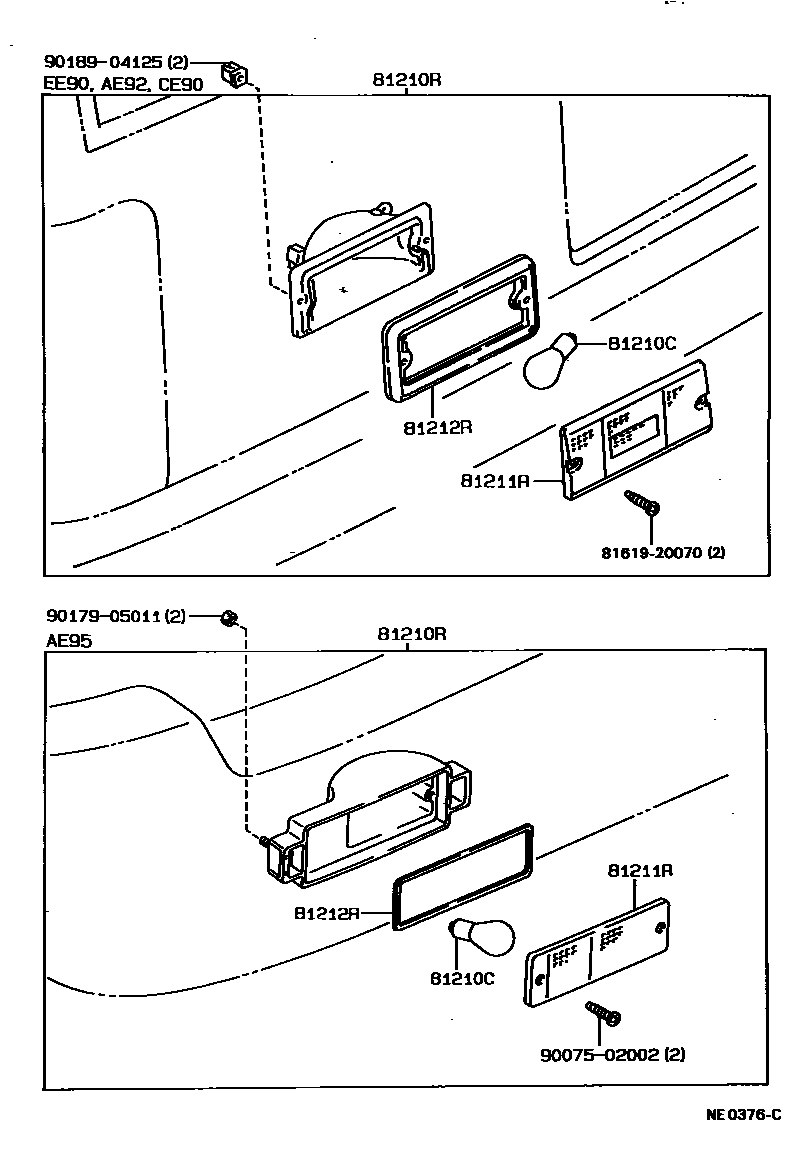

Toyota COROLLA EPC diagram 8116, 后雾灯, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210C | Rear fog light bulb | 99132-11210 |
| 81210R | Rear fog light assembly | 81210-12040 · 81210-12050 · 81210-12060 · 81210-12070 · 81210-13010 · 81210-13011 · 81220-12030 · 81220-12040 · 81220-12050 · 81220-12060 · 81220-13010 · 81220-13011 |
| 81211R | Rear fog light cover | 81211-12040 · 81211-12050 · 81211-12060 · 81211-12070 · 81211-20030 · 81221-12030 · 81221-12040 · 81221-12050 · 81221-12060 |
| 81212R | No. 1 rear fog light gasket | 81212-12040 · 81212-12070 · 81212-13010 |
| 81215R | Rear fog light lamp holder and wiring harness | 81215-12040 |
