Toyota COROLLA 后组合灯 — Figure 8111

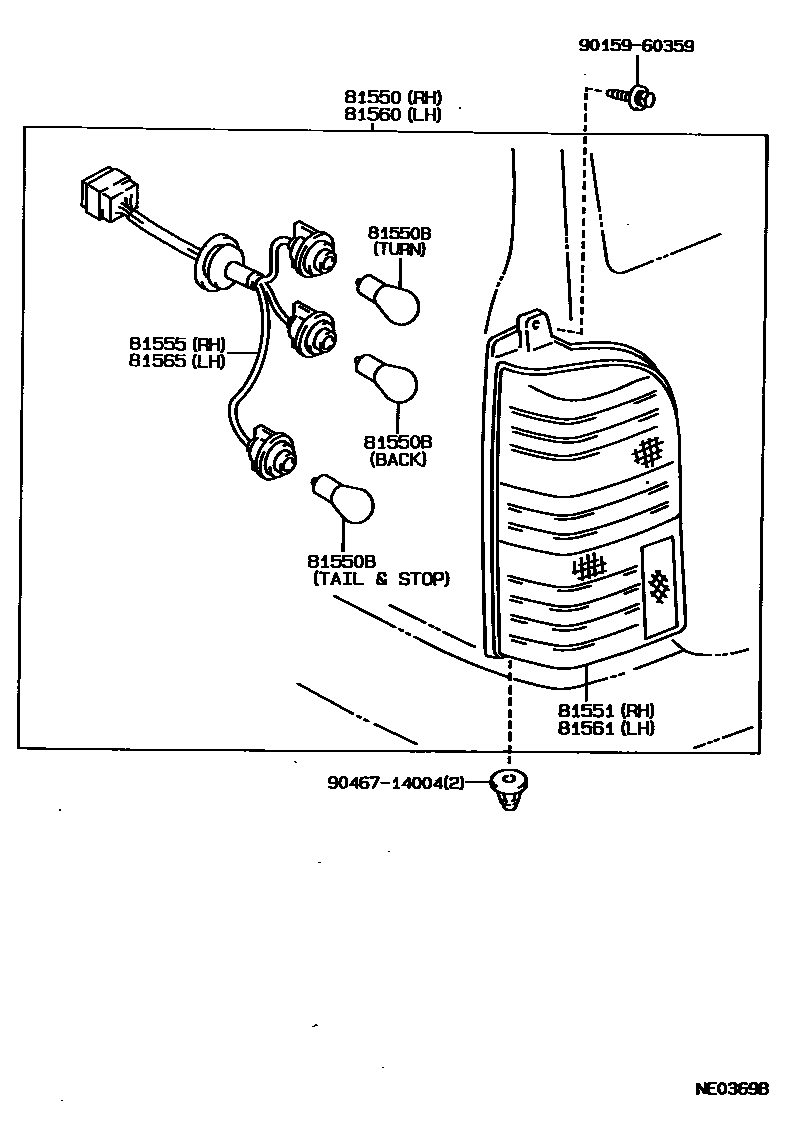

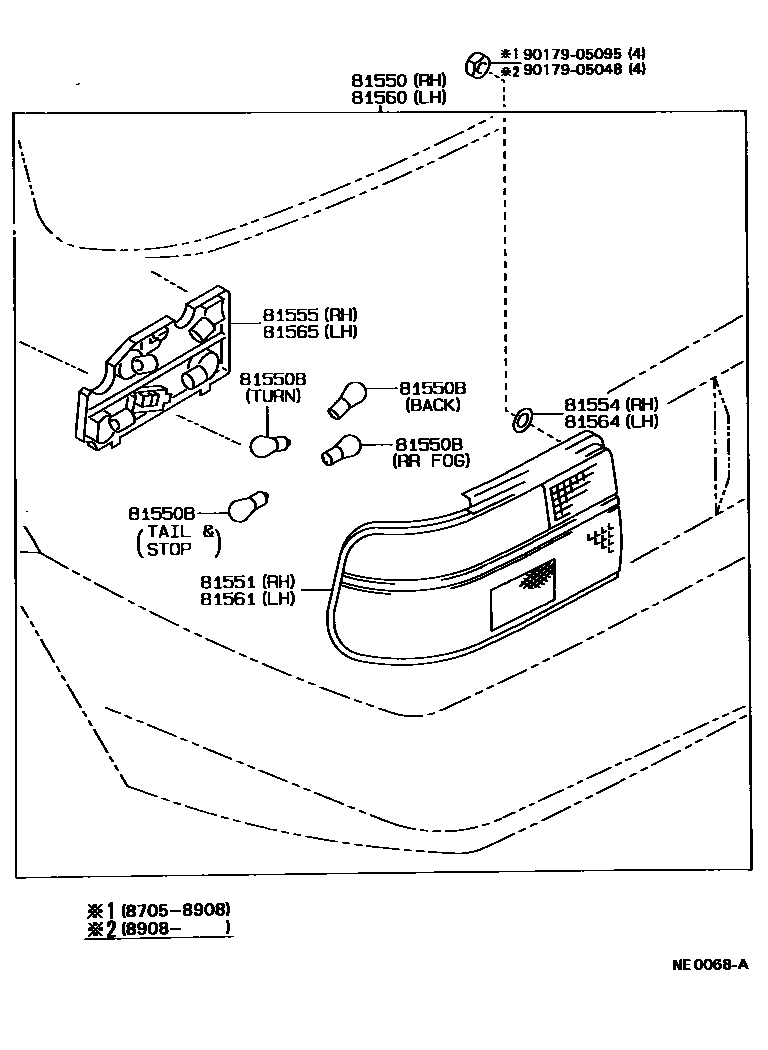

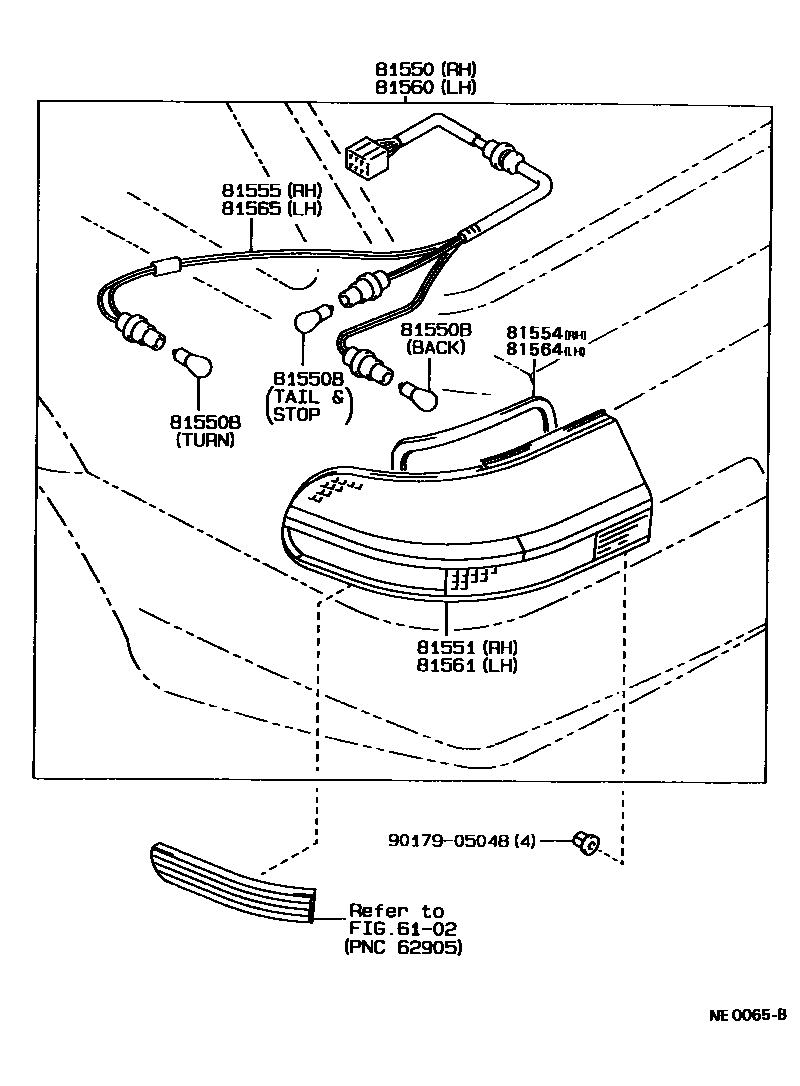

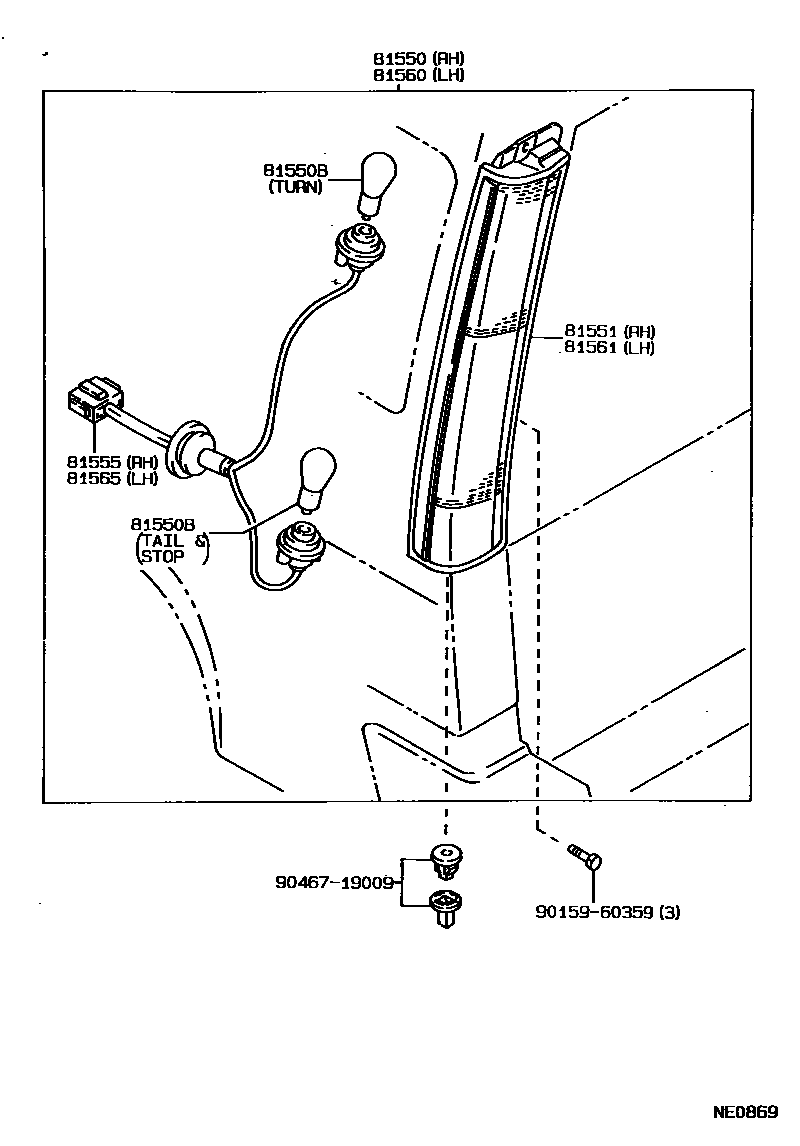

Toyota COROLLA EPC diagram 8111, 后组合灯, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-13300 · 81550-13301 · 81550-1A380 · 81550-1A381 · 81550-1A390 · 81550-1A391 · 81550-1A430 · 81550-1A431 · 81550-1A470 |
| 81550B | Bulb (for rear combination lights) | 99132-11210 · 99132-21210 |
| 81551 | Right rear combination lamp shade | 81551-13300 · 81551-1A380 · 81551-1A381 · 81551-1A390 · 81551-1A391 · 81551-1A430 · 81551-1A470 |
| 81554 | Right rear combination lamp body gasket | 81554-1A370 · 81554-1A411 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13300 · 81555-1A380 · 81555-1A390 · 81555-1A410 · 81555-1A470 |
| 81560 | Left rear combination light assembly | 81560-13300 · 81560-13301 · 81560-1A100 · 81560-1A101 · 81560-1A330 · 81560-1A331 · 81560-1A390 · 81560-1A391 · 81560-1A440 |
| 81561 | Left rear combination lamp shade | 81561-13300 · 81561-1A100 · 81561-1A101 · 81561-1A330 · 81561-1A331 · 81561-1A390 · 81561-1A440 |
| 81564 | Left rear combination lamp body gasket | 81554-1A370 · 81554-1A411 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-13300 · 81555-1A470 · 81565-1A100 · 81565-1A330 · 81565-1A370 |
