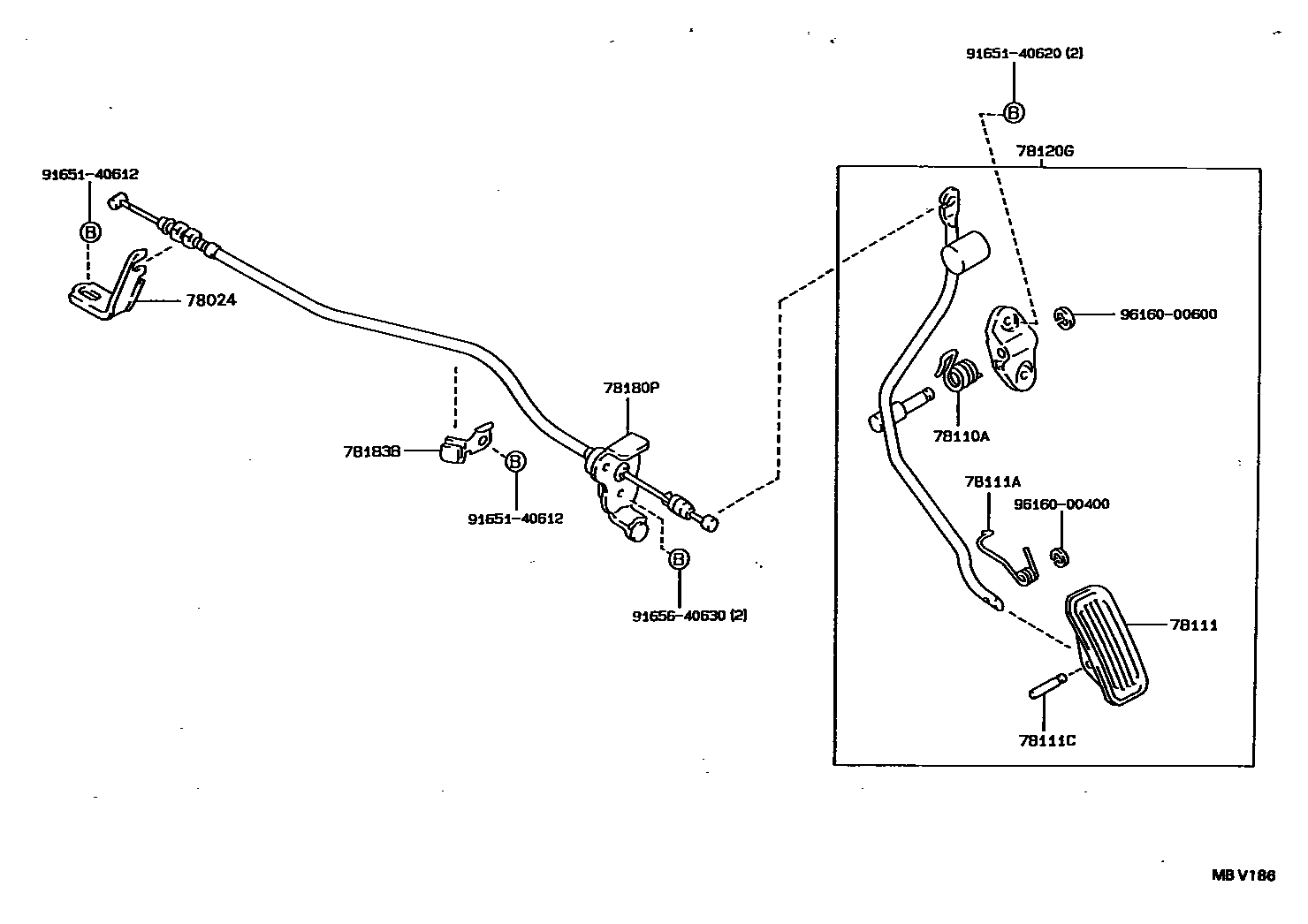

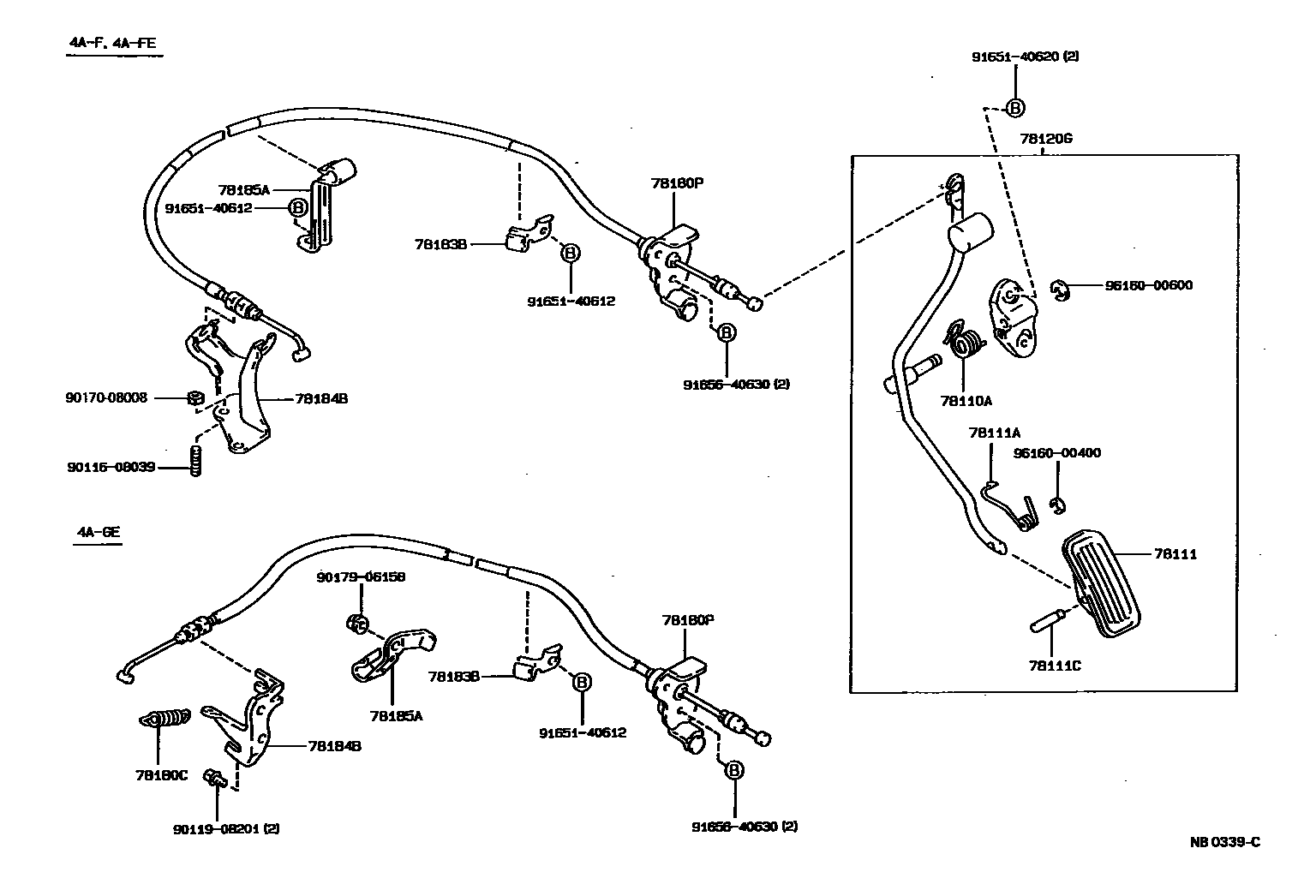

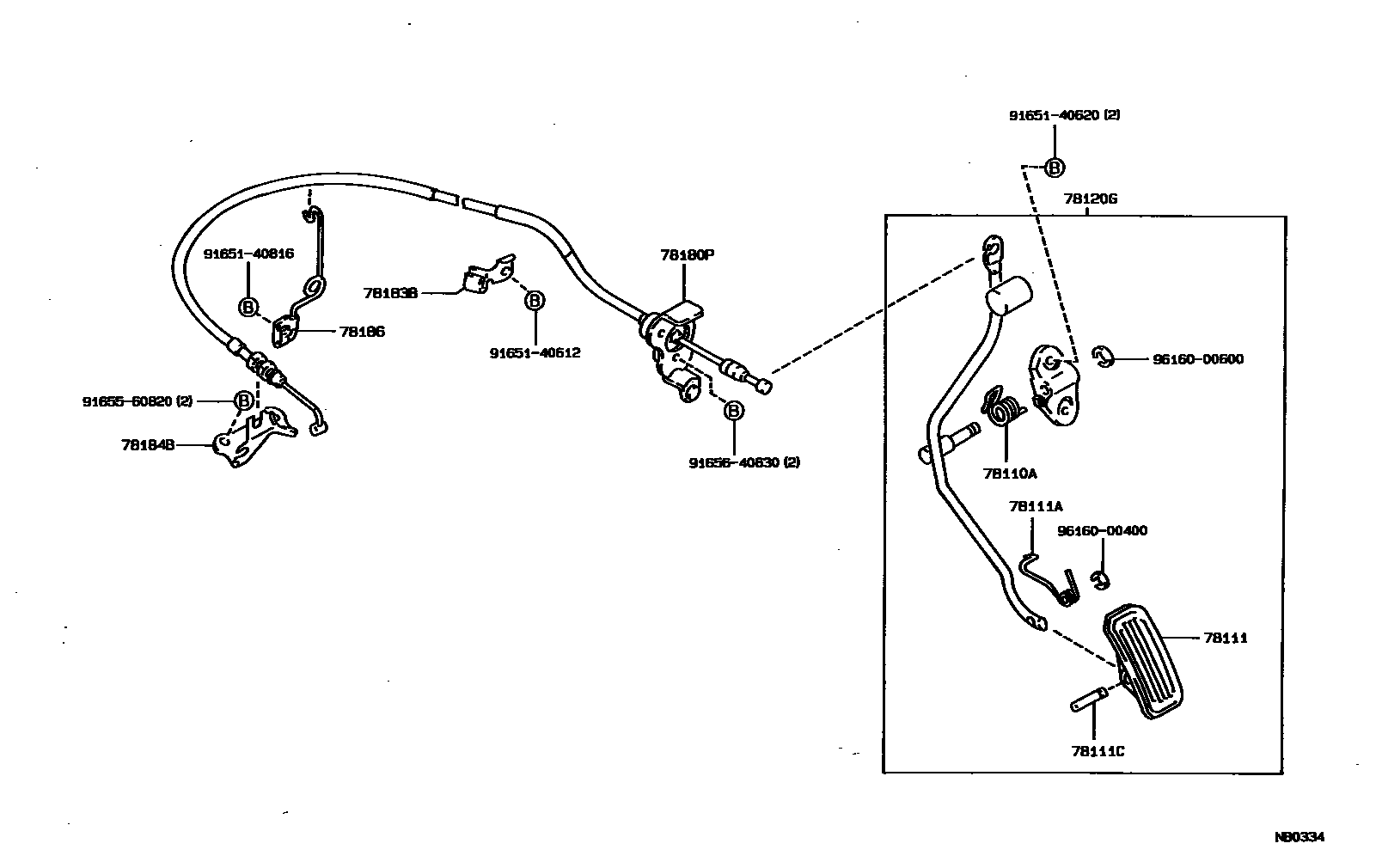

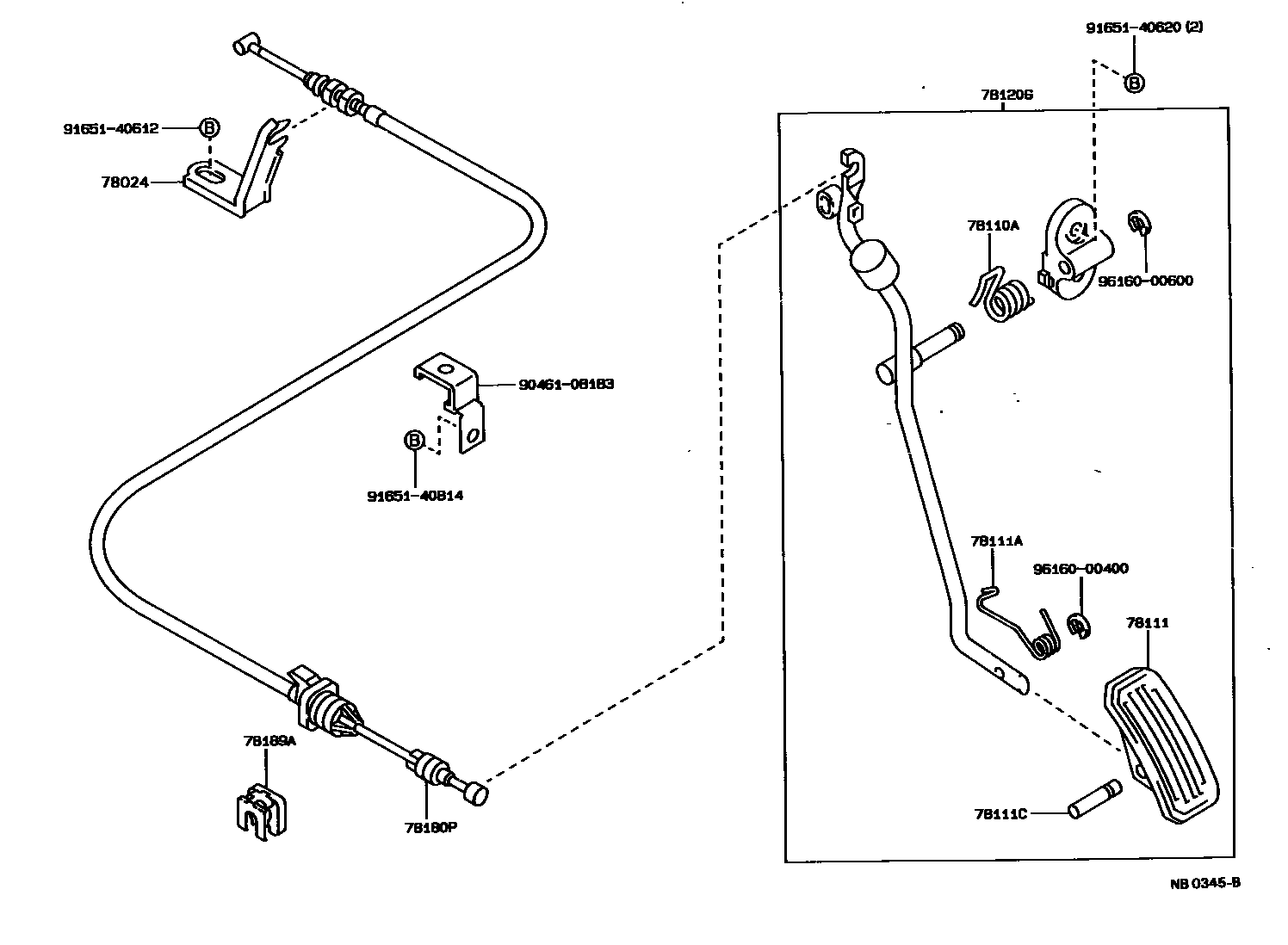

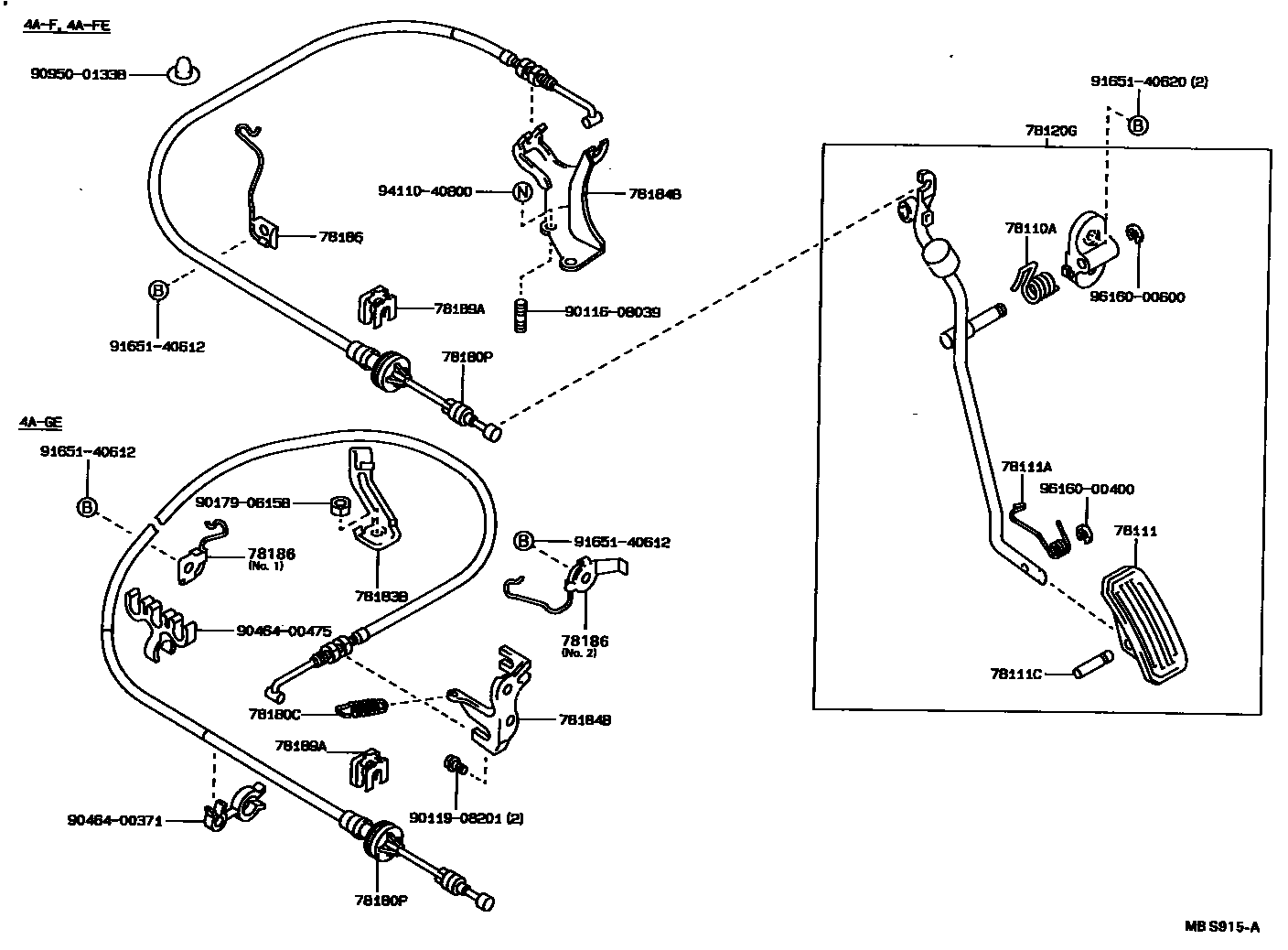

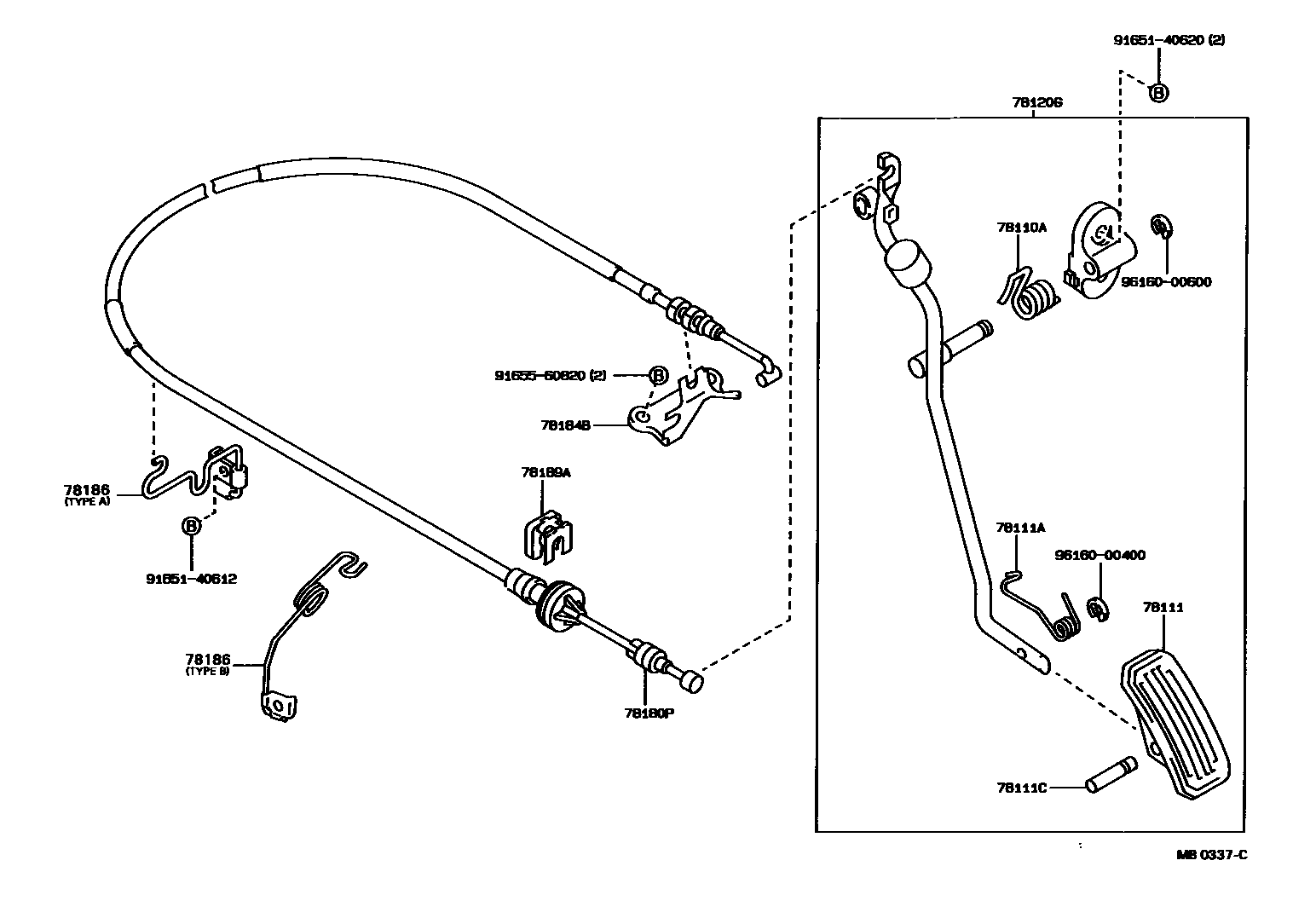

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 6 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78184-12170 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18025 · 90508-18398 · 90508-26036 |
| 78111 | accelerator pedal | 78111-32010 |
| 78111A | Spring (for gas pedal) | 90508-20056 |
| 78111C | pin (for gas pedal) | 90249-05001 |
| 78120G | Accelerator pedal lever assembly | 78120-12070 · 78120-12080 · 78120-12110 · 78120-12120 · 78120-12140 |
| 78180C | Tension spring (for throttle cable) | 90507-10016 |
| 78180P | Accelerator pedal control cable assembly | 78180-12780 · 78180-12781 · 78180-12840 · 78180-12860 · 78180-1A010 · 78180-1A030 · 78180-1A100 · 78180-1A190 · 78180-1A210 · 78180-1A230 · 78180-1A260 · 78180-1A270 · 78180-1A271 · 78180-1A290 · 78180-1A320 · 78180-1A350 · 78180-1A500 · 78180-1A510 |
| 78183B | Accelerator pedal control cable clip | 35524-12050 · 78183-12100 · 78183-12120 |
| 78184B | Throttle pedal control cable bracket | 78024-20110 · 78184-10070 · 78184-12220 · 78184-12230 · 78184-12250 |
| 78185A | No. 2 accelerator pedal control cable clip | 78183-12110 · 78183-12140 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-10050 · 78186-12170 · 78186-12180 · 78186-12190 · 78186-12200 · 78186-12230 · 78186-12240 · 78186-12250 |
| 78189A | No. 2 accelerator pedal control cable bracket | 78189-12030 |
